KT1025B BT301 Bluetooth 5.0 Audio Chip Support U-Disk TF Card SPIFLASH MP3 Decoder BLE SPP UART AT Command Control For Speaker DIY for Audio Receiver
US$ 1
≥1 Piece
Key Specifications
Get Latest Price
Technics:
Thin Film IC
Shape:
Other, QSOP24
Conductive Type:
Bipolar Integrated Circuit
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock AudioUS$ 1MOQ: 1 Piece -
JL Jieli Bluetooth Chip AC6955F4 Stereo Lossless Audio Bluetooth MP3 Decoder Board USB TF Card Player AUX IN/OUT SW IR ControlUS$ 1MOQ: 1 Piece
-
KT1025A Bluetooth Chip BLE 5.0 Audio Voice Chip Solution Supports TF Card USB Disk SPI Flash Playback BLE SPP Transparent Transmission BT201 ModuleUS$ 1MOQ: 1 Piece
-
KT1025A BT301 Bluetooth Audio Chip IC Stereo MP3 Voice Download Module SPI Flash BLE 5.0 Data Transmission Solution AUX FM TF Card U Disk PlaybackUS$ 1MOQ: 1 Piece
-
KT1025B BT201 Bluetooth Aduio Chip TF Card U Disk Voice Playback Recording for Bluetooth Speaker Calling BLE SPP Transmission Multi-Key Control MonoUS$ 1MOQ: 1 Piece
Technics
Thin Film IC
Shape
Other, QSOP24
Conductive Type
Bipolar Integrated Circuit
Integration
VLSI
Porduct Name

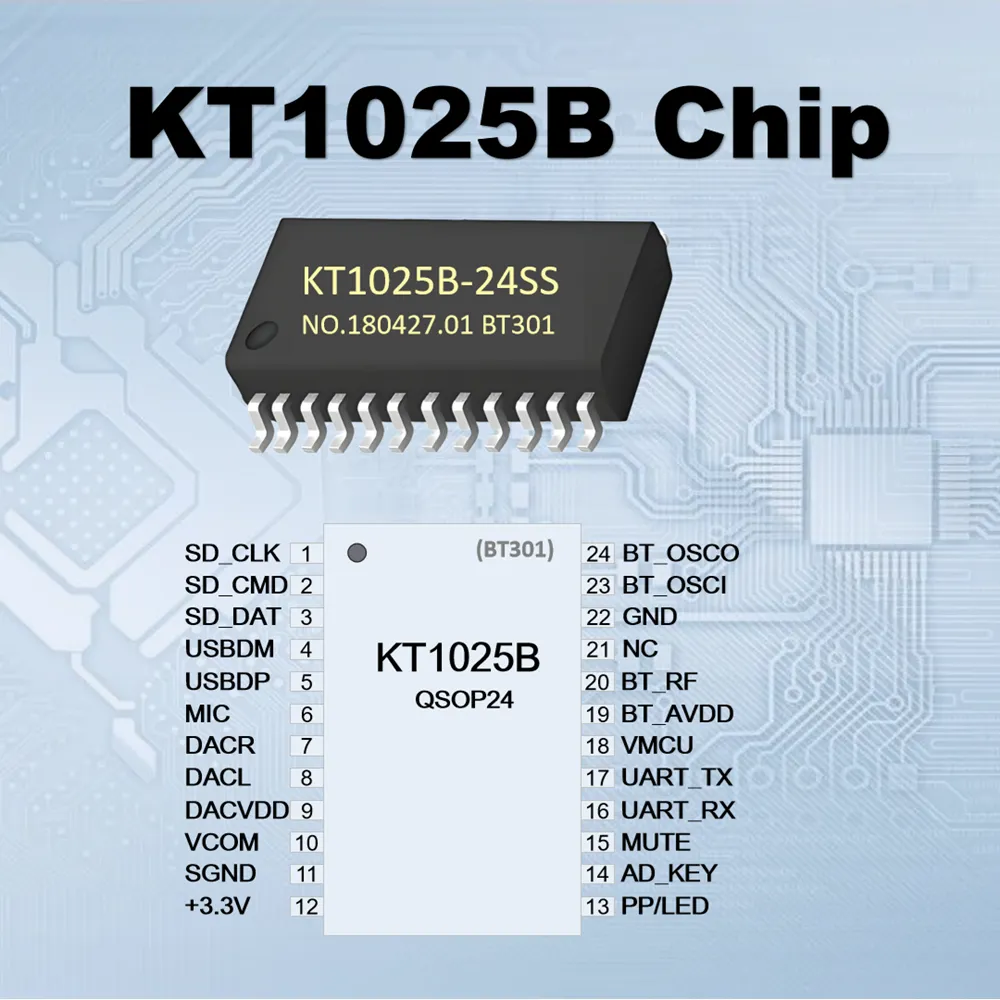

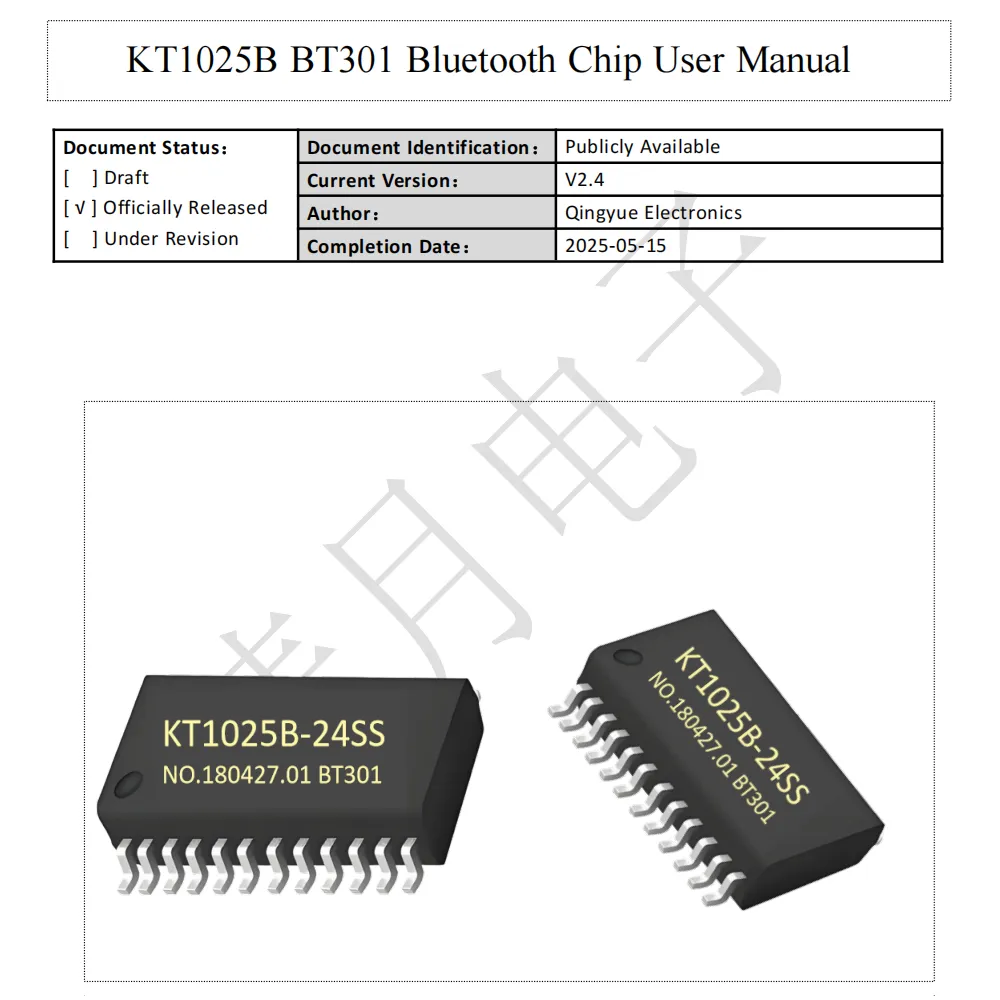

KT1025B BT301 Bluetooth Audio Chip
Model
KT1025B BT301
Delivery Form
Chip or Module
Interface Type
UART Serial Port, AT Command, Bluetooth
Application Scenarios
Bluetooth Audio, Data Transmission, BLE
Transmission Rate
115200 Kbps
Modulation Mode
GSK
Effective Range
15 meters
Supply Voltage
3.3V to 5V
Rated Current
20mA [static] ,Low Power Consum < 0.2mA
Transport Package
50 PCS per tube
Specification
QSOP24
Trademark
Qingyue Electronics
Origin
China

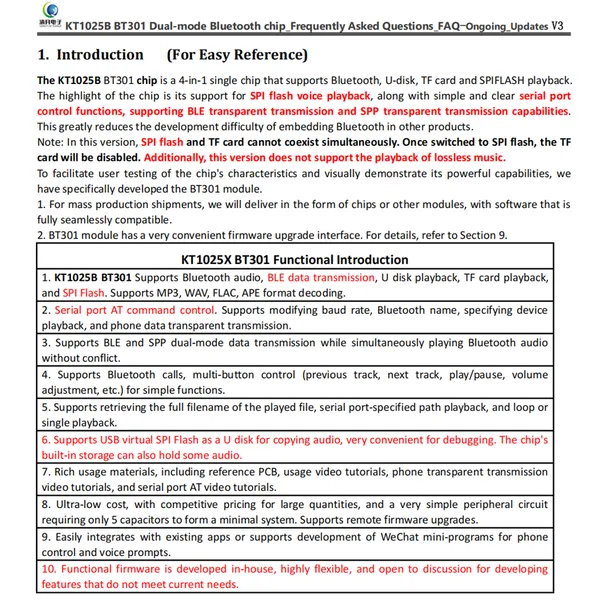

KT1025B BT301 Bluetooth Audio Chip Complete Technical Resources/Documents Download Link：
/drive/folders/1_mL4xjv5tm-YWdQjdjehxlSo9DvZB4x-?usp=drive_link
