We are the leading manufacturer and export of Phosphor Bronze Strips with ASTM and JIS standard, we can supply Phosphor Bronze Strips as follow: Specifications
phosphor Copper strip:
1) Thickness 0.05mm - 4.0mm
2) Alloy brand: C5191, C5210, C5102. C5212 etc
3) Width: 8mm-610mm.
Chemical Composition:
C5191: Cu + Tin + P >97% Tin: 4.0-5.0% P: 0.08%-0.12%,Zn
C5191: Cu + Tin + P >99.5% FeTin: 5.5-7.0% P: 0.1%-0.18%
Temper:
1/2H, 3/4H, H, EH, SH

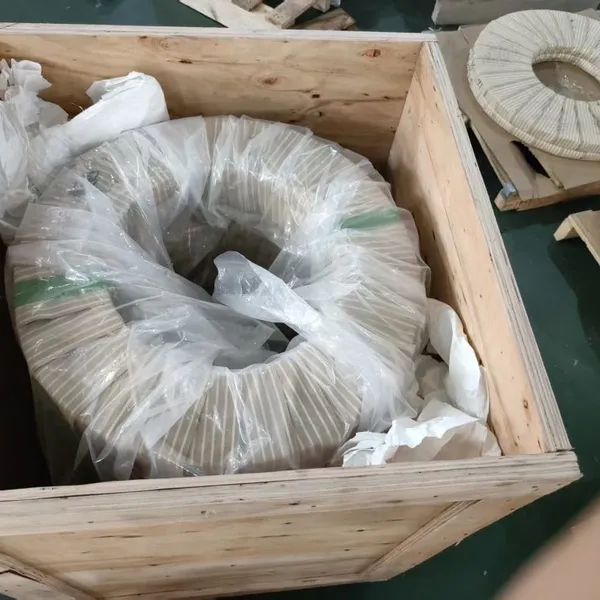

Packaging & Delivery
Packaging Detail: |
Standard export seaworthy package of phosphor bronze strip (or by the customer's request) |
Delivery Detail: |
30 days after received the advanced payment. |
Features of phosphor Copper strip
Good elongation; endurance, and corrosion-resistance; being electroplated well
Type No. |
Alloy No. |
Chemical Composition |
Features&Application |
|||||
Cu+Sn+P |
Fe |
Pb |
Zn |
Sn |
P |
|||
PB |
C5102 |
99.5> |
_ |
_ |
_ |
4.5-5.5 |
0.03-0.35 |
Features:good elongation:Endurance,and corrosion-resistance. |
C5191 |
99.5> |
_ |
_ |
_ |
5.5-7.0 |
0.03-0.35 |
Application:Electronics,Springs,switches,lead frames,connectors,diaphragms,bellows,fuse clips and so on used in electronic machine |
|
C5212 |
99.5> |
_ |
_ |
_ |
7.0-9.0 |
0.03-0.35 |
||
PBS |
C5210 |
99.7> |
0.10 |
0.05 |
0.20 |
7.0-9.0 |
0.03-0.35 |
Features:good elongation:Endurance,and corrosion-resistance. |
Application:Switches,relays,and connectors used in machines of electronics,communication information,and measurement. | ||||||||
Process of phosphor Copper strip
Raw Material → Melting → Horizontal Continuous Casting → Annealing → Milling → Rough Rolling → Side Trimming → Intermediate Rolling → Continuous Annealing & Picking → Intermediate & Finish Rolling → Degreasing → Strips
Applications of phosphor bronze strip
C5191 |
Electronics, springs, switches, lead frames, connectors, diaphragms, bellows, fuse clips, and so on used in electronic machine. |
C5210 |
Switches, relays, and connectors used in machines of electronics, communication, and measurement. |
