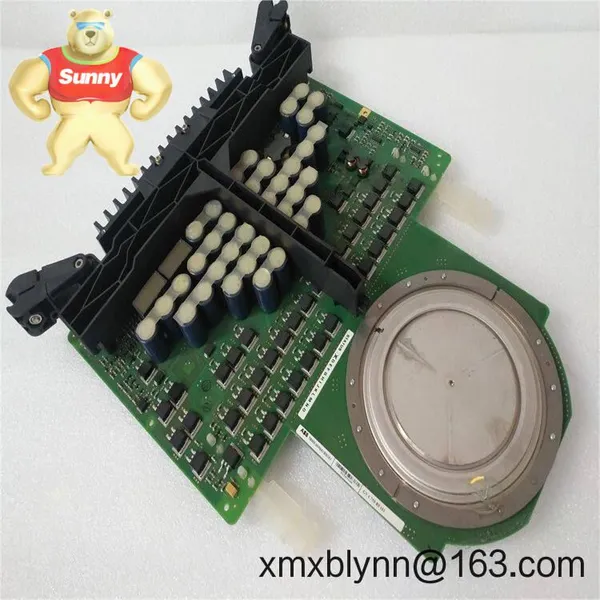

Help CenterABB IGCT 3BHL000385P0101 – High‑power Press‑pack IGCT for Medium‑voltage Drives and Converters
Related Products
-
ABB 5SHX1060H0002 IGCT Gate Unit – Reliable High-current Drive for Medium-voltage Power ConvertersUS$ 9360.00MOQ: 1 Combo -
ABB 5SGY3545L0020 IGCT – Press-pack Power Switch for Medium-voltage Drives and ConvertersUS$ 3360.00MOQ: 1 Combo
-
ABB 5SHY3545L0012 IGCT – High-power Press-pack Device for Medium-voltage Converters and Grid ApplicationsUS$ 3360.00MOQ: 1 Combo
-
ABB 5SHY4045L0002 IGCT – High‑power Press‑pack Device for Medium‑voltage Drives and ConvertersUS$ 3360.00MOQ: 1 Combo
-
ABB 5SHX1960L0005 IGCT Gate Unit – Reliable, Fast Switching Control for Medium-voltage Power ConvertersUS$ 3360.00MOQ: 1 Combo
Warranty: 365 days
Delivery: 1 week if in stock; no more than one month at the latest
Payment terms: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Press‑pack reliability – Metal‑ceramic, pressure‑contact design avoids bond‑wire fatigue and typically handles thermal cycling better in MV duty.
Fast, efficient switching – IGCT architecture allows low conduction and switching losses compared to classic thyristors in high‑power converters.
High surge and SOA robustness – Suited to demanding starts and grid events; commonly used where ride‑through matters.
Gate unit integration – Works with ABB gate units that provide the high‑current drive and fiber‑optic triggering, simplifying system control.
Service-friendly – Drop‑in replacement in many ABB MV drive frames; reduces downtime compared with redesigning power stacks.
Traceable sourcing – Genuine ABB part number 3BHL000385P0101 for maintenance standardization and documentation.
| Brand / Model | ABB IGCT 3BHL000385P0101 |
| Product Category | Integrated Gate‑Commutated Thyristor (IGCT), press‑pack semiconductor |
| HS Code | 8541.30 (Thyristors, diacs and triacs, other than photosensitive) |
| Power Requirements | Device is passive; operation requires a compatible ABB gate unit (gate unit supply is typically 24 VDC) |
| Operating Temperature | Cabinet ambient commonly -25 to +40 °C in MV drives; device junction ratings in this family typically up to 125 °C |
| Signal I/O Types | Main terminals: Anode (A), Cathode (K); Control: Gate (G) to Cathode (K) via gate unit |
| Communication Interfaces | At the device level: none; gate unit typically uses fiber‑optic triggering from the drive control |
| Installation Method | Press‑pack clamping between heat sinks to specified axial force; integrate with ABB gate unit assembly per drive manual |
| Cooling | Forced‑air or liquid‑cooled heat sink, depending on converter design |
| Compliance | RoHS compliant in most cases; manufactured under ISO 9001 quality systems |
This part is commonly used in:
Medium‑voltage VSDs for pumps, fans, compressors in oil & gas, mining, steel, and cement
High‑power rectifiers/inverters for large test benches and grid‑connected converters
FACTS equipment (SVC/STATCOM) where fast switching and ruggedness are beneficial
Marine propulsion and large rolling mill drives that run heavy cyclic loads
One maintenance lead at a cement plant told us they swapped a set of IGCTs during a planned outage and saw intermittent over‑current trips disappear, which lines up with what we typically see when aging press‑packs are replaced as a set.
Reliability under stress – Press‑pack devices usually fail short and are easier to detect, supporting safer protection schemes.
Compatibility – Designed for ABB MV drive stacks using IGCT technology, reducing retrofit risk and engineering time.
Cost control – Replacing the device within the stack can be more economical than a full power module or converter swap.
Technical backing – Clear installation guidance and known behaviors in ABB platforms make commissioning straightforward in many cases.
Environment – Mount in a sealed MV cabinet with adequate ventilation or liquid cooling; keep dust and conductive particles away from the pressure contacts.
Clamping – Use a calibrated clamping system and follow ABB’s axial force specification; verify heat‑sink flatness and surface finish.
Thermal interface – Apply a thin, uniform layer of approved thermal compound on both sides; avoid over‑application.
Wiring & gate unit – Connect Anode/Cathode with low‑inductance busbars; attach the gate unit per ABB instructions. Fiber‑optic links (if present on the GU) should be clean and strain‑relieved.
Safety – De‑energize and discharge DC link capacitors; use HV PPE and ESD protection; never power up with an unclamped device.
Routine maintenance – During outages, check clamping force, re‑torque fasteners, clean heat sinks/filters, and verify cooling fans or coolant flow. Gate unit firmware/configuration should be reviewed and updated when recommended.
Replacement practice – In many cases, replacing IGCTs as a set within the same phase leg maintains balance and reduces recurrence of faults.
Manufactured under ISO 9001 quality systems; device-level RoHS conformity is typical for modern ABB IGCTs
Traceable ABB part number: 3BHL000385P0101
Standard warranty: 365 days (supplied by us)
If you’re matching this IGCT to an existing drive stack, you might notice that the fastest way to verify fit is checking the original stack bill of materials and the gate unit pairing. Share a photo of the nameplate or BOM if you’d like us to double‑check compatibility before you place the order.
