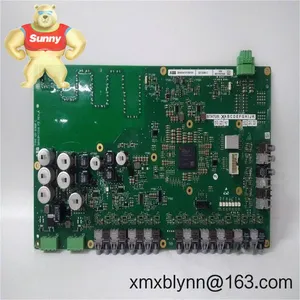

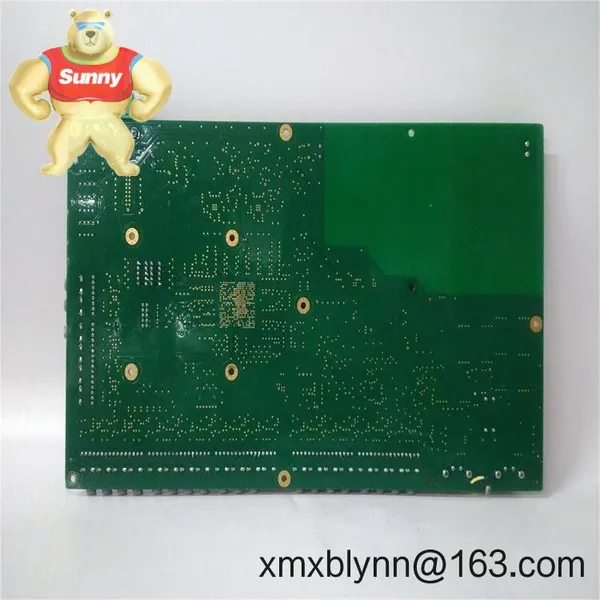

Help CenterABB GDD360C (3BHE047217R0101) – Gate Driver Board for IGCT Power Stacks in Medium-Voltage Drives
Related Products
-
ABB GFD212A (GF D212A) 3BHE020356R0101 – Gate Firing / Drive Interface Board for ABB Industrial & Medium-Voltage ConvertersUS$ 1360.00MOQ: 1 Combo -
ABB GFD563A102 (3BHE046836R0102) – Control/Driver Board for ABB Excitation and Drive CabinetsUS$ 1360.00MOQ: 1 Combo
-
ABB GFD563A101 (3BHE046836R0101) – Control/Interface Board for ABB Industrial Drive & Excitation CabinetsUS$ 1360.00MOQ: 1 Combo
-
ABB 81EU01E-E (GJR2391500R1210 / GJR2391511R42) – INFI 90 System Module for Bailey DCS RacksUS$ 4360.00MOQ: 1 Combo
-
ABB GFD233A (3BHE022294R0101) – Gate Firing/Driver Board for Medium-Voltage Drive Power StagesUS$ 8360.00MOQ: 1 Combo
Warranty: 365 days coverage
Lead time: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment, balance before delivery
Shipment: FedEx, UPS, DHL express options
Condition: Professionally inspected and tested to OEM functional standards
Packaging: ESD-safe, shock‑absorbent packing suitable for export
Fiber‑optic command interface – Immune to electrical noise; simplifies long-distance routing inside MV drive cubicles.
IGCT-optimized gating – Supports fast, reliable turn-on and controlled soft turn-off to reduce device stress.
Undervoltage lockout – Inhibits firing if auxiliary supply dips below threshold, protecting the power device.
Status and interlock feedback – “Ready/Not Ready” and fault signaling back to the controller for safe coordination.
Galvanic isolation – Optical command path and segregated power domains enhance personnel and equipment safety.
Fit-for-service spare – Drop-in replacement for the GDD360C part code 3BHE047217R0101 in compatible ABB stacks.
| Brand / Model | ABB GDD360C (GD D360C) – Part No. 3BHE047217R0101 |
| HS Code | 8504.90 (Parts of static converters) |
| Power Requirements | 24 VDC auxiliary supply (typical for logic and driver circuits) |
| Operating Temperature | Typically 0…55°C within a ventilated control cabinet |
| Signal Input / Output Types | Fiber‑optic trigger Rx/Tx; 24 V-level ready/fault/interlock lines (varies by installation) |
| Communication Interfaces | Optical links for firing and status feedback; isolated low‑voltage I/O |
| Installation Method | Panel/stack-mounted with standoffs; fiber routing to controller; 24 VDC auxiliary wiring |
The GDD360C is commonly deployed in:
Medium-voltage drives (e.g., ACS-series MV drives using IGCT power cells)
High-power converters in metals, mining, cement, oil & gas, and marine propulsion
Large test benches and grid-connected converters that require fiber‑optic gating
You might notice that facilities running 24/7—steel rolling lines or mine hoists, for example—treat gate drivers as strategic spares. A quick board swap can restore interlocks and clear “gate not ready” or “fiber link fault” alarms without touching the power stack.
Reliability – ABB gate drivers are proven in harsh, electrically noisy MV environments.
Compatibility – Designed for IGCT stacks with optical triggering; minimizes rework during replacements.
Downtime reduction – Keep one on the shelf; swap times are typically under a shift with standard lockout/tagout.
Cost control – Extends the service life of existing MV drives; avoids premature stack replacements.
Technical support – Guidance on wiring checks, fiber polarity, and power-up tests to shorten commissioning time.
Environment – Install in a clean, ventilated cabinet. Maintain adequate creepage/clearance from HV parts.
Wiring – Use ESD protection. Verify 24 VDC polarity and grounding. Route fiber‑optic Rx/Tx per markings; reverse pairing can block firing.
Checks before energizing – Confirm all standoffs are tight, connectors latched, and no debris under the board. Inspect fibers for bends and end-face contamination.
Safety – Follow lockout/tagout; discharge DC link; wait for MV stack to reach safe voltage before handling.
Routine care – Quarterly visual inspection, gentle dust removal with dry air, connector reseat if alarms recur. No user firmware in most cases; configuration typically via jumpers per ABB documentation.
Commissioning tip – If “not ready” persists, measure auxiliary supply ripple and verify fiber signal integrity with a simple loopback where supported.
Manufactured under ABB quality systems (ISO 9001)
CE compliant; RoHS conformity typically applicable to relevant revisions
Functional testing prior to dispatch; 365‑day warranty coverage
Traceable part number: 3BHE047217R0101
