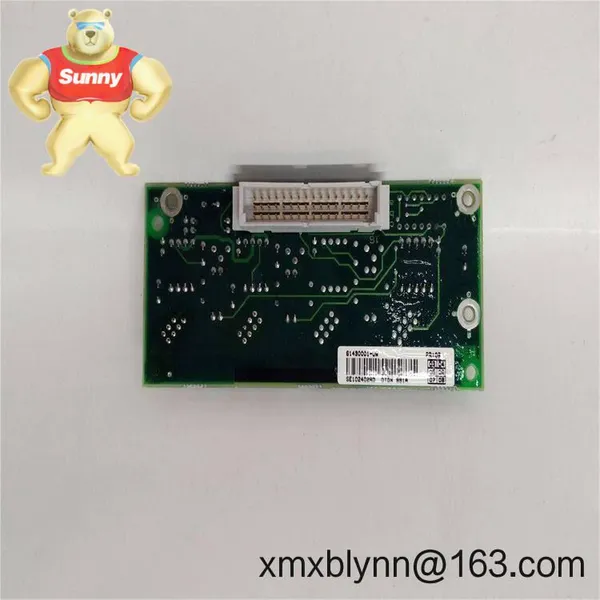

Help CenterABB DTDX991A (61430001-UW) – Digital I/O Termination Unit for Bailey INFI 90 / NET 90 Cabinets
Related Products
-
ABB DTCC901B (61430001-FU) – Communication Controller Module for Advant/MB300 NetworksUS$ 1360.00MOQ: 1 Combo -
ABB DYSF118B (61430001-XG) – Control Interface Board for Installed ABB Drive/DCS PlatformsUS$ 2360.00MOQ: 1 Combo
-
ABB DYPS154C (61430001-YP) – Compact Power Supply Board for ABB Drive & Control RacksUS$ 2360.00MOQ: 1 Combo
-
ABB DYTP123A (61430001-TW) Touch Panel – Replacement HMI Front Module for ABB Operator TerminalsUS$ 2360.00MOQ: 1 Combo
-
ABB DYTP600A (61430001-ZY) Touch Panel HMI – Reliable 6-inch Operator Interface for Machine and Process ControlUS$ 2360.00MOQ: 1 Combo
Warranty period: 365 days
Delivery time: 1 week if in stock, no more than one month at the latest
Payment: 50% advance payment; full payment before delivery
Express delivery options: FedEx, UPS, DHL
Dedicated INFI 90 / NET 90 termination – Provides a compatible field-wiring interface to ABB Bailey digital I/O modules, reducing marshalling time.
Screw-terminal field side – Secure, clearly labeled terminal rows simplify installation and later maintenance checks.
Ribbon/plug-in header to system – Typically mates to the I/O card/cable set, helping prevent pinout errors and speeding replacements.
Conformal-coated variant (UW) – Usually better suited for cabinets with higher humidity or airborne dust.
Service-friendly layout – Room for wire markers and channel notes; technicians can trace channels quickly during commissioning.
Drop-in replacement – Fits standard marshalling practice in legacy ABB Bailey cabinets; no retraining for maintenance teams.
| Brand / Model | ABB DTDX991A |
| Part Number | 61430001-UW |
| System Compatibility | ABB Bailey INFI 90 / NET 90 digital I/O marshalling (termination board) |
| HS Code | 8538.90 (Parts for switching/protection apparatus) |
| Power Requirements | None (passive termination board) |
| Operating Temperature | Typically 0 to 60°C; 5–95% RH non-condensing (cabinet environment) |
| Signal I/O Types | Discrete (digital) field channels via screw terminals; system-side ribbon/plug connector |
| Communication Interfaces | Not applicable (termination only; no protocol processing) |
| Installation Method | Panel/cabinet mounting in marshalling area; connects to I/O module cable set |
Plants running ABB Bailey INFI 90 / NET 90 platforms—power generation, oil & gas, petrochem, pulp & paper, metals, water & wastewater—typically use the DTDX991A to terminate digital signals neatly in the cabinet. It’s especially handy for brownfield upgrades or card-for-card replacements where you want to keep the existing wiring plan and minimize downtime.
One thing I appreciate is how it keeps retrofit projects predictable: technicians can map legacy channel numbers straight across, avoiding middle-of-the-night rewires. A maintenance lead at a combined-cycle site told us, “Swapping the termination board with DTDX991A took under an hour; loop checks were the longer part, not the hardware.”
Reliability – Robust terminals and coated board (UW variant) help withstand cabinet environments in most cases.
Compatibility – Designed for ABB Bailey digital I/O marshalling; works with typical INFI 90 cabinet practices.
Cost & Time Savings – Keeps existing wiring topology; reduces fat-finger errors and rework during outages.
Supportability – Simple, passive hardware that’s easy to trace and replace; spares strategy is straightforward.
Cabinet environment – Mount in a dry, ventilated cabinet; avoid direct moisture or corrosive gases. Keep ambient within typical 0–60°C.
Wiring – Use correctly sized ferrules; torque terminal screws per standard practice; separate high-voltage from low-level signal wiring where applicable.
Shielding & grounding – Land shields at designated earth points; avoid ground loops by following site grounding rules.
Cable mating – Ensure ribbon/plug orientation matches the I/O card pinout; verify with the cabinet wiring diagram before power-up.
Routine checks – Periodically re-torque terminals, inspect for dust build-up, and confirm channel labels match the as-built drawings.
Manufacturer quality system: ABB production typically aligned to ISO 9001 processes
Compliance: CE marking is common for related ABB assemblies; UL recognition may apply at component level (varies by batch and region)
RoHS status: May depend on production vintage for legacy Bailey parts; we can verify by part/lot on request
Warranty: 365 days (advance replacement/support available depending on stock)
