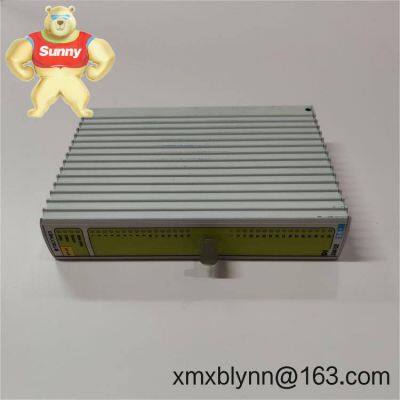

TRICONEX AO3481 – Safety-Critical Analog Output Module for Tricon Systems

You’ll mainly see the AO3481 driving analog final elements in safety and critical control loops. It’s common in:

• Oil & Gas – ESD valves, burner management fuel flow control, compressor antisurge interfaces

• Petrochemical & Refining – FGS dampers, flare controls, tank farm level/flow control outputs

• Power Generation – Turbine controls, balance-of-plant actuators where deterministic response matters

• Pharma & Specialty Chemicals – Safety interlocks and environmental systems needing validated analog output

• Mining & Metals – High-availability actuator commands in hazardous areas (with proper field device classification)

• Reliability in TMR – Designed for the Tricon safety platform, which is known for low spurious trip rates and predictable diagnostics.

• Lifecycle continuity – Seamless fit with existing Tricon panels and termination assemblies, so no rewiring headaches in most upgrades.

• Maintenance-friendly – Hot-swap plus clear fault LEDs means faster MTTR; technicians typically spend less time troubleshooting loops.

• Total cost control – Compatible spares strategy and long product support windows help reduce unplanned outages and inventory costs.

• Support & tools – Works with TriStation engineering tools your team already uses; less re-training, fewer surprises.

A maintenance lead at a Gulf Coast refinery told us, “Swapping an AO3481 during a hot cutover was boring—in a good way. The loop came back clean without chasing grounds.”

• Cabinet & environment – Mount in a Tricon chassis inside a ventilated, low-dust enclosure. Keep ambient 0–60°C and humidity within system spec.

• Wiring – Use shielded twisted pair for current loops. Land field wires on the designated termination assembly; separate from high-voltage runs.

• Loop design – The module typically sources 4–20 mA; confirm load resistance and loop power budget. Verify fail-safe output behavior in TriStation.

• Hot-swap – Module replacement can be done online; follow site MOC, lockout/tagout, and system procedures to avoid nuisance trips.

• Routine checks – Periodic loop calibration and proof testing per SIL plan. Keep firmware alignment with validated versions; document any updates.

• Grounding – Maintain single-point grounding for shields; avoid ground loops that can distort current measurements.

• Part of the Tricon safety system, certified to IEC 61508 up to SIL3 by TÜV (system-level; module used per certified configuration)

• CE and UL compliance for industrial control equipment (typical for Triconex hardware)

• RoHS conformity may apply depending on production date and region—many installations treat it as standard

• Manufacturer warranty: typically 12 months; extended service and spares programs available

• Tricon chassis and redundant power modules (for fault-tolerant backplane power)

• Dedicated AO termination assemblies and I/O cables (clean field wiring and easy loop isolation)

• TriStation 1131 engineering workstation (configuration, diagnostics, and proof-test support)

• Shielded twisted-pair cabling, intrinsically safe barriers or isolators where hazardous area classification requires

If you’re aligning spares with an existing Tricon install, share your current chassis layout and termination type. We’ll double-check AO3481 compatibility and match any revision constraints so it lands smoothly in your panel on day one.
