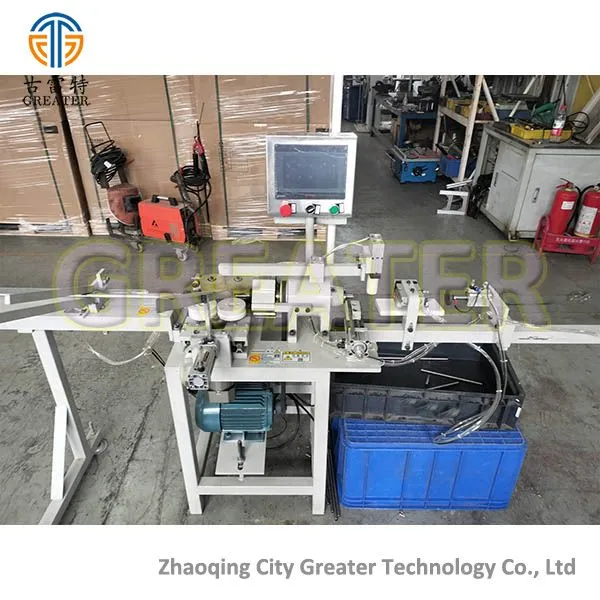

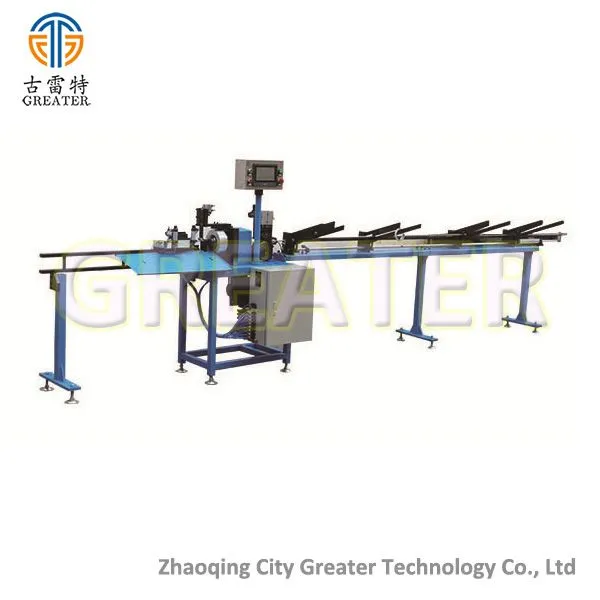

Fully automatic feeding and cutting tube machine adopts the structure of manual loading ,automatic feeding and automatic cutting. It is a special equipment to cut the tubes in a fixed length for heating elements.
The machine is controlled by PLC and operated by man-machine interface, and one person can operate multiple equipments in same time. It has the advantages of improving production efficiency and reducing production cost. Full-Auto Cutting Machine suitable for copper pipes, iron pipes, stainless steel pipes, aluminum pipes, etc.
Pipe cutting machines is cut the empty pipes according to the lenght need for tubular heaters, there are manual pipe cutting machine and auto pipe cutting machine in Greater heater machinery .
Item No.:GT-ACT29
Air Supply: 5～7KG/cm2
Motor Power: 0.75KW/1400rpm
★Description
Auto tube cutting machine use to cut tubes for heating elements autocratically.Mainly for heater production in large production. Suitable for copper pipes, iron pipes, stainless steel pipes, aluminum pipes, etc.
★Main details
1. Auto feeding, cutting, pipe breaking, and auto unload tubes.
2. Can cut two different length.
3. Only need to manual put the tubes on the rack, and take the finished cut tubes. One person can take care of several machines.

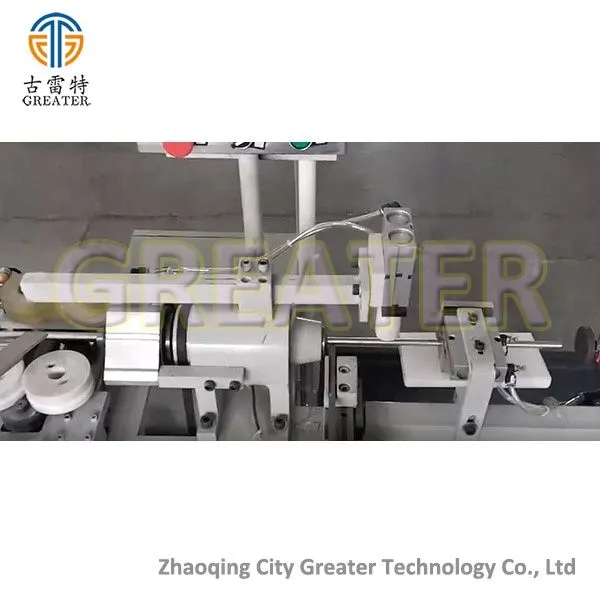

4. Quality pneumatic rotary chuck, to clamp the tube more stable.
5. With touch screen, easy operation.
6. Actions are controlled by time, easy to operate and less failure.
7. Tubes with few burrs after cutting.
According to different diameters, manual pipe cutting machine there are 2 styles:
GTCT15 pipe cutting machine - suitable for diameter between Φ5-15mm;
GTCT-30 pipe cutting machine - suitable for diameter betwen Φ5-30mm;
Main models and technical parameters:
model |
Recommend diameter/length |
productivity |
Feeding speed |
power |
air supply |
size |
weight |
GT-ACT29 |
Ф6-15mm; 4500 or 6000mm |
5000-10000pcs/8h |
Max 100m/min (can be adjustable) |
380V/50Hz/ 0.7Kw |
0.5-0.7Mpa |
8600*800*14500mm |
400Kg |
|
GT-CT15 GT-CT30 |
Ф5-15mm; Ф5-30mm; Length no limit |
5000-10000pcs/8h |
/ |
380V/50HZ/ 0.75KW |
0.5-0.7Mpa |
800*600*800mm |
180KG |
