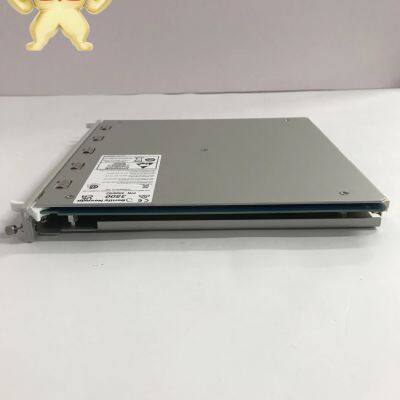

Bently Nevada 3500/S1-02 Vibration Monitoring Module – Rack-Mounted Machinery Protection

The Bently Nevada 3500/S1-02 is positioned as a vibration monitoring module for the 3500 rack, built for continuous machinery protection and plantwide condition monitoring. It integrates with the 3500 platform to acquire dynamic signals from proximity probes and seismic sensors, process alarms in real time, and publish data to your control or historian system. From my experience, it’s typically chosen when plants want proven protection logic with simple lifecycle maintenance.

• 3500 rack integration – Installs directly into the 3500 backplane and works with existing power supply, relay, and communications modules; no external power needed.

• Multi-channel vibration inputs – Supports multiple dynamic channels (typically up to 4) for proximity, velocity, or accelerometer-based measurements; ideal for shafts, bearings, and casings.

• Real-time alarm processing – Configurable Alert/Danger setpoints with voting options through system relays; tuned for rapid trip decisions on critical assets.

• Buffered transducer outputs – Convenient buffered signals at the rack for portable analyzers and diagnostic work without disturbing the process.

• Data connectivity via 3500/22M – Exposes measurements and statuses to plant systems through the Communications Gateway (e.g., Modbus TCP), simplifying historian and DCS integration.

• Broad transducer ecosystem – Works with Bently Nevada 3300/3300 XL proximity probes, Velomitor velocity sensors, and compatible seismic/IEPE setups, which helps with spares commonality.

• Configuration flexibility – Parameters set with 3500 Configuration Software; you can standardize alarm philosophy and channel naming across assets.

•


This module is well-suited for turbomachinery and balance-of-plant assets where continuous protection is non-negotiable. Typical deployments include:

• Compressors and steam/gas turbines – shaft vibration, phase reference, and bearing condition trending

• Critical pumps and fans – casing vibration and bearing health to avoid cavitation or rub-induced failures

• Gearboxes and motors – early fault indication using velocity/acceleration measurements

• Oil & gas, petrochemical, power generation, metals & mining, and pulp & paper – where API/plant practice typically mandates continuous monitoring

•


A maintenance lead at a refinery summed it up nicely: “Once we standardized our 3500 racks, spares and alarm logic got much easier—we just swap the card, load the config, and go.”

• Reliability – Built on the long-running 3500 platform; alarm logic is deterministic and geared for trip reliability.

• Compatibility – Works with a broad range of Bently Nevada probes and rack options, so you preserve your installed base.

• Lifecycle cost savings – Common spares and unified configuration reduce training and inventory overhead in most cases.

• Data availability – Measurements are accessible to DCS/Historian via the Communications Gateway, helping operations and reliability teams act faster.

• Scalable protection – Add relays, 4–20 mA interfaces, and advanced comms as the unit or plant’s needs evolve.

•


• Cabinet/rack – Install in a Bently Nevada 3500 19-inch rack with adequate ventilation; follow the rack slot map and grounding practices.

• Wiring – Use shielded cables for dynamic inputs; route probe cables away from high-voltage runs; terminate shields per site standard to minimize noise.

• Configuration – Set channel types, transducer constants, and Alert/Danger setpoints with 3500 Configuration Software; verify alarm voting with system relays.

• Commissioning – Check OK status, buffered output signal quality, and phase reference (if used). It seems to be best practice to validate alarms against known baselines.

• Routine care – Periodic visual inspection of terminals, connector tightness, and cleaning of dust. Keep firmware/software revisions aligned with site policy.

• Safety – Only qualified personnel should work in energized panels. Observe hazardous-area rules where applicable.

•


• Typically supplied with CE and UL/cUL conformity; RoHS compliance common for the 3500 platform

• Hazardous-area approvals (e.g., ATEX/IECEx) may apply at the system/probe level; confirm against your exact option string

• Standard manufacturer’s warranty: typically 1 year from shipment, extendable by agreement

If you’re matching an installed rack, you might notice that option strings govern channel count, sensor type, and I/O. Share the existing BOM or a photo of the rack nameplate, and I’ll help validate 3500/S1-02 compatibility with your probes, 3500/22M gateway settings, and relay strategy.
