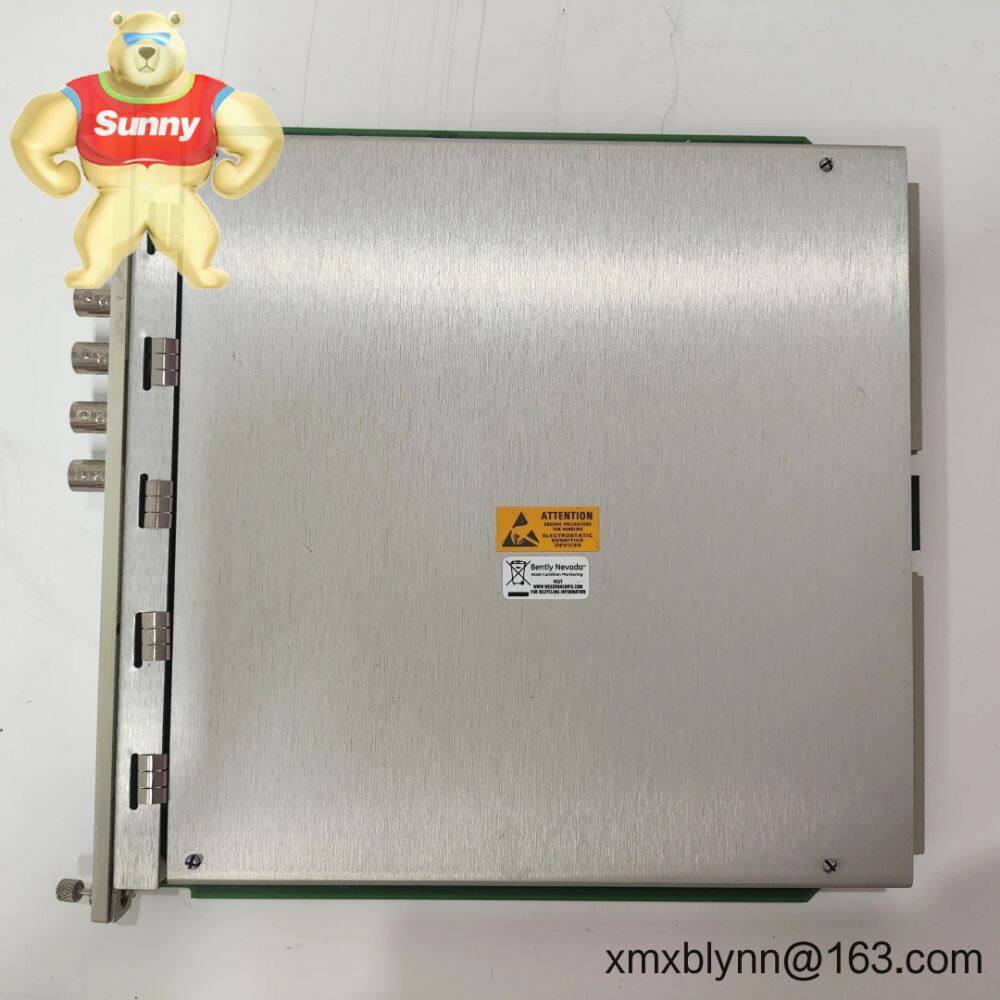

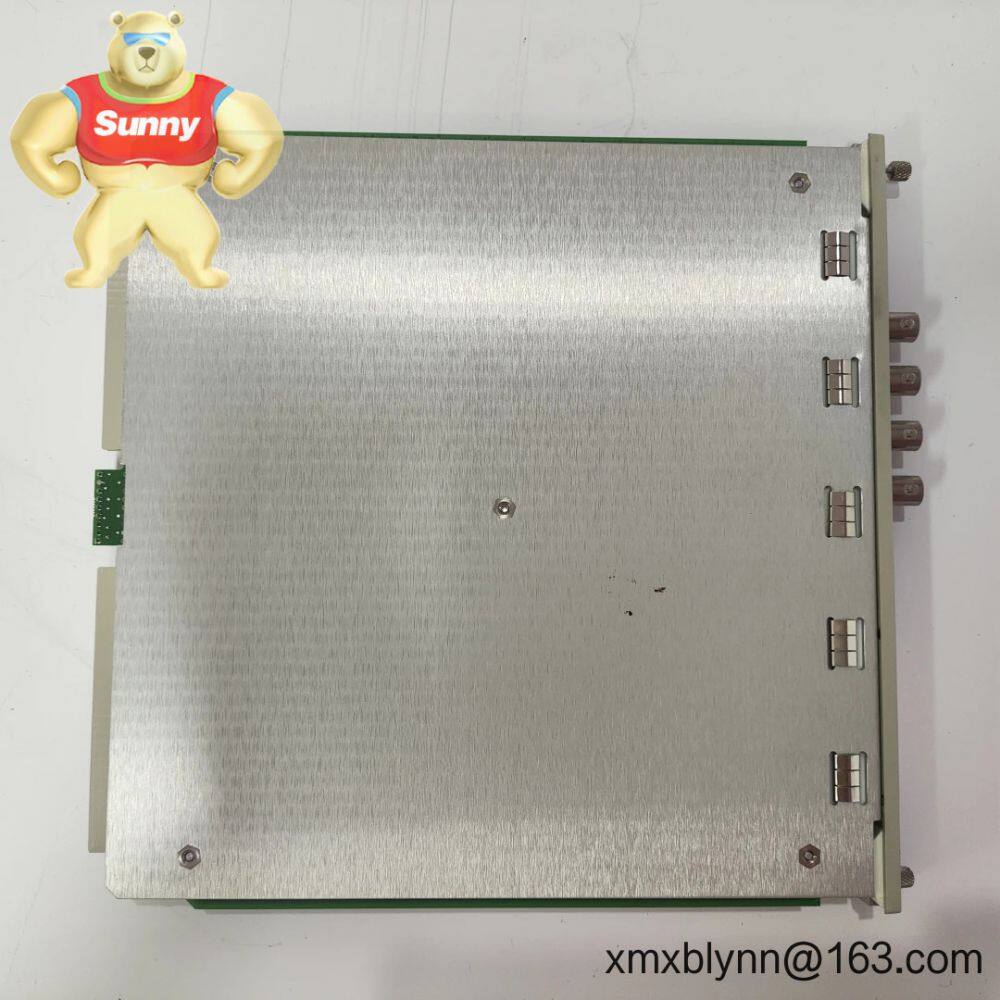

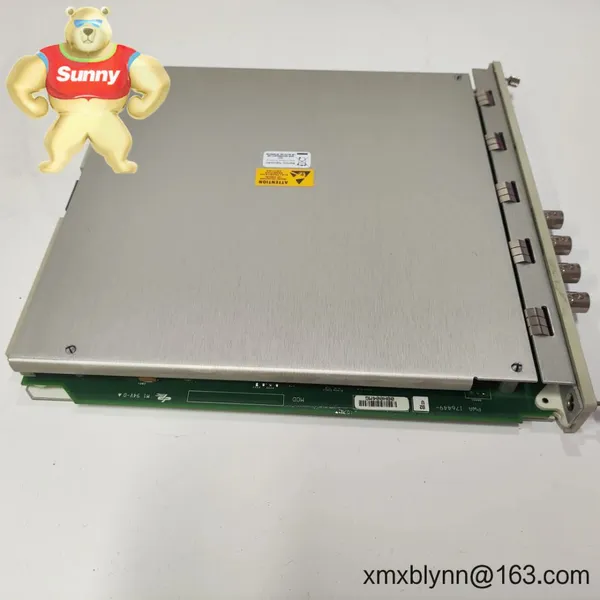

Bently Nevada 3500/42-01-01 – 4‑Channel Proximitor/Seismic Monitor for Critical Machinery Protection

The Bently Nevada 3500/42-01-01 is a 4‑channel monitor designed for the 3500 rack to protect and trend vibration and position on rotating assets. It accepts proximity probes and seismic transducers, applies industry‑standard alert/danger setpoints, and drives alarms to the rack’s relay modules.    In many cases, it’s the go‑to card when you need reliable radial vibration, thrust position, or casing vibration measurements tied into System 1 via the 3500/22M.

• 4-channel versatile monitoring: Configure channels for radial vibration (X/Y), axial/thrust position, casing velocity/acceleration, or shaft eccentricity as required.

• Proximitor and seismic inputs: Works with Bently Nevada 3300/3300 XL proximity systems and common seismic transducers (velocity or IEPE accelerometers), making retrofits straightforward.

• Alert/Danger protection logic: Dual setpoints per channel with latching/annunciation behavior that ties into the rack relay module for orderly trips.

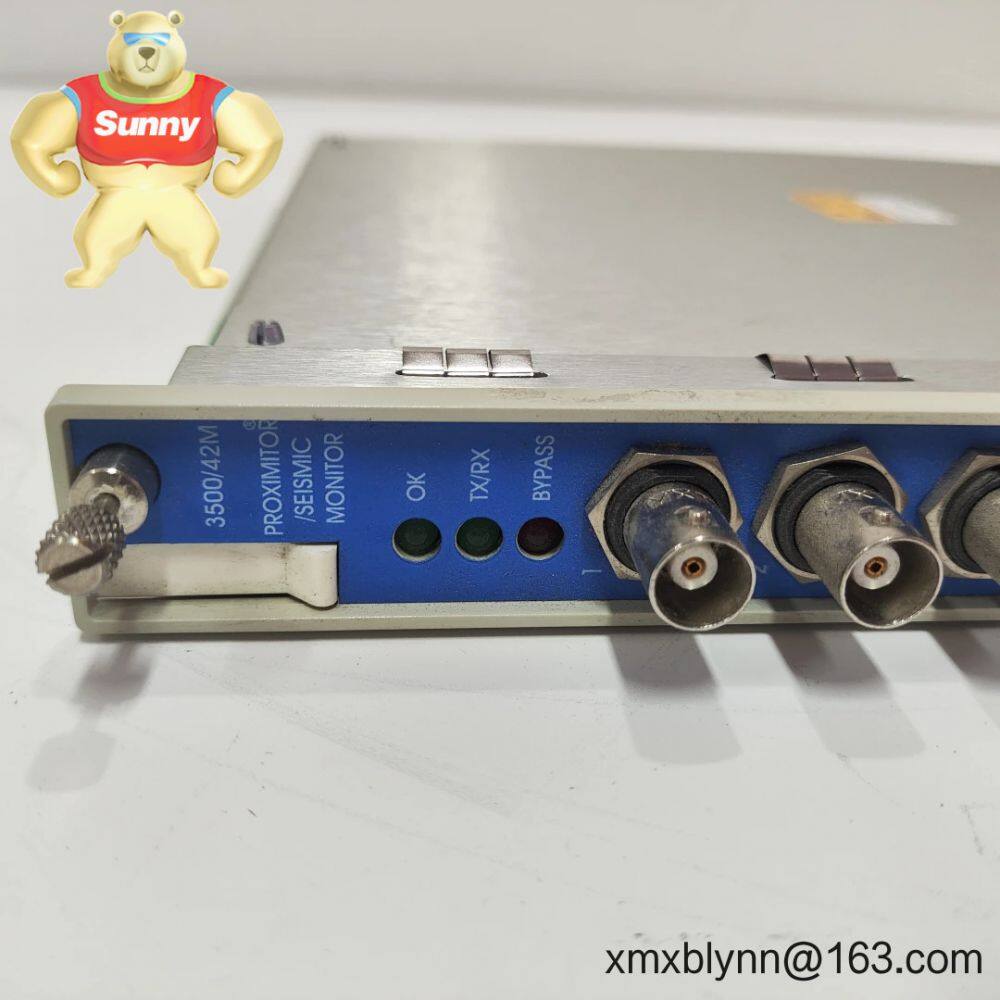

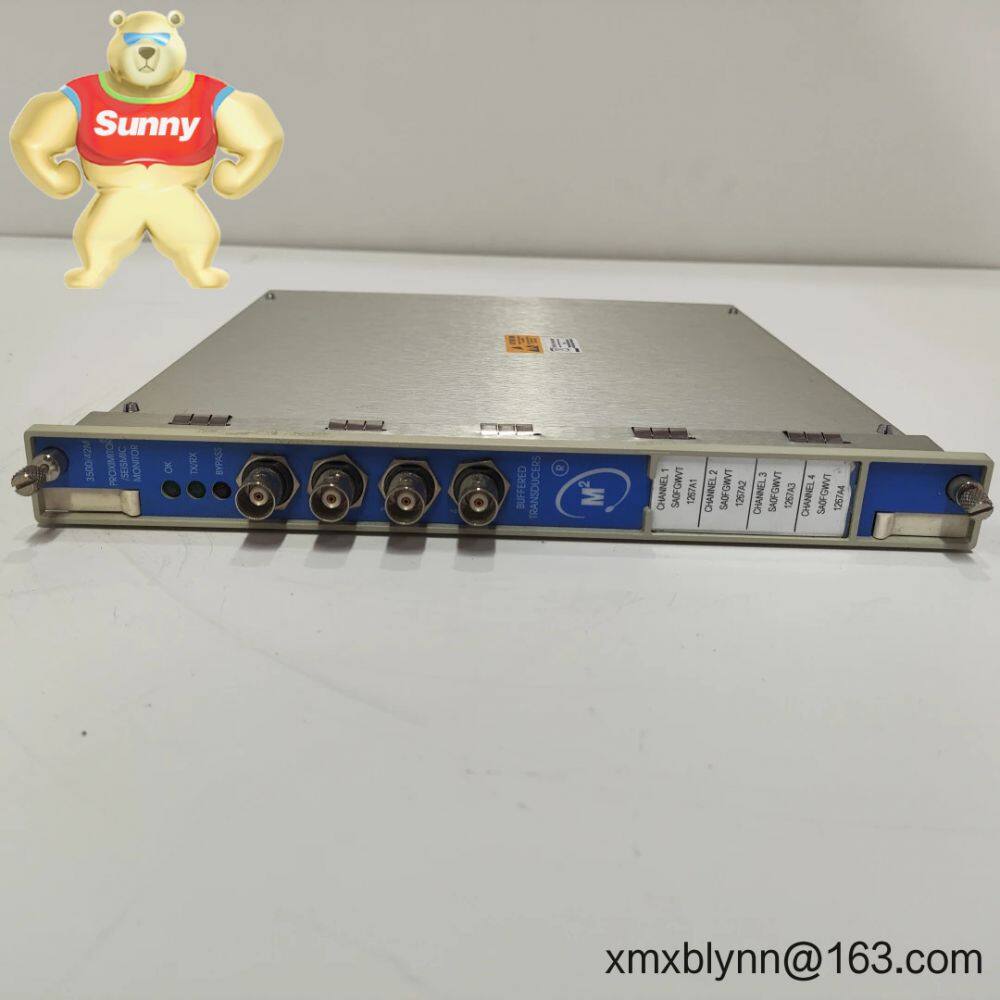

• Buffered outputs: Front BNC and rear-terminal buffered outputs for portable analyzers—handy when you need quick diagnostics without disturbing the loop.

• Keyphasor-aware measurements: When combined with a 3500 Keyphasor module, enables speed/phase tracking and 1X/2X filtering for more selective alarms.

• Backplane integration: Shares data with the 3500/22M TDI for plantwide condition monitoring in System 1; no separate comms wiring from the module.

• Flexible pairing and logic: Channel pairing (e.g., X and Y) and common filtering schemes typically reduce false alarms on large machines.

• Configuration consistency: Set up via 3500 configuration software for fast commissioning and change control.

From my experience, the 3500/42-01-01 fits best on high‑value rotating machines where continuous protection is non‑negotiable. You might notice that it’s often specified as the standard vibration/position monitor across mixed fleets because it handles both prox and seismic sensors without drama.

• Compressors and steam/gas turbines (radial vibration, thrust position, eccentricity)

• Pumps, fans, blowers, and motors (casing vibration with seismic sensors)

• Gearboxes and expanders (phase‑aware vibration with Keyphasor support)

• Refining, petrochemical, power generation, and pipeline stations

• Reliability you can standardize on: The 3500 platform is field‑proven; in most cases it reduces nuisance trips when configured with proper filtering and setpoint logic.

• Compatibility with existing sensors: Reuse installed 3300/3300 XL probes or plant‑standard seismic transducers to cut retrofit cost and downtime.

• Lifecycle support and spares: Common hardware across units simplifies training and stocking—one thing I appreciate is how maintenance can swap a card and restore protection quickly.

• Data to decisions: Seamless handoff to System 1 through the TDI helps teams catch developing issues well before they escalate.

A maintenance supervisor at a combined‑cycle plant told us the last swap took “under ten minutes, including function test,” mainly because the buffered outputs made verification straightforward.

• Cabinet/rack: Mount in a Bently Nevada 3500 rack within a clean, ventilated control cabinet; maintain adequate airflow around the rack power supplies.

• Wiring: Follow shielded, grounded cabling practices. Keep probe/seismic leads separate from high‑voltage runs. Match proximity probe, extension cable, and Proximitor lengths per transducer datasheet (commonly 5–9 m systems).

• Configuration: Set Channel Type, units (µm, mils, mm/s, g), filters, and Alert/Danger setpoints using 3500 configuration software. Verify with buffered output checks.

• Safety: De‑energize trip paths before changes. Use proper lockout/tagout when tying alarms to shutdown relays via the rack relay module.

• Routine care: Periodically review gaps on proximity probes, clean terminal blocks, and archive configuration backups. Firmware updates are typically managed via the TDI during planned outages.

• CE and UL/cUL for control cabinet installations

• RoHS compliant design

• Manufactured under ISO 9001 quality systems

• Manufacturer’s standard warranty (typically 2 years); extended service and calibration support available

Note: The -01-01 variant typically denotes a standard Proximitor/Seismic configuration with matching I/O. If you’re pairing it with specific probe models or have hazardous area constraints, share the exact transducer part numbers and rack layout—we’ll verify the option code and I/O type for you before you commit.
