Help CenterBently Nevada 3500/25-02-01-00 Keyphasor Module – Phase and Speed Reference for Centrifugal Compressors
Related Products
-
Bently Nevada 3500/60-01-00 Temperature Monitor – Reliable Multi-channel RTD Monitoring for the 3500 Protection SystemNegotiableMOQ: 1 Combo -
Bently Nevada 330130-085-00-00 Extension Cable for 3300 XL Proximity TransducersNegotiableMOQ: 1 Combo
-
Bently Nevada 3500/32-01-00 Relay Module – Reliable Discrete Shutdown and Alarm Outputs for the 3500 Machinery Protection RackNegotiableMOQ: 1 Combo
-
Bently Nevada 330130-080-00-05 – 3300 XL Proximity Extension Cable for Vibration MonitoringNegotiableMOQ: 1 Combo
-
Bently Nevada 3500/15-05-05-CN Power Supply Module – Stable Rack Power for the 3500 Machinery Protection SystemNegotiableMOQ: 1 Combo

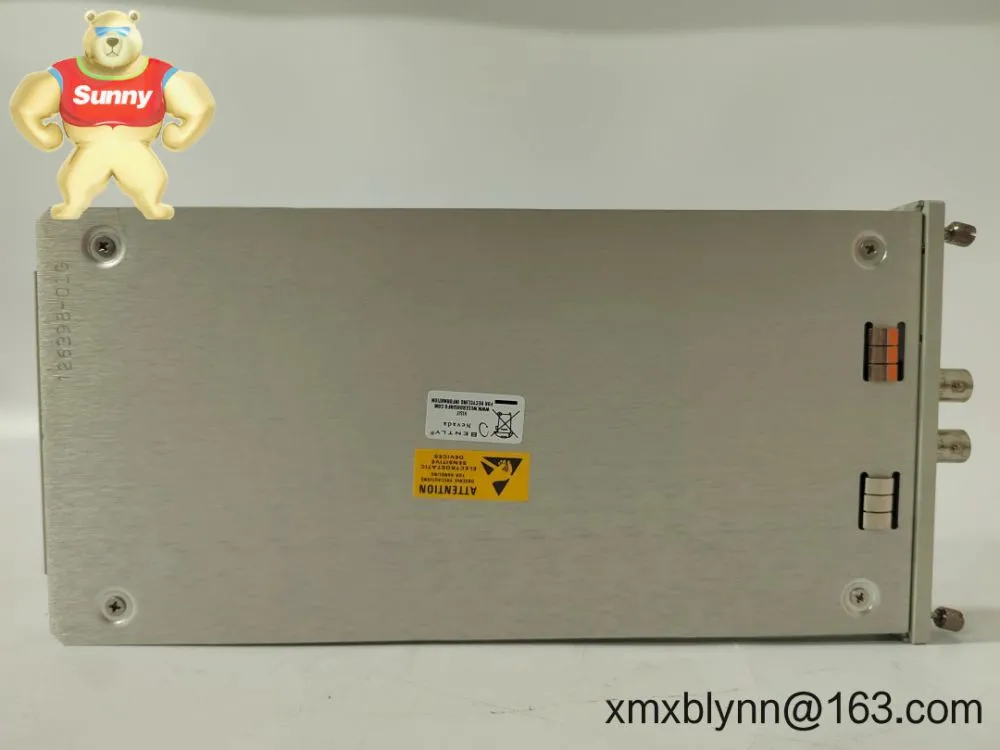

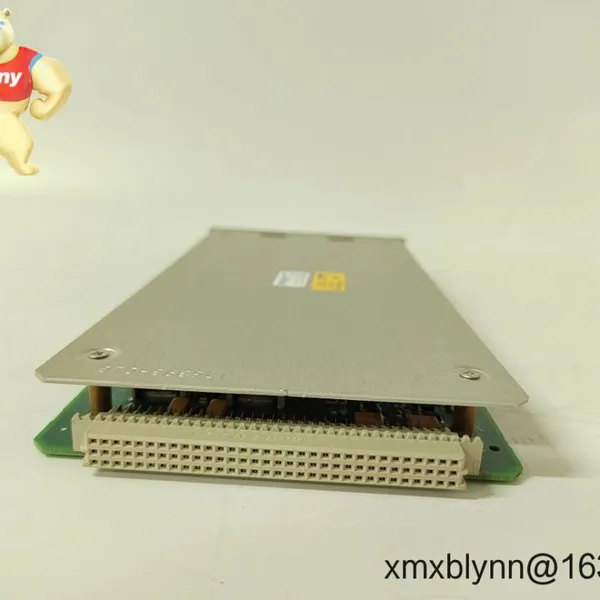

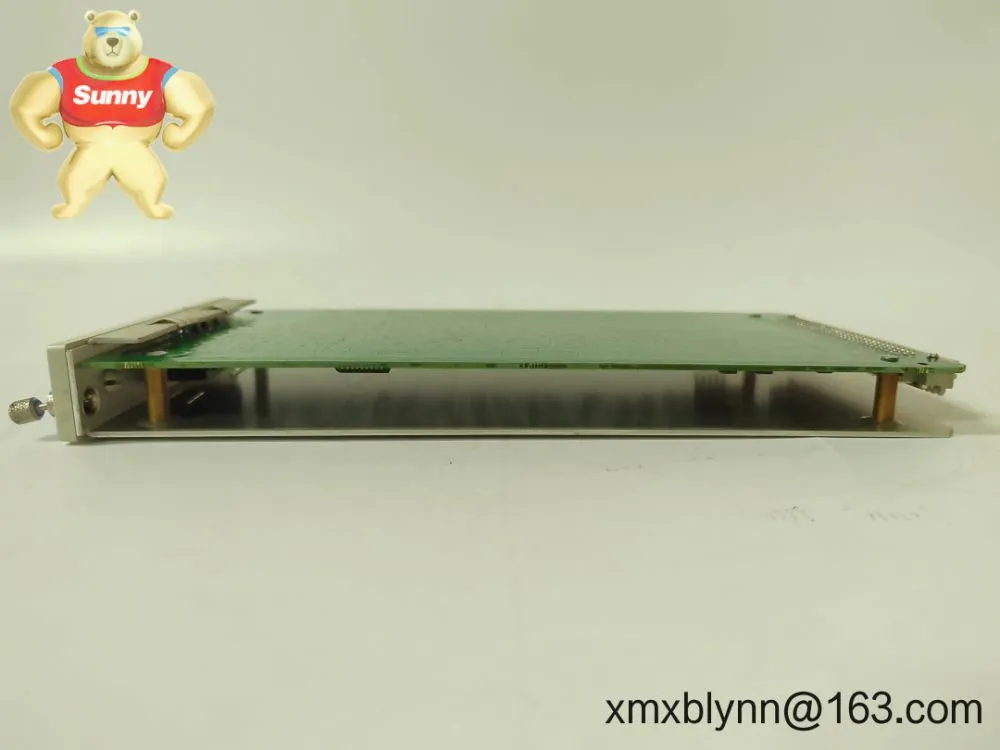

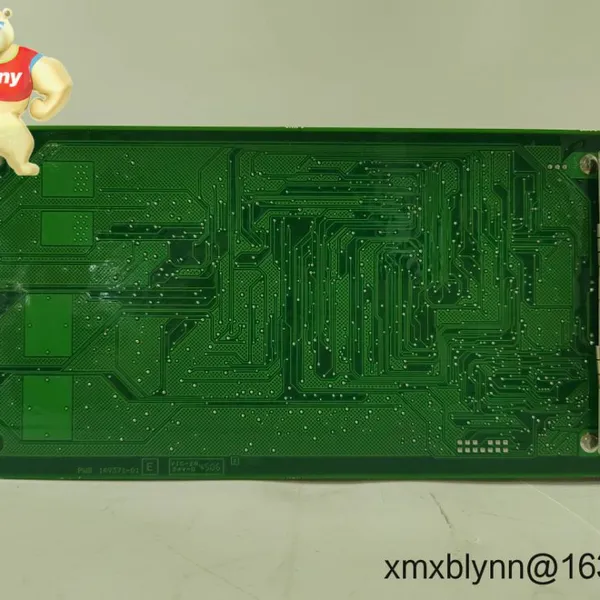

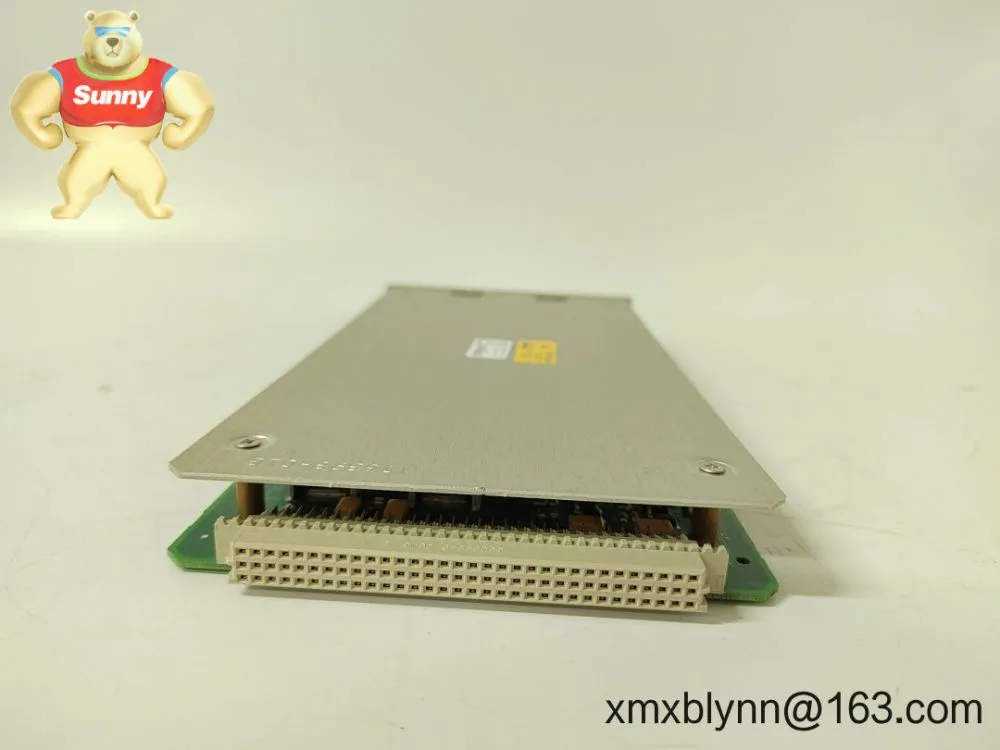

The Bently Nevada 3500/25-02-01-00 is a dual-channel Keyphasor module designed to provide a precise once-per-revolution reference signal for the 3500 rack. In centrifugal compressor trains, this module typically serves as the cornerstone for 1X vibration analysis, vector plots, and reliable speed measurement. From my experience, it’s the piece that makes orbit, phase, and run-up data actually meaningful in day-to-day diagnostics.
Key FeaturesDual-channel (02) – Two independent Keyphasor inputs for redundancy or multi-shaft applications; helps keep critical phase data available even if one probe goes offline.
Compatible inputs – Accepts signals from Proximity Probe/Proximitor assemblies and magnetic pickups, which covers most compressor and turbine setups.
Conditioned reference outputs – Provides clean, logic-level pulses to the 3500 rack so speed and phase tracking stay stable during transients.
Tight integration with 3500 monitors – Feeds phase reference to vibration monitors (e.g., radial/axial), making 1X tracking and phase-triggered alarms more dependable.

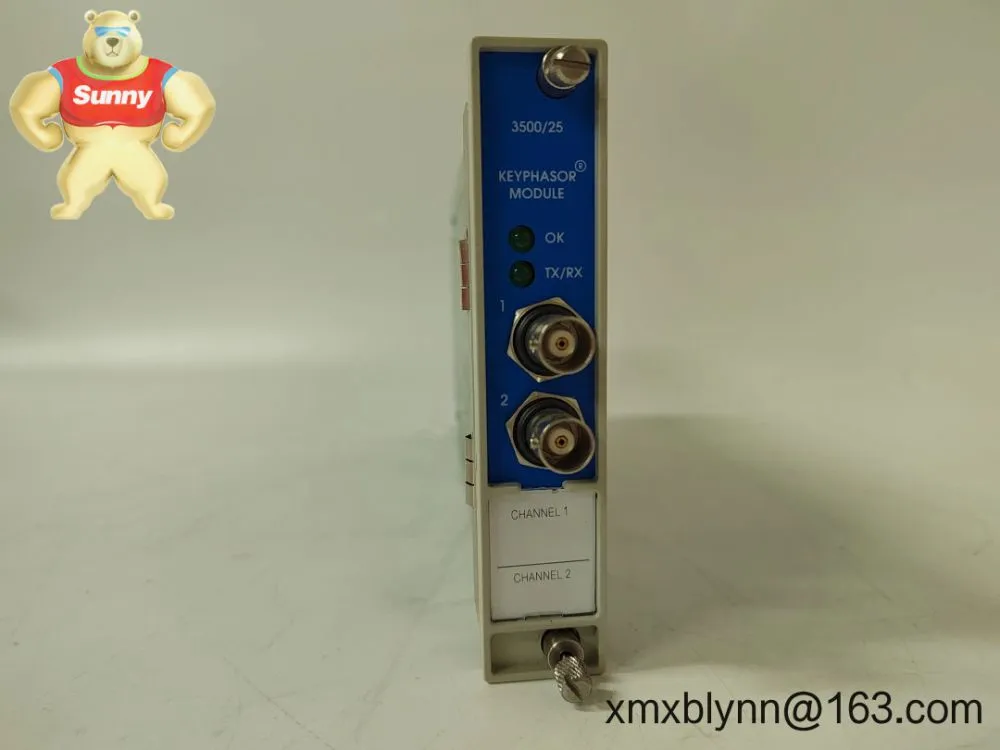

Buffered signal access – In many cases you’ll have front-panel buffered outputs, which simplifies portable data capture and commissioning checks.
Rack-powered – Draws power via the 3500 backplane; no separate field supply for the module itself.
Stable phase at low and high speeds – Designed to maintain a consistent once-per-turn reference across a wide speed range typically seen in compressors and drivers.
Service-friendly – Clear channel status and straightforward configuration, so maintenance teams can validate the Keyphasor before and after outages.
| Brand / Model | Bently Nevada 3500/25-02-01-00 (Keyphasor Module) |
| Channel Count | Dual-channel (02), independent Keyphasor inputs |
| Signal Inputs | Proximity probe/Proximitor or magnetic pickup (once-per-revolution) |
| Signal Outputs | Conditioned Keyphasor pulses to 3500 backplane; buffered outputs typically available for each channel |
| Communication | Internal 3500 rack backplane (no separate field comm port on the module) |
| Power Requirements | Powered via the 3500 rack power supply (no external power to the module) |
| Operating Temperature | Typically -5°C to +65°C when installed in a standard 3500 rack environment |
| Installation Method | 1-slot 3500 module with matching I/O at the rear; field wiring to rear terminals, service access at the front |
| Dimensions & Weight | Standard 3500 1-slot format; lightweight module suited for cabinet-mounted racks |
This module is widely used on centrifugal compressors, steam and gas turbines, gearboxes, and large pumps—any machine train where phase reference and speed feedback are critical. You might notice that on compressors with antisurge control and tight vibration limits, a stable Keyphasor is often the difference between nuisance trips and clean operations.
Oil & Gas: process gas compressors, compressor trains with gear increasers.
Petrochemical: cracked gas and recycle compressors, balance-of-plant rotating assets.
Power Generation: turbine-driven auxiliaries and boiler feedwater pumps.
Industrial Manufacturing: critical fans, blowers, and high-speed spindles needing 1X tracking.
Reliability – Proven 3500 platform stability; in many cases plants run these modules for years without drift or nuisance alarms.
Compatibility – Works seamlessly with Bently Nevada proximity probe systems (e.g., 3300 XL family) and many magnetic pickups you already standardize on.
Reduced lifecycle cost – Dual-channel configuration can cut downtime by allowing maintenance on one channel while the other keeps the reference live.
Data quality – Clean, conditioned pulses improve phase stability, which typically tightens your diagnostic accuracy for unbalance, misalignment, and rub detection.
Support ecosystem – Strong documentation, available spares, and familiar tooling lower integration and training costs.
A maintenance lead at a gas processing site told me their team replaced an older single-channel setup with the 3500/25-02-01-00 and immediately saw fewer “phase dropouts” during run-ups. It seems to be a small change that saved them hours during outage diagnostics.
Cabinet & rack – Install in a 3500 rack within a ventilated control cabinet; keep ambient temperatures within the rack’s specified range.
Wiring – Use shielded cable for probe/magnetic pickup leads; ground shields at the recommended point to avoid noise loops.
Probe setup – Verify probe gap and target integrity (keyway or once-per-turn target). Direction-of-rotation settings should match mechanical drawings.
Configuration – Set thresholds and tracking as per the machine speed range; confirm pulse polarity and channel assignment in the 3500 configuration software.
Commissioning checks – Validate buffered outputs with a portable analyzer; confirm 1X stability through run-up/coast-down testing.
Routine maintenance – Periodically inspect cabling, clean connectors, verify probe gap, and review event logs. Firmware alignment with the rack’s version is recommended before outages.
Safety – De-energize the rack slot before module insertion/removal and follow site ESD and lockout procedures.
Typically conforms to CE and UL/cUL requirements for industrial control equipment; many 3500 systems are certified for use in Zone 2 / Class I Div 2 environments when installed per the manual.
RoHS compliance is commonly available for current production; check the exact build for your region.
Manufacturer’s warranty is generally 1 year from shipment, with extended coverage options in many cases.
If you’re standardizing on Bently Nevada 3500 racks for compressor trains, the 3500/25-02-01-00 is a practical choice for dual-channel Keyphasor duties—straightforward to deploy, compatible with common probe systems, and dependable for phase-critical protection and diagnostics.
