Help CenterHoneywell CC-PUIO31 (51454220-176) — Compact Universal I/O Module for Process Control
Related Products
-
Honeywell CC-PCNT02 (51454551-275) — Pulse Counter / Frequency Input Module for Process ControllersNegotiableMOQ: 1 Combo -
Honeywell CC‑PCF901 51405047‑176 — Process Control Function / I/O ModuleNegotiableMOQ: 1 Combo
-
Honeywell CC-PAIX02 (51405038-476) — I/O & Interface Expansion Module for Control CabinetsNegotiableMOQ: 1 Combo
-
Honeywell CC-PWRR01 51199929-100 — Redundant Power Module for CC ControllersNegotiableMOQ: 1 Combo
-
Honeywell CC-PCNT02 + DC-TCNT01 — Compact Pulse Counter and DC Signal Conditioner for Industrial MonitoringNegotiableMOQ: 1 Combo

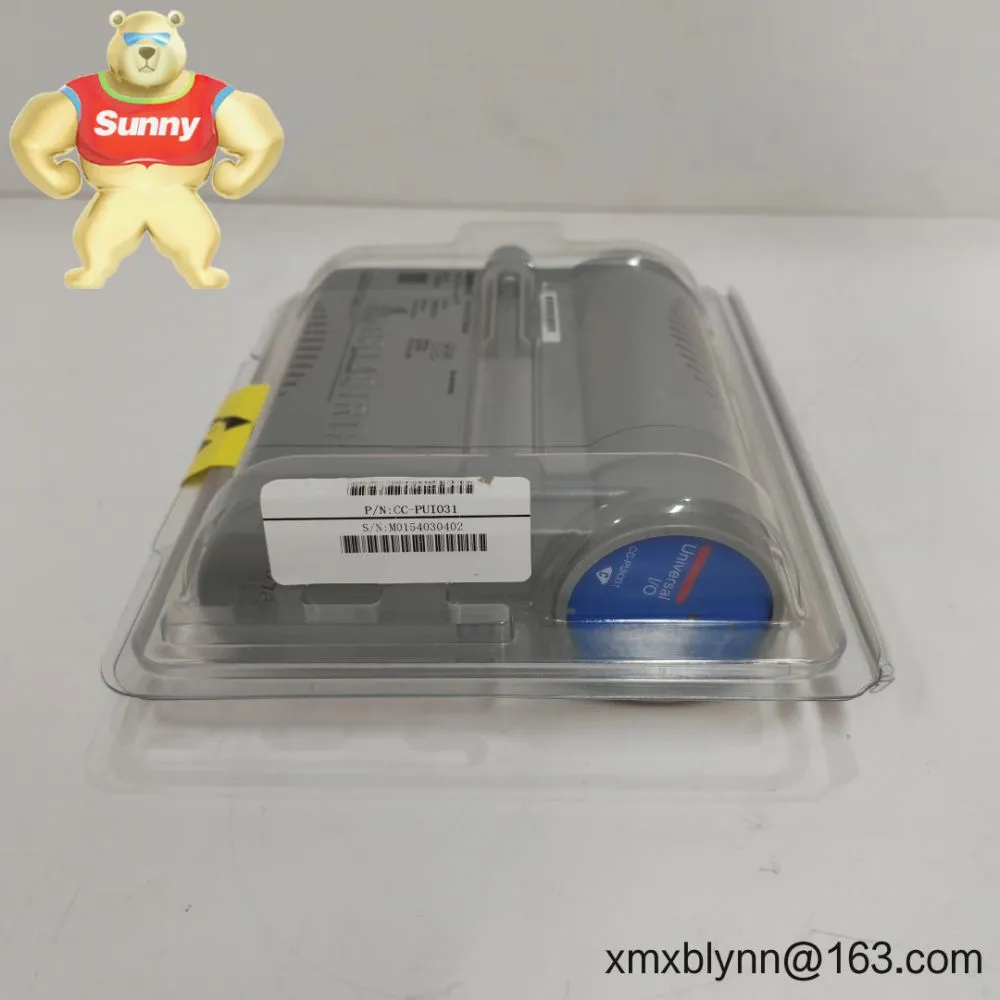

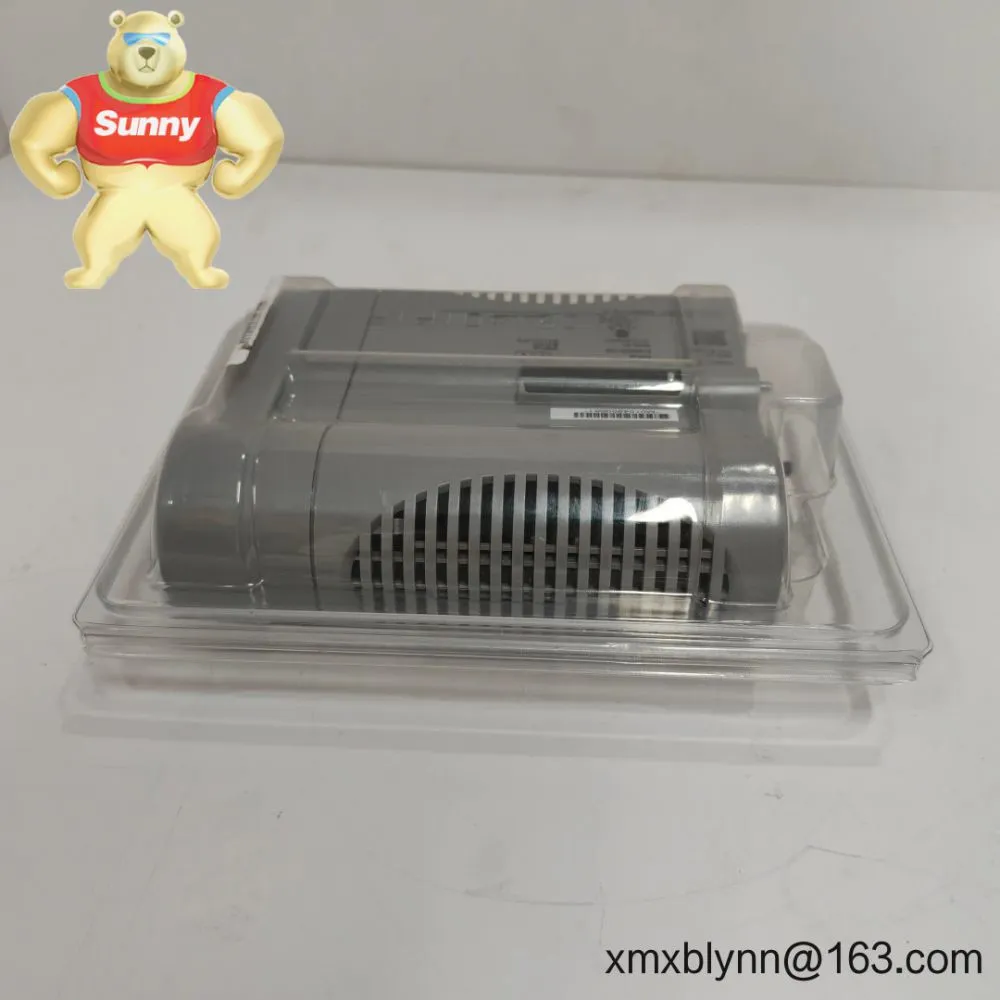

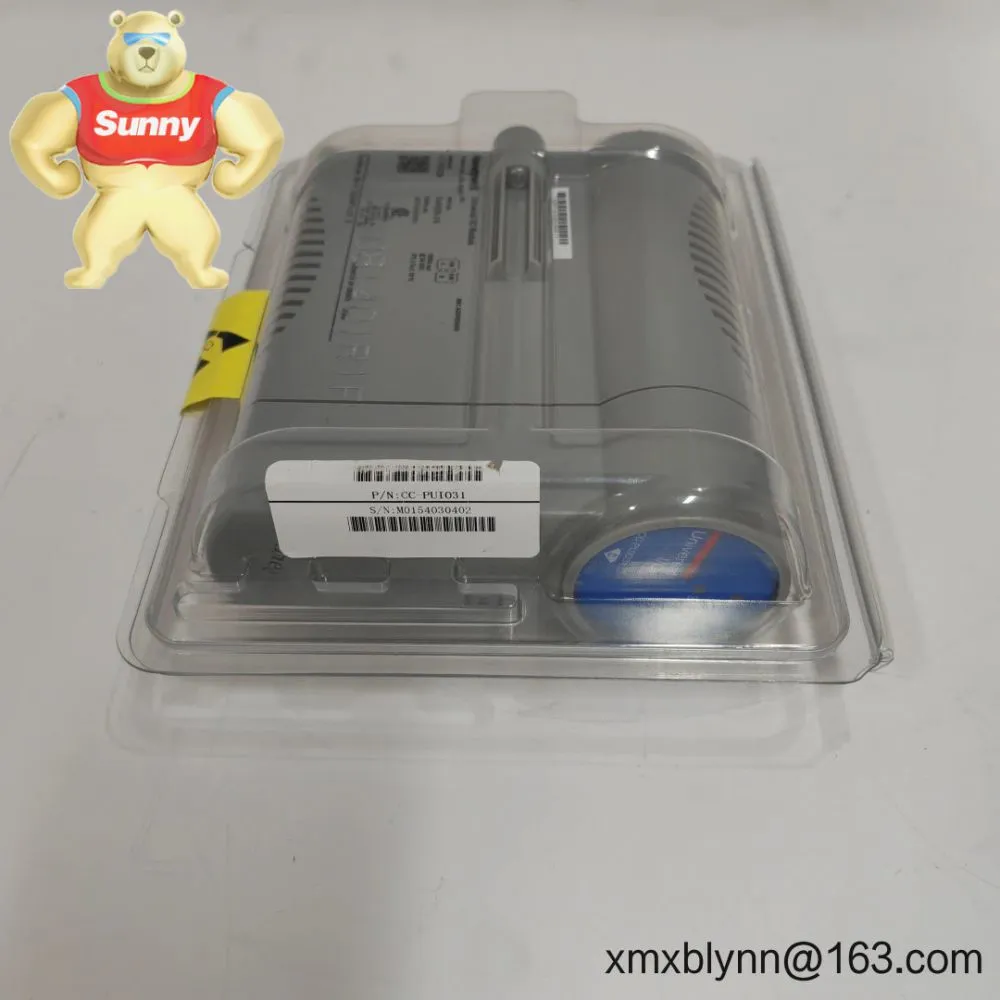

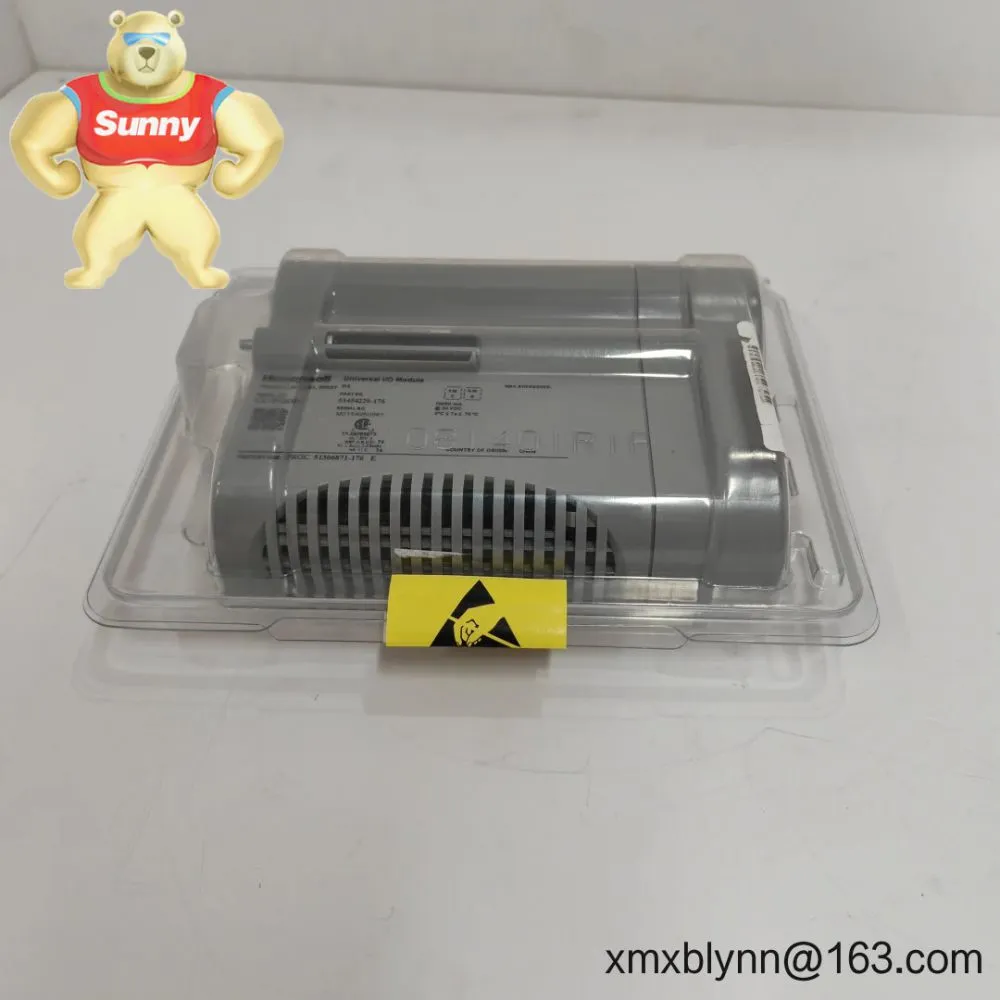

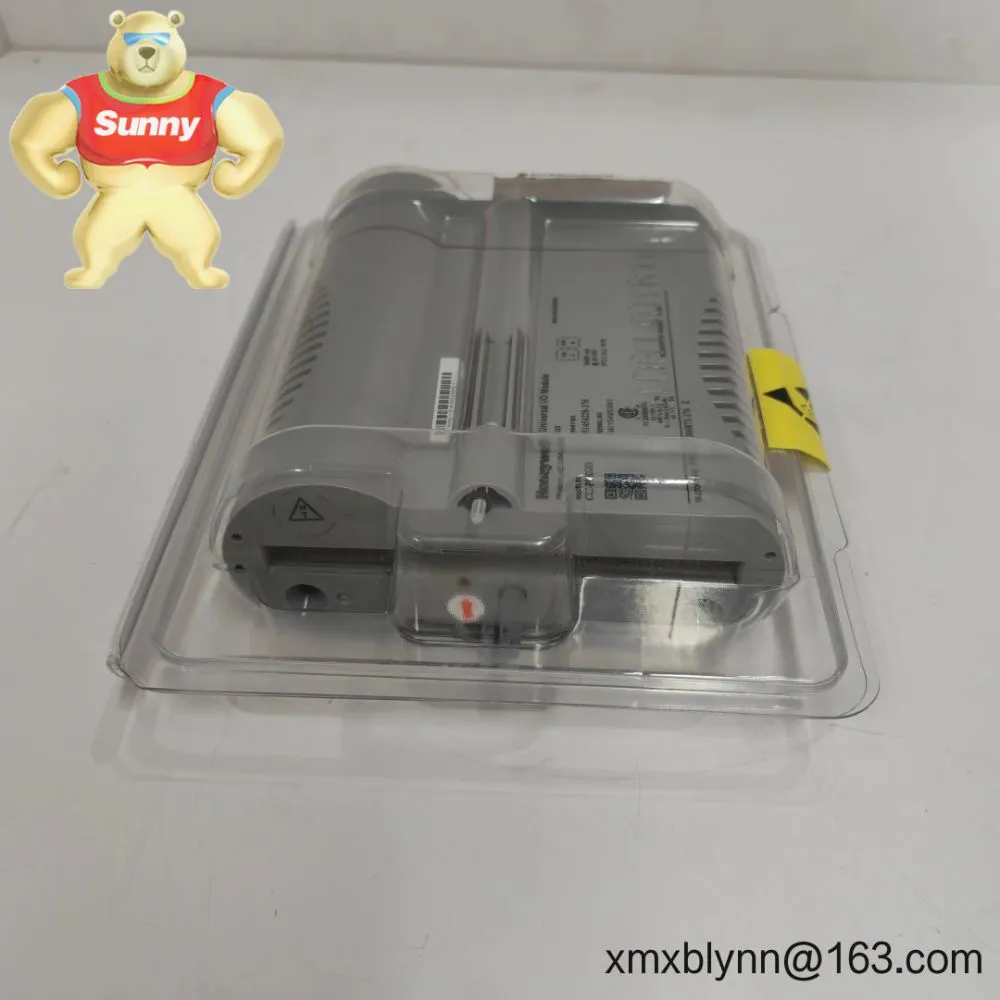

The CC-PUIO31 (51454220-176) appears to be a compact universal I/O module from Honeywell intended for industrial process-control racks. It’s typically used to aggregate mixed analog and digital signals at the controller edge, translating field-level sensors and actuators into the host controller’s backplane protocol. From my experience with similar modules, this one seems well suited for mid-density I/O racks in water treatment, HVAC, and small process plants.
Core SummaryCompact, slot-mounted universal I/O offering flexible signal support (analog, digital, and temperature inputs). It’s designed for reliable service in industrial cabinets where space is limited and signal variety is required. One thing I appreciate is the straightforward mapping of common field signals — 4–20 mA, 0–10 V, RTD/thermocouple and dry contacts — into a single module, which typically reduces the number of special-purpose cards you need.
Key FeaturesUniversal signal support — Accepts 4–20 mA, 0–10 V, RTD/TC and digital inputs; often configurable per-channel so you can mix signal types.
Backplane interface — Communicates over the host controller rack/backplane for tight integration into the control system.
Compact form factor — Slot-mounted module saves cabinet real estate and simplifies wiring runs in medium-density applications.
Channel diagnostics — Typically includes per-channel status/diagnostic LEDs or reporting to the host, which helps accelerate troubleshooting in the field.
Robust industrial design — Designed for industrial temperature ranges and transient immunity common in process environments.
Field wiring convenience — Screw-terminal or pluggable terminal block options are commonly supported for fast installation and maintenance.
| Brand / Model | Honeywell CC-PUIO31 — 51454220-176 |
| Power Requirements | Powered from host rack/backplane; typical local supply 24 VDC (dependent on chassis). Power consumption: ≈ 3–7 W (typical). |
| Dimensions & Weight | Approx. 100 × 160 × 30 mm (module); weight ≈ 0.25–0.45 kg. Exact dimensions depend on connector/terminal option. |
| Operating Temperature | Typical industrial range: −20 °C to +60 °C (depends on system enclosure and airflow). |
| Signal I/O Types | Analog inputs (4–20 mA, 0–10 V), analog outputs (4–20 mA typical), RTD/thermocouple inputs, digital inputs/outputs (dry contacts/TTL-level). Configuration per channel is typically supported. |
| Communication Interfaces | Backplane to host controller. Field communications handled by host controller or gateway modules. |
| Installation Method | Plug-in module for Honeywell-compatible rack/chassis; typically slot-mounted with terminal block at front. May require mounting in a ventilated cabinet (IEC/ANSI standards). |
| Hot-swap | In many systems modules are not hot-swappable — plan maintenance windows; verify host backplane support for live replacement. |
This module is typically used in: water & wastewater plants, HVAC/building automation, chemical dosing skids, small-to-medium process plants, and any installation where multiple signal types converge at a compact rack. You might notice that integrators often select this type of module where space and mixed-signal flexibility matter more than ultra-high channel density.
Procurement simplicity — One universal card often replaces multiple single-signal cards, cutting BOM complexity and stocking cost.
Compatibility — Designed to integrate with Honeywell rack-based systems; in many cases this reduces integration time versus third-party modules.
Reliability — Industrial-grade components and diagnostic visibility reduce downtime and speed up troubleshooting.
Serviceability — Modular design makes replacement and field servicing straightforward, typically lowering maintenance labor costs.
For reliable operation, install the module in a cabinet that meets IEC/EN protection recommendations, with reasonable airflow and ambient temperature control. From my experience, following a few simple steps helps avoid common issues:
Cabinet standards — Use a ventilated cabinet or active cooling if ambient temps exceed 40 °C. Keep humidity below 85% non-condensing.
Wiring — Use shielded twisted pair for analog and RTD signals and terminate shields to local earth at one point to reduce noise.
Grounding & isolation — Ensure proper earth reference and isolation for analog loops to avoid ground loops and noisy readings.
Safety — De-energize the host chassis before inserting or removing the module unless the system explicitly supports hot-swap.
Routine maintenance — Periodic visual inspection of terminals for corrosion, retorque terminals per spec, and keep firmware of host controller up to date. Calibration of analog channels should follow your plant’s schedule (typically annually or per regulatory requirement).
Honeywell modules of this class typically carry CE and RoHS compliance and are manufactured under ISO 9001 quality systems. Many Honeywell products are UL-listed for industrial equipment — verify specific marking on the module label. Typical warranty coverage from the manufacturer is 12 months, though extended support plans are often available through authorized distributors.
“We swapped several single-purpose cards for a pair of CC-PUIO31s and cut cabinet wiring by a third — diagnostics helped us find a grounding issue in hours instead of days,” — a systems integrator on a municipal water project. Of course, experiences vary by system architecture and site practices, but that kind of time savings is typical when you consolidate mixed signals onto a single universal card.
If you need exact pinouts, channel counts, or a verified dimensional drawing for panel layout, I can retrieve the specific datasheet and wiring diagram for 51454220-176. From my experience, having the official datasheet before procurement or retrofit work avoids the usual surprises.
