Building Plant Aluminum Formwork Cleaning Machine Cement Removal High Pressure Cleaning System
US$ 8000.00
≥1 Set
Key Specifications
Get Latest Price
Certification:
CE
machine type:
HIGH PRESSURE CLEANER
condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturer's High Pressure Hydro Jet Machine 22000psi Diesel Engine New and Cold Water CleanerUS$ 15000.00MOQ: 1 Set -
China Water Jetting Machine High Pressure Auxiliary Steel Sheet Pile Hole PilingUS$ 12000.00MOQ: 1 Set
-
85L/min 1500bar Diesel Engine High Pressure Hydeo Jet Machine Water Jetting BlasterUS$ 19000.00MOQ: 1 Set
-
15000psi High Pressure Water Jet Pressure Machine Hydro Blasting EquipmentUS$ 16000.00MOQ: 1 Set
-
Ultra High Pressure 15kpsi 1000bar Water Jetting Machine New Condition Hydro Cleaner for Cold Water CleaningUS$ 12000.00MOQ: 1 Set
Certification
CE
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
Shenyang, China
brand name
RELIABLE
feature
Non-Toxic
power source
Electric
use
Aluminum formwork cleaning
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
110kw
dimension(l*w*h)
280*160*180cm
warranty
1 Year
max. pressure
150Mpa
weight (kg)
2000 kg
Name
Aluminum formwork cleaning machine
Working pressure
150Mpa/1500bar
Water flow
40 L/min
Electric motor drive
90kw
High pressure hose
50meters
cleaning nozzle
can be customized
function
Aluminum formwork cleaning
machine color
canbe customized
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, Pump, Engine
Key Selling Points
Long Service Life
Marketing Type
New Product 2024

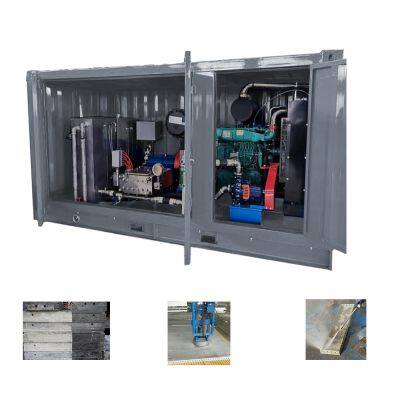

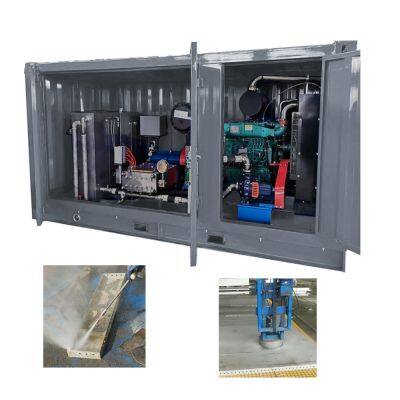

Aluminum formwork cleaning machine
--high pressure water jetting machine
High pressure water jet cleaning machine, match the water spray gun with cleaning nozzle or customized nozzle cleaning device, better to remove the cement on the aluminum formwork; Formwork must be perfectly clean and smooth to produce concrete components. The innovative and compact solutions from RELIABLE company. with gently clean formwork ready for immediate re-use.
Model |
Rate pressure |
Water flow |
Electric motor drive |
Diesel engine drive |
RLB1030 |
150MPa/1500bar |
40 L/min |
132kw |
145kw |
RLB0601 |
50Mpa/500bar |
22 L/min |
22kw |
33kw |
RLB0616 |
80Mpa/800bar |
22 L/min |
37kw |
45kw |

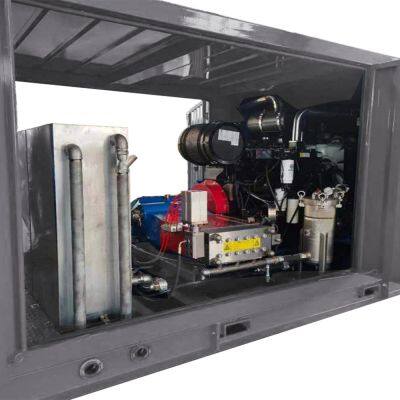

Name: High pressur plunger pump
Model: RLB0530
Rate pressure: 150Mpa/1500bar
water flow:30 L/min~110L/min
Pump speed： 366rpm
plunger stroke: 120mm
with pressure gauge and safety valve;
Name: Diesel engine
engine power: 120-264kw; 6-cyliner
Speed： 1500rpm
start type: electric start, 24v/100Ah
with cooling system
contact with high pressure pump
power: 90-160kw; 3-phase, 380v/50Hz
Volt also can be customized
440v/460v/220v,etc
Speed： 1500rpm
start type: electric start, 24v/100Ah
contact with high pressure pump
customized automatic cleaning device

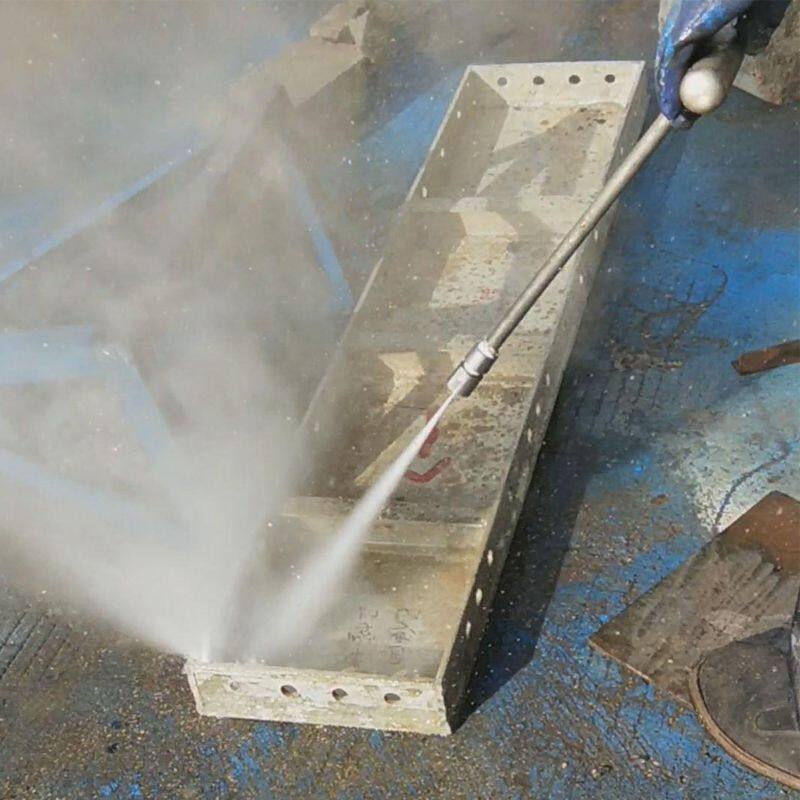

water spray gun cleaning

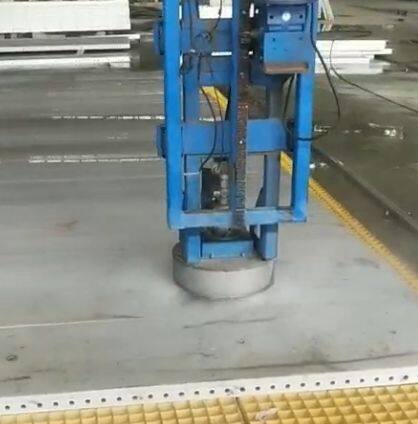

automatic cleaning device
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Q1：What pressures and flow is suitable to formwork cleaning?
A1：Pressure normally suggest 500bar~2500bar; Flow rates suggest 22-50L/min,
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3:What's the cleaning type for the formwork cleaning?
A3: a: Water spray gun cleaning, suitable for formwork cleaning job not too much, or the shaped formwork cleaning;
b: rotary cleaning tray: automatic cleanign the formwork, with high speed and economize on manpower.
suitable for normal plat formwork cleaning and large quantity.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: for road mark removal, suggest diesel engine drive will be more convenient;
also can choose Electric: Suitable for indoor use and quieter operation.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
