China Water Jetting Machine High Pressure Auxiliary Steel Sheet Pile Hole Piling
US$ 12000.00
≥1 Set
Key Specifications
Get Latest Price
machine type:
HIGH PRESSURE CLEANER
condition:
New
place of origin:
shenyang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
85L/min 1500bar Diesel Engine High Pressure Hydeo Jet Machine Water Jetting BlasterUS$ 19000.00MOQ: 1 Set -
15000psi High Pressure Water Jet Pressure Machine Hydro Blasting EquipmentUS$ 16000.00MOQ: 1 Set
-
Ultra High Pressure 15kpsi 1000bar Water Jetting Machine New Condition Hydro Cleaner for Cold Water CleaningUS$ 12000.00MOQ: 1 Set
-
100Mpa to 150Mpa High Pressure Water Jet Blasting Machine Hydroblast Pressure WasherUS$ 11000.00MOQ: 1 Set
-
Water Blasting Gun High Pressure Water Jet Blasting Machine 15000psi 1000bar Water Jetting SystemUS$ 8888.00MOQ: 1 Set
machine type
HIGH PRESSURE CLEANER
condition
New
place of origin
shenyang, China
brand name
RELIABLE
feature
Non-Toxic
power source
Diesel
use
Auxiliary steel sheet pile hole piling
cleaning process
Cold Water Cleaning
cleaning type
HIGH PRESSURE CLEANER
material
Metal / Coil
Power
145kw
dimension(l*w*h)
260*155*165cm
warranty
1 Year
max. pressure
24Mpa
weight (kg)
2000 kg
Working pressure
24Mpa/240bar
Water flow
170 L/min
Diesel engine
145kw
High pressure hose
80-100meters
jetting nozzle
2-4 holes water jetting
Delivery date
7 days
machine color
canbe customized
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
motor, Pump, Engine
Key Selling Points
Long Service Life
Marketing Type
New Product 2024
Product Overview
high pressure water jetting machine
for Auxiliary steel sheet pile hole piling
The high-pressure water jet can use the water jet method to assist subsidence in the construction of hard soil layers. The high-pressure water jet guide hole is composed of a high-pressure water pump, a high-pressure water pipe, a steel pipe, and a water jet nozzle. Inject high-pressure water into the body to liquefy the surrounding soil to reduce the resistance during the sinking of the pile, and also play a certain role in lubrication, so that the pile can sink smoothly in the dense soil layer or other soil layers (general water injection The sinking is also combined with vibration, hammering, etc. to assist the sinking) In the reinforced concrete sheet pile, a water injection channel must be reserved in the middle, that is, a hole in the middle that is empty and can be used for water injection. Steel sheet piles are generally taken along the siding to secure the jet piping.
FEATURES AT A GLANCE

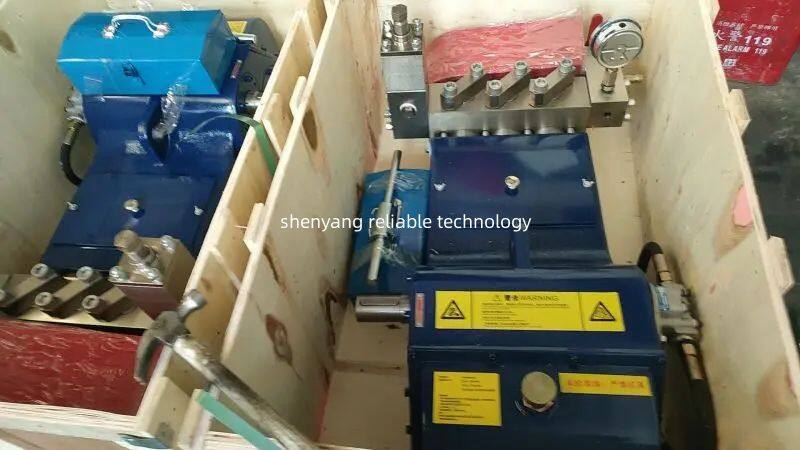

Name: High pressur plunger pump
Model: RLB4505
Rate pressure: 24Mpa/240bar
water flow:170 L/min / 45 GPM
Pump speed： 405rpm
plunger diameter： 45mm
with pressure gauge and safety valve;

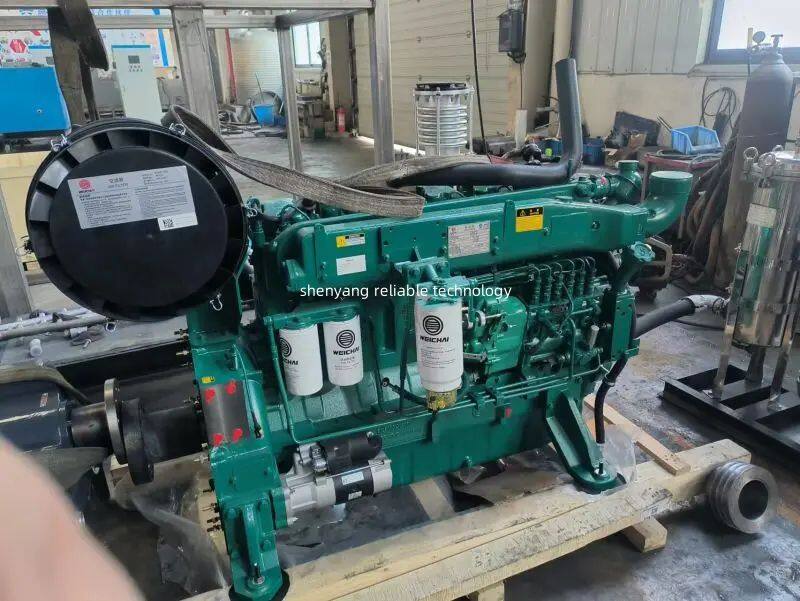

Name: Diesel engine
engine power: 120kw; 6-cyliner
Speed： 1500rpm
start type: electric start, 24v/100Ah
contact with high pressure pump
PRODUCT SPECIFICATIONS
Model |
Rate pressure |
Water flow |
Electric motor drive |
Diesel engine drive |
RLB4505 |
24MPa/240bar |
170 L/min |
90kw |
145kw |
RLB5804 |
22Mpa/220bar |
220 L/min |
110kw |
145kw |
RLB8504 |
20Mpa/200bar |
320 L/min |
132kw |
173kw |
PRODUCT CONFIGURATION
Overflow water spray gun
Pressure has 1500bar/2800bar
Overflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
High pressure rubber hose
Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc
Pressure: Max.2800bar;
material: ruber with wire winding inside
Barracuda nozzle / turbo nozzle
4-jet rotating nozzle
better for surface strong dirt cleaning
Flexible lance
Pressure 1500bar/2800bar/3035bar
Size: DN8-10-12mm;
Contact thead: M22*1.5 & M24*1.5
Length can be customized
Overflow foot control valve
Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
Contact thead: M22*1.5 & M24*1.5
material: stainless steel
industrial Pipe Cleaning nozzle
Size: DN13,24,40, etc;
7-jet rotating nozzle;
Pressure: 1500bar/2800bar
for industrial inner pipe cleaning
Successful Project
industrial strong dirt cleaning
Tank & reactor cleaning
concrete surface roughening
large Pipe cleaning
cement removal
concrete cutting
FAQ
Q1：What pressures and flow is suitable to assist pilot hole piling?
A1：Pressure normally suggest 200-300bar; Flow rates suggest 170-600L/min, more higher water flow, more better piling effect.
Q2: Are you trading company or manufacturer?
A2：We are manufacturer here for over 10years, can OEM machines according to customized request.
Q3: How do I choose the right nozzle for my application?
A3: If for assist pilot hole piling, need to confirm the type and size of the pilot. 4# steel sheet pilot suggest 170L/min, 6# steel sheet pilot, Cement wave pile， PC pilot, suggest 320L/min. or can customized according to your request.
Q4:What type of water should be used in these machines?
A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5:What are the power options for high-pressure water jetting machines?
A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.
Q6:Can I customize a high-pressure water jetting machine for specific needs?
A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.
Q7:How do I choose suitable model?
A7:You can confirm your working purpose request, we have rich experience
Q8:How long is your delivery time?
A8:Normal 3-10 days; Customized order need to confirm with the seller.
Q9:What Certificate do you have?
A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,
Q10:Which is your shipping port?
A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?
A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
