EMERSON 1C31157G02 – Ovation I/O Module for Reliable Field Signal Acquisition

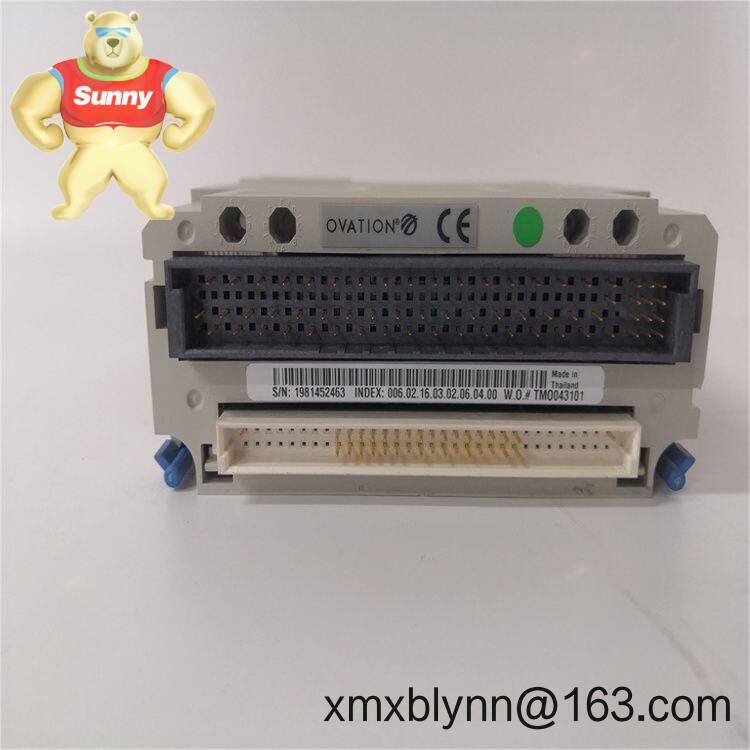

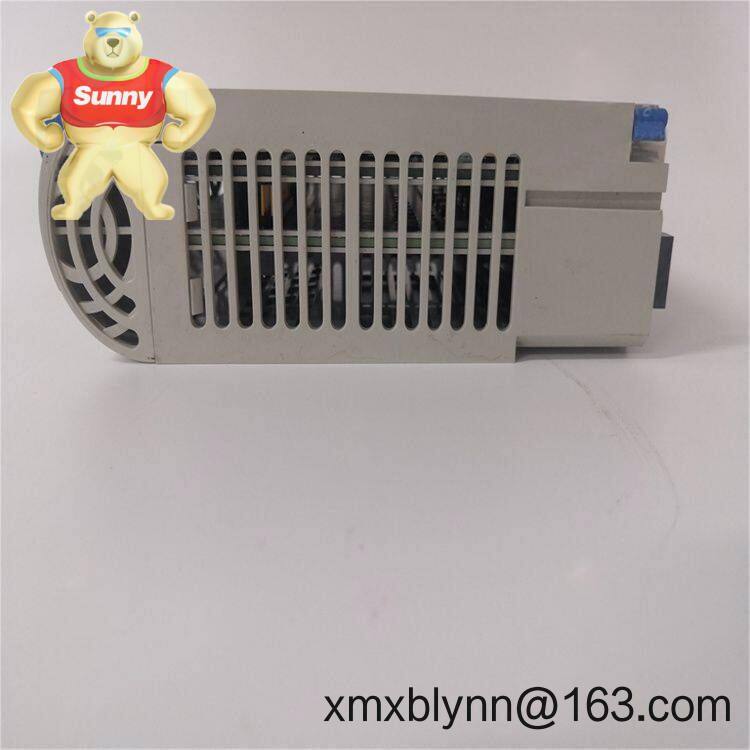

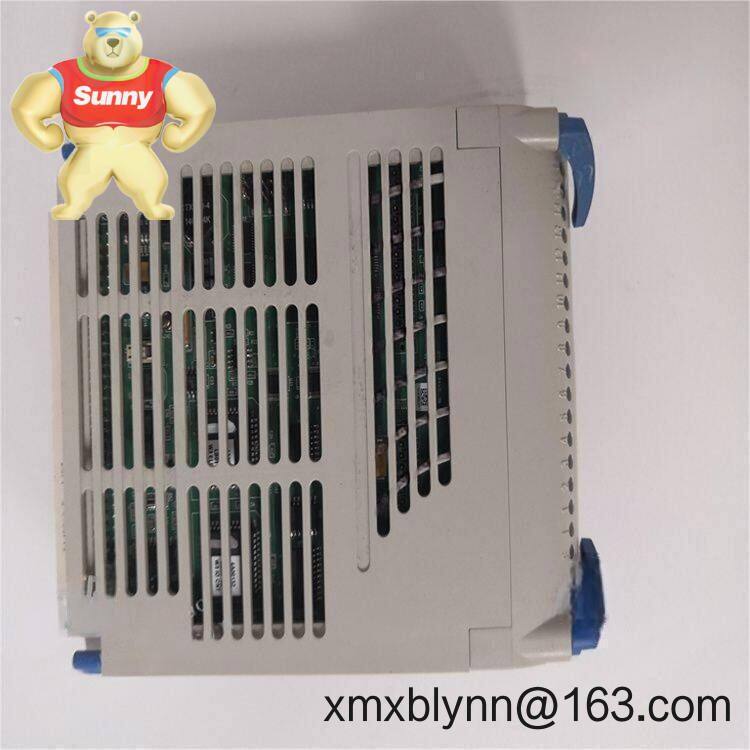

The EMERSON 1C31157G02 is a plug-in I/O module for the Ovation DCS platform, used widely in power generation and critical infrastructure. In many cases, the G02 variant is deployed as a 24 VDC digital input card, valued for its stable channel diagnostics and straightforward replacement. It fits standard Ovation baseplates, making it a practical drop-in option for maintenance teams looking to minimize downtime.

• Ovation-native integration – Seamlessly interfaces with Ovation controllers via the I/O backplane; no special adapters typically required.

• 24 VDC digital input usage (common) – Often used for 24 VDC DI points; channel count is typically in the 16-channel range depending on the terminal assembly.

• Channel status LEDs – Quick visual checks for commissioning and fault isolation on the cabinet door.

• Isolation from field wiring – Appears to include field-to-logic isolation, helping protect the controller from surges and wiring errors.

• Hot-swap serviceability – In most cases, modules can be replaced under power on a healthy baseplate to shorten outage windows.

• Rugged, plant-ready design – Built for utility environments: turbine halls, substations, and process areas with proper cabinet protection.

• Backwards-compatible footprint – From my experience, Ovation cards like this maintain mechanical compatibility across many revisions.

•


You’ll typically see the 1C31157G02 deployed in baseload and peaker power plants (coal, gas, combined-cycle), hydroelectric stations, and balance-of-plant skids. It’s also a fit for water/wastewater facilities and certain process industries where Ovation is the site standard. For many operators, this module ends up as a one-for-one replacement to clear bad DI channels or to expand cabinet capacity during a turnaround.

• Drop-in compatibility – Keeps project risk low; wiring, baseplate, and controller mapping generally remain unchanged.

• Faster return to service – Technicians can replace a suspect card in minutes, which in many cases avoids a unit de-rate.

• Lifecycle flexibility – Supports phased upgrades; you can standardize spares across multiple cabinets and units.

• Diagnostic clarity – LEDs and Ovation alarms help trace trips to a specific channel or terminal quickly.

Field note from a maintenance lead: “We swapped a 1C31157G02 like-for-like on a condenser vacuum panel. Hot-swap worked fine, and we validated all 16 points within the hour.”

• Cabinet & environment – Install in an Ovation-rated cabinet with adequate ventilation; keep ambient within 0–60°C and humidity controlled.

• Wiring practices – Use correctly rated 24 VDC DI wiring; maintain shield/drain conventions; label terminals to match the Ovation I/O map.

• ESD safety – Handle the card with an ESD strap; insert firmly until latched to the baseplate.

• Power-on checks – After insertion, verify channel LEDs and point status in Ovation Workstation; perform a quick loop check with the field device.

• Firmware/compatibility – Confirm hardware revision and any module firmware align with your controller and I/O driver versions.

• Routine upkeep – Periodically inspect terminal tightness, clean cabinet filters, and review alarm histories for intermittent channel issues.

• CE compliant; UL Recognized for control applications (typical for Ovation modules).

• Manufacturer quality systems: ISO 9001 (Emerson corporate quality framework).

• RoHS compliance on many later revisions; confirm per part label.

• Warranty: commonly 12 months limited manufacturer warranty; exact terms per purchase agreement.

If you’re cross-referencing spares, share your cabinet part list or a photo of the module label. A quick revision check typically confirms channel type and terminal assembly compatibility for the 1C31157G02.
