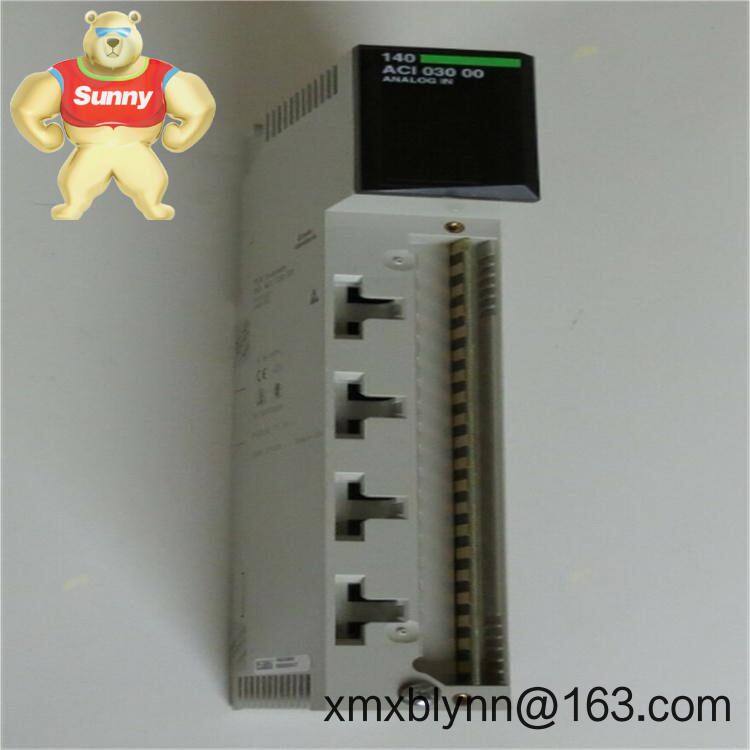

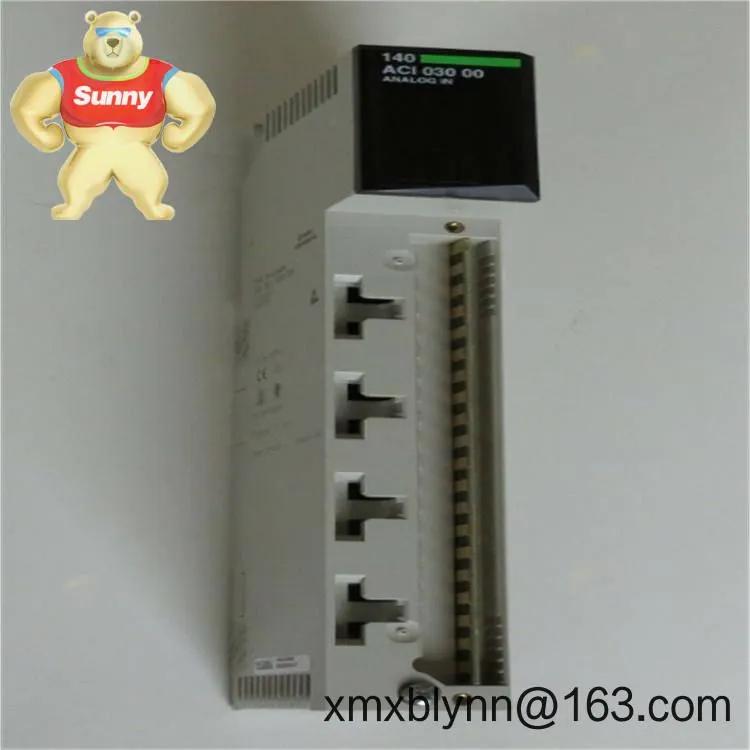

Schneider Electric 140ACI03000C – Modicon Quantum Analog Current Input for 0/4–20 mA Process Signals

The 140ACI03000C is a conformal‑coated analog current input module for Modicon Quantum systems, built for stable acquisition of 0–20 mA and 4–20 mA signals. It’s a practical choice when you need dependable process inputs in harsher environments where humidity, salt, or airborne contaminants would typically stress standard boards. From my experience, it’s often used to extend or maintain installed Quantum platforms without reengineering the entire control cabinet.

• Conformal coating (C-suffix) – Adds an extra moisture and contaminant barrier, which in many cases noticeably improves long-term reliability in coastal, wastewater, or dusty plants.

• 0–20 mA / 4–20 mA inputs – Suits common industrial transmitters for flow, level, pressure, temperature (via 4–20 mA transmitters), and similar process signals.

• Quantum backplane integration – Seamless with Modicon Quantum racks and CPUs; you configure channels in the same engineering tool you already use.

• Channel diagnostics – You might notice quicker troubleshooting thanks to status indication and fault detection for out‑of‑range or open loop conditions, depending on configuration.

• Galvanic isolation – Typically isolated from the backplane, with grouped channel isolation to reduce noise coupling into the PLC bus.

• Removable field connector – Makes maintenance faster; you can pull the module without disturbing field wiring during swap‑outs.

• Stable measurement quality – Designed for steady, low‑drift readings suitable for closed‑loop control or historian trending.

•


This module is commonly selected for brownfield Quantum systems that still have years of service life. I often see it in:

• Water & Wastewater – 4–20 mA signals from level, flow, and chlorine analyzers; the coated variant holds up better in high‑humidity galleries.

• Oil & Gas / Petrochemical – Pressure and temperature transmitters in compact MCC or analyzer shelters where airborne hydrocarbons are present.

• Power & Utilities – Condensate, feedwater, and balance‑of‑plant loops; stable input readings help tighten PID performance.

• Food & Beverage – CIP skid monitoring and dosing systems; easy to service with the removable connector.

• Pulp & Paper / Mining – Long cable runs with 4–20 mA loops; grouped isolation often reduces noise pickup in practice.

• Lifecycle continuity – Protects your Quantum investment; no immediate need to redesign I/O or requalify software.

• Reliability – Conformal coating seems to improve MTBF in damp or corrosive atmospheres, based on customer feedback we’ve seen.

• Compatibility – Works within existing Quantum racks, power budgets, and engineering tools, which typically keeps commissioning straightforward.

• Cost & downtime – Swap‑friendly with the front connector; planned outages stay short and focused.

• Supportability – Documentation and spare parts are widely known in the market; technicians are usually familiar with Quantum work practices.

• Cabinet & rack – Mount in a compatible Modicon Quantum rack with adequate ventilation. Keep ambient below the upper temp limit and avoid corrosive drip points, even with the coating.

• Wiring – Use shielded twisted pair for analog loops. Ground the shield at one end only, and separate low‑level analog from power and high‑frequency cables.

• Loop power – 2‑wire loop‑powered transmitters typically need an external 24 VDC supply. Verify loop burden and ensure the transmitter can drive the module input.

• Isolation & grounding – Respect group isolation; tie commons correctly to prevent ground loops. Mixed ranges on different channels are feasible but check the engineering guide.

• Maintenance – Periodically check terminal tightness, clean dust with dry air, and review diagnostics for noisy or drifting channels. Firmware and CPU configuration backups should be kept up to date.

• Safety – De‑energize field loops before servicing. Validate wiring against the terminal pinout and the CPU hardware tree prior to startup.

• Certifications – CE and UL/CSA industrial control compliance; RoHS alignment on coated variants is typical for later Quantum releases.

• Environmental – Conformal coating (“C”) for enhanced resistance to humidity and corrosive atmospheres.

• Warranty – Manufacturer warranty is typically 18 months from shipment; service life in many cases exceeds a decade with routine maintenance.
