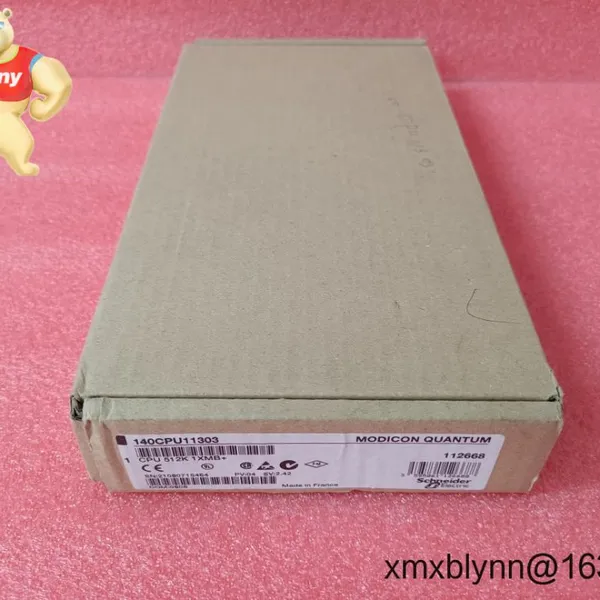

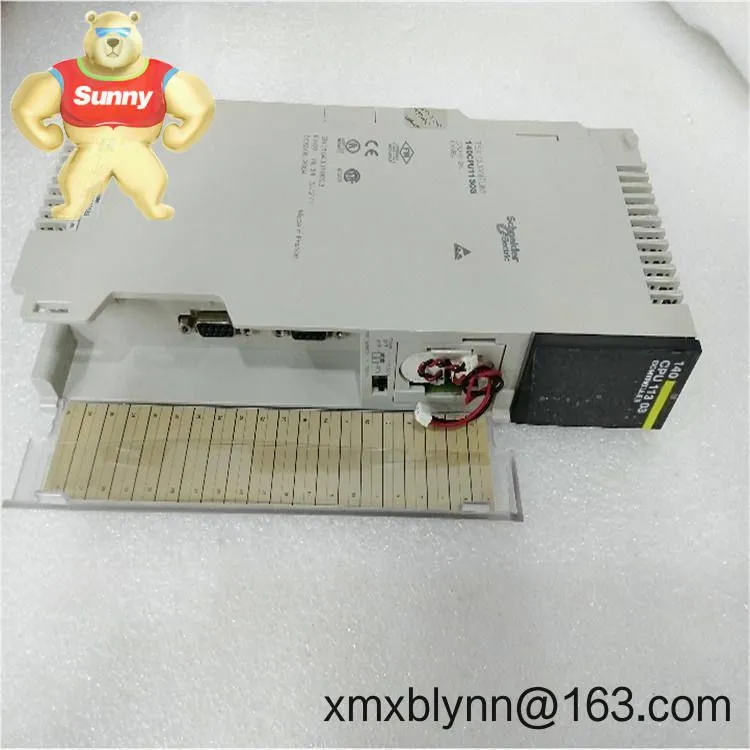

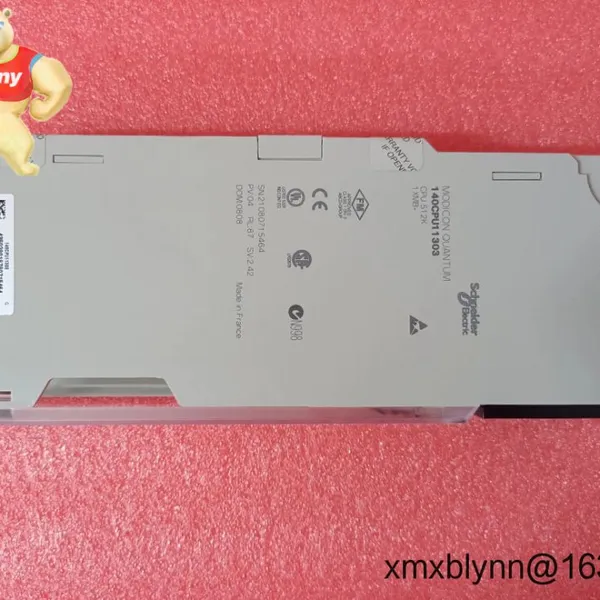

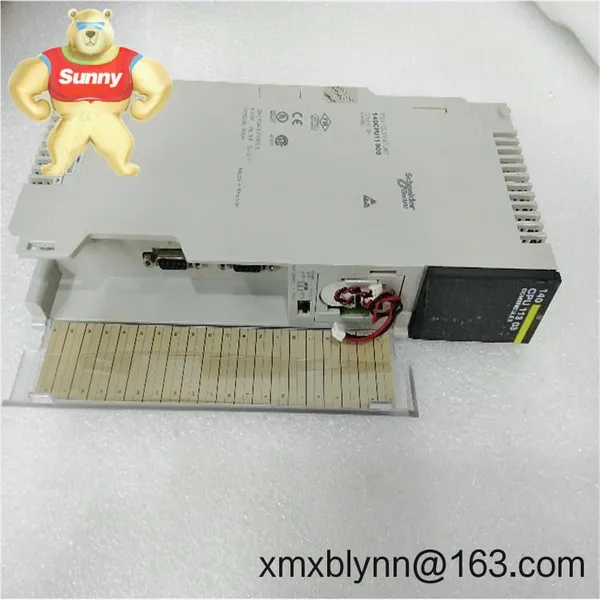

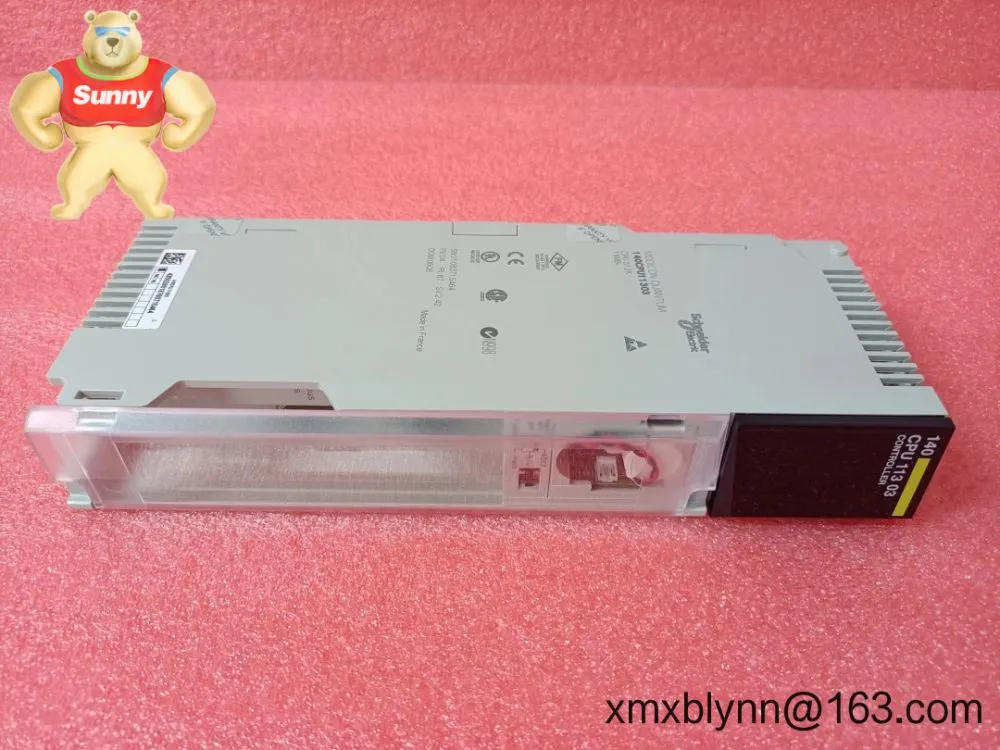

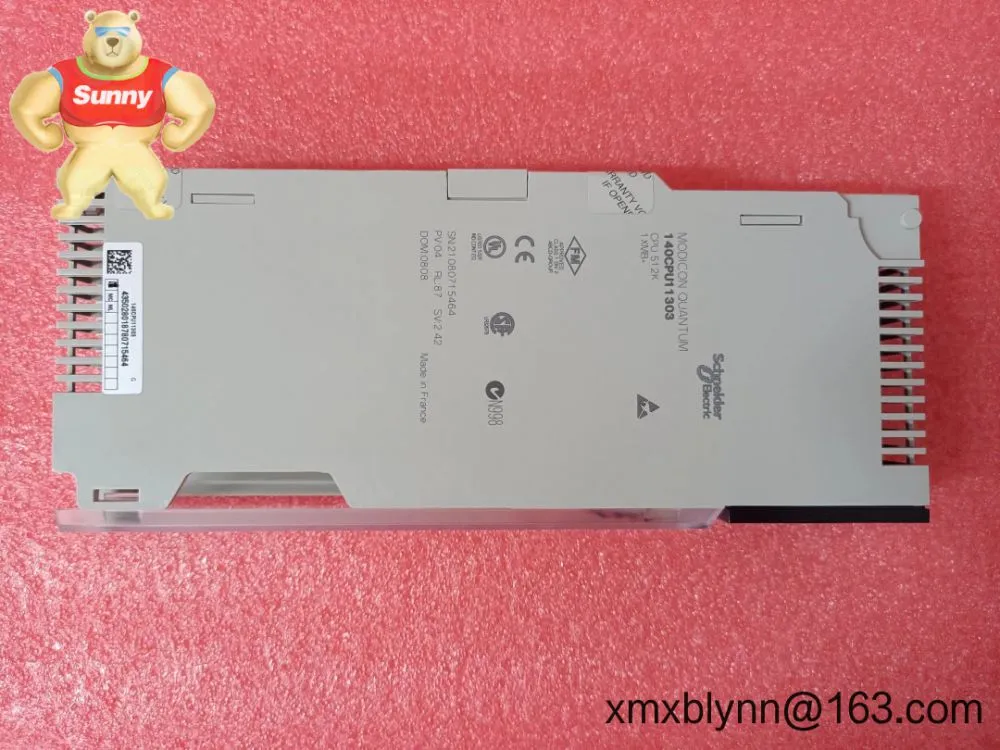

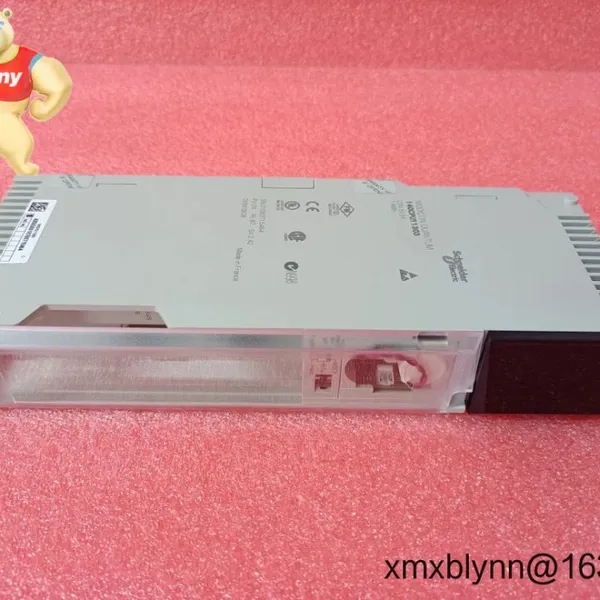

Help CenterSCHNEIDER Modicon Quantum 140CPU11303 – Compact CPU for Reliable Control on Existing Quantum Racks
Related Products
-
Schneider Electric 140CRA21210 – Modicon Quantum Remote I/O Adapter for Remote DropsNegotiableMOQ: 1 Combo -
SCHNEIDER 140SAI94000S – Modicon Quantum Analog Input Module for 4–20 mA Process SignalsNegotiableMOQ: 1 Combo
-
Schneider Electric 140XBP00400 – Modicon Quantum 4‑Slot Backplane for Compact PLC RacksNegotiableMOQ: 1 Combo
-
Schneider Electric 140XCP51000 – Modicon Quantum Series Accessory for 140‑Series Racks and I/ONegotiableMOQ: 1 Combo
-
SCHNEIDER 490NRP25300 – Modicon Fiber Network Repeater for Extending and Securing Control NetworksNegotiableMOQ: 1 Combo
The 140CPU11303 is a Modicon Quantum CPU module designed to keep brownfield systems running smoothly while leaving room for incremental upgrades. From my experience, it’s a straightforward, stable processor that works well for mid-range logic, local and remote I/O, and plant networks built around the Quantum 140-series ecosystem. If you’re maintaining a running line, this model typically keeps downtime low and plays nicely with established Modbus-based architectures.
Quantum backplane compatibility – Fits any standard 140XBP backplane with 140CPS power, making swaps and expansions simple on existing panels.
Deterministic scan performance – Stable execution for discrete sequencing and mid-size process logic; users typically see predictable scan times in day-to-day operations.
Onboard serial connectivity – Provides a serial port for programming and Modbus communications; additional networks (Ethernet, Modbus Plus, TCP/IP) handled via Quantum comm modules.
Battery-backed memory and RTC – Helps retain critical variables during power loss and keeps timestamping consistent across reboots.
Flexible programming options – Works with Schneider programming tools (e.g., Concept, ProWORX, or Unity Pro—firmware-dependent). You might notice that many maintenance teams prefer to keep the same tool they’ve used for years.
Scalable I/O – No onboard I/O, by design—use the wide Quantum 140-series I/O portfolio for discrete, analog, and specialty modules, locally or over remote drops.
| Brand / Model | Schneider Electric Modicon Quantum 140CPU11303 |
| Power Requirements | Powered via Quantum backplane (5 VDC provided by 140CPS-series power supply) |
| Operating Temperature | Typically 0 to 60 °C (32 to 140 °F) |
| Signal I/O Types | No onboard I/O; supports 140-series discrete/analog/specialty I/O modules |
| Communication Interfaces | Onboard serial Modbus (typical for 140CPU113xx); Ethernet/Modbus Plus via add-on modules (e.g., 140NOE, 140NOC, 140CRP/CRA) |
| Form Factor | Single-slot Modicon Quantum CPU module |
| Installation Method | Panel-mounted Quantum rack (140XBP series) with 140CPS power supply |
Plants running established Modbus or Modbus Plus networks tend to choose the 140CPU11303 for steady day-to-day control. It seems to be a sweet spot for utilities and manufacturing cells where stability beats bleeding-edge specs.
Water & wastewater – filter beds, pump stations, chemical dosing skids
Power & energy – auxiliary systems, balance-of-plant interlocks
Food & beverage – batch process controls, packaging lines
Oil & gas – small unit operations, tank farms, compressor skids
General manufacturing – assembly cells, material handling, utilities
“We swapped in a 140CPU11303 during a four-hour maintenance window. No wiring changes, the logic downloaded cleanly, and we were back in production with time to spare.” — Maintenance Supervisor, beverage plant
Advantages & ValueDrop-in continuity – Keeps your existing Quantum infrastructure, spares, and engineering standards intact.
Low integration risk – From my experience, the learning curve is minimal for teams already trained on Quantum and Modbus.
Cost control – Reuse racks, I/O, and power supplies; add Ethernet only where it’s needed via 140NOE modules.
Serviceability – Clear status LEDs and simple diagnostics shorten troubleshooting time in most cases.
Lifecycle strategy – Ideal as a stable replacement CPU while planning stepwise modernization later.
140XBP0x200 Backplanes – Standard Quantum racks (various slot counts) for CPU, power, comms, and I/O modules.
140CPS11420 / 140CPS12420 Power Supplies – Provide 5 VDC and backplane power; choose sizing based on total rack load.
140NOE771xx Ethernet Modules – Add Ethernet/Modbus TCP communications without changing the CPU.
140CRP93200 / 140CRA93100 RIO Adapters – Remote I/O head and drop modules for distributed architectures.
140EHC, 140ACI/AAI, 140DDI/DRA – High-speed counters, analog input/output, and digital I/O families to build out the application.
Cabinet & mounting – Mount a Quantum backplane on a rigid panel; allow clearance for airflow and service access. Keep the CPU away from high-voltage busbars and VFDs where possible.
Power & grounding – Use a properly sized 140CPS power supply. Bond the backplane ground and maintain clean reference for serial comms.
Wiring & networks – For serial Modbus, use shielded twisted pair, observe RS-485 termination and biasing if used. Add Ethernet via NOE modules when needed.
Battery & RTC – Replace the memory backup battery per maintenance schedule (typically every 2–3 years, site conditions dependent).
Firmware & backups – Keep firmware/tool versions aligned and store verified project backups. A brief offline test after changes prevents surprises.
Environmental checks – Maintain 0–60 °C ambient, control dust with filtered enclosures, and avoid condensation.
Conforms to CE requirements for industrial control equipment
UL and CSA certifications are commonly available for Quantum modules
Manufactured under ISO 9001 quality systems
RoHS compliance where applicable to the specific production batch
Typical manufacturer warranty: 18 months from shipment (confirm on order)
If you’re weighing 140CPU11303 as a like-for-like replacement or a stabilizing upgrade on a Quantum rack, this model is usually the practical choice. One thing I appreciate is how it lets you modernize communications selectively—without rewriting a whole plant.
