Home > Products > High pressure pump > High Pressure Water Jet Pump 50Mpa to 150Mpa Big Flow Industrial Cleaning

High Pressure Water Jet Pump 50Mpa to 150Mpa Big Flow Industrial Cleaning

FOB Price

US$ 3000 - 9000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C PayPal
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Cold Water High Pressure Cleaner	Certification	CE
Warranty	One year	Drive	Diesel
Application	Industrial	Condition	New
After-sales Service	Yes	Operation Type	Movable
Customized	Customized	Nozzle Type	Fan-Shaped Nozzle
Transport Package	Wooden case	Specification	1206030cm
Trademark	RELIABLE	Origin	China

Product Description

High Pressure Water Jet Pump 50Mpa to 150Mpa Big Flow Industrial Cleaning

feature

Non-Toxic

Voltage

380 V

condition

New

industry used

industrial cleaning, high pressure water jetting machine

cleaning process

Cold Water Cleaning

material

Metal / Coil

Pump Type

TRIPLEX

Pump Drive

direct mount

Pressure Washer Duty

Heavy-Duty

Motor Thermal Protection

Manual

power source

Electric

warranty

1 Year

machine type

HIGH PRESSURE CLEANER

cleaning type

HIGH PRESSURE CLEANER

use

High pressure water jet cleaning

Power

Horsepower

90kw

Flow Rate

30LPM

Water Tank Capacity

200L

place of origin

Shenyang, China

brand name

RELIABLE

dimension(l*w*h)

120*60*30cm

weight (kg)

800

Name

High pressure plunger pump

Working pressure

100Mpa/1000bar

Water flow

30-100L/min

electric motor

55KW- 160kw 3 phase

Diesel engine

64KW-264kw,6-cylinder

Start type

electric start

Delivery date

7 days

machine color

canbe customized

Product description

Model	Rate pressure	Water flow	Electric motor drive	Diesel engine drive
25030	30Mpa/300bar	250 L/min	160kw	225kw
30030	30Mpa/300bar	300 L/min	200kw	264kw
1330	150MPa/1500bar	50 L/min	160kw	225kw
1824	120Mpa/1200bar	70 L/min	160kw	225kw
2230	150Mpa/1500bar	85 L/min	200kw	264kw
1320	100Mpa/1000bar	50 L/min	90kw	120kw
1814	70Mpa/700bar	70 L/min	90kw	120kw
1510	50MPa/500bar	60 Lmin	55kw	64kw
2210	50Mpa/500bar	85 L/min	90kw	120kw
0610	50Mpa/500bar	22 L/min	22kw	33kw

Performances and Characteristics

The high-pressure plunger pump can use the water jet method to assist subsidence in the construction of hard soil layers. The high-pressure water jet guide hole is composed of a high-pressure water pump, a high-pressure water pipe, a steel pipe, and a water jet nozzle. Inject high-pressure water into the body to liquefy the surrounding soil to reduce the resistance during the sinking of the pile, and also play a certain role in lubrication, so that the pile can sink smoothly in the dense soil layer or other soil layers (general water injection The sinking is also combined with vibration, hammering, etc. to assist the sinking) In the reinforced concrete sheet pile, a water injection channel must be reserved in the middle, that is, a hole in the middle that is empty and can be used for water injection. Steel sheet piles are generally taken along the siding to secure the jet piping.

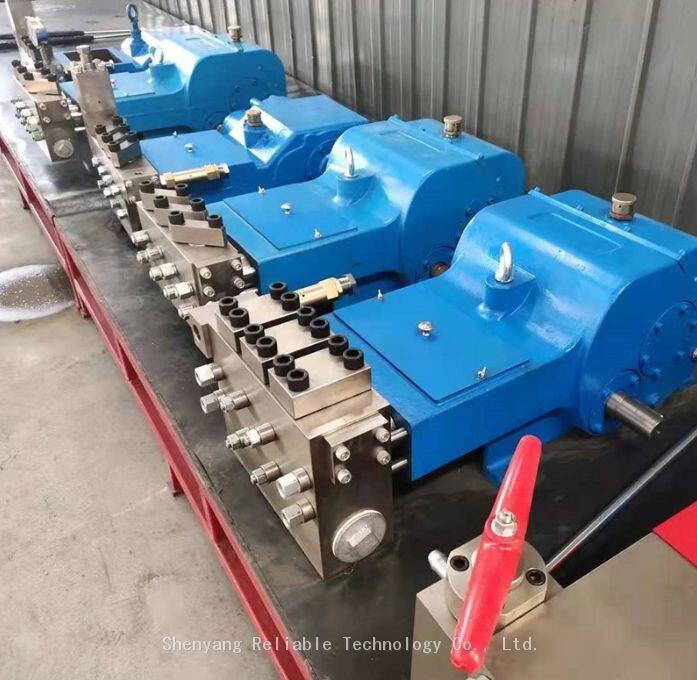

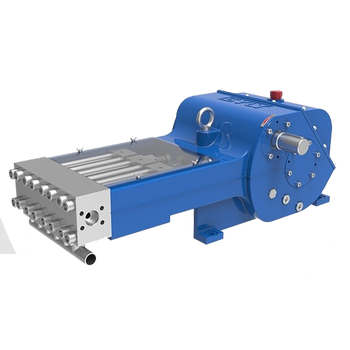

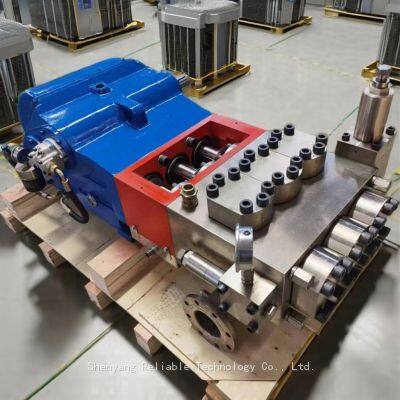

High pressure plunger pump

Pressure range from 500bar to 1500bar; Max. 2800bar; has both electric motor drive and diesel engine drive.has different model for different working function, such as surface heavy dirt cleaning, rust paint removal, industrial pipe/tank/tube cleaning, heat exchanger pipe condenser pipe cleaning, sewer drain pipe cleaning, pressure testing etc.

Pressure regulating valve.

Pressure regulating valve setting on the pumpCould be adjust the pressure easily.

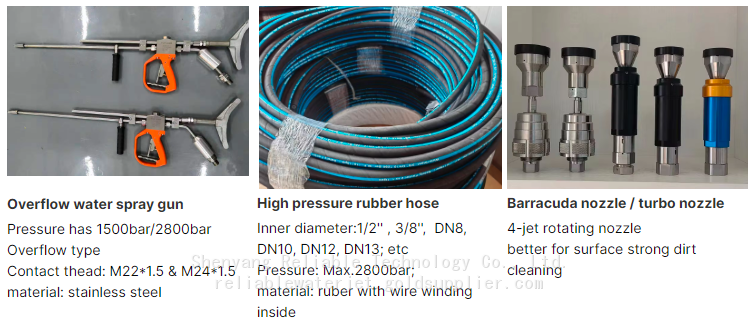

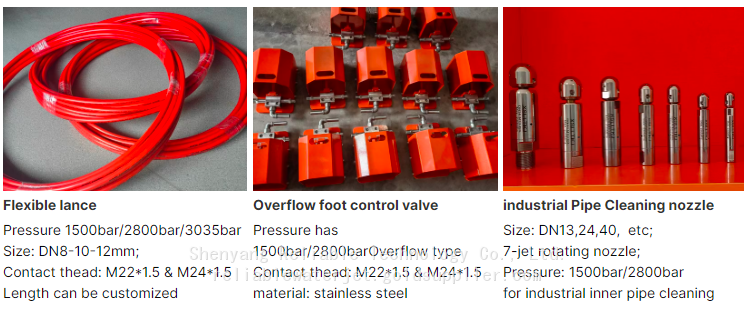

Optional accessories

Application display

FAQ:

Q1：What pressures and flow is suitable to assist pilot hole piling?

A1：Pressure normally suggest 200-300bar;         Flow rates suggest 170-600L/min,  more higher water flow, more better piling effect.

Q2: Are you trading company or manufacturer?

A2：We are manufacturer here for over 10years, can OEM machines according to customized request.

Q3: How do I choose the right nozzle for my application?

A3: If for assist pilot hole piling, need to confirm the type and size of the pilot.  4# steel sheet pilot suggest 170L/min, 6# steel sheet pilot,  Cement wave pile， PC pilot, suggest 320L/min.  or can customized according to your request.

Q4:What type of water should be used in these machines?

A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.

Q5:What are the power options for high-pressure water jetting machines?

A5: Electric: Suitable for indoor use and quieter operation.       Diesel: Preferred for outdoor use and higher power needs.       Gasoline: Portable option, ideal for remote locations.

Q6:Can I customize a high-pressure water jetting machine for specific needs?

A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.

Q7:How do I choose suitable model?

A7:You can confirm your working purpose request, we have rich experience

Q8:How long is your delivery time?

A8:Normal 3-10 days; Customized order need to confirm with the seller.

Q9:What Certificate do you have?

A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF;  CE certificate,

Q10:Which is your shipping port?

A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.

Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?

A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.

Company Profile

Shenyang Reliable Technology Co., Ltd.

Shenyang Reliable Technology Co., Ltd. Our company has been established for more than ten years, insisting on providing customers with the highest quality products and the most valuable services. At the same time, we insist on making every effort to research and develop new technologies to contribute to the economic development and civilization progress of the society! Innovation and R&D are the foundation of the company’s long-term survival, and the application of technology is the guarantee to meet customers’ needs and contribute to the society.　
