2 Wire 255-1020 Point 1 to 6 Loop Addressable Fire Alarm Control Panel

Intelligent Fire Alarm control panel LPCB fire controller 1 Loop 255points (it is also available for 2/3/4 loops).

Color menu display

Intelligent bus control mode; max 255 addressable points

per loop, max 4 loops, max 48 zones

Loop card type design:1-4 loop card can be seledted

Glass fuse per loop

Black box function

Independent controlling password for the specially needed

gas recharging units

Self-design loop protocol

Wall-mounted structure, compact and exquisite

Akzo outer coating;anti-corrosion

Language:English

Approvals：LPCB（EN54-2/4） CE

TECHNICAL SPECIFICATIONS

Volate AC230V(50HZ), Voltage range: +10%--15%

Current 1A

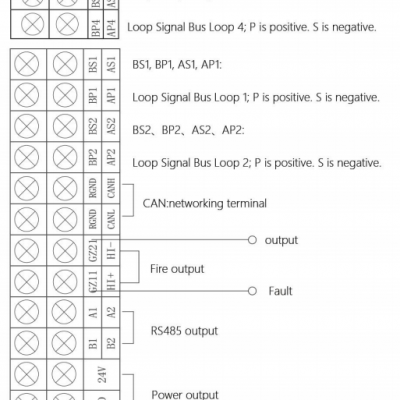

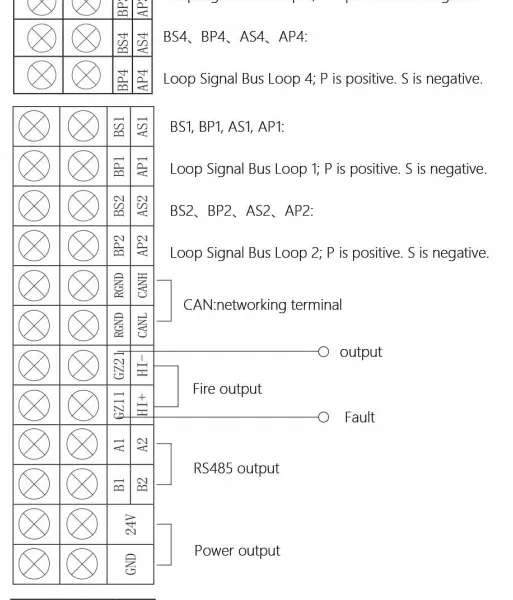

Outputs Fire output .Fault output .24V power output .Loop output

Capacity 1020/4 loops addressable points

LCD screen size 7-inch color LCD screen

Standby bettery 12V/12AH sealed lead acid battery*2

Dimension(L*W*H) 420mm×140mm×560mm

Operating environment Temperature:-5℃-+50℃: Relative Humidity:≤95%non- condensing

Communication interface RS485、CAN、USB

DETAILS

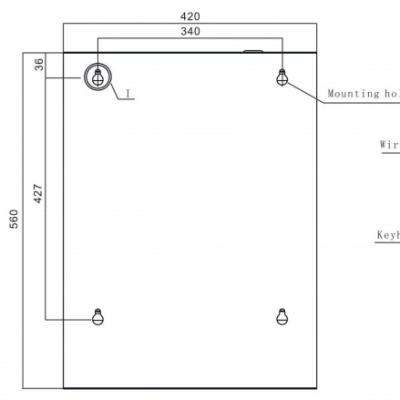

The control panel is mounted on the wall through 4 mounting holes, the dimensions of the mounting holes are shown in the picture.

The right side of the control panel has 8 wiring holes, which are easy for wiring between the control panel and field devices.

There are also 5 knock holes at the top, if the holes on the right side are not enough.
