IS200TBCIH1CBC Contact the Contact Isolated From the Input Terminal Board/tape Group
US$ 2571.00
≥1 Pallet
Key Specifications
Get Latest Price
I/O Number:
IS200TBCIH1CBC
Place of Origin:
America
Communication Interface:
Modubus
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IS200TVBAH1AAA Dedicated Interface for Connecting Vibration SensorsUS$ 2571.00MOQ: 1 Pallet -
IS200TRPAH2AFD Turbine Main Trip Terminal Board/ Input Circuit SensitivityUS$ 9425.00MOQ: 1 Pallet
-
IS200TTURH1CCC Turbine Terminal Plate/white 4-pin JackUS$ 5657.00MOQ: 1 Pallet
-
IS200SRTDH2ABB RTD Card / 18 Terminals per TerminalUS$ 5657.00MOQ: 1 Pallet
-
IS200TREAH2ACC Terminal Block/Independent Control ModuleUS$ 3257.00MOQ: 1 Pallet
I/O Number
IS200TBCIH1CBC
Place of Origin
America
Communication Interface
Modubus
Product name
Contact The contact isolated from the input terminal board/tape group
Model Number
IS200TBCIH1CBC
Condition
NEW
Warranty
One Year
Package
Original Packaging
Product Description
nation |
china |
Product Name |
IS200TBCIH1CBC |
Material |
Contact The contact isolated from the input terminal board/tape group |
warranty |
One year |
Stock |
In Stock |
Package |
Original |
Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!!
Can transport to the world.
（Rule out special circumstances can't transport area！）
If you need, please contact customer service.
【The contact information of the service】
① 24 hours to receive mail reply (12 hours);
② EBAY customer service chat messages, reply within 3 hours.
③ Shipped to countries outside of Asia, please contact the seller.（Part of the international area, free shipping）
【Product properties】
① Type:IS200TBCIH1CBC
② Inventory quantity: 2
③ The colour：NEW
④ Freight: Different areas of freight, depending on the local freight forwarder shall prevail.
⑤ Whether containing tariffs: Do not include any taxes and fees
⑥ Packing: Use the seller safety packaging
【Friendship tip】
Ⅰ、The mode of transportation and freight:
① , Shipping company according to different regions. (If you need to specify the shipping company, please contact the seller)
② , freight, transport price (not including the national customs charges and other fees), according to the actual seller to provide shipping price shall prevail.
③ , the territory of China (including Hong Kong, Macao and Taiwan), in most of the free shipping. Please contact the staff.
Ⅱ、Payment method:
Buyer please select a payment according to the actual situation, if in doubt contact the seller!!!!!
Ⅲ、Product quality and after-sales service:
1, Consulting the seller's product quality, buy again. If you have any questions, please contact the seller.
2, During the after-sales service, according to the circumstances. If you want to delay the after-sales service, or else the seller after-sale policy shall prevail. Please contact the seller.
IS200TBCIH1CBC Contact The contact isolated from the input terminal board/tape group
specification
Part number: IS200TBCIH1CBC
Manufacturer: General Electric
Country of Manufacture: USA (USA)
Dimensions: Height 33.02 cm x width
10.16 cm Temperature: -30 to 65oC
Product Type: Contact input terminal board
Availability: In stock
Series: Mark VI
Function description
The IS200TBCIH1CBC is a contact input terminal board developed by GE. It is part of the Mark VI series. Isolated contact input terminal boards are a key component in the system architecture and are specifically designed to handle contact inputs while ensuring isolation and preventing potential failures. The following is a detailed breakdown of its functions and fault detection mechanisms:
trait
Input acceptance: The board accommodates 24 dry contact inputs that are systematically connected to two barrier terminals. These inputs are designed to receive and process external signals.
Contact excitation: In order to excite the contact input, a DC power supply is connected to the board to ensure that the contact input is working properly and activated.
Noise suppression circuit: Contact input is equipped with noise suppression circuit. This feature prevents surges and high-frequency noise, ensures reliable signal processing and prevents potential electrical interference.
Hardware Settings: It is worth noting that the terminal board does not have any jumpers or hardware Settings. This design simplifies configuration and setup, ensuring direct integration within the system.
Power consumption: The total power consumption during operation is 20.6 watts, which facilitates the necessary functions and signal processing inside the board.
Wiring connection
In a simplex system configuration, connector JR1 is used as the primary connection point. However, in a triple modular redundancy (TMR) setup, all three connectors (JR1, JR2, and JR3) are used to ensure redundancy and fault tolerance. The choice of connectors depends on the specific requirements of the Mark VI or Mark VIe system being deployed, as well as the level of redundancy required.
Cables or input/output (I/O) packages are then plugged into these connectors, depending on the architecture of the system and the redundancy strategy employed. This flexible approach allows for seamless integration and scalability, adapting to different system configurations and operational needs.
Fault detection mechanism
Contact input excitation voltage loss: When the excitation voltage powering the contact input is lost, it is detected to ensure continuous monitoring and reliability of the input voltage level.
Non-responsive contact inputs in test mode: Detect contact inputs that are specifically marked as non-responsive in test mode to ensure functional validation and responsiveness during diagnostics.
Pull out the cable: Trigger fault detection if the cable is pulled out, ensuring that the system can identify and resolve any interruption in the connection or signal transmission.
These fault detection mechanisms within the TBCI terminal board are integral to maintaining the reliability and safety of the contact input. By identifying potential problems such as power outages or broken connections in a timely manner, these mechanisms ensure system stability and operational consistency, thereby making a significant contribution to the overall reliability of the system.

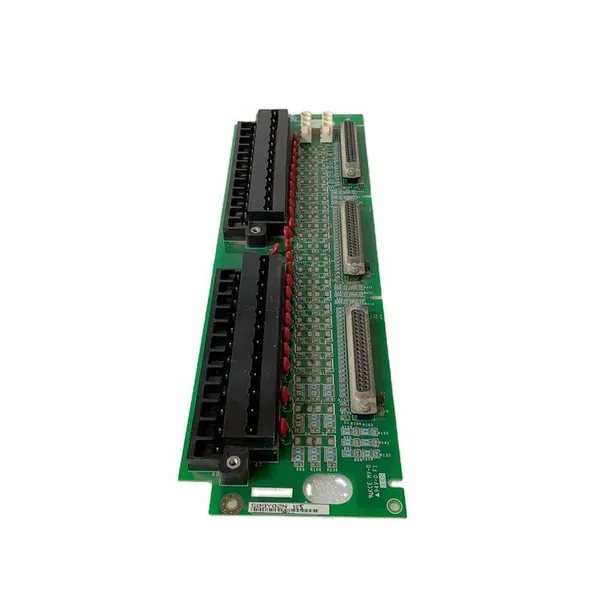

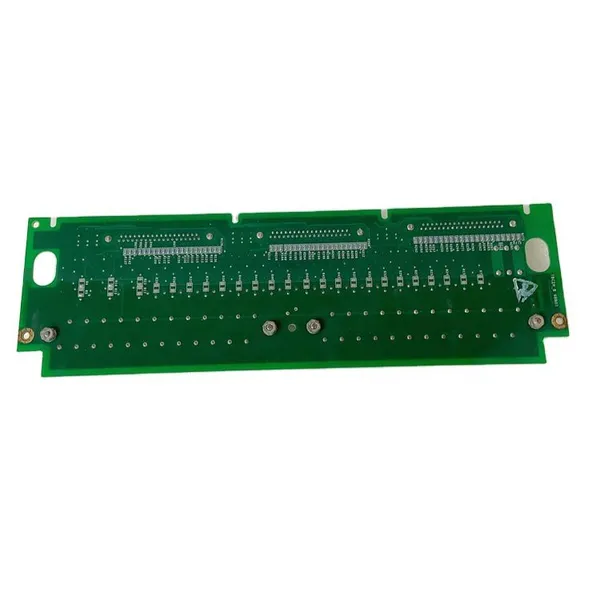

Details Images
