Home > Electrical & Electronics > Relay & Contactor > Relay > IS420ESWBH3A DIN Rail or Potential Panel Mounting/ Input Voltage 24/28 VDC

IS420ESWBH3A DIN Rail or Potential Panel Mounting/ Input Voltage 24/28 VDC

IS420ESWBH3A DIN Rail or Potential Panel Mounting/ Input Voltage 24/28 VDC thumbnail-1
IS420ESWBH3A DIN Rail or Potential Panel Mounting/ Input Voltage 24/28 VDC thumbnail-2
IS420ESWBH3A DIN Rail or Potential Panel Mounting/ Input Voltage 24/28 VDC thumbnail-3
IS420ESWBH3A DIN Rail or Potential Panel Mounting/ Input Voltage 24/28 VDC thumbnail-4
IS420ESWBH3A DIN Rail or Potential Panel Mounting/ Input Voltage 24/28 VDC photo-1
IS420ESWBH3A DIN Rail or Potential Panel Mounting/ Input Voltage 24/28 VDC photo-2
IS420ESWBH3A DIN Rail or Potential Panel Mounting/ Input Voltage 24/28 VDC photo-3
IS420ESWBH3A DIN Rail or Potential Panel Mounting/ Input Voltage 24/28 VDC photo-4
US$ 3085.00 ≥1 Pallet
Key Specifications
Get Latest Price
I/O Number:
IS420ESWBH3A
Place of Origin:
America
Communication Interface:
Modubus
Contact Supplier Request Quote Chat Now
Xiamen Xiongba E-commerce Co., LTD
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
I/O Number IS420ESWBH3A
Place of Origin America
Communication Interface Modubus
Product name DIN rail or potential panel mounting/ Input voltage 24/28 VDC
Model Number IS420ESWBH3A
Condition NEW
Warranty One Year
Package Original Packaging
Product Description
nation
china
Product Name
IS420ESWBH3A
Material
DIN rail or potential panel mounting/ Input voltage 24/28 VDC
warranty
One year
Stock
In Stock
Package
Original
Welcome, thank you for your trust, The seller has more than $1526000 worth of industrial control products inventory.hope we can help you solve your problem!!! Can transport to the world. （Rule out special circumstances can't transport area！） If you need, please contact customer service. 【The contact information of the service】 ①   24 hours to receive mail reply (12 hours); ② EBAY customer service chat messages, reply within 3 hours. ③ Shipped to countries outside of Asia, please contact the seller.（Part of the international area, free shipping） 【Product properties】 ① Type:IS420ESWBH3A
② Inventory quantity: 2 ③ The colour：NEW ④ Freight: Different areas of freight, depending on the local freight forwarder shall prevail. ⑤ Whether containing tariffs: Do not include any taxes and fees ⑥ Packing: Use the seller safety packaging 【Friendship tip】 Ⅰ、The mode of transportation and freight: ① , Shipping company according to different regions. (If you need to specify the shipping company, please contact the seller) ② , freight, transport price (not including the national customs charges and other fees), according to the actual seller to provide shipping price shall prevail. ③ , the territory of China (including Hong Kong, Macao and Taiwan), in most of the free shipping. Please contact the staff. Ⅱ、Payment method: Buyer please select a payment according to the actual situation, if in doubt contact the seller!!!!! Ⅲ、Product quality and after-sales service: 1, Consulting the seller's product quality, buy again. If you have any questions, please contact the seller. 2, During the after-sales service, according to the circumstances. If you want to delay the after-sales service, or else the seller after-sale policy shall prevail. Please contact the seller.
IS420ESWBH3A DIN rail or potential panel mounting/ Input voltage 24/28 VDC

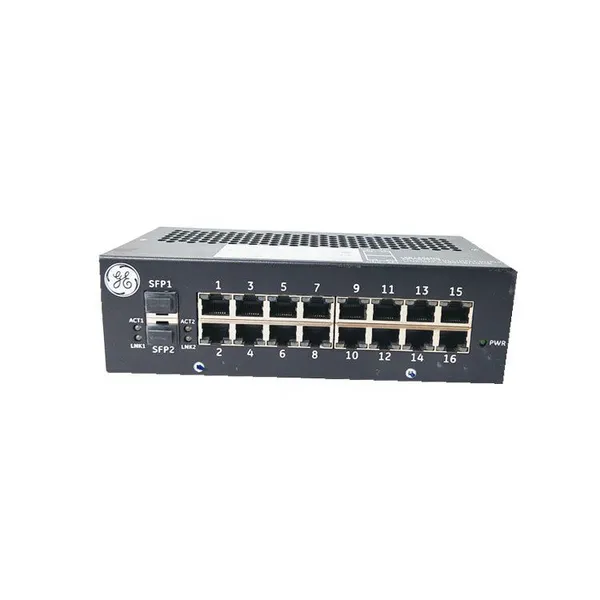

S420ESWBH3A Technical specifications Manufacturer GE Energy Weight 2 pounds Number of fiber ports None Operating temperature -40 to 70°C Mounting method DIN rail or potential panel mounting Input voltage 24/28 VDC Function abbreviation ESWB Company Dimensions Height 18.8 cm x width 8.6 cm x depth 5.6 cm Cat 5e UTP cable with RJ45 connector in copper Cooling method convection cooling The industrial Ethernet switch IS420ESWBH3A is part of the Mark VIe security control system designed by General Electric. This switch does not have any fiber ports, but it does have 16 copper ports, which are 10/100Base-TX RJ45 ports. The primary operation of the switch is performed as a Tier 1 Ethernet switch, with the ability to buffer multicast and broadcast packets at its center. There should be enough space to allow a buffer of one packet per port; If multiple incoming streams are sent to the switch, it can only accept one of the multiple incoming streams and will buffer the remaining streams for later transmission. The IS420ESWBH3A switch has an LED indicator. There is a power LED and the rest of the leds are active and link functions. When the link LED is steady yellow, it means that a 10 MB link is in use, when the green light is steady, it means that a 100 MB link is in use, and no LED light means that there is no link. The color of the active LED is also green and yellow, but they will flash, when the LED flashes green, it means that the activity is in a full duplex state, and when it flashes yellow, the activity is in a half duplex state. The IS420ESWBH3A switch can be mounted in a variety of ways, the switch can be mounted parallel or vertically on the DIN rail, or on the panel if required. Note that when the switch is mounted on a DIN rail, different clamps are required, namely 259B2451BVP1 and 259B2451BVP4 clamps.
