False Ceiling Stud and Truck Building Material Cold Roll Forming Machine

Hebei Zizhuo Machinery Manufacturing Co., Ltd
False Ceiling Stud and Truck Building Material Cold Roll Forming Machine thumbnail-1
False Ceiling Stud and Truck Building Material Cold Roll Forming Machine thumbnail-2
False Ceiling Stud and Truck Building Material Cold Roll Forming Machine thumbnail-3
False Ceiling Stud and Truck Building Material Cold Roll Forming Machine thumbnail-4
False Ceiling Stud and Truck Building Material Cold Roll Forming Machine thumbnail-5
False Ceiling Stud and Truck Building Material Cold Roll Forming Machine photo-1

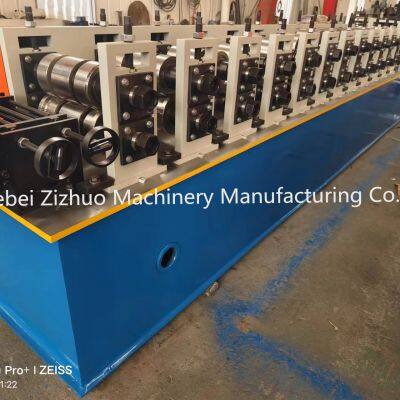

False Ceiling Stud and Truck Building Material Cold Roll Forming Machine photo-2

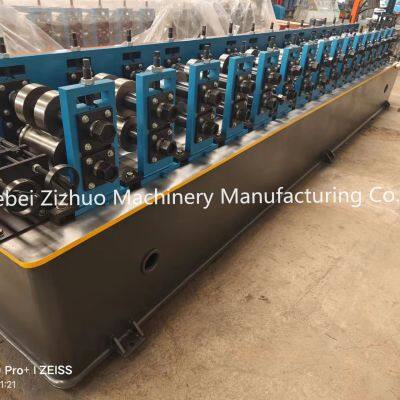

False Ceiling Stud and Truck Building Material Cold Roll Forming Machine photo-3

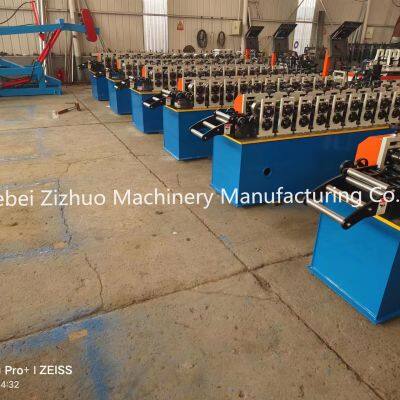

False Ceiling Stud and Truck Building Material Cold Roll Forming Machine photo-4

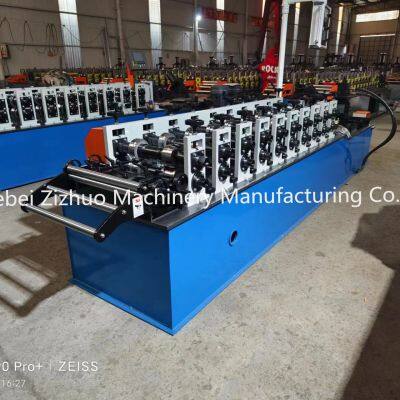

False Ceiling Stud and Truck Building Material Cold Roll Forming Machine photo-5
US$ 8000 - 16000 MOQ: 1 Set
Key Specifications
Get Latest Price
Certification:
CE, ISO9001
Automatic Grade:
Automatic
After-sales Service:
1 year
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE, ISO9001
Automatic Grade Automatic
After-sales Service 1 year
Customized Customized
Condition New
Warranty 5 Years
Control Type CNC
voltage 380v
motor 7.5kw
servo motor 2.3kw
speed 40 meters
weight 2000kg
Color Blue
Transport Package nude
Specification 6x1x1.5m
Trademark zizhuo
Origin China

Gypsum board Stud and Truck Building Material Cold Roll Forming Machine

Technical parameter and accessories

Parameter

Specification

1

Processing material

Strip steel / aluminum sheet / galvanized steel coil / GI / PPGI.

2

Certification

CE / BV / ISO / SGS

3

Voltage

415V 50Hz 3Phases

4

Power

5.5kw main roll forming core + 4kw hydraulic station

5

Processing thickness

0.4-0.7mm

6

Feeding width

According to your profile drawings.

7

Output width

According to your profile drawings.

8

Diameter of shaft

Φ50mm (Solid shafts)

9

Roller stations

12 rows of rollers

10

Machine size

About 5.6m * 1.1m * 1.2m

11

Machine weight

About 2000kgs

12

Productivity

About 35-40 m/min

13

Roller material

Cr12 mould steel with quenched treatment

14

Cutter material

Cr12 mould steel with quenched treatment

15

Screw

Galvanized national standard

16

Control system

Delta PLC (made in Taiwan province of China.)

17

Drive method

Chain transmission

2. Processing flow chart

●Uncoiling→Feeding material into machine → Roll forming → Measuring length → Auto cutting → Products receiving



微信图片_20230919133240.png微信图片_20231018100655.png微信图片_20231018100737.png微信图片_20230919133301.png
