Steel Galvanized Roller up Shutter Door Slat Cold Roll Forming Machine

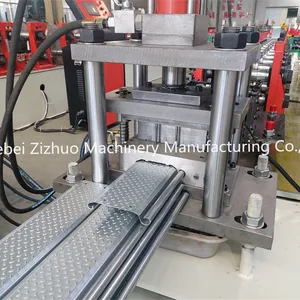

Steel Galvanized Roller up Shutter Door Slat Cold Roll Forming Machine thumbnail-1
Steel Galvanized Roller up Shutter Door Slat Cold Roll Forming Machine thumbnail-2
Steel Galvanized Roller up Shutter Door Slat Cold Roll Forming Machine thumbnail-3
Steel Galvanized Roller up Shutter Door Slat Cold Roll Forming Machine thumbnail-4
Steel Galvanized Roller up Shutter Door Slat Cold Roll Forming Machine photo-1
Steel Galvanized Roller up Shutter Door Slat Cold Roll Forming Machine photo-2

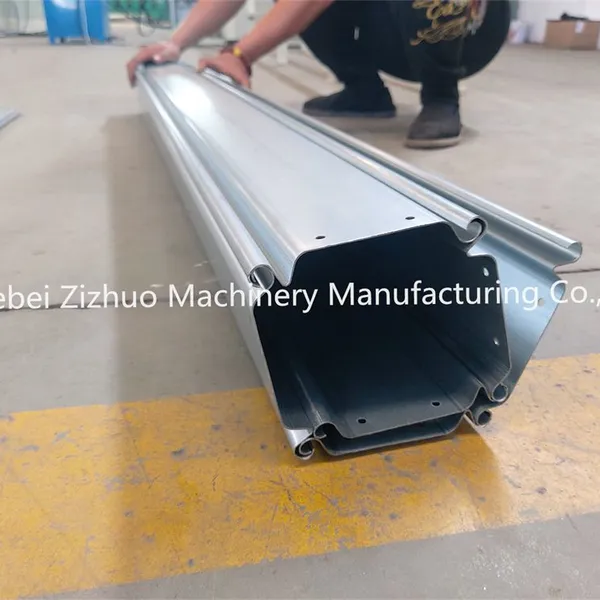

Steel Galvanized Roller up Shutter Door Slat Cold Roll Forming Machine photo-3

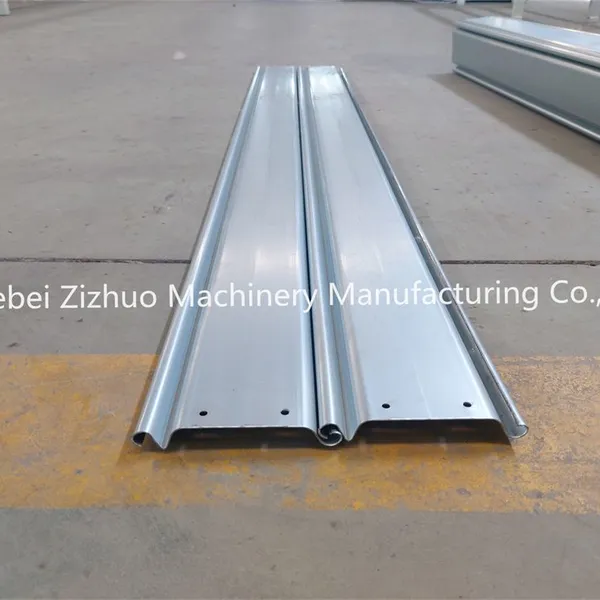

Steel Galvanized Roller up Shutter Door Slat Cold Roll Forming Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE, ISO
Warranty:
1 year
Structure:
Horizontal
Contact Supplier Request Quote Chat Now
Hebei Zizhuo Machinery Manufacturing Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE, ISO
Warranty 1 year
Structure Horizontal
Automatic Grade Automatic
Customized Customized
Condition New
Transmission Method Hydraulic Pressure
Transport Package waterproof/wood box
Specification 6.0x1.0x1.5m
Trademark zizhuo
Origin china

Galvanized steel roll up shutter door slat roll forming machine

1. Technical parameter and accessories

Parameter

Specification

1

Processing material

Strip steel / aluminum sheet / galvanized steel coil / GI / PPGI.

2

Certification

CE / BV / ISO / SGS

3

Voltage

AC 380V 50Hz 3Phases or as per your request.

4

Power

4kw main roll forming core + 4kw hydraulic station

5

Processing thickness

0.8-1.2mm

6

Feeding width

According to your profile drawings.

7

Output width

According to your profile drawings.

8

Diameter of shaft

Φ40mm (Solid shafts)

9

Roller stations

10 rows of rollers

10

Machine size

About 5.2m * 1.0m * 1.5m

11

Machine weight

About 1800 kgs

12

Productivity

About 10-15 m/min

13

Roller material

Cr12 mould steel with quenched treatment

14

Cutter material

Cr12 mould steel with quenched treatment

15

Screw

Galvanized national standard

16

Control system

Delta PLC (made in Taiwan province of China.)

17

Drive method

Chain transmission

18

Electron component

Schneider

19

Encoder

Omron

2. Processing flow chart

●Uncoiling→Feeding material into machine → Roll forming → Measuring length → Auto cutting → Products receiving

20240513_102803(1).jpg20240513_102834(1).jpg20240513_110817(1).jpg20240513_152002.jpg20240513_152550.jpg


Loading machines to Morocco
