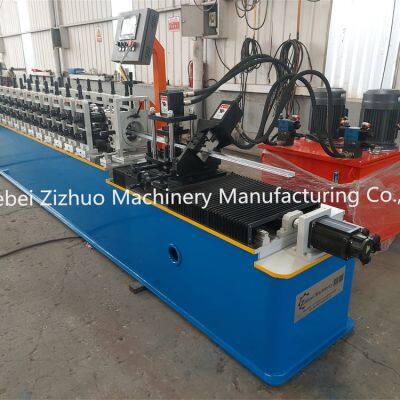

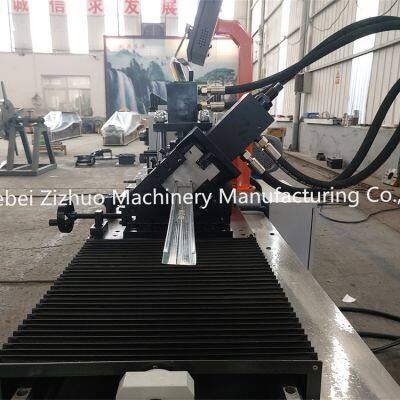

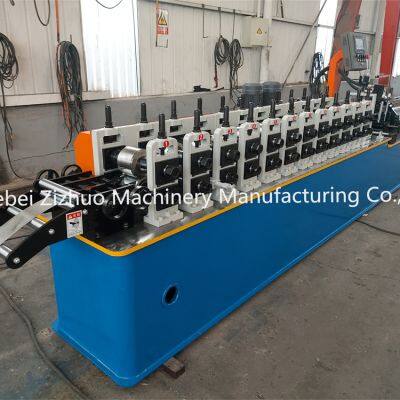

Gypsum board Stud and Truck Building Material Cold Roll Forming Machine

FOB Price

US$ 8000 - 16000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Gypsum board Stud and Truck Building Material Cold Roll Forming Machine

Technical parameter and accessories

Parameter		Specification
1	Processing material	Strip steel / aluminum sheet / galvanized steel coil / GI / PPGI.
2	Certification	CE / BV / ISO / SGS
3	Voltage	415V 50Hz 3Phases
4	Power	5.5kw main roll forming core + 4kw hydraulic station
5	Processing thickness	0.4-0.7mm
6	Feeding width	According to your profile drawings.
7	Output width	According to your profile drawings.
8	Diameter of shaft	Φ50mm (Solid shafts)

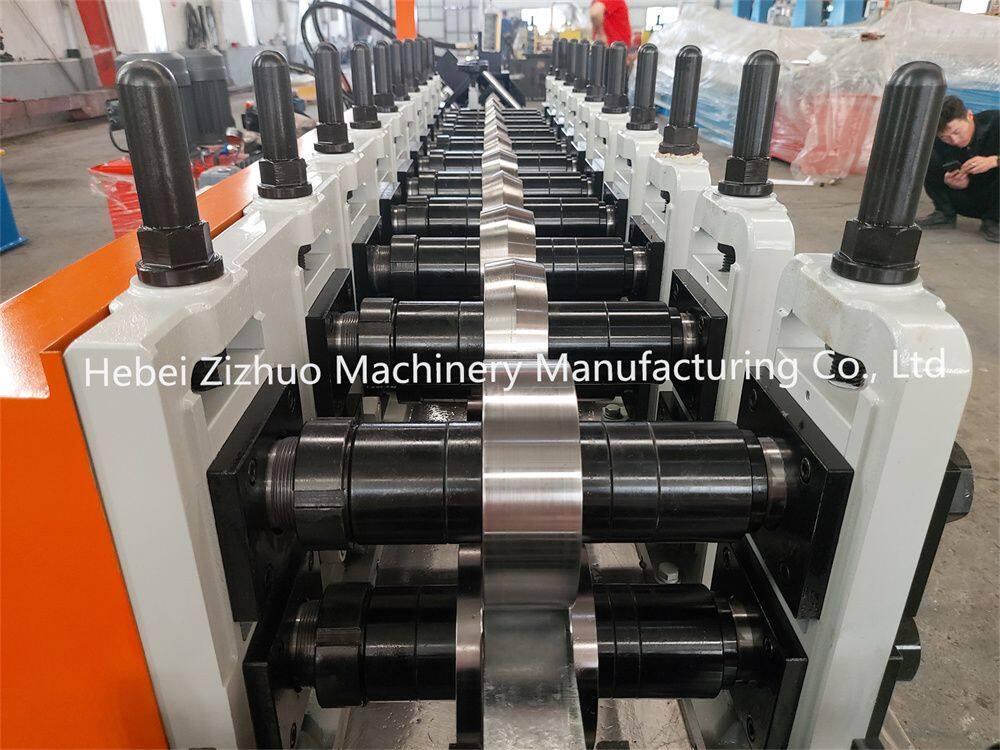

9	Roller stations	12 rows of rollers
10	Machine size	About 5.6m * 1.1m * 1.2m
11	Machine weight	About 2000kgs
12	Productivity	About 35-40 m/min
13	Roller material	Cr12 mould steel with quenched treatment
14	Cutter material	Cr12 mould steel with quenched treatment
15	Screw	Galvanized national standard
16	Control system	Delta PLC (made in Taiwan province of China.)
17	Drive method	Chain transmission

2. Processing flow chart

●Uncoiling→Feeding material into machine → Roll forming → Measuring length → Auto cutting → Products receiving
