Metal C Z Interchangeable Factory Purlin C Channel Building Material Cold Roll Forming Machine

US$ 31000 - 40000 MOQ: 1 Set

Key Specifications

Certification:

CE, GS, ISO9001

Automatic Grade:

Automatic

After-sales Service:

20 years service

Hebei Zizhuo Machinery Manufacturing Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

45 days

Certification CE, GS, ISO9001

Automatic Grade Automatic

After-sales Service 20 years service

Customized Customized

Condition New

Warranty 1 Year

Control Type CNC

Servo motor 22kw

Hydraulic motor 11kw

Voltage 380v, 415V, 220V

Machine weight 11000kgs

Workshop area 5600M2

Transport Package waterproof

Specification 12x1.4x1.7m

Trademark Zizhuo

Origin Cangzhou

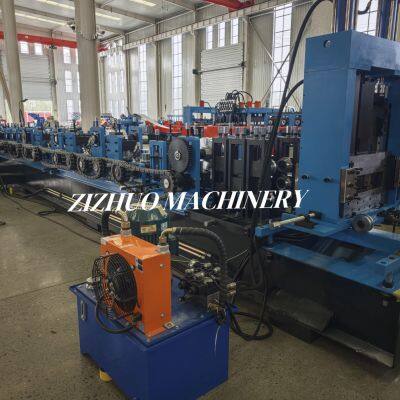

Full automatic C Z interchangeable purlin Cold Roll Forming Machine

C & Z interchangeable purlin roll forming machine

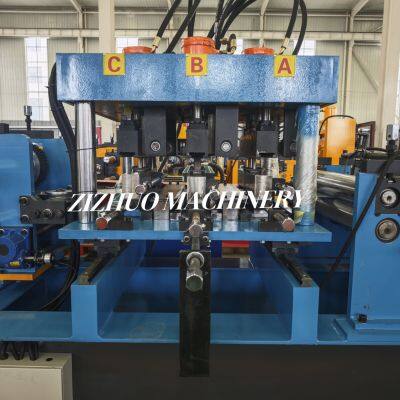

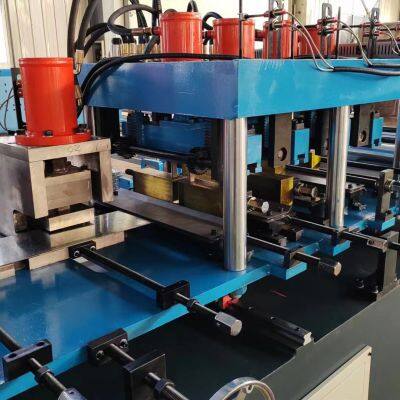

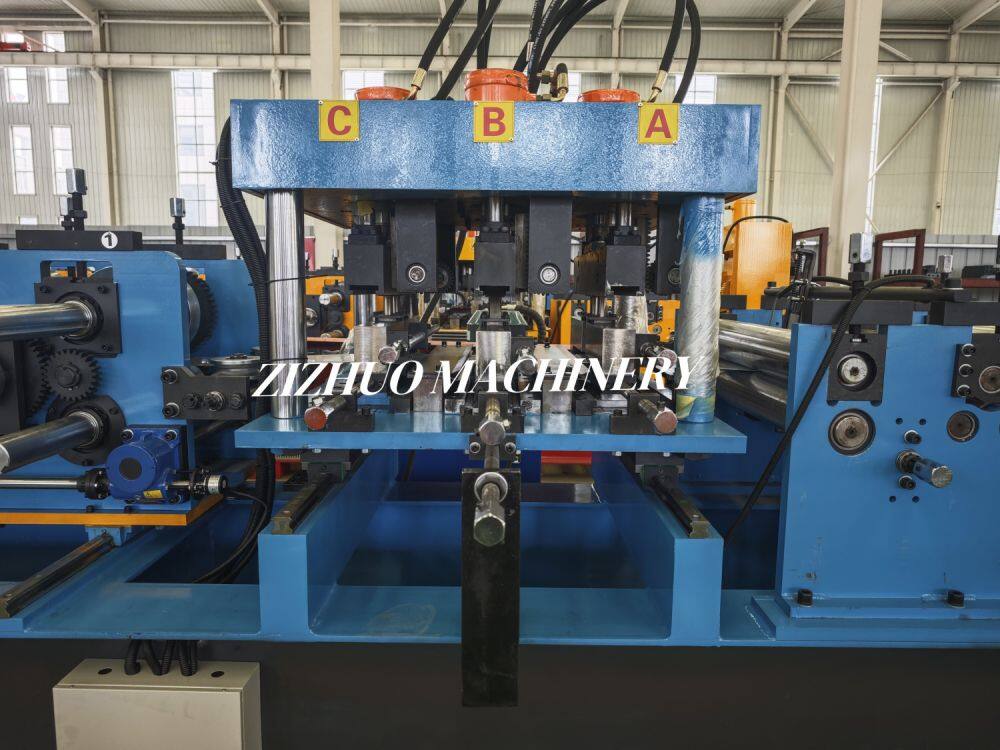

Online punching station

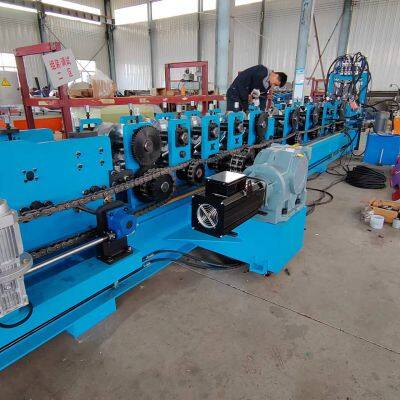

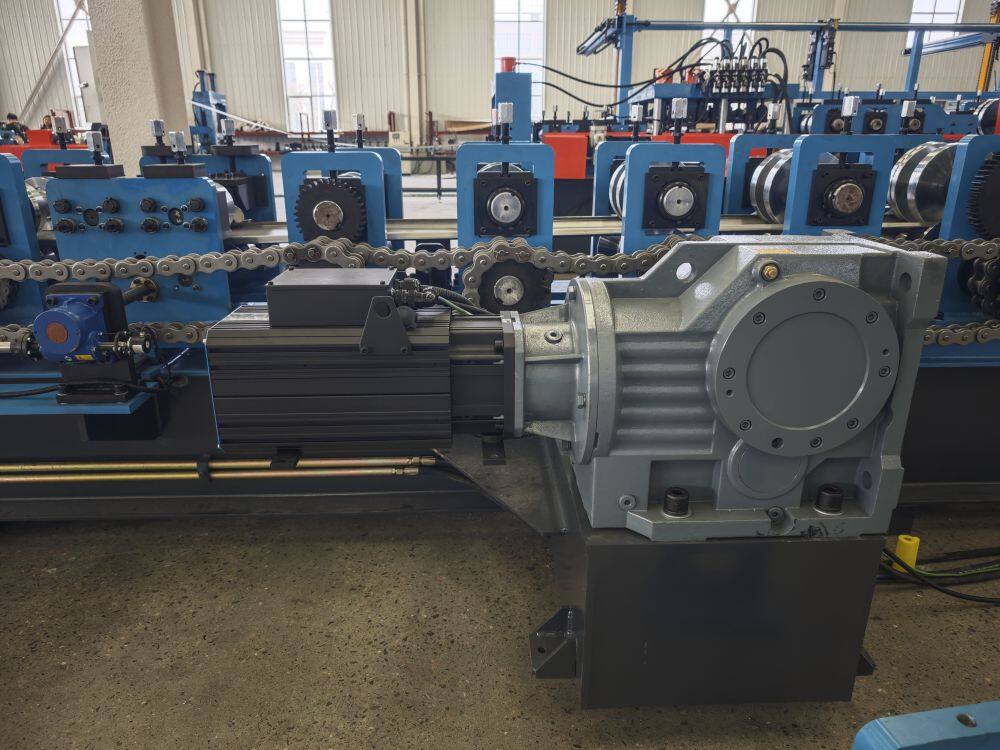

Servo motor drive

Profile Drawings For Reference

Working Flow

De-coiler->Leveling Device->Pre-cut device ->Punching Device (Regular Holes) ->Roller Forming Machine->Hydraulic Cutting Device->Product Stand Tables

Technical Parameter

No.	Item		Parameter
1	Size	Material Thickness	1.5-3.0 mm
1	Size	Product Size	Width : 80 - 300 mm Height : 40 - 80 mm
2.	De-coiler Specs	Type	passive type
		Max. Capacity	3Tons
		Coil ID	508mm
		Max. Coil OD	≤1000mm
		Max. Coil Width	≤300mm
3.	Machine Specs	Forming Speed	6 - 8M/Min
		Forming Stations	16-18 Stations
		Roller Material	GCr15 Steel
		Shaft Diameter	85 mm
		Shaft Material	40Cr
		Forming Structure	Guiding Column
		Base Frame	H-Section Steel Welding
		Driven System	Hydraulic motor
		Hydraulic Motor Power	22 KW--------------1Set
		Hydraulic Motor Brand	TILORMS
		Cutting Power	5KW
		Cutting Tolerance	±2mm
		Installation Dimension	20~25M*2M
		Machine Weight	About 10 Tons
4.	Computer Box	PLC	Delta
		Frequency Converter	Delta
		Encoder	Omron
		Touch Screen	10 inch
		Button	Emergency Stop
5.	Paint	Base Paint	Anti-rust
5.	Paint	Surface Paint	As customer’s request
6.	Others	Electric motor overloads protection
		Short circuit protection
		380V/50HZ/3Phase (depend on clients’ need )
