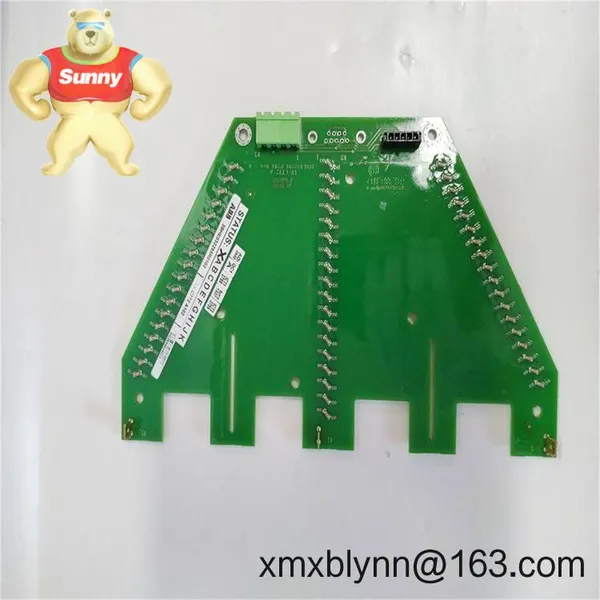

ABB XVC772A101 (3BHE032285R0101) – High‑Speed Controller Board for AC 800PEC Power Electronics and Drives

• Warranty: 365 days standard coverage.

• Lead time: 1 week if in stock; no more than one month at the latest.

• Payment terms: 50% advance payment; full payment prior to delivery.

• Express delivery: FedEx, UPS, DHL.

• Each unit is function-checked and packed with ESD protection prior to dispatch.

• High-speed control core – Optimized for AC 800PEC real-time tasks and fast control loops.

• Deterministic backplane access – Stable cycle times in converter and excitation applications.

• Fiber-optic links – Low-noise, galvanically isolated communication to I/O and power electronic units.

• Service Ethernet – Convenient engineering/service access for commissioning and diagnostics.

• Drop-in replacement – Designed to fit AC 800PEC base units without panel rework.

• Industrial temperature range – Suitable for typical cabinet installations in harsh environments.

• ABB ecosystem compatibility – Works within established PEC toolchains and accessory modules.

This board is commonly used where fast control and high reliability are essential. Typical deployment scenarios include:

• Medium- and high-voltage drives (MV drives, marine propulsion, compressors)

• Power electronic converters for wind/solar inverters and grid-interactive systems

• Excitation systems for generators and synchronous machines

• FACTS equipment (SVC/STATCOM) and active front-end rectifiers

• Metals and paper processing lines requiring precise speed/torque control

• Reliability: Built for continuous operation in electrically noisy environments.

• Compatibility: Fits AC 800PEC architectures without cabinet redesign.

• Lifecycle support: Helps extend installed base lifetime while preserving application code.

• Cost control: Faster swap and commissioning reduce downtime costs.

• Technical know‑how: Access to documentation, firmware guidance, and setup tips on request.

• Environment: Install in a 19-inch style cabinet or OEM panel with adequate ventilation and -10 to +55°C ambient target (0…+55°C operation typical).

• Wiring: Ensure clean 24 VDC supply to the AC 800PEC system; keep fiber and Ethernet away from high-power cables.

• ESD: Use grounded wrist straps and ESD mats; handle by edges only.

• Firmware: Match controller firmware to project version; back up application and parameters before swap.

• Routine care: Periodic dust removal with dry air, connector inspection, and review of diagnostic logs.

• Spare strategy: Keep one tested spare on the shelf for critical lines; it seems to be the most time-saving approach in many cases.

• Certifications: CE and RoHS compliant; manufactured under ISO 9001 quality systems.

• Warranty: 12 months (365 days) from shipment; covers functional defects under normal use.

• Traceability: Unit labeling with 3BHE032285R0101 for clear identification.

• AC 800PEC base unit and backplane

• 24 VDC system power supply and cabinet accessories

• Fiber‑optic I/O and interface modules used with PEC systems

• Engineering/service cable for Ethernet-based commissioning

Field feedback: “We swapped in the XVC772A101 as a one‑for‑one replacement during a scheduled stop. No wiring changes, just firmware alignment. Drive ramped back up within the hour.” — Maintenance Manager, steel process line
