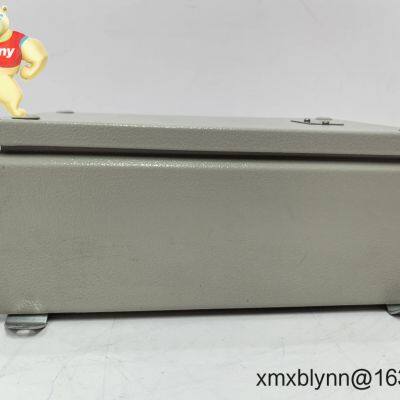

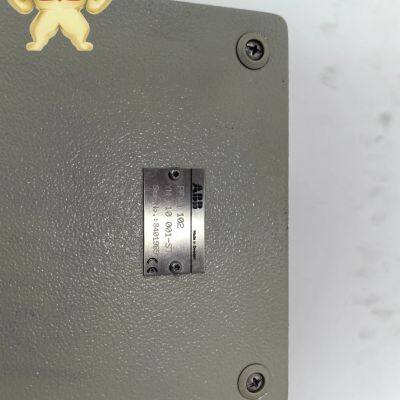

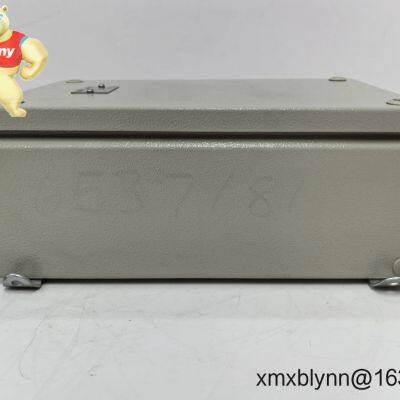

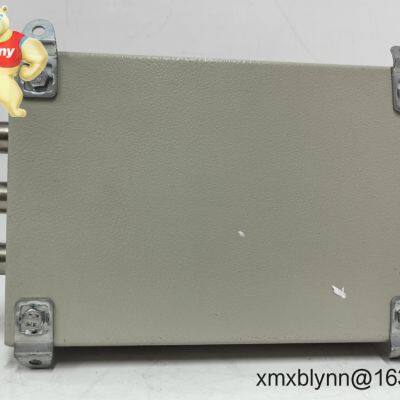

Help CenterABB PFV0-102 (PFV0102) – Frequency-to-Voltage Signal Converter for Drives, PLCs, and Process Lines
Related Products
-
ABB PM803F (3BDH000530R1) – CPU Module for Freelance AC 800F Process AutomationUS$ 8335.00MOQ: 1 Combo -
ABB XVC768116 (3BHB007211R116) Drive Control Board – Reliable Spare for ABB Industrial DrivesUS$ 3335.00MOQ: 1 Pallet
-
ABB PM573-ETH (1SAP130300R0271) – Ethernet CPU for AC500 PLC SystemsUS$ 4335.00MOQ: 1 Pallet
-
ABB PM861AK01 (3BSE018157R1) – AC 800M CPU Module for Robust System 800xA ControlUS$ 4585.00MOQ: 1 Pallet
-
ABB S-053H 3BHB012897R0007 – Drive Control/Interface Board for ABB Industrial DrivesUS$ 169450.00MOQ: 1 Set
Warranty: 365 days
Lead time: 1 week if in stock; no more than one month at the latest
Payment terms: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
Frequency-to-voltage conversion: Converts pulse/frequency inputs from encoders, tachometers, and flow meters into a stable analog output for PLC/drive analog inputs.
Clean, scalable output: Typically provides a 0–10 V analog signal; many setups also support a current output variant if needed.
Industrial 24 VDC supply: Designed for control cabinets that run on 24 VDC, making power integration straightforward.
DIN-rail friendly: Slim housing that fits standard 35 mm DIN rail, so it drops into existing panels without rework.
Noise-aware design: In many cases, input filtering and grounding points help reduce jitter from “noisy” pulse sources.
ABB ecosystem fit: Plays nicely with ABB drives and PLC analog inputs, reducing commissioning time on multi-vendor projects.
Status indication: Typically equipped with basic LEDs for power and signal activity, useful during quick checks.
| Brand / Model | ABB PFV0-102 (PFV0102) |
| HS Code | 8538.90 (Parts suitable for use with industrial control apparatus) |
| Power Requirements | 24 VDC nominal (typical control supply) |
| Signal Input Types | Pulse/frequency inputs (commonly from NPN/PNP encoders, proximity sensors, or tacho pickups) |
| Signal Output Types | Analog voltage (typically 0–10 V); current output availability depends on the specific variant |
| Communication Interfaces | None (standalone signal converter) |
| Installation Method | 35 mm DIN-rail in control cabinet; screw terminals for field wiring |
| Operating Temperature | -20 to +55 °C typical industrial environment |
| Dimensions & Weight | Compact, slim-line DIN-rail form factor (exact dimensions available upon request) |
| Ingress Protection | IP20 (cabinet installation recommended) |
Typical use cases span discrete manufacturing and process industries where frequency signals dominate field sensing:
Drives and conveyors: Convert encoder pulses to 0–10 V speed feedback for ABB drives or PLC speed loops.
Water & wastewater: Translate turbine or paddlewheel flow sensor pulses into an analog rate for SCADA trending.
Packaging lines: Stabilize line-speed feedback to eliminate jitter on dosing or cut-to-length operations.
Textiles, paper, and film: Use tach pulses to maintain tension control with a clean analog reference.
Retrofits: Bridge legacy pulse outputs to modern PLC/IPC analog inputs without rewriting entire control strategies.
A maintenance manager shared that swapping a noisy prox/encoder pulse into a PFV module “smoothed the analog trend right away,” which seems to be a common experience when fighting EMI on older lines.
Reliability: Solid-state design focused on clean signal conditioning reduces nuisance trips and analog jitter.
Compatibility: Works with ABB drives/PLCs and most analog input cards that expect a 0–10 V signal in many cases.
Cost-effective integration: Avoids redesigning PLC logic by converting existing pulse sources to the analog domain.
Faster commissioning: Simple wiring and scaling let teams validate direction and range with a multimeter in minutes.
Support: Backed by a 365-day warranty and responsive fulfillment schedules, helpful on time-sensitive retrofits.
Cabinet environment: Mount on a 35 mm DIN rail inside a ventilated control cabinet; maintain ambient within typical industrial range.
Power & wiring: 24 VDC supply with proper grounding; use shielded twisted pairs for pulse inputs; route low-level signals away from VFD output cables.
Scaling & setup: Configure input range and scaling to match sensor frequency and desired analog span; validate with a handheld tach source where possible.
Safety: De-energize the cabinet before wiring; verify sensor type (NPN/PNP) and common reference to avoid miswiring.
Routine checks: Quarterly verify analog scaling against a known frequency; tighten terminals; clean dust; update panel documentation.
Spare strategy: Keeping one spare on the shelf typically cuts downtime to under an hour during swaps.
Compliance: Typically supplied with CE marking; RoHS-compliant materials are standard on ABB low-voltage modules.
UL/CSA: Regional certification availability can vary by batch and variant; we can verify exact approvals against your part code before shipment.
Warranty: 365 days from shipment.
Note: PFV0-102 and PFV0102 are treated as the same reference in ordering discussions. If you need the exact scaling range or a current-output variant, share your sensor type and frequency span—we’ll match the configuration that fits your cabinet and PLC/drive input.
