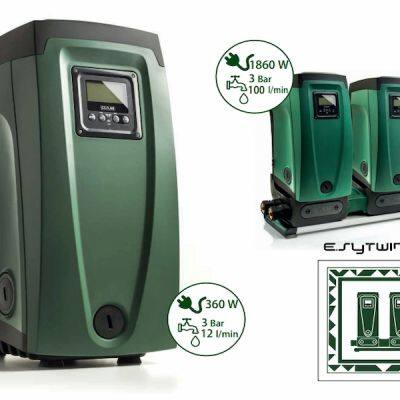

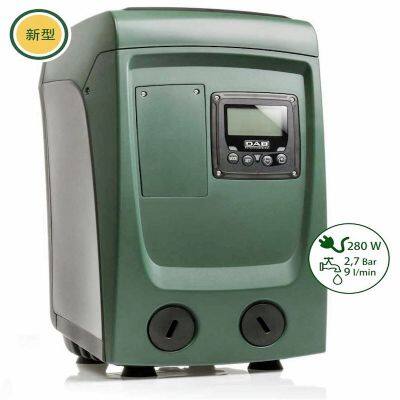

DAB E.SYBOX Mini Variable Speed Pressure Boosting Pump
Technical parameters:
Maximum flow: 7.2m3/h
Maximum lift: 65m
Medium temperature: 0℃-40℃
Maximum ambient temperature: 50℃
Entrance size: 25mm
Outlet size: 25mm
Maximum suction: 8m
Maximum bearing capacity: 8Bar
Product introduction:
It is a device of DAB that pressurizes the water system of family residence and integrates advanced electronic technology. It integrates a self-priming multistage pump, frequency conversion management system, flow and pressure sensors, high-resolution rotatable LCD display and a 2L expansion tank. The installation mode is flexible, and it can be installed horizontally, vertically and on the wall.
Water-cooled motor, ABS sound-absorbing protective shell, shock-absorbing feet and electronic control system make the equipment run absolutely quiet (45db) and compact.
It is obviously different from other supercharging devices in appearance, small in size and completely integrated.
Once installed, you will find that the real difference lies in its comfort and performance.
E.sybox mini3 adopts the most advanced DAB technology to create a constant pressure environment according to the system requirements, so as to maximize energy saving.
Scope of application:
Can be used for domestic water, drinking water, home gardening irrigation, etc.
