Help CenterABB PP-D517 3BHE0741576R3011 – Control Board for ABB Drive and Power Electronics Systems
Related Products
-
ABB SA9923A-E (HIEE450964R0001) – S900 Remote I/O Module for Reliable Signal ConditioningNegotiableMOQ: 1 Combo -
ABB HIES308461R0003 – Industrial DCS Plug‑In Module for Reliable System MaintenanceNegotiableMOQ: 1 Combo
-
ABB UAC095AE01 (HIEE300788R0001) – Advant Series Plug‑in Module for Legacy DCS Upkeep and System ContinuityNegotiableMOQ: 1 Combo
-
ABB UAC318AE (HIEE300744R0001) – Communication Interface Module for Advant Controller SystemsNegotiableMOQ: 1 Combo
-
ABB UFC092BE01 (HIEE300910R0001) – Control System Module for Reliable Backplane Communication in ABB DCS RacksNegotiableMOQ: 1 Combo

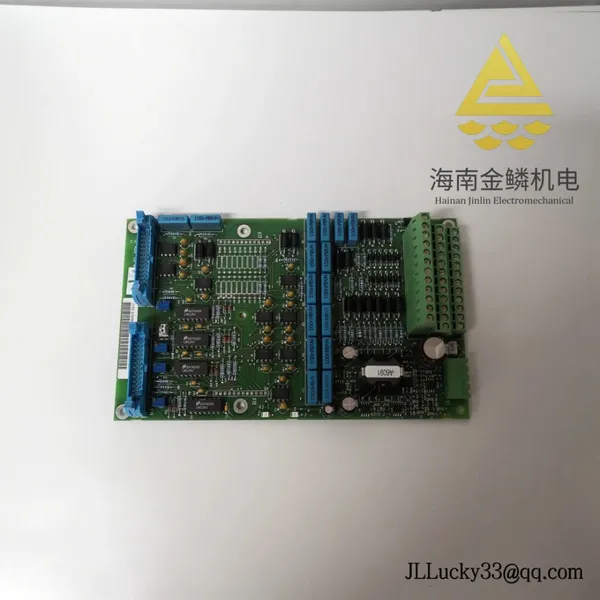

ABB’s PP-D517 (order code 3BHE0741576R3011) is a plug-in control board used inside ABB industrial drive and power-electronics platforms, typically where fast signal processing, interlocking, and robust I/O handling are required. From my experience, it’s commonly deployed in AC/DC drive cabinets and PEC-based converter systems where reliable, deterministic control truly matters.
If you maintain medium-voltage drives, test benches, rectifiers, or PEC-controlled applications, the PP-D517 helps keep the control loop stable and the cabinet wiring tidy. You might notice that it’s designed for quick replacement during downtime, with clear front-edge connectors and straightforward field handling.
Board-level controller module – Fits into ABB drive/control backplanes to handle high-speed I/O and protection logic.
Robust industrial design – Conformal-coated PCB (in many cases) and components selected for cabinet environments with electrical noise.
Stable signal conditioning – Designed for mixed analog/digital signals commonly found in drives, converters, and excitation systems.
Service-friendly replacement – Typically hot-swapped only when the system is fully powered down; the plug-in format speeds changeouts during maintenance windows.
Diagnostic indicators – Status LEDs (revision-dependent) provide quick health checks during commissioning and troubleshooting.
Controller recognition – The board ID is read by the host controller so the correct firmware parameters load automatically in most cases.
| Brand / Model | ABB PP-D517 (3BHE0741576R3011) |
| Product Type | Plug-in control/processing board for ABB drive and PEC-based systems |
| Power Requirements | Typically 24 VDC via backplane (supplied by the host system) |
| Operating Temperature | 0 to +55°C (cabinet-dependent; follow system derating) |
| Signal I/O Types | Mixed analog/digital processing; channel allocation varies by application |
| Communication Interfaces | High-speed proprietary backplane; service headers are revision-dependent |
| Installation Method | Plug-in card installed inside the controller/drive cabinet backplane |
The PP-D517 typically shows up in ABB systems where precise control and noise-immune I/O are non-negotiable. A few real-world examples we’ve seen:
Medium-voltage and high-power AC drives for metals processing and mining conveyors
DC drive retrofits on paper machines and wire-drawing lines
PEC-controlled converters in test stands, rectifier cabinets, and power quality systems
Excitation and auxiliary control in power generation support equipment
One thing I appreciate is how it behaves predictably when paired with ABB’s established cabinet layouts. A maintenance lead at a rolling mill mentioned their team swapped a PP‑D517 and had the line back in under 20 minutes—no parameter hunt, just reseat, verify LEDs, and run.
Advantages & ValueReliability – Designed for harsh cabinets with electrical noise; stable over long operating cycles.
Compatibility – Works within ABB’s backplane architectures; reduces integration risk compared to non-native boards.
Lower downtime – Fast board-level replacement and clear diagnostics help shorten maintenance windows.
Lifecycle support – ABB part numbering (3BHE…) makes traceability and revision matching straightforward for spares planning.
In many cases, the PP‑D517 is paired with ABB controller CPUs and I/O carriers in the same cabinet. Common supporting items include:
Backplane/cage assemblies that provide 24 VDC distribution and slot addressing
Fiber/serial interface modules for cabinet-to-cabinet signaling (platform-dependent)
Shielded signal harnesses and terminal carriers for analog/digital field wiring
If you’re replacing an older PP‑D5xx variant, it seems to be best practice to confirm firmware compatibility on the host controller and check any parameter dependencies before commissioning.
Installation & MaintenanceCabinet environment – Install in a clean, dry, well-ventilated cabinet to EN/IEC control panel standards. Keep ambient within the system’s stated range and maintain airflow.
Power-down & discharge – Fully isolate the drive, wait for DC bus discharge, and confirm zero energy before removing or inserting the board.
ESD precautions – Use a grounded wrist strap and handle by the edges. Avoid touching components and connector pins.
Wiring & seating – Ensure the card is fully seated in the backplane. Tighten any retaining screws to the manufacturer’s torque and route shielded cables away from power busbars.
Routine care – Periodically check connector tightness, clean dust with dry air (low pressure), and verify diagnostic LEDs at startup. Keep firmware/parameter sets aligned to the installed revision.
Spares strategy – Keeping at least one tested spare on the shelf typically shortens recovery time for critical lines.
CE compliant; RoHS-aligned component selection for most recent revisions
Manufactured under ISO 9001 quality systems (ABB)
Standard supplier warranty: typically 12 months from delivery, covering workmanship and functional defects
If you need help confirming compatibility of PP‑D517 3BHE0741576R3011 with your specific cabinet revision or drive firmware, share the cabinet type code and current board revision. A quick cross-check usually prevents avoidable commissioning delays.
