High-Performance PTZ Thermal Security Camera With Fire Point Detection, Alarm Integration, and Smart VCA for Critical Infrastructure Surveillance
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Warranty:
1 year
Trademark:
Raythink
Origin:
Yantai
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Portable Thermal and HD Visible Light PTZ Security Camera With 20× Optical Zoom and AI Intrusion Detection for Industrial InspectionsNegotiableMOQ: 50 Pieces -
Weatherproof Dual-Spectrum PTZ Security Camera With Micro SD Storage and Smart Line-Crossing Detection for Outdoor Facility MonitoringNegotiableMOQ: 50 Pieces
-
Smart Long-Range Multi-Spectrum PTZ Security Camera PC8S4L3 With 1280×1024 Thermal and 4MP HD Visible ImagingNegotiableMOQ: 50 Pieces
-
Industrial-Grade Infrared PTZ Security Camera With 225mm Thermal Zoom and 775mm Optical Zoom for Long-Distance DetectionNegotiableMOQ: 50 Pieces
-
High-Definition Multi-Spectrum PTZ Security Camera With 3km Laser Illuminator and Intelligent Fire DetectionNegotiableMOQ: 50 Pieces
Warranty
1 year
Trademark
Raythink
Origin
Yantai

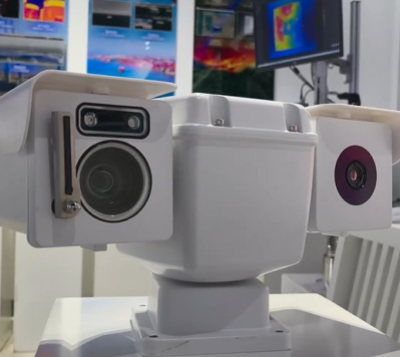

PC264T1 Dual-Spectrum PTZ Camera
The PC2 Series Dual-Spectrum PTZ Camera is a medium-range temperature measurement and monitoring product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one.
Equipped with intelligent functions like fire point detection, tripwire intrusion, and regional intrusion detection, the product also integrates sophisticated industrial temperature measurement and analysis tools for analyzing temperature data and triggering alarms. It is suitable for device temperature monitoring, factory area, and park monitoring, as well as robot routine inspection.
Feature
12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal&visible light imaging.
Accurate Temperature Measurement
Measurement range from -20℃ to 550℃, accuracy ±2℃ or 2%.
Intelligent Fire Detection Algorithm
Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.
Intelligent Video Analysis
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
Platform Integration
Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
|
|
|
|
|
Specification
| Thermal Module | |
|---|---|
| Detector TypeVOx, uncooled FPA detectorsSpectral Range8~14μmNETD≤40mK(@25°C,F#1.0,25Hz)Resolution640×512Pixel Pitch12μmFocal Length9.1mm/13mm/19mm/25mm/35mm Athermalized/Motorized lens | |
| Optical Module | |
| Sensor4MP 1/1.8" Progressive Scan CMOSResolution2688×1520Focal Length6.5~130mm, 20x | |
| Image Function | |
| Picture in PictureSupport | |
| PTZ | |
| Pan360° continuous，0.1°~100°/sTilt-90°~+90°，0.1°~60°/sPreset256Scan modePreset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama ScanWiperwiper | |
| Temperature Measurement | |
| Temperature Range-20℃~+550℃Temperature Accuracy±2℃ or ±2%Temperature MeasurementSuport 4 temperature measure ment rules(fullframe, point, line, area) | |
| Smart Function | |
| Fire DetectionSupportVCASupport Line Crossing&Intrusion detection2-Way AudioSupportLinkage ActionVideo/ Snapshot/Email/Alarm output/sound and light alarm | |
| System Interface | |
| PowerDC 12V±25%Network1 RJ45 10M / 100M self-adaptive Ethernet portAudio1 in/1 outAlarm2 in/2 outStorageMicro SD memory（maximum 256G）ResetSupportSerial Port1 channel RS485, can support Pelco protocol | |
| General | |
| Work Environment-40℃~+70℃； | |
Application Scenarios
|
Device Temperature Monitoring |
Electric Routine Inspection |
Park Monitoring |
Robot Routine Inspection |
