Help CenterSmart Dual-Spectrum PTZ Security Camera With 256×192 Thermal and 5MP Visible Resolution
Related Products
-
Compact Infrared Speed Dome Security Camera With 20× Zoom and AI Human DetectionNegotiableMOQ: 50 Pieces -
High-Performance PC4 Dual-Spectrum PTZ Security Camera With 12μm Uncooled Infrared Detector for 24/7 MonitoringNegotiableMOQ: 50 Pieces
-
Advanced Thermal PTZ Security Camera With 1280×1024 Infrared Resolution and 4MP HD Visible ImagingNegotiableMOQ: 50 Pieces
-
Rugged Thermal PTZ Security Camera With Intelligent Video Analysis for Wildlife and Border Protection Surveillance With Clear Night VisionNegotiableMOQ: 50 Pieces
-
Raythink PD2T Dual-Spectrum Speed Dome Security Thermal Camera: 256×192 Thermal Detector, 5MP 20x Zoom Visible Sensor for Perimeter ProtectionNegotiableMOQ: 50 Pieces

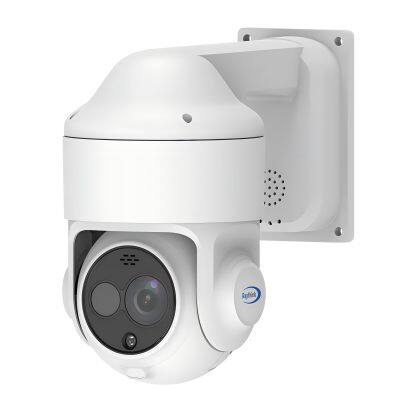

The PD2 Series Dual-Spectrum Speed Dome Camera integrates 256×192 thermal imaging with 5MP HD visible light.
It comes with built-in industrial temperature measurement and analysis tools, supports 360° circular scanning for patrol inspection and temperature measurement (-20°C~+550°C), and allows independent setting of temperature measurement areas for preset points.
Leveraging smoke and fire detection algorithms and intelligent intrusion detection algorithms, it can promptly detect fire hazards and intrusion targets in real time, trigger audible and visual alarms, and enable comprehensive all-weather security monitoring and fire warnings.
The PD2 series can be widely used in intelligent security and fire protection scenarios such as park perimeters, river monitoring, electrical power temperature measurement, and warehouse equipment rooms.
Feature
All-weather, 24/7 security monitoring with dual thermal&visible light imaging.
Smart video content analysis, human/vehicle recognition on thermal channel for crossline/intrusion detection.
Provides 360° panoramic monitoring, detects thermal imaging targets, integrates with visible light cameras for zooming and tracking, and supports alarm linkage for various events with audible and visual alarms to reduce false alarms.
Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
| | | |
Specification
| Thermal Module | |
|---|---|
| Detector TypeVOx, uncooled FPA detectorsSpectral Range8~14μmNETD≤40mK(@25°C,F#1.0,25Hz)Resolution256×192Pixel Pitch12μmFocal Length7mm/10mm | |
| Optical Module | |
| Sensor5MP 1/2.8" Progressive Scan CMOSResolution2560×1920Focal Length5.4~108mm, 20xIR distance50m | |
| PTZ | |
| Pan360° continuous，0.1°~120°/sTilt0°~+90°，0.1°~60°/sPreset255Scan modePreset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan | |
| Temperature Measurement | |
| Temperature Range-20℃~+550℃Temperature Accuracy±2℃ or ±2%Temperature MeasurementSuport 4 temperature measure ment rules(fullframe, point, line, area) | |
| Smart Function | |
| Fire DetectionSupportVCASupport Line Crossing&Intrusion detection with AI human/Vehicle recognition2-Way AudioSupportLinkage ActionVideo/ Snapshot/Email/Alarm output/sound and light alarm | |
| System Interface | |
| PowerDC 12V±25%/PoE(802.3af/at)Network1 RJ45 10M / 100M self-adaptive Ethernet portAudio1 in/1 outAlarm2 in/1 outStorageMicro SD memory（maximum 256G）ResetSupportSerial Port1 channel RS485, can support Pelco protocol | |
| General | |
| Work Environment-40℃~+70℃；<95%RHProtectionIP66Power Consumption≤20WDimenstion(mm)265×147.5×248.7Weight≤2.5kg | |
Application Scenarios
| Electric Temperature Measurement | Park Perimeter | River Monitoring | Warehouse Equipment Room |
