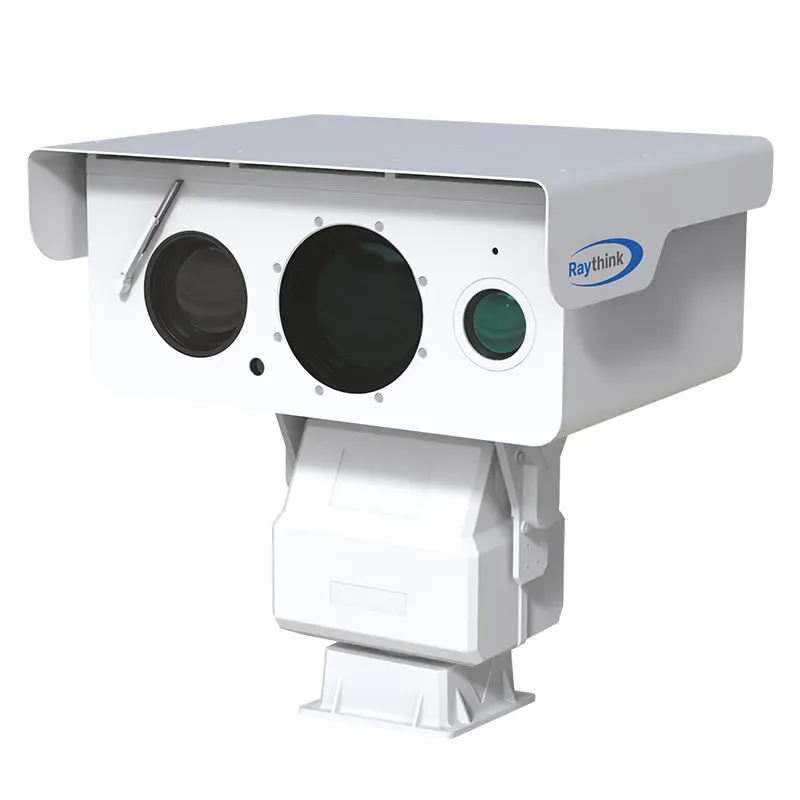

PC8 series is a long-range surveillance solution that integrates HD visible light, laser illumination, infrared thermal imaging and PTZ system, with intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection inside. It provides all-weather, 24/7 surveillance for scenarios such as perimeter surveillance, forest fire prevention and critical area protection.
Feature
Adopts the latest 12μm uncooled infrared detector and advanced infrared image algorithms to ensure clear imaging at greater distances.
Supports a maximum thermal imaging resolution of 1.3 megapixels (1280×1024) and a maximum visible light resolution of 4 megapixels (2688×1520), laser illumination
Supports 25～225mm continuous zoom lens for thermal imaging cameras and 15~775mm continuous zoom lens for visible light cameras.
Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
|
|
|
|
|
Specification
| Thermal Module | |
|---|---|
| Detector TypeVOx, uncooled FPA detectorsSpectral Range8~14μmNETD≤40mK(@25°C,F#1.0,25Hz)Resolution1280×1024Pixel Pitch12μmFocal Length25~225mm | |
| Optical Module | |
| Sensor4MP 1/1.8" Progressive Scan CMOSResolution2688×1520Focal Length15~775mm, 52x | |
| Laser Illuminator | |
| Laser Illuminator3km | |
| PTZ | |
| Pan360° continuous，0.01°~60°/sTilt-60°~+60°，0.01°~15°/sPreset1024Scan modePreset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama ScanWiperAuto-wiper | |
| Smart Function | |
| Fire DetectionSupportSmoke DetectionsupportVCASupport Line Crossing&Intrusion detection2-Way AudioSupportLinkage ActionVideo/ Snapshot/Email/Alarm output | |
| System Interface | |
| PowerDC 48V±15%Network1 RJ45 10M / 100M self-adaptive Ethernet portAudio1 in/1 outAlarm1 in/1 outStorageMicro SD memory（maximum 256G）Serial Port1 channel RS485, can support Pelco protocol | |
| General | |
| Work Environment'-40℃~+70℃； | |
Application Scenarios
|
Perimeter Surveillance |
Forest Fire Prevention |
Important Area Perimeter |
Urban High-Altitude Surveillance |
