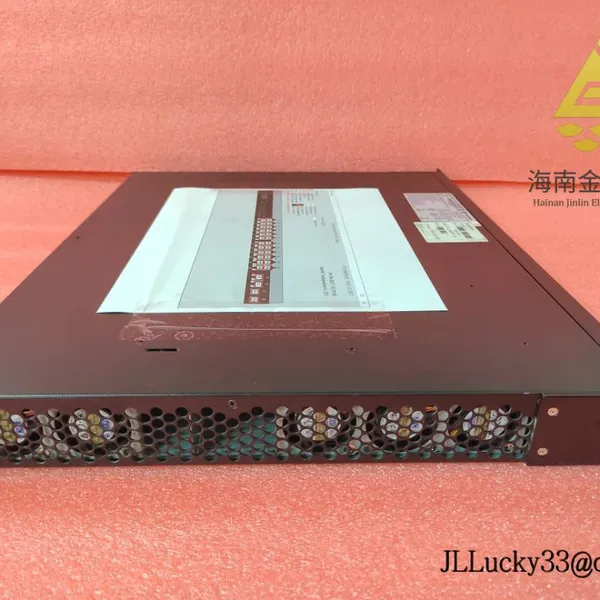

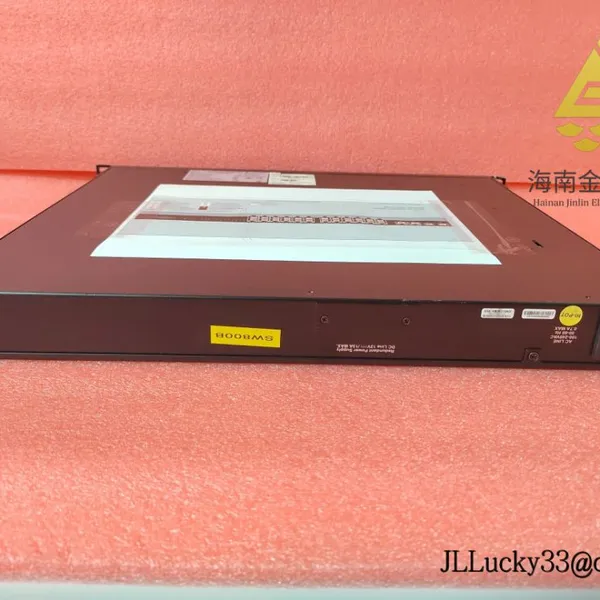

The Foxboro A4H124-24TX (P0973JM) is a 24‑port managed industrial Ethernet switch purpose-built for I/A Series control networks. It brings stable, deterministic switching for controllers, workstations, and gateways where uptime really matters. From my experience, plants typically choose it as a drop‑in fit when they need managed Layer 2 control with clean multicast handling and predictable behavior under load.
24 x 10/100BASE‑TX copper ports – RJ‑45 with auto‑negotiation and auto MDI/MDI‑X for fast deployment.
Managed Layer 2 switching – VLAN (802.1Q), QoS (802.1p), port mirroring, and storm control to keep control traffic prioritized.
Redundancy protocols – RSTP (802.1w) support for rapid recovery; typically used to build resilient rings in I/A Series networks.
Multicast discipline for control – IGMP Snooping reduces unnecessary traffic, which in many cases helps stabilize HMI and controller communications.
Industrial power and build – 24 VDC nominal input with provision for redundant feeds (typical), metal enclosure, and DIN‑rail installation.
Secure, simple management – Web UI, SNMP, and CLI options commonly available; supports user roles and encrypted access on most revisions.
I/A Series alignment – Designed to behave predictably with Foxboro station LAN and control network architectures.
Serviceability – Clear status LEDs and straightforward backup/restore of configuration make turnarounds quicker.
| Brand / Model | Foxboro A4H124-24TX (P0973JM) |
| Port Configuration | 24 x 10/100BASE‑TX (RJ‑45), auto‑negotiation, auto MDI/MDI‑X |
| Management & Protocols | Layer 2 managed; 802.1Q VLAN, 802.1p QoS, IGMP Snooping, STP/RSTP (802.1D/802.1w) |
| Communication Interfaces | Web (HTTP/HTTPS), SNMP v1/v2c; CLI via Telnet/SSH and local console are typically supported |
| Power Requirements | 24 VDC nominal; dual redundant inputs in many installations |
| Operating Temperature | Typically −10 to +60 °C (depends on hardware revision and cabinet conditions) |
| Installation Method | DIN‑rail; panel mounting is commonly available with an optional kit |
| Dimensions & Weight | Compact DIN‑rail enclosure; dimensions vary slightly by build; designed for standard control cabinets |
This switch is commonly deployed across I/A Series environments to segment plant networks without breaking the determinism of control traffic. You might notice that it performs best where multicast and QoS really matter—operator stations, controllers, FBM clusters, and remote I/O marshalling panels.
DCS/PLC backbones in chemicals, refining, and pharmaceuticals
Power generation and utilities control rooms
Oil & gas pipelines, compressor stations, and custody transfer skids
Remote substations and OEM skids using I/A Series components
Industrial workgroup segments where IGMP‑driven HMI/alarms must be contained
A maintenance supervisor told me their HMI lag disappeared after enabling IGMP Snooping on the A4H124‑24TX; the switch simply cut the multicast chatter off unrelated ports. That’s a small tweak with outsized impact.
Advantages & ValueDrop‑in compatibility – Built to behave the way I/A Series networks expect, which typically shortens commissioning time.
High availability design – RSTP and dual‑feed DC power help minimize single points of failure.
Predictable performance – QoS and broadcast/multicast controls keep controller communications stable under stress.
Lifecycle and service – Long support windows and easy spare strategies reduce long‑term risk.
Lower TCO – Managed features reduce truck rolls; remote monitoring via SNMP integrates with existing plant NMS.
Cabinet & mounting – Install on a grounded DIN‑rail inside a ventilated control cabinet; keep adequate clearance for airflow and cable bend radius.
Power – Use clean 24 VDC feeds; for redundancy, land separate supplies on the dual inputs (where provided). Protect with appropriately sized DC fusing.
Wiring – Use industrial Cat5e/6 (shielded in noisy areas). Keep power and data routes separated to reduce EMI coupling.
Redundancy setup – Enable RSTP and set bridge priorities consciously to avoid unintended root election. For ring topologies, test failover during a maintenance window.
Traffic discipline – Turn on IGMP Snooping for I/A Series multicast; assign QoS to controller/HMI VLANs so alarms and historian traffic don’t starve controls.
Security – Prefer HTTPS/SSH, change defaults, and restrict management to a dedicated maintenance VLAN or out‑of‑band port.
Routine care – Back up config after changes, check logs for link flaps, clean dust occasionally, and schedule firmware updates during planned outages.
ESD & safety – De‑energize before rewiring; observe ESD practices to protect the electronics.
Industrial 24 VDC power supplies with dual outputs for redundant feeds
DIN‑rail Ethernet surge protectors for outdoor or long‑run segments
Shielded Cat5e/Cat6 patch cords rated for industrial temperature ranges
Panel‑mount kit for cabinets without DIN‑rail provisions
CE and UL/cUL markings typical for industrial control equipment
RoHS conformant design; EMC and immunity aligned with industrial standards (e.g., EN 61000‑6‑2/6‑4)
Manufacturer’s limited warranty: commonly 12 months from shipment
Certification scope and environmental ratings can vary slightly by hardware revision; if you’re matching an installed base, sharing your existing P/N/Rev helps verify a perfect fit.
