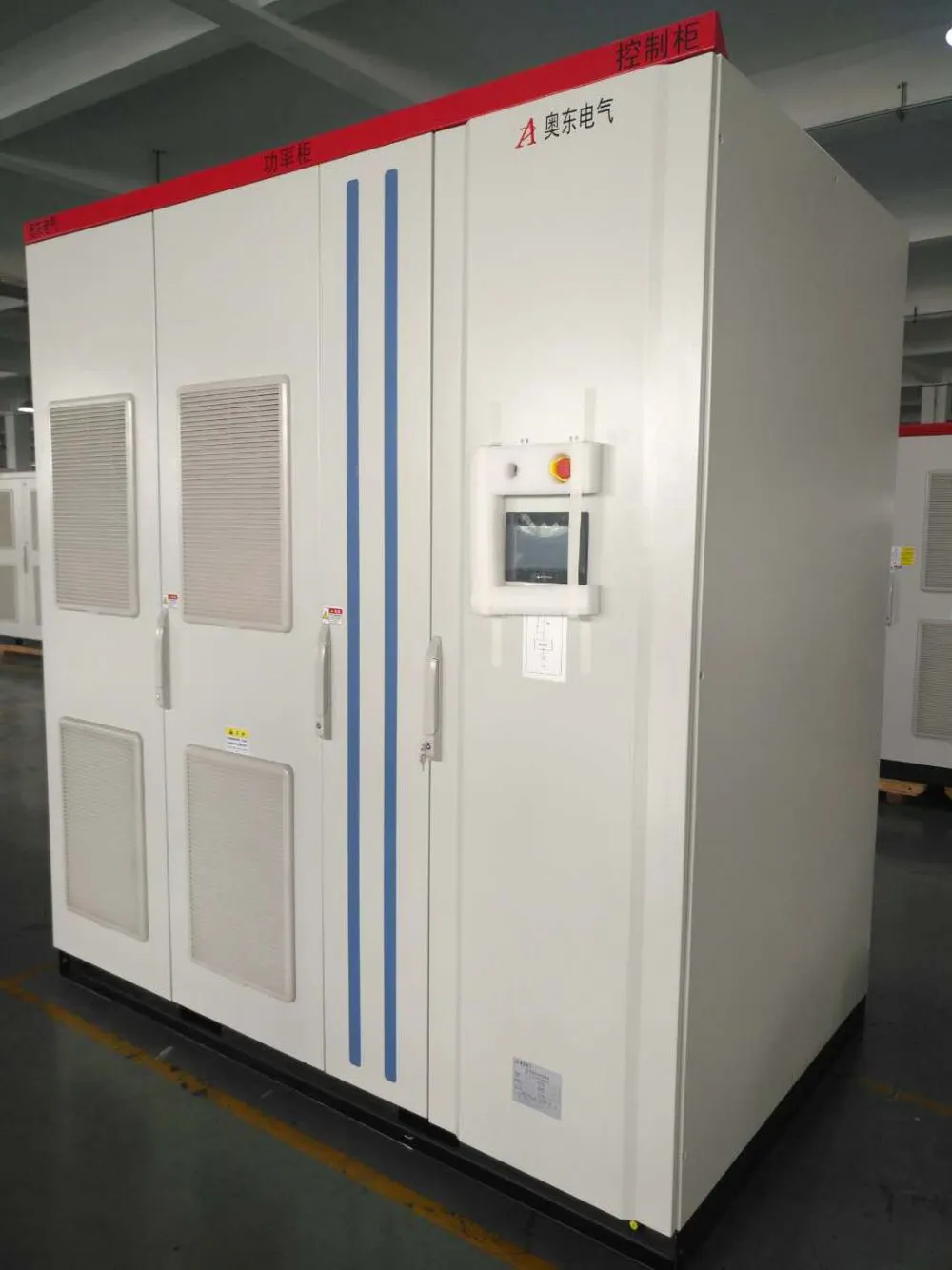

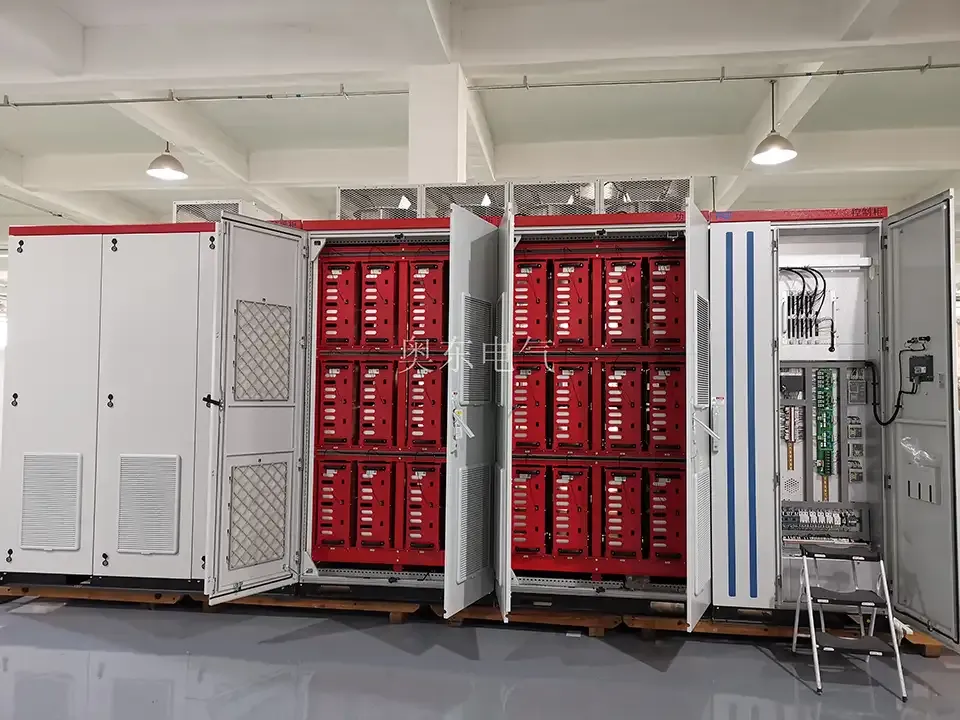

The complete machine of SVG dynamic reactive power compensation cabinet completely realizes modular design. The power unit is installed in a pluggable manner. The time for installing a power unit is less than 120S. The complete machine is started to realize self-check. It is allowed to start and operate only after the self-check is passed. During operation, the dust-proof filter screen can be safely disassembled to facilitate cleaning. When remote control is enabled, remote monitoring can be carried out. To monitor the operation of the equipment, the one-button start function can make the equipment run in unattended mode, start, stop and reset automatically according to the system and the set threshold, which can basically achieve zero maintenance. Aodong Electric SVG Dynamic Reactive Power Compensation Cabinet Easily Realizes Zero Maintenance ADSVG After Being Put into Operation
Relevant technical parameters:
1. Rated capacity: ± 1Mvar ~ ± 100Mvar;
2. Rated voltage: 6kV, 10kV, 27.5kV, 35kV;
3. System frequency: 50 Hz;
4. Overload capacity: more than 120%;
5. Response time: ≤ 5ms;
6. Active loss: ≤ 0.8%;
7. Total harmonic current distortion (THDi) ≤ 3%; technical price consultation: Qiao Gong
8. Control power supply: 380VAC, 220VAC or 220VDC, reactive power regulation mode: capacitive and inductive automatic continuous and smooth regulation of starting power, 5kvar;
9. Compensation current resolution: 0.5A;
10. Communication interface: Ethernet, RS485, CAN and other communication interfaces, high-speed optical fiber communication interface;
11. Communication protocol: support MODBUS _ RTU, ProfiBUS,
12. Power CDT91 protocol, IEC61850-103 or 104, CANOPEN protocol, user-defined communication protocol (can be freely set on the touch screen);
13. Operation mode: constant device reactive power mode, constant check point reactive power mode, constant check point power factor mode, constant check point voltage mode, load compensation mode, time-sharing 96-point control;
14. Parallel mode: support multi-machine parallel networking operation, multi-bus comprehensive compensation, and * more than 4 groups of FC comprehensive compensation control;
15. Protection grade: IP40 for indoor type and IP44 for outdoor type.
After-sales service plan: ADSVG dynamic compensation cabinet is a high-tech product involving modern power electronic conversion technologies such as microelectronics technology, photoelectric communication technology, high-voltage application technology and electronic computer technology, and the following regulations must be observed during use.
1. The use environment shall meet the technical requirements of the product.
2. The installation shall be carried out by a qualified regular installation company or a manufacturer that meets the installation conditions of electrical equipment.
3. The operator of the product must be a trained operator of electrical equipment.
4. The product will inevitably accumulate dust and various impurities during use, so it must be cleaned and maintained regularly.
5. After a period of operation of the product, the vibration of the fan and other mechanical vibration may cause the loosening of the electrical contact parts, resulting in poor contact or even damage to the components, parts and the whole machine, causing inconvenience and loss to the user. Therefore, maintenance and cleaning inspection are required after a period of use.
6. Frequently check whether the insulation of electrical equipment is damaged (such as the main circuit line), whether the buffer resistance is damaged, whether the cabinet door is intact, whether the protective grounding is correct, and whether the grounding impedance meets the requirements.
7. A system for recording the operation status of equipment and an application maintenance system shall be formed.

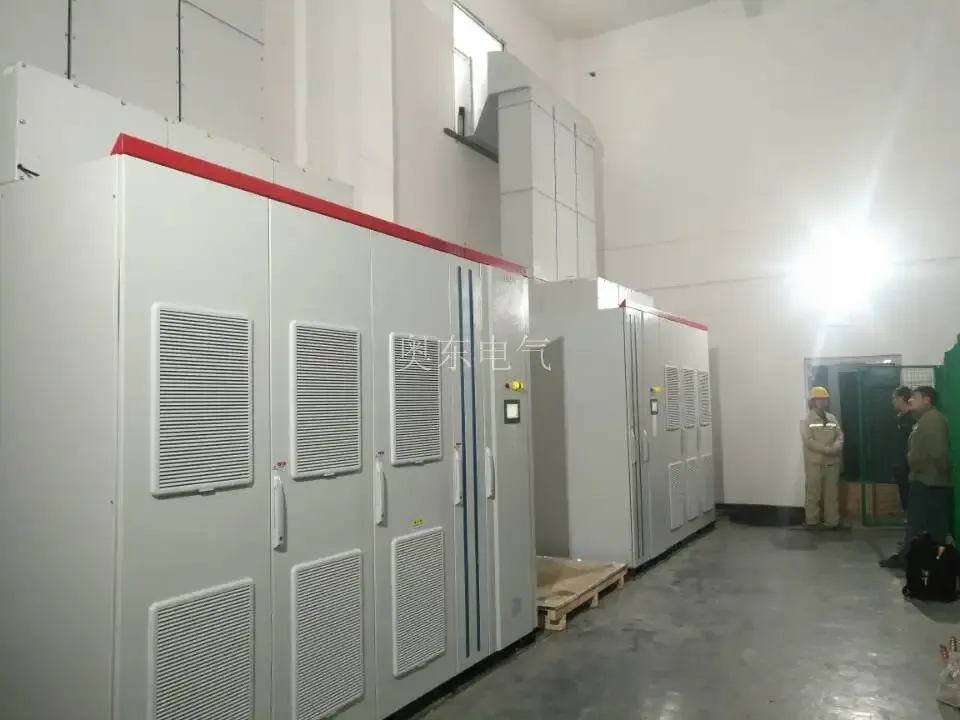

After the SVG dynamic reactive power compensation device is put into operation, it is easy to achieve zero maintenance. For products with complex after-sales maintenance, the SVG dynamic compensation cabinet is relatively simple to maintain, which can be regarded as zero maintenance, because each operation will go through a series of self-checking processes, in which many hidden dangers have been eliminated. If the self-checking fails, it will not run. Do you have any different views on the zero maintenance of SVG dynamic reactive power compensation device introduced by the manufacturer? Welcome to call to discuss. Aodong Electric SVG Dynamic Reactive Power Compensation Cabinet Easy to Achieve Zero Maintenance ADSVG
