Aodong ADSVG compensates the reactive power of the system to improve the stability of line transmission
Product features
The ADSVG series products use modern power electronics, automation, microelectronics and network communication technologies, and adopt advanced instantaneous reactive power theory
The power decoupling algorithm based on synchronous coordinate transformation is discussed and applied to set the reactive power properties, magnitude, power factor, grid voltage and other control objectives
The dynamic tracking of power quality changes in the power grid can adjust the reactive power output, and realize the curve setting operation to improve the power grid quality.
Easy to operate, high performance, high reliability ADSVG series products to meet the needs of users to improve the power factor of the transmission and distribution network, harmonic control,
The design is made according to the urgent need of compensation for negative sequence current, and has the following characteristics:
The power unit features a one-piece molded structure, ensuring high versatility and enabling interchangeability of spare parts for series products. The power unit also includes a single terminal.
It is unified with the secondary signal interface for convenient maintenance in later stages.
● The installation mode of power unit adopts power connector, which is convenient for on-site installation, maintenance and other work, and effectively improves the efficiency.
● The service life of film capacitors is more than 10 years, and the capacitor manufacturer provides TUV certification to eliminate the use of oil immersed capacitors.
● Fast dynamic response speed, response time ≤5ms.
● Total harmonic loss distortion (THDi) is less than 3%.
● A variety of operation modes can greatly meet the needs of users. The operation modes include: constant device reactive power mode, constant assessment point reactive power mode, constant assessment point power factor mode, constant assessment point voltage mode, and load compensation mode. The target value can be changed in real time.
● Real-time tracking of load changes, dynamic continuous smoothing compensation of reactive power, improve the system power factor, real-time management of harmonics, compensation of negative sequence current
Improve the quality of power supply in the grid.
● Suppress voltage flicker, improve voltage quality, and stabilize system voltage.
● ADSVG circuit parameters are carefully designed, with low heat dissipation, high efficiency and low operating cost.
● The equipment structure is compact and covers a small area.
● The dust filter is easy to maintain, and the filter can be cleaned safely and conveniently without stopping the machine.
● The main circuit adopts the H-bridge power unit chain series structure composed of IGBT. Each phase is composed of several identical power units. The output of the whole machine is a step wave superimposed by PWM waveform, which approximates to sine wave. After output reactor filter, the sinusoidal degree is good.
● ADSVG adopts redundant design and modular design to meet the requirements of high reliability of the system.
● Modular power circuit design, easy to maintain, good interchangeability.
● Complete protection functions, including overvoltage, overcurrent, unit overheating, unbalanced pressure and other protection, can realize instantaneous waveform recording of faults, facilitate the determination of fault points, easy maintenance, high reliability of operation.
● Perfect interaction with on-site signals, with Ethernet, 485 and other communication interfaces, support MODBUS_RTU, power CDT protocol, IEC104 and user customization and other communication protocols.
● The user-friendly interface features real-time digital/analog display, historical event logging, curve query, unit status monitoring, system information access, and fault history retrieval. It also includes advanced functions such as post-power-on system self-diagnosis, one-touch start/stop control, time-sharing operation, oscilloscope (AD channel forced recording), and instantaneous voltage/current waveform capture during faults.
The ADSVG design features interfaces compatible with FC, enabling seamless integration of fixed and dynamic compensation to deliver cost-effective and flexible solutions for users.
● No transient shock, no closing surge, no arc reignition, no discharge is required to restart.
● When connecting to the system, there is no need to consider the phase sequence of the AC system, and the connection is convenient.
● It can be installed in parallel and easily expand capacity. Parallel operation uses optical fiber communication, which is fast and can fully meet the requirements of real-time compensation.

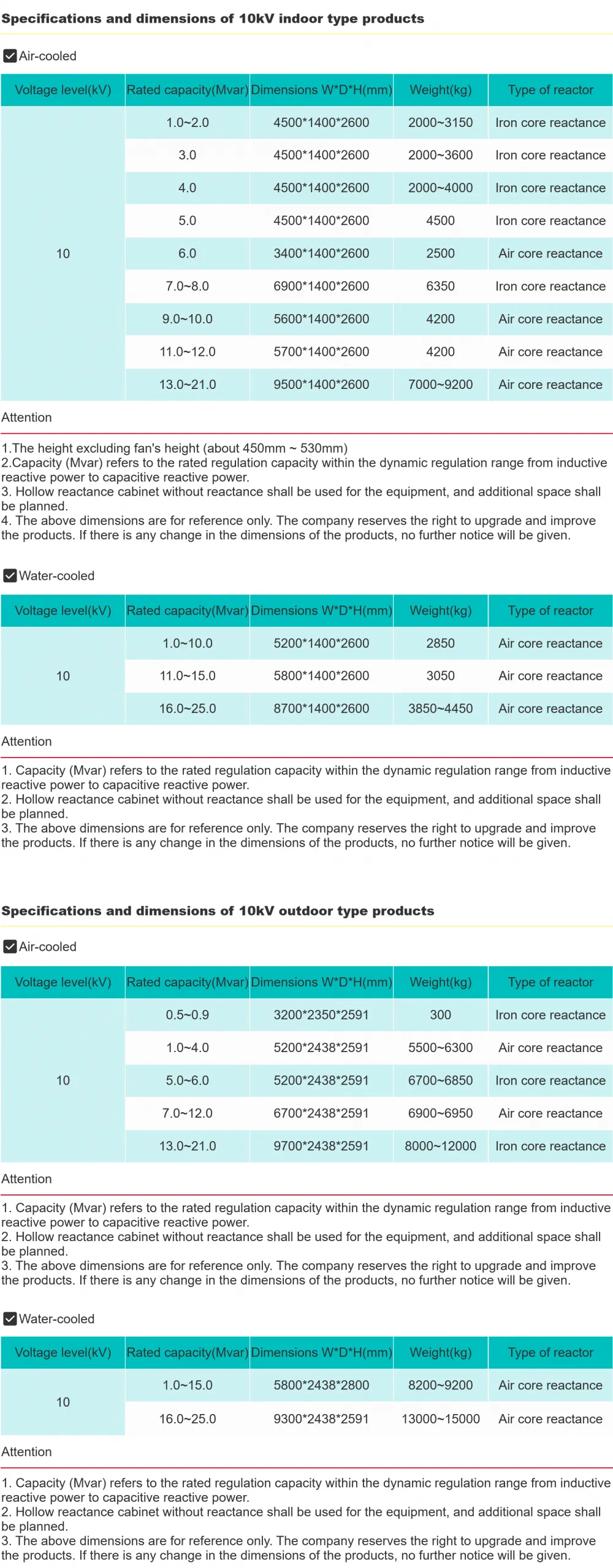

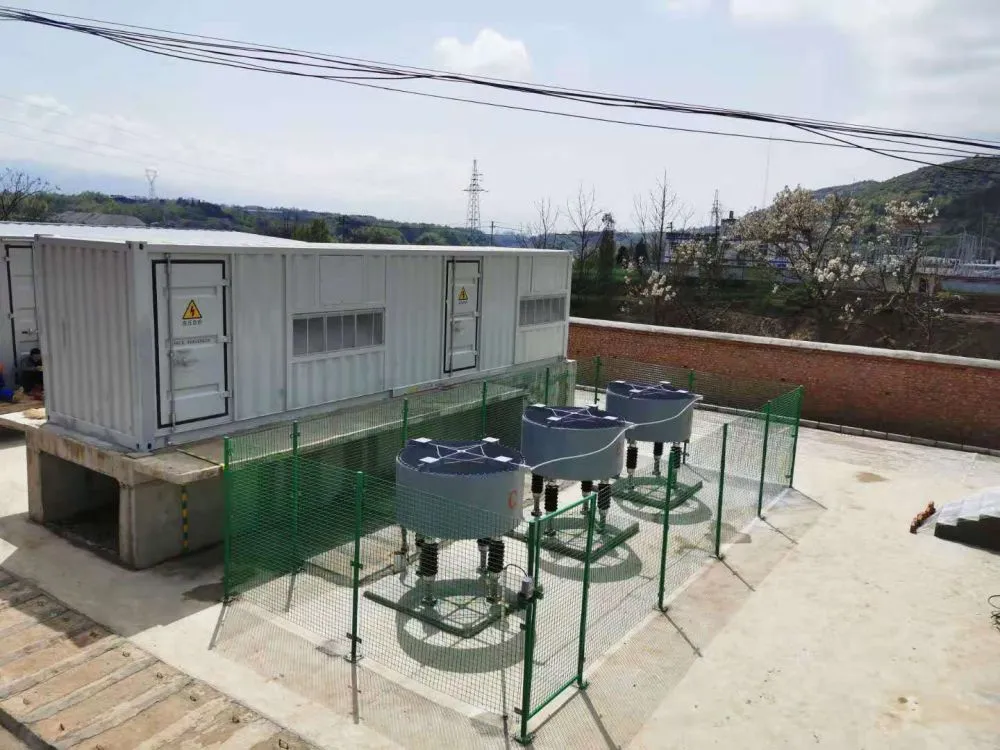

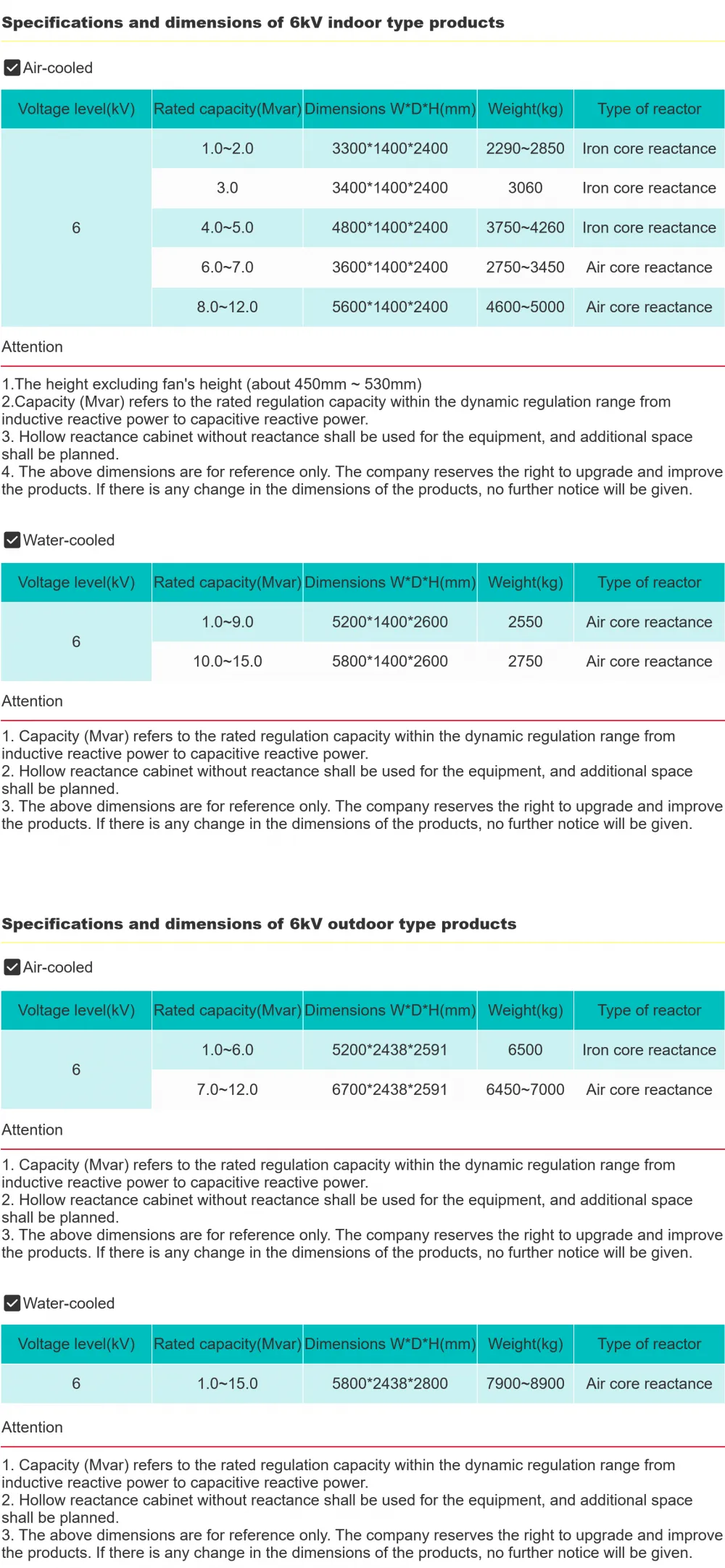

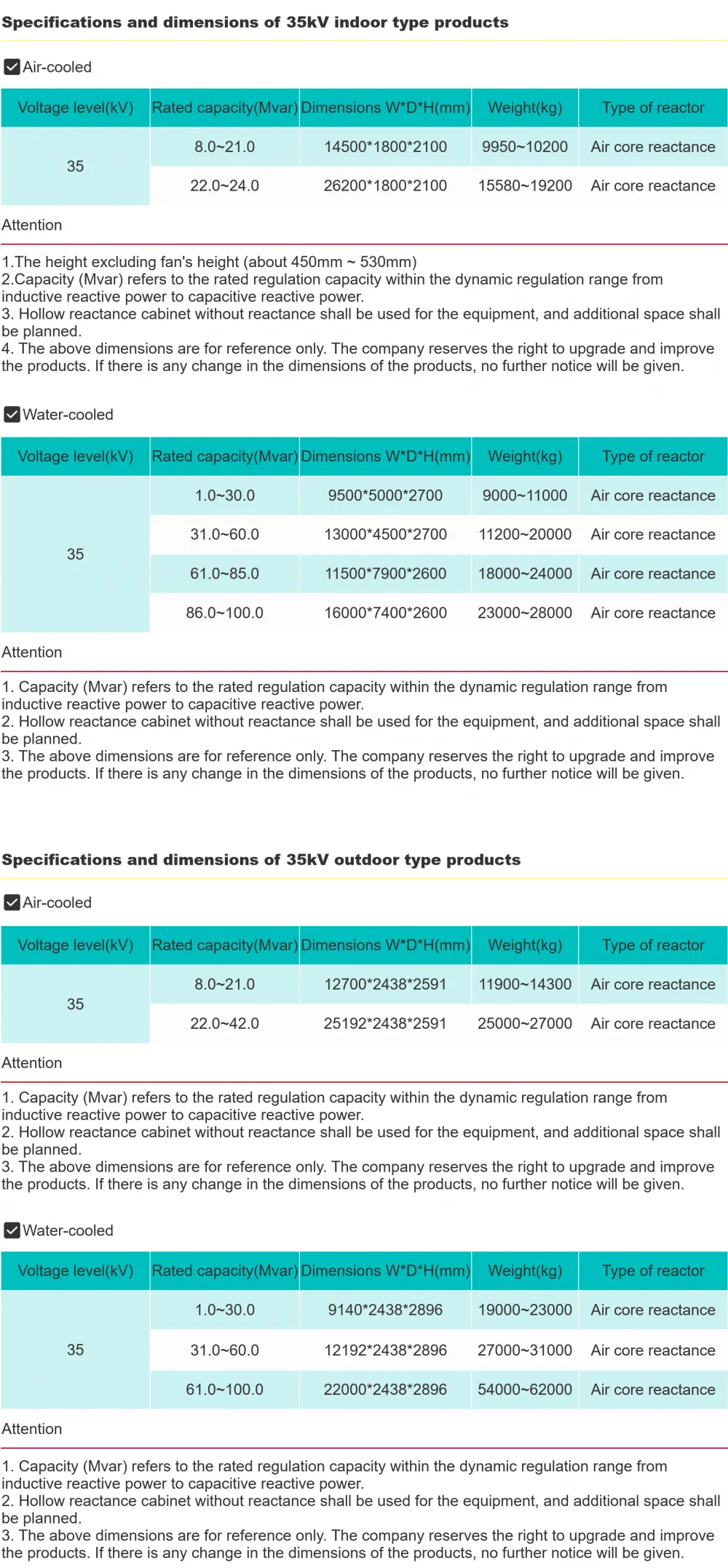

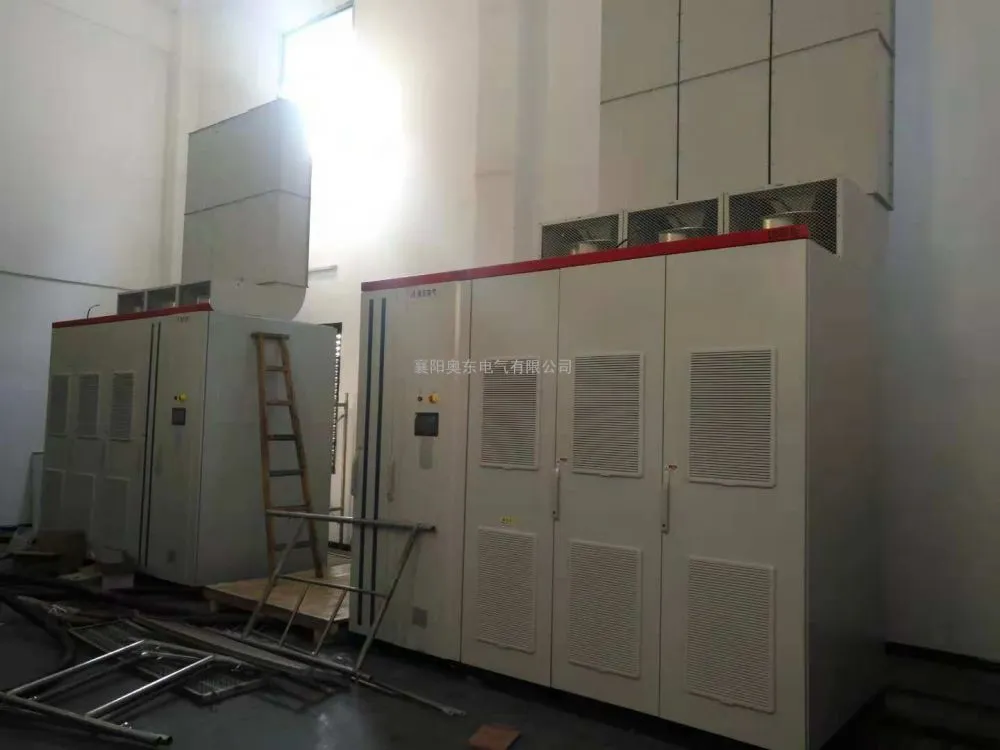

● Have many years of production and manufacturing experience of similar products, and have rich application experience in coal, metallurgy, photovoltaic and other industries.
