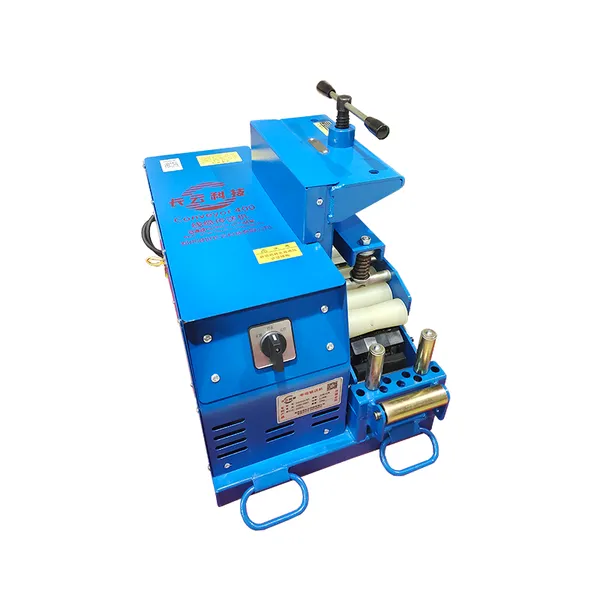

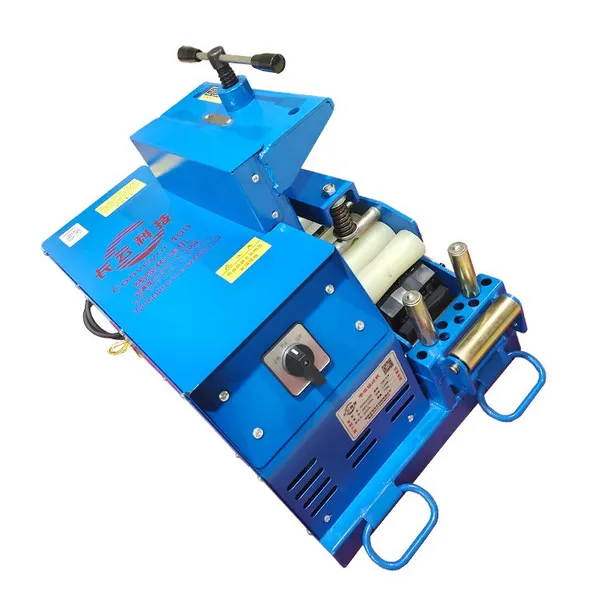

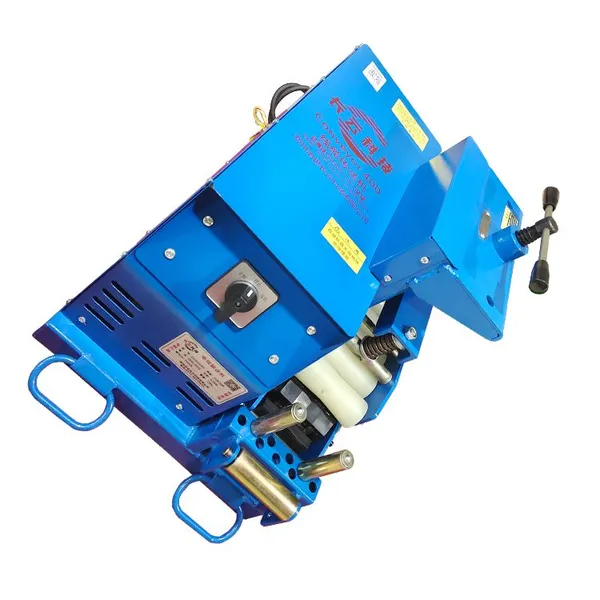

Conveyor400 Cable Conveyor Machine With 3600N Max Tension
US$ 900 - 1100
MOQ: 1 Combo

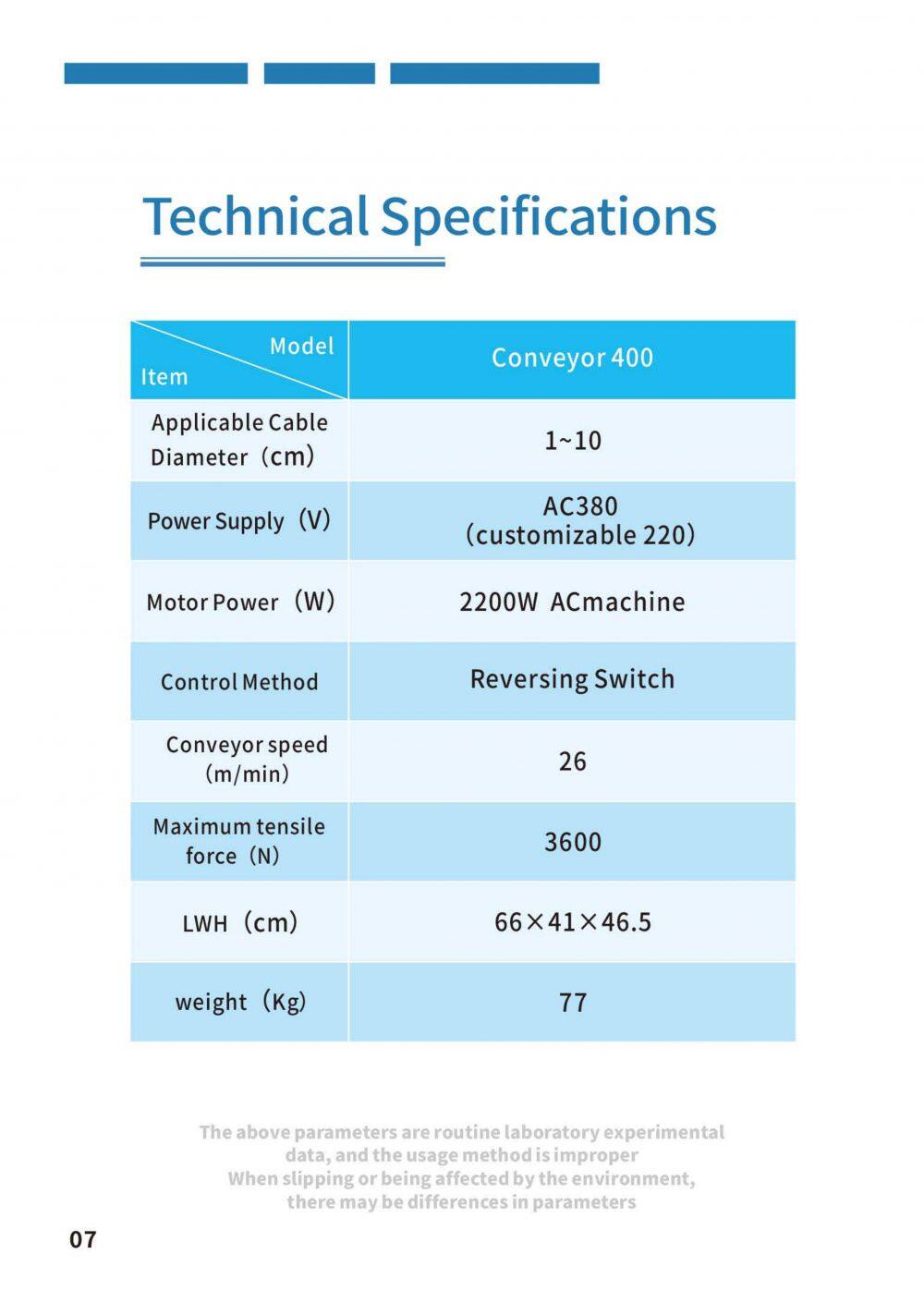

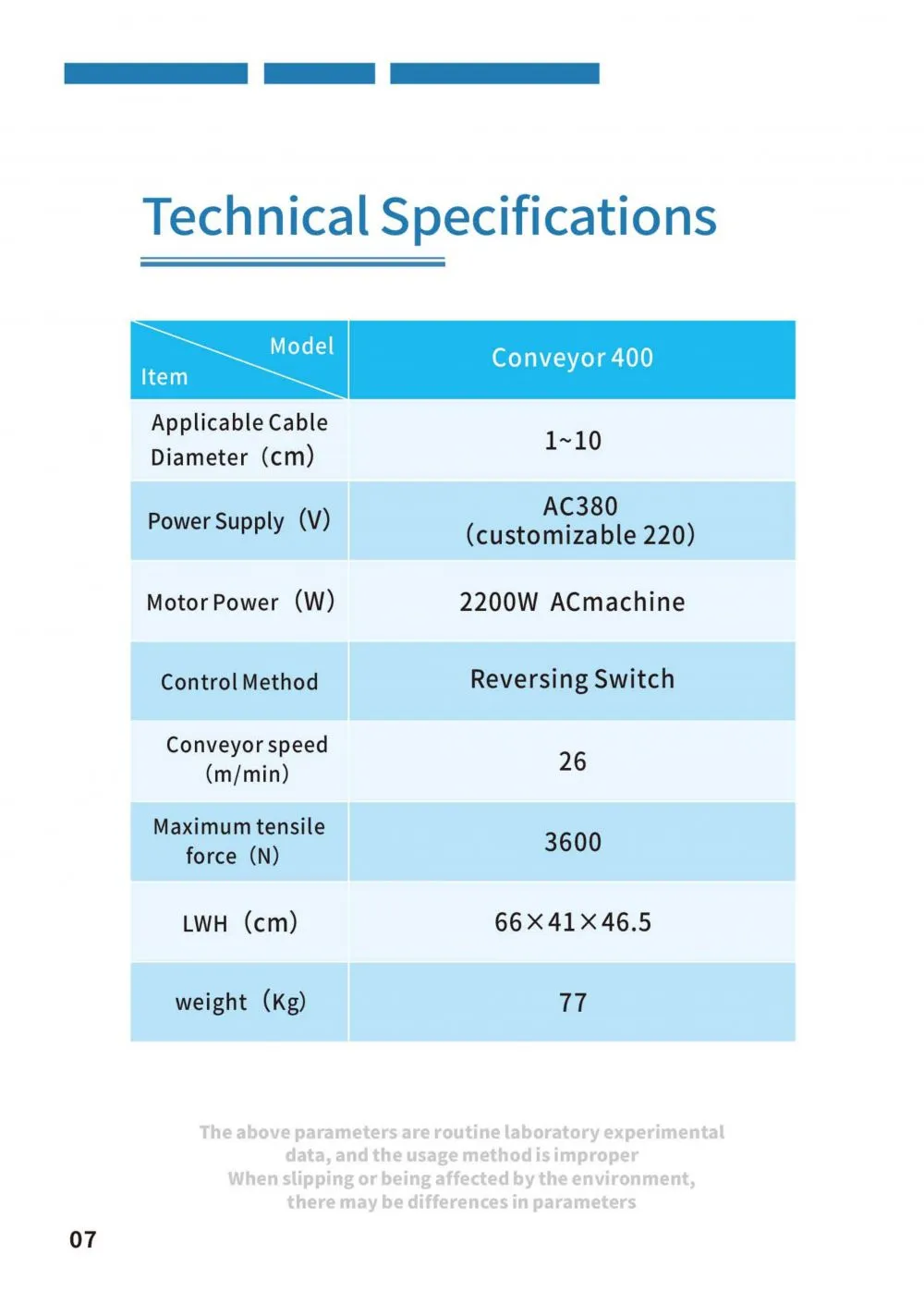

Key Specifications
Get Latest Price
Type:
Other, cable conveyor
Certification:
CE, ISO
Feature:
Moistureproof, Insulation
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/shanghai/qingdao/shenzhen/shanghai
Delivery Detail:
3 days
Related Products
-
Stepless Speed Adjustment Cable Conveyor Conveyor600 Honghuang Cable Conveyor With 4 - GearUS$ 1300 - 1400MOQ: 1 Combo -
High - Performance Conveyor600 Honghuang Dual - Voltage Cable ConveyorUS$ 1200 - 1400MOQ: 1 Combo
-
Gecko-1 Horizontal Lattice Bridge Tractor - Multi-tier Cable Bridge HaulerUS$ 2300 - 2500MOQ: 1 Combo
-
Instrument Cable Conveyor PlusUS$ 800 - 1000MOQ: 1 Combo
-
Conveyor650 Cable Conveyor Machine With 3400N Max TensionUS$ 1300 - 1500MOQ: 1 Combo
Type
Other, cable conveyor
Certification
CE, ISO
Feature
Moistureproof, Insulation
Condition
New
Customized
Customized
Transfer speed
26m/min
Automatic Grade
Automatic
net weight
77kg
Cable diameter
1 ~ 10cm
Transport Package
Custom Export Wooden Box
Specification
74*42*56cm
Trademark
Changyun Technology
Origin
Henan, China

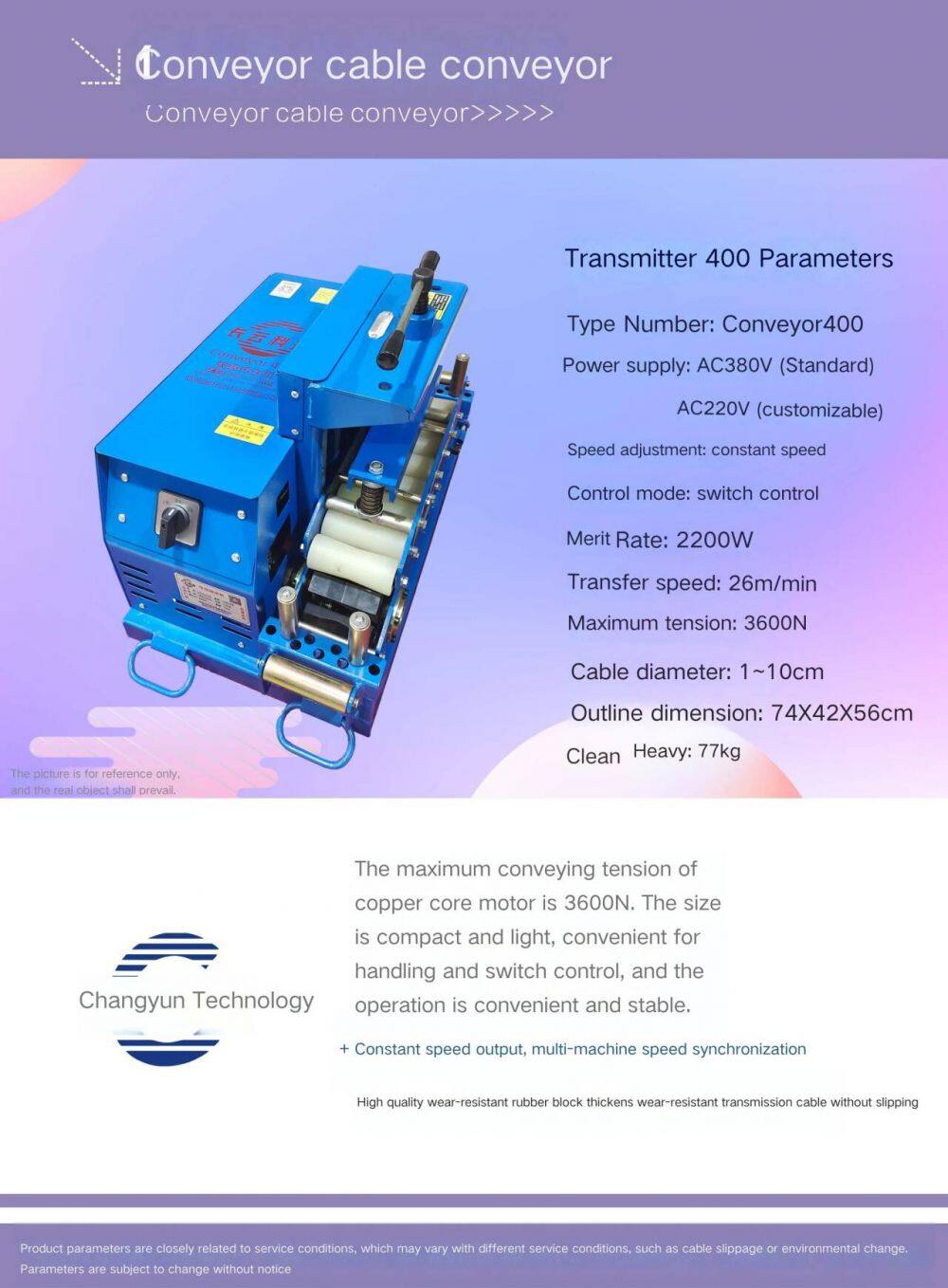

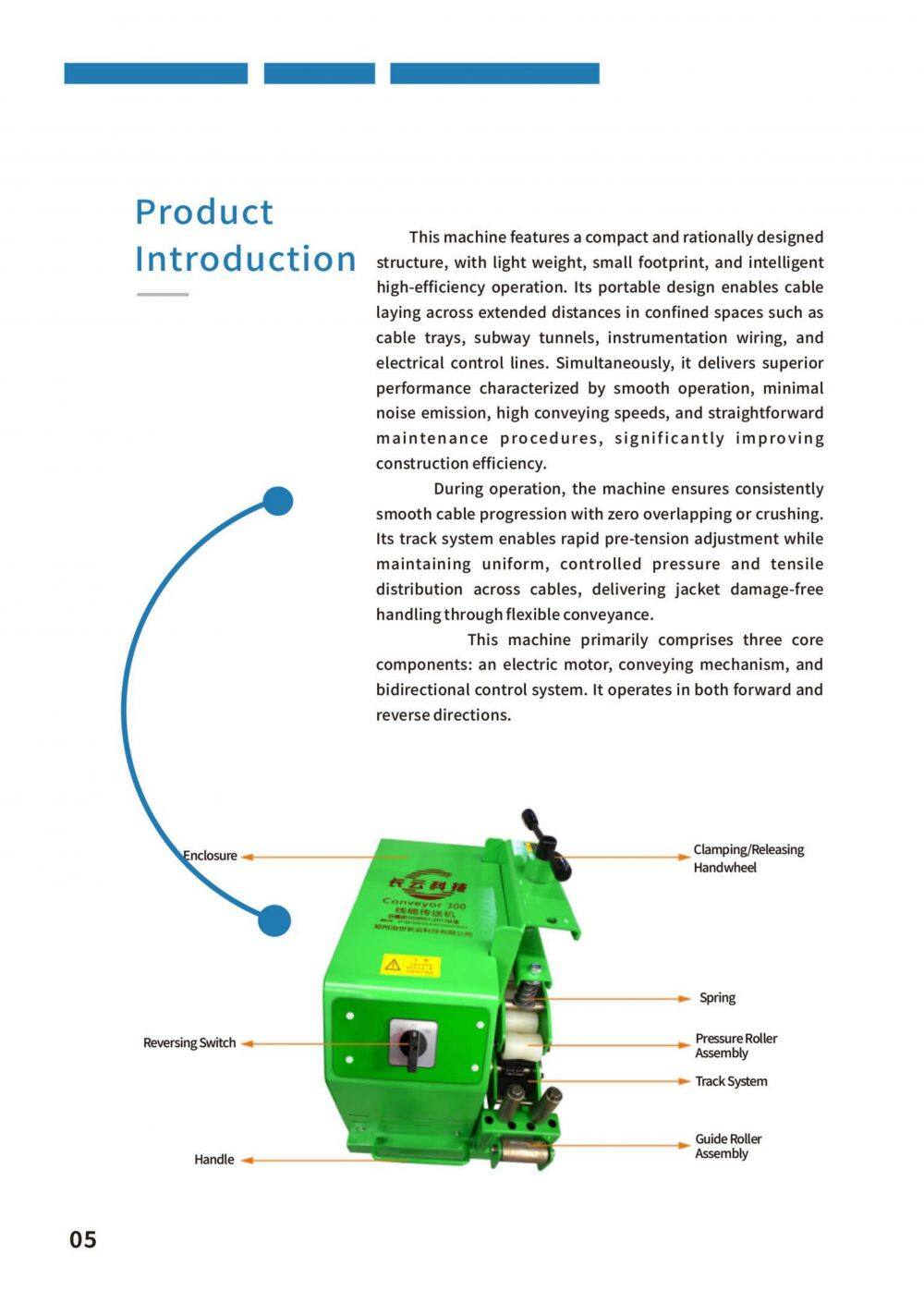

Conveyor400 Cable Conveyor: The Reliable Choice for Global Cable Handling Projects
Designed to solve the pain points of inefficient, labor-intensive cable handling, the Conveyor400 stands out with 5 core advantages, making it a top pick for businesses in telecommunications, power transmission, and construction worldwide.
1. High-Tension Copper-Core Motor: Handles 1-10cm Cables with Ease
At the heart of the Conveyor400 is a premium copper-core motor that delivers an impressive 3600N maximum conveying tension—a key parameter that ensures it can tackle diverse cable sizes without compromise. Whether you’re working with 1cm thin communication wires for office buildings or 10cm thick power cables for industrial sites, this motor maintains stable tension to avoid cable slippage or damage. Compared to ordinary conveyors with 2000-2500N tension, the Conveyor400 cuts down on repeated adjustments and manual assistance, boosting your project efficiency by up to 60%.
2. Global Voltage Compatibility: No More Transformer Hassles
We understand that electrical standards vary across countries—and the Conveyor400 is built to adapt. It comes with a standard AC380V power supply (ideal for most industrial markets in Asia, the Middle East, and Europe) and offers custom AC220V options for regions like North America, Australia, and parts of Africa. This means you don’t need to purchase additional transformers or modify your electrical system to use the conveyor. Whether your project is in Germany, the UAE, or the United States, the Conveyor400 integrates seamlessly into your workflow.
3. Intuitive Switch Control & Constant Speed Output
Operation simplicity is a priority for on-site teams—and the Conveyor400 delivers. It features a user-friendly switch control mode that requires no complex training: even new operators can start, stop, or pause conveying with a single press. Additionally, its constant speed output ensures uniform cable feeding, which is critical for tasks like cable cutting, stripping, or laying in straight lines. For large-scale projects (e.g., laying cables across a residential community), the conveyor also supports multi-machine speed synchronization—link 2-5 Conveyor400 units to work in harmony, avoiding delays from uneven feeding.
4. Compact & Portable Design: Fits Tight Spaces & Easy Transportation
Despite its powerful performance, the Conveyor400 boasts a space-saving outline dimension of 74X42X56cm and a net weight of 77kg—far lighter than bulkier industrial conveyors (which often weigh over 150kg). This compact size makes it perfect for tight workspaces: use it in small server rooms, elevator shafts, or narrow construction corridors where large equipment can’t fit. Moreover, its lightweight design allows 2-3 workers to load/unload it onto a pickup truck or van easily, reducing transportation costs and time for on-site projects.
5. Wear-Resistant Rubber Blocks: Durable for Long-Term Use
Industrial equipment needs to withstand harsh conditions—and the Conveyor400 is built for durability. It uses thickened wear-resistant rubber blocks on the conveying surface, which prevent cable slipping even when dealing with wet or dusty cables (common in outdoor construction or underground projects). These rubber blocks are 30% thicker than standard alternatives, so they won’t crack or wear out after 6-12 months of regular use. This durability means you won’t need to replace parts frequently, lowering your long-term maintenance costs and ensuring the conveyor stays operational for years.
From small workshops to large international projects, the Conveyor400 combines power, adaptability, and durability to meet your cable handling needs.
