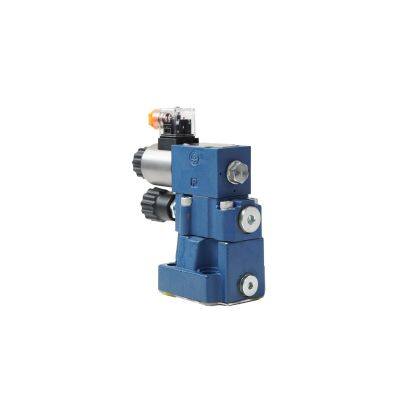

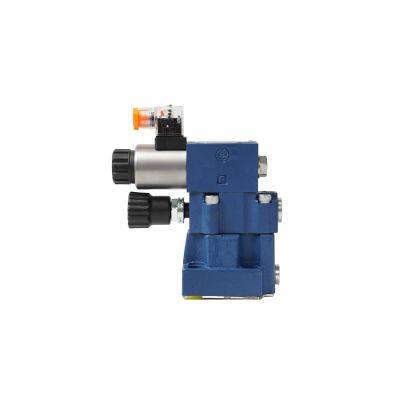

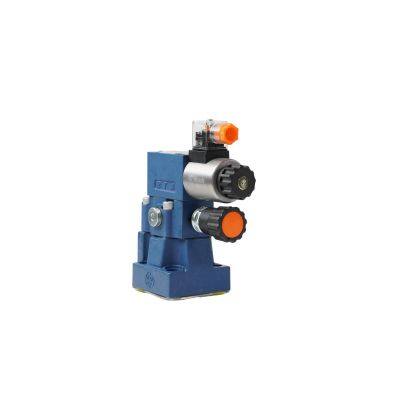

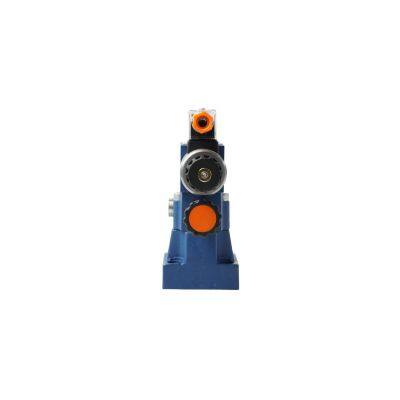

DBW10B-1-50B/3156CG24N9Z5L Hydraulic Valve Pilot Operated Electromagnetic Relief Valve

The DBW10B-1-50B/3156CG24N9Z5L is a pilot-operated, solenoid-controlled relief valve designed for precise pressure regulation and system protection in hydraulic circuits.

This valve combines a main pilot-operated relief valve with a 2-way, normally closed solenoid valve. It allows for remote, electrical control over the system's pressure setting. When the solenoid (rated for 24V DC) is de-energized, the valve acts as a standard relief valve, bleeding off excess pressure to protect the system. When the solenoid is energized, it vents the pilot stage, effectively unloading the pump to tank at a very low pressure, which saves energy and reduces heat generation.

Key Features:

• Model: DBW10B-1-50B/3156CG24N9Z5L

• Type: Pilot-operated electromagnetic relief valve

• Max Pressure Setting: 315 bar (approx. 31.5 MPa or 4570 psi)

• Nominal Flow Rate: 50 L/min

• Solenoid Voltage: 24V DC

• Function: Provides overload protection and remote unloading for energy efficiency.

• Typical Applications: Widely used in machine tools, plastic injection molding machines, presses, and other industrial machinery requiring multi-pressure settings or pump unloading.
