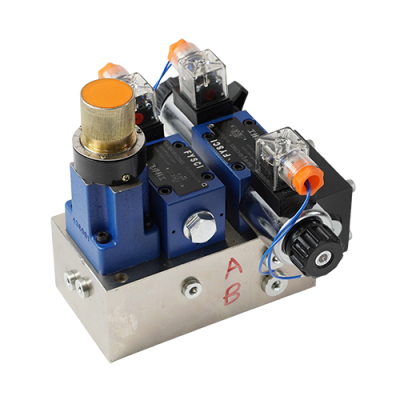

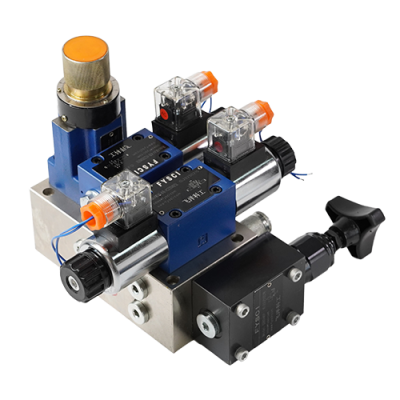

Valve Group Customized Hydraulic Manifold Block 4WE6G Flow Control Valve 2FRM6B7 Valve Block

Valve Group Customized Hydraulic Manifold Block with 4WE6G Flow Control Valve and 2FRM6B7 Valve Block is an integrated hydraulic control solution designed to streamline system design and enhance performance in industrial and mobile equipment. This custom manifold assembly combines the functionality of multiple valves—including a 4WE6G directional solenoid valve and a 2FRM6B7 throttle check valve—into a single compact block, reducing external piping, minimizing leakage points, and optimizing space efficiency .

1. Integrated Design:

• Customized porting and flow paths tailored to specific system requirements, ensuring optimal hydraulic performance and reduced pressure drops .

• Modular valve mounting (ISO 4401 standards) for easy installation and maintenance of included components .

2. Component Functionality:

• 4WE6G Solenoid Valve: Provides precise directional control (e.g., 4-way, 3-position) with electromagnetic actuation, rated for flows up to 60 L/min and pressures up to 350 bar .

• 2FRM6B7 Throttle Check Valve: Enables adjustable flow regulation (via throttle screw) with free reverse flow capability, ideal for controlling actuator speeds .

3. Durability and Efficiency:

• Manufactured from high-grade aluminum or steel with precision-machined channels to withstand harsh environments and high-pressure cycles .

• Sealed with Viton or NBR O-rings for compatibility with petroleum-based fluids and enhanced leak resistance .

4. Application Flexibility:

• Supports custom port configurations (e.g., NPT, BSP, or SAE threads) and optional pressure sensor ports for system monitoring .

• Compatible with hydraulic power units, presses, agricultural machinery, and material handling systems .

• Mobile Machinery: Excavators, loaders, and tractors requiring compact valve groups for implement control .

• Industrial Systems: Plastic injection molds, stamping presses, and automation equipment .

• Agricultural Equipment: Combine harvesters, balers, and irrigation systems .

• Reduced Installation Time: Pre-assembled and tested block minimizes on-site plumbing errors .

• Leak Prevention: Eliminates up to 80% of fittings compared to traditional stacked systems .

• Customization: Designed to match specific circuit layouts, port orientations, and flow requirements .

This tailored manifold block simplifies hydraulic system architecture while ensuring reliable, high-performance control for diverse applications.
