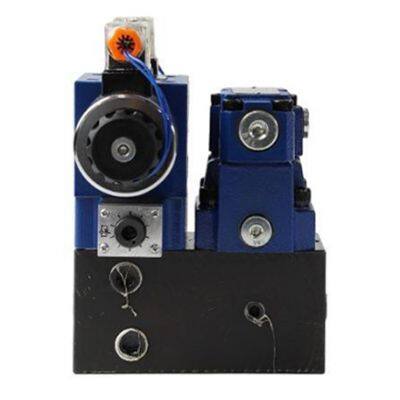

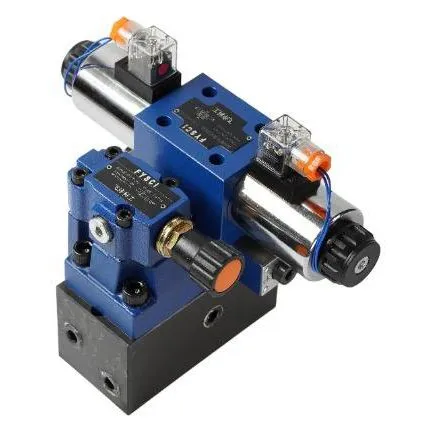

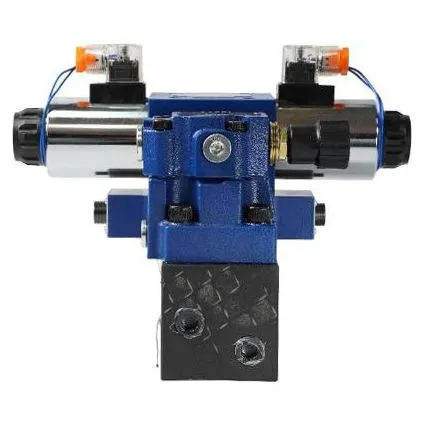

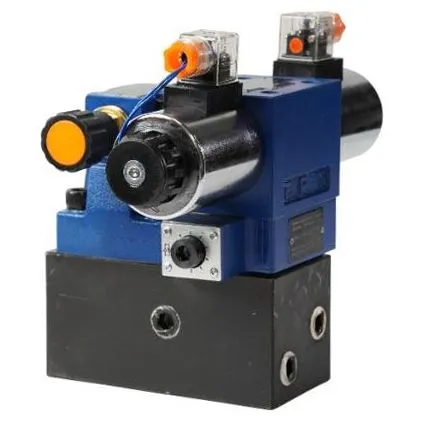

Customized Hydraulic Manifold Block 4WE10G-31B&DB-10&Z2FS10-20B Valve Group Directional Valve

This product is a custom-engineered hydraulic manifold block designed to integrate and consolidate multiple valve functions into a single, compact, and efficient unit. The core components of this specific assembly are:

• Directional Control Valve: A 4WE10G-31B solenoid-operated, 4-way/3-position directional valve with a wet-pin DC solenoid. This valve is responsible for controlling the direction of fluid flow to actuate hydraulic cylinders or motors.

• Pressure Relief Valve: A DB-10 cartridge-style pilot-operated relief valve. This valve provides essential system protection by limiting the maximum operating pressure, diverting excess flow to the tank when a preset pressure is exceeded.

• Throttle Check Valve: A Z2FS10-20B throttle and check valve combination. This component allows for precise control over flow rate (and thus actuator speed) in one direction while permitting free flow in the opposite direction.

Key Features & Benefits:

• Compact Design: Replaces multiple individual valves and connecting piping, saving space, reducing potential leak points, and simplifying the overall hydraulic system layout.

• Enhanced Performance: Minimizes pressure drops and improves system response by eliminating lengthy hose or tube runs between valves.

• Customized Configuration: The manifold is machined from a solid block of steel or aluminum according to specific porting, valve arrangement, and mounting requirements, ensuring optimal performance for your unique application.

• Reliability: Manufactured to high precision standards with clean, debris-free internal passages to ensure long service life and consistent hydraulic system operation.

Typical Applications:

This customized valve group is ideal for complex machinery requiring precise directional control, pressure regulation, and flow metering, such as:

• Industrial automation systems

• Machine tools

• Plastic injection molding machines

• Mobile hydraulic equipment
