FUKUDA Nickel Cadmium Battery FUKUDA Aircraft Battery MSDS Transportation Appraisal Report

FOB Price

Negotiable / Carton

1 Carton(Min. Order)

Port Hong Kong
Payment TermsT/T
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Usage	Other	Rechargeable	Chargeable
Electrolyte	Other	Nominal Voltage	1.2V
Transport Package	wooden case packaging	Trademark	FUKUDA
Origin	CHINA

Product Description

FUKUDA Nickel Cadmium Battery FUKUDA Aircraft Battery MSDS Transportation appraisal report

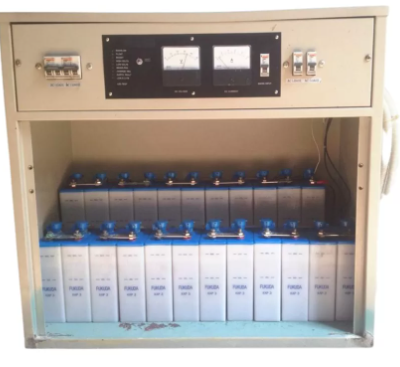

FUKUDA Nickel Cadmium Battery

FUKUDA Nickel Cadmium Battery is one of the most reliable power back-up systems available in the market today. It has the unique feature of quality, safety, long life, low maintenance, reduce cost and safeguarding the environment.

FUKUDA KAP SERIES Nickel Cadmium Battery works by an electrochemical reaction between a Nickel positive plate and a Cadmium negative plate, immersed in a liquid alkaline electrolyte (potassium hydroxide). This reaction produces a nominal voltage of 1.2 volts per cell. Required voltages are obtained by connecting these cells together in series to form a battery.

FUKUDA KAP series batteries cell full comply with the requirement of the IEC 60623 and tested by Intertek International, SIRIM QAS.

Switchgear Tripping

MRT/LRT Railway

UPS

DC Instrumentation

Water Treatment Plant

Commercial / Industrial Buildings

CAPACITY RANGE

From 10AH to 1000AH

FUKUDA NICKEL CADMIUM BATTERY SPECIFICATION

Brand ‘ FUKUDA ‘

Model KAP Series

Type Pocket Plate Nickel Cadmium

Standard compliance IEC 60623

Positive plate construction Nickel

Negative plate construction Cadmium

Nominal voltage per cell 1.2V

Float charge per cell 1.4 to 1.42 volt per cell

High rate (boost) per cell 1.55 to 1.65 volt per cell

Type of electrolyte Potassium Hydroxide

Specific gravity 1.20 +/- 0.01

Weight per cell Refer to product catalog

Dimension per cell Refer to product catalog

Battery container Translucent polypropylene

Battery designed life 10-15 years, under float charged standby condition

Accessories Included

Nickel Cadmium

FUKUDA Nickel Cadmium battery is suited for rail applications due to its high tolerance for temperature and can operate between -40℃ and 70℃. The battery can be discharged to 60% of rated capacity by 0.2ItA.

FUKUDA Nickel Cadmium battery has high energy density with long service life of over 5,000 cycles. It is also low maintenance and does not need to conduct activating treatment over the course of its first three years of operations.

FUKUDA Nickel Cadmium battery has track records in various rail projects in Asia.

Certificates

TUV Rheinland IEC60623: 2001 certificate (KAP, KPX)

TUV Rheinland EN61373:2010

CE certificate

KEMA IEC60623:2001(4th edition) certificate

Lead acid

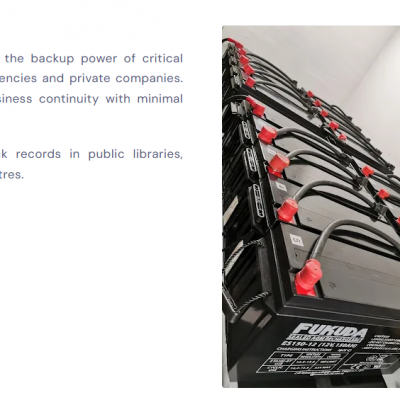

Fukuda battery supports the backup power of critical installations for public agencies and private companies. Our batteries ensure business continuity with minimal down time.

Fukuda battery has track records in public libraries, laboratories and data centres.

Certificates

IEC 60896
