Customized Rack Column Market Shelf Making Machine for Steel Iron Aluminum Materials Making
US$ 8700
1 - 2 Piece
US$ 8500
≥3 Piece
Key Specifications
Get Latest Price
Certification:
CE
Warranty:
2 years
Usage:
Other, storage rackproducing
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
45 days
Related Products
-
Competitive Price Storage Shelf Column Roll Forming Machine Supermarket Shelves Upright Rack Making MachineUS$ 23500 - 25000MOQ: 1 Piece -
Cheap Price Storage Rack Shelf Box Panel Making Machine Steel Storage Rack System Welding Box Beam Roll Forming MachineUS$ 8250 - 9850MOQ: 1 Piece
-
Full Automatic Racking Roll Forming Machine Steel Profile Storage Rack Roll Forming Machine Racking MachineUS$ 6650 - 7350MOQ: 1 Piece
-
High Precision PLC Control Steel Shelf Forming Machine Industrial Tile Industries Racking Making Machine Fully Automatic BearingUS$ 22000 - 25000MOQ: 1 Piece
-
Full Set of Shelf Panels Racks Column Cold Roll Forming MachineUS$ 20000 - 25000MOQ: 1 Piece
Certification
CE
Warranty
2 years
Usage
Other, storage rackproducing
After-sales Service
2 years
Customized
Customized
Condition
New
Tile Type
Glazed Steel
Transmission Method
Electric
Transport Package
standard
Specification
as following
Trademark
HOWANN
Origin
Cangzhou,Hebei,China
Customized Rack Column Market Shelf Making Machine For Steel Iron Aluminum Materials Making
Process flow
Sheet Feeding------Feeding Machine ------ Sheet Forming------Cutting With A Certain Length------Receiving And Packing (It is recommended that two people operate the entire assembly line)
Production Line Configuration List
Products Description

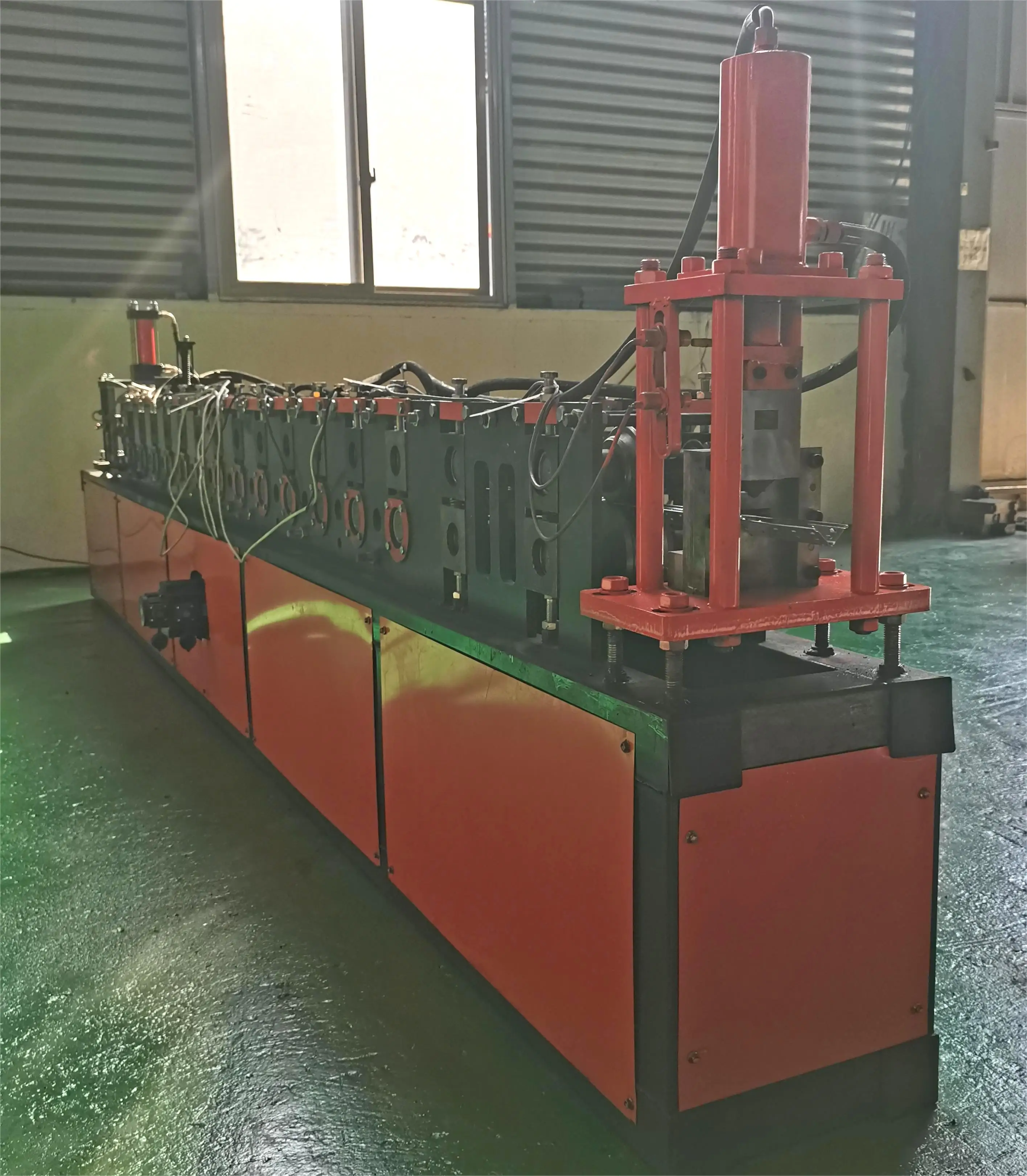

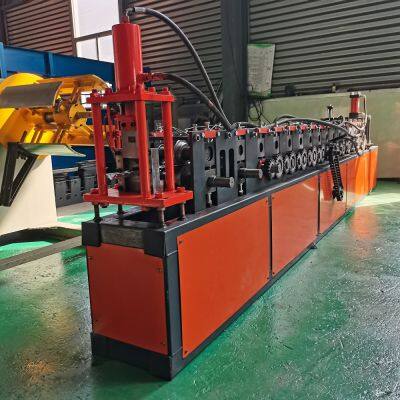

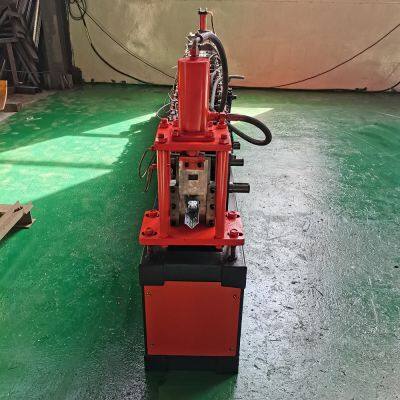

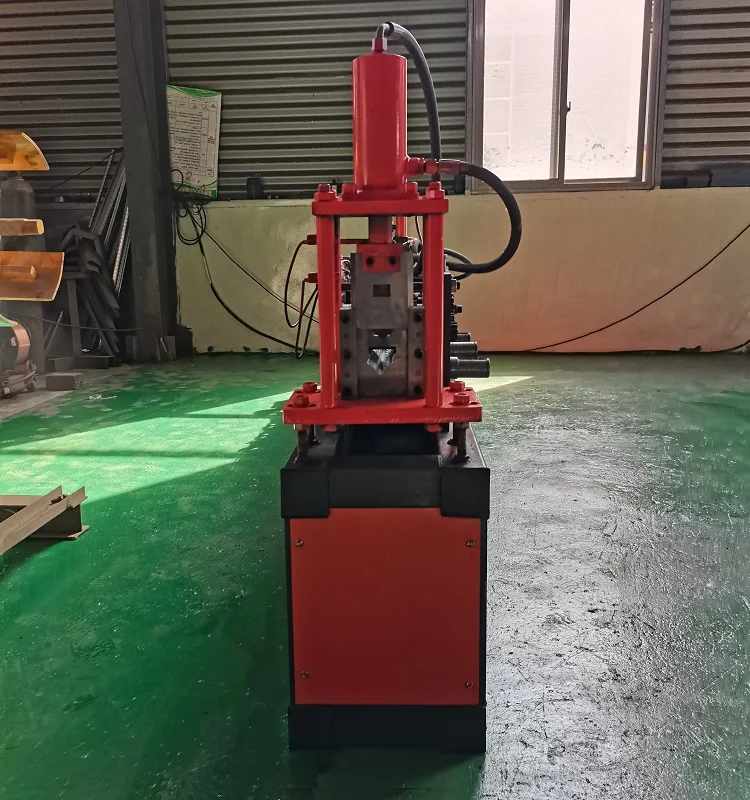

Rack Column Making Machine is for producing the storage rack for workshop. It can uncoil, level, punch and continuously roll forming with automatic cutting to length. It is the essential equipment in the steel structure industry. The machine can be customized based on the customer’s specific technical requirements. Galvanized steel rack upright roll forming machine can produce the profile with following different size, with servo feeding device and punching bed. Special sizes of the profile can be designed in our company.
Equipment Detailed Parameters:
Product Details

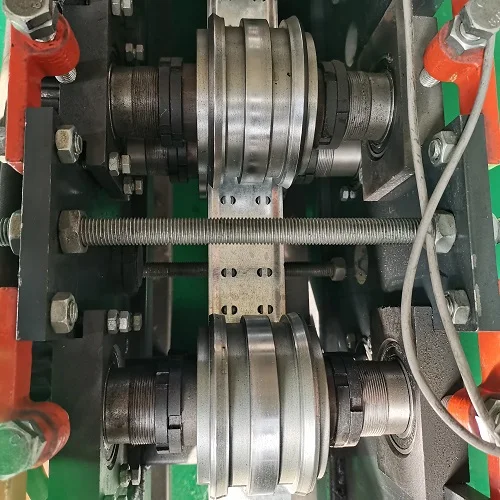

Roller structure: using hollow roller structure
Roller processing: vacuum treatment, grinding machine fine grinding
Roller Material:45 # steel
hard plated surface

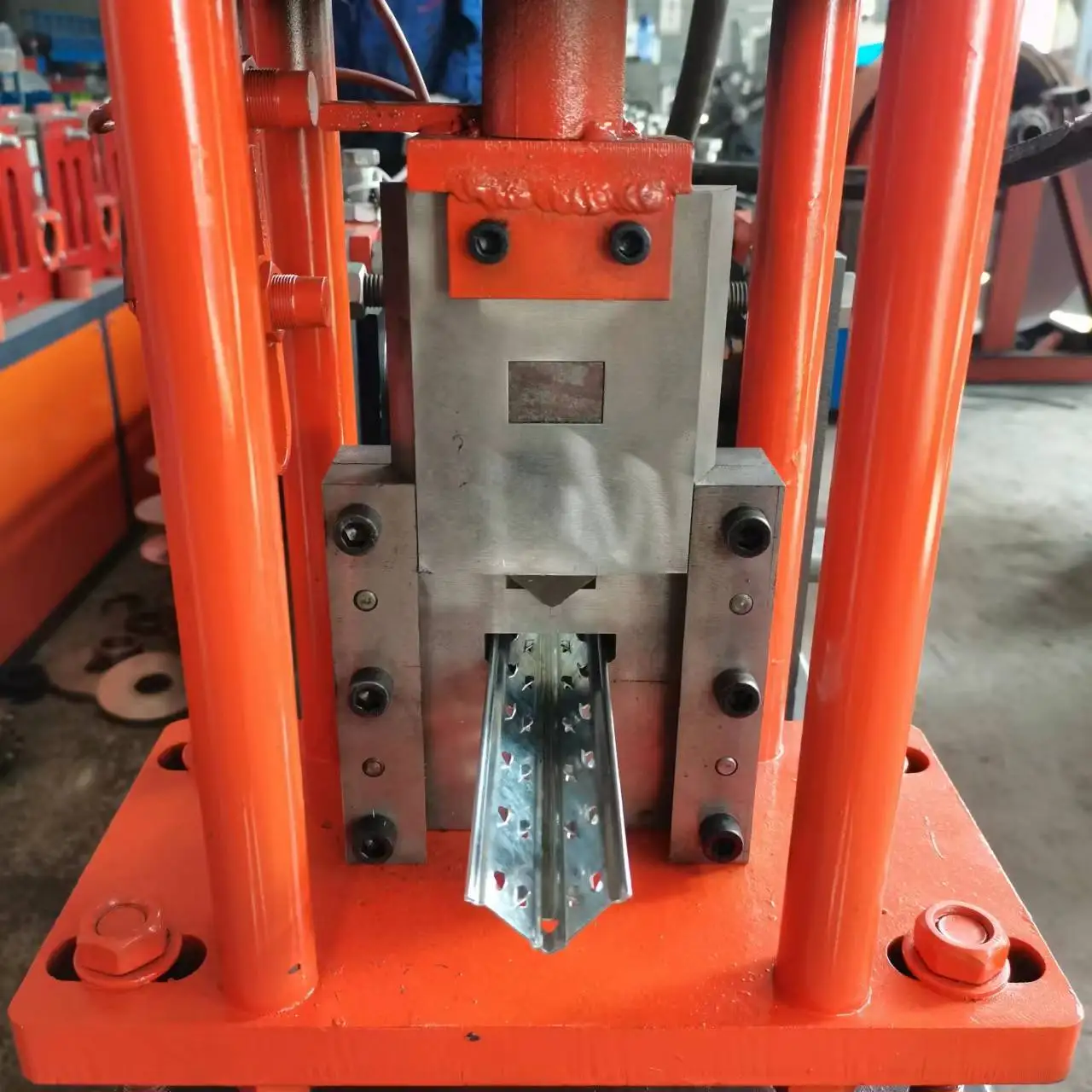

Stepless shearing system after forming, no need to change tool for cutting, manual change
PLC Siemens
Delta inverter 3kw Inverter Simple operation, accurate precision and stable performance

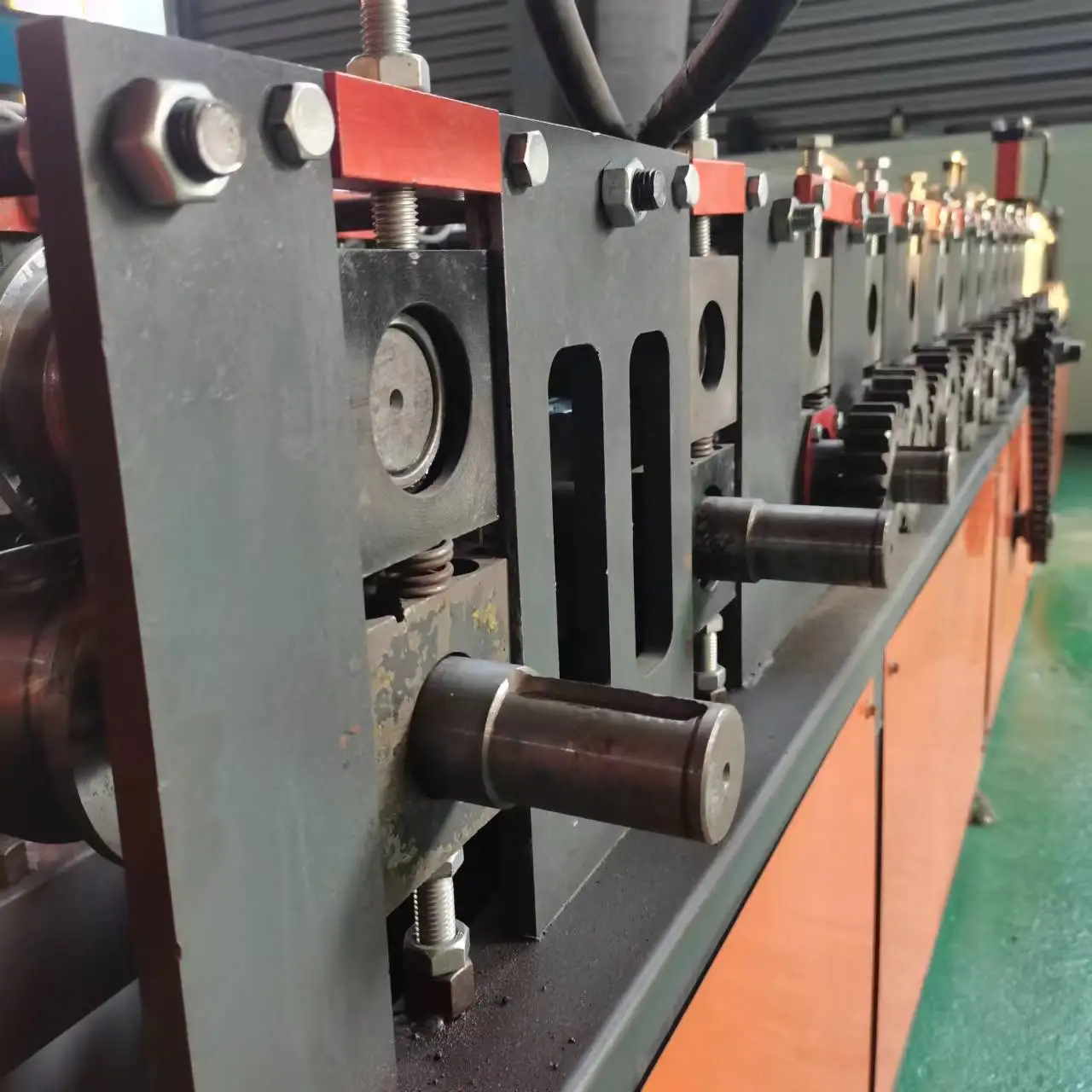

Rack midplane
14mm medium plateThe middle plate adopts cast steel drawing plate to ensure that the machine does not deform when rolling the thick plate

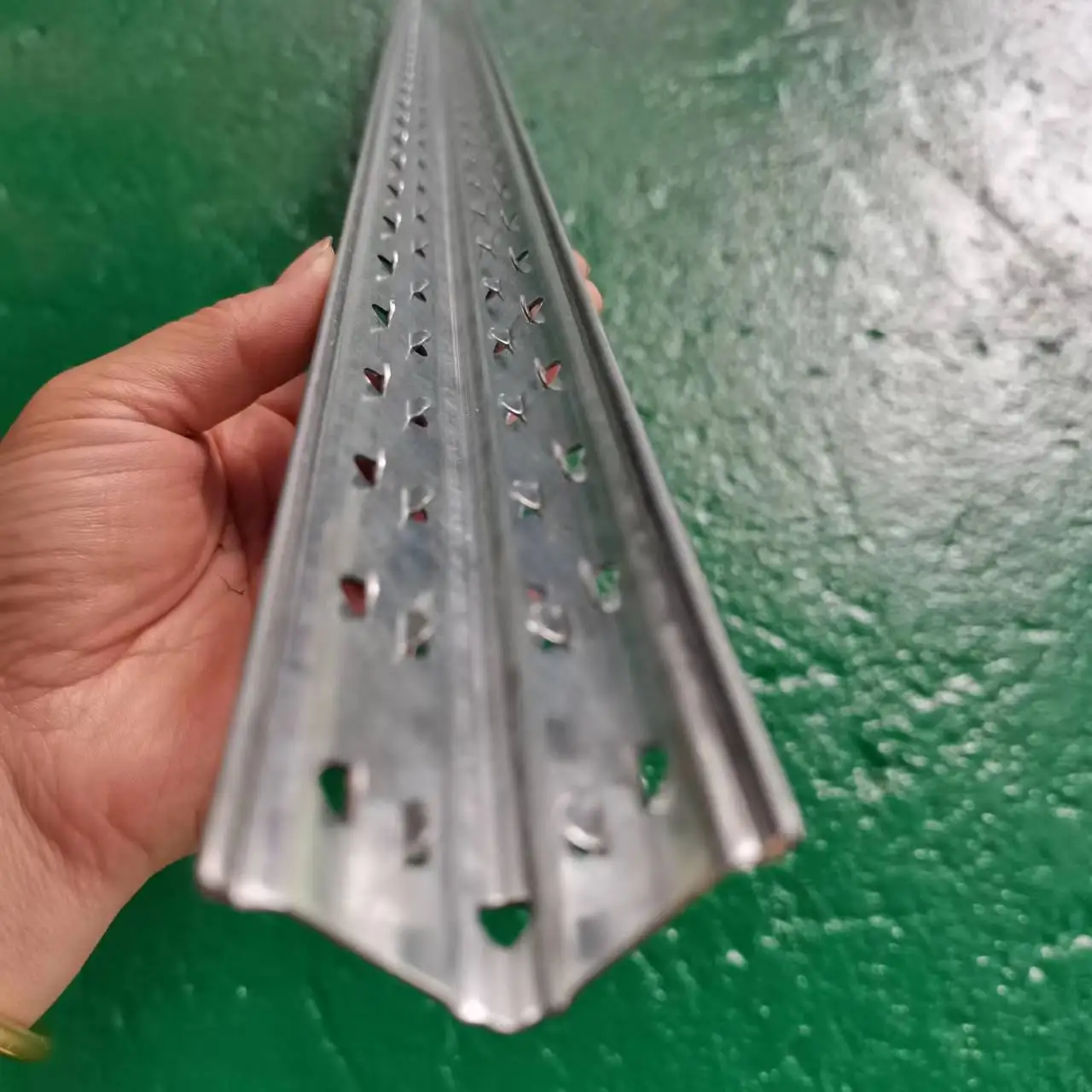

Product Show

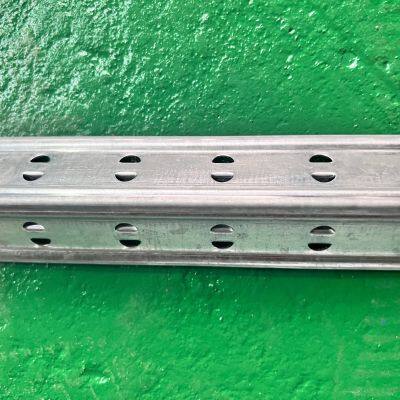

Product Final Shape can be customized.
The board surface is flat, no wrinkles, no scratches, and the molding effect is good
We can process the machine according to customers' demand and also can give professional suggestions if the customers need~

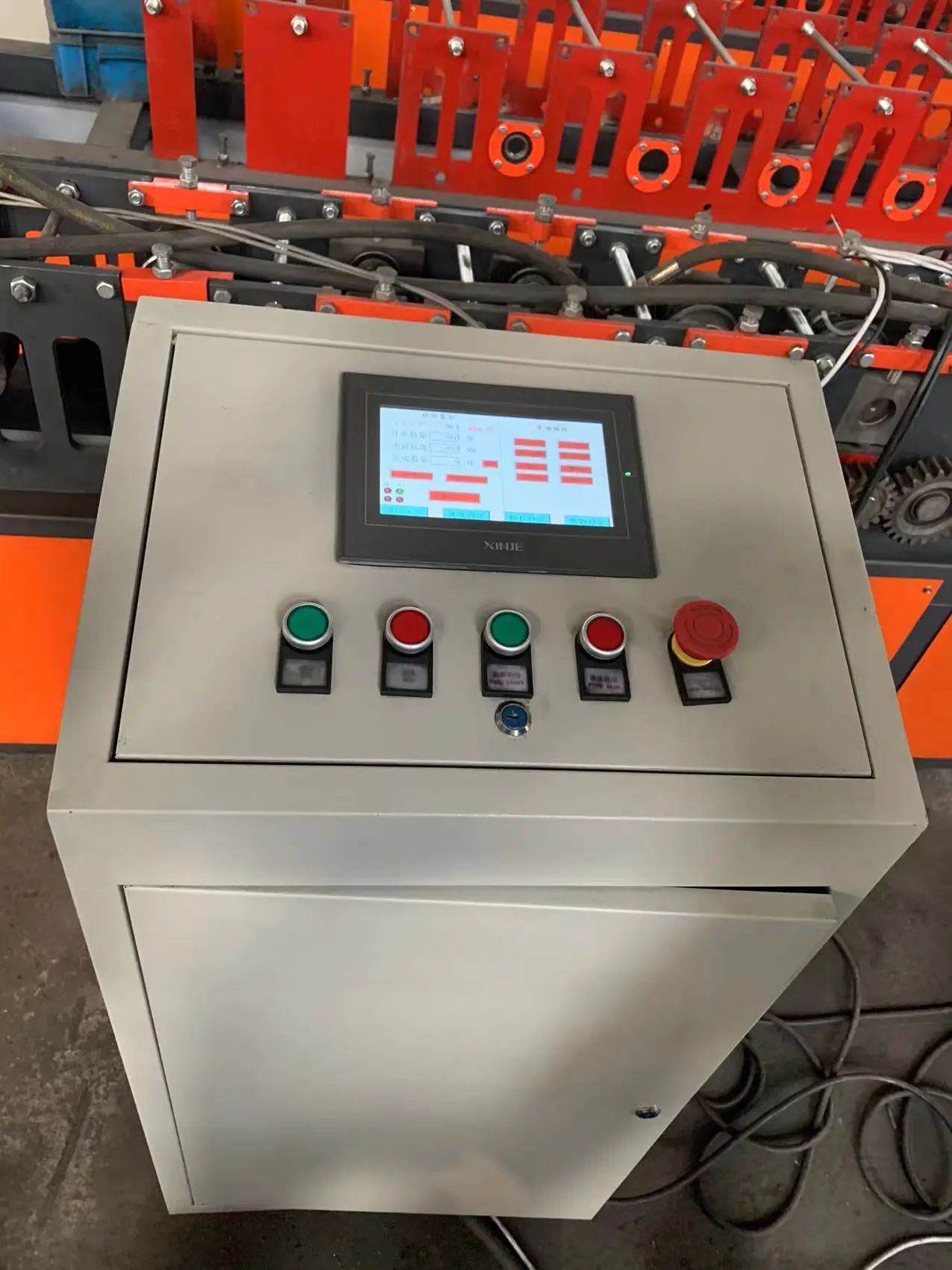

Electric control cabinet
A：The whole line is controlled by PLC, with LCD touch screen and man-machine interface. Realize the interaction between people and PLC. The operator runs automatically through the set program (programmable control) and monitors the control process, so that the operator can control the production line and modify the control parameters, and can monitor the equipment running status, operating parameters and faults, indications, etc. in real time. Real-time monitoring of equipment operating status and fault indication.
B：There are two modes of operation: manual/automatic. It has the function of manual and automatic switching; in the manual state, it can run a single machine, which is convenient for debugging and maintenance; in the automatic state, the whole line of production runs, starts sequentially, and the entire line is equipped with an emergency stop button, which is easy to deal with emergencies and ensure equipment and Operator safety.
C.：Equipped with wireless controller brake operator
D：There is a manual operation panel beside the machine for workers to operate
Equipped With The Machine(For Free!!!)

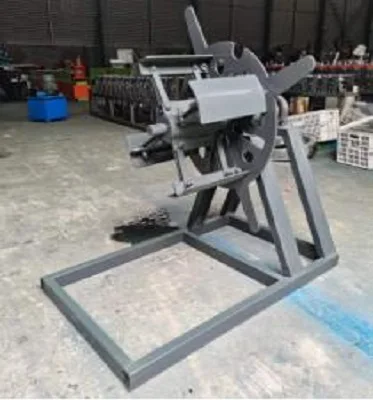

Vertical feeding rack
Rack structure: vertical Sheet width: less than 1m Inner diameter of some materials: 300-500mm Expansion method: manual expansion The center of the four-link is tightened outward Inner diameter in the shrinking country: 460-500mm Maximum outer diameter of material roll: 500mm The amount of commitment blue: ≤5t

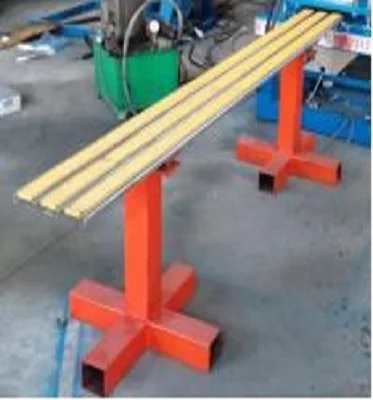

3 meters feeding rack
Feeding rack 20cm-1m wide (optional equipment)
Shipment & Delivery
Roll forming machine is usually shipped by container ,which make sure delivery safety.
Packing details:
1.Need one 40ft container.
2.The main body of the roll forming machine will be naked packed into the container, covered with plastic film.
3.Steel wire fix the machine into the container, in case any damage on the sea.
4.The spare parts will be packed into the carton box.
1.Need one 40ft container.
2.The main body of the roll forming machine will be naked packed into the container, covered with plastic film.
3.Steel wire fix the machine into the container, in case any damage on the sea.
4.The spare parts will be packed into the carton box.

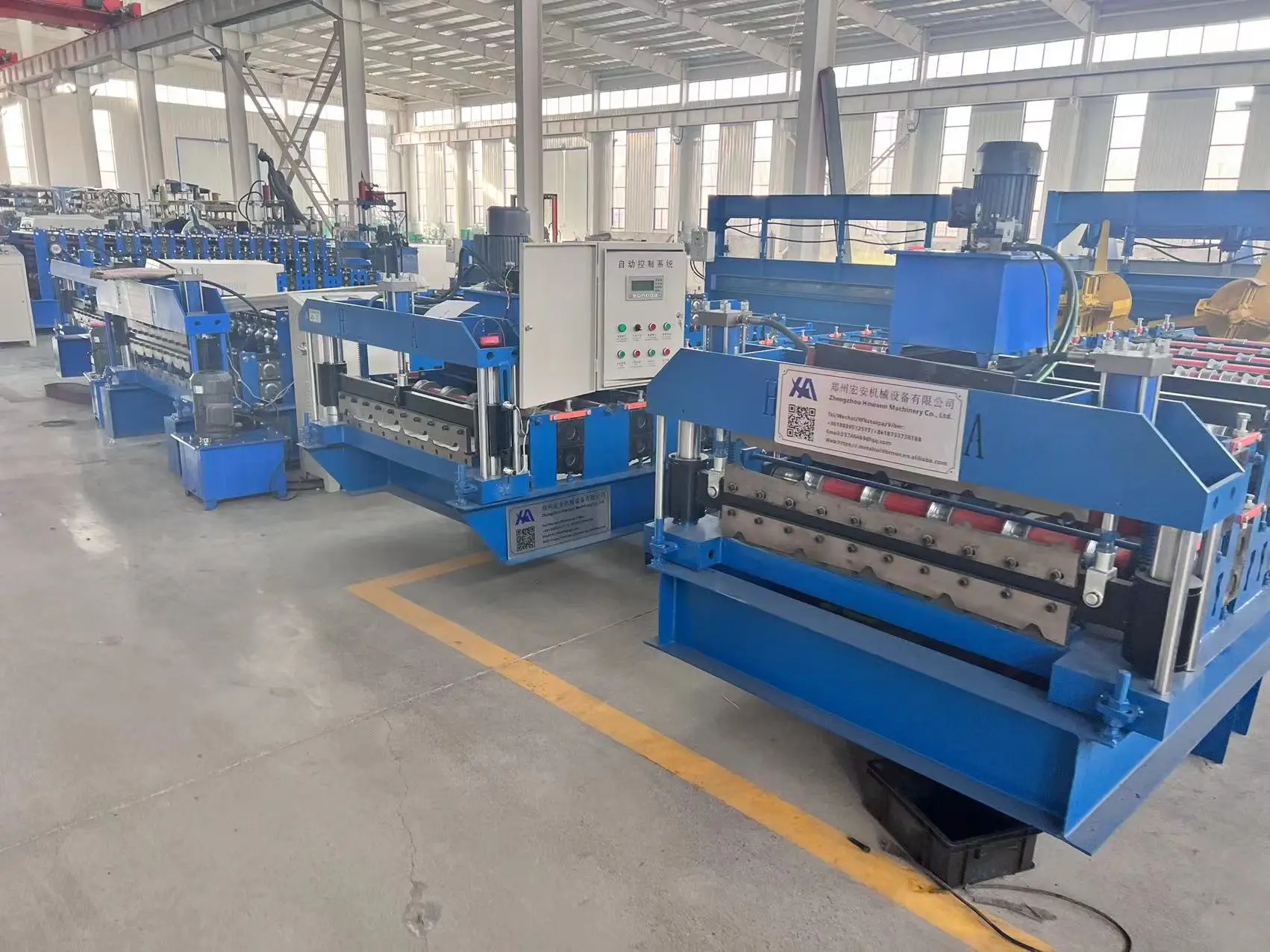

Why Choose Us
Customer Photos
Recommend Products
FQA
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 15 to 30 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
