Home > Products > Customized Shape Forming Machine > New Arrival Steel Door Frame Making Machines Door Frame Machine Steel Door Frame Roll Forming Machine

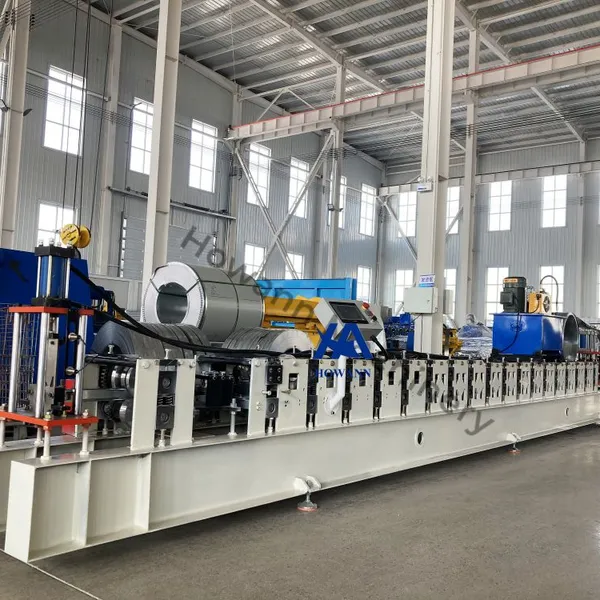

New Arrival Steel Door Frame Making Machines Door Frame Machine Steel Door Frame Roll Forming Machine

FOB Price

US$ 7350

1 - 2 Pieces

US$ 7050

3 - 4 Pieces

US$ 6800

≥5 Pieces

Port Qingdao Port
Payment TermsT/T PayPal Western Union
Delivery Detail45 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	CE	Warranty	2 years
Usage	Other, door frame making	After-sales Service	2 years
Customized	Customized	Condition	New
Tile Type	Glazed Steel	Transmission Method	Electric
Transport Package	standard	Specification	as following
Trademark	HOWANN	Origin	Cangzhou,Hebei,China

Product Description

Door Frame Making Machine

This series of door frame forming machines are used to make various steel door frames.Our door frame-making machine is capable of manufacturing steel window frames,steel door frames,bronze window frames,bronze door frames, fire-rated window/door frames and so on.

Click here to contact us!!!

Features:

Machine constructed from steel.
Machine fitted with a number of rolls with forming dies on its end, through which a cut strip is passed.
In a single pass, the desired strip is formed, suitable for making rolling shutters.
Drive of the machine through machine cut gears.
necessary guides and supports are provided for the strips to pass through rolls.
Coil roll can be loaded.
6 Station Machine for making One profile, 7 Station Machine for making Two profiles, 8 Station Machine for making Three profiles of Rolling Shutter Strips / Slats.

SPECIFICATIONS
Model:	HA-4.5/LD	HA-4.5	HA-5.0/LD	HA-5.0	HA-6.0/LD	HA-6.0
Capacity - Width of Strip:	4.5" / 115 mm	4.5" / 115 mm	5.0" / 127 mm	5.0" / 127 mm	6.0" / 152 mm	6.0" / 152 mm
Capacity - thickness of sheet (mm):	0.4 to 0.9	0.7 to 1.2	0.4 to 0.9	0.7 to 1.2	0.4 to 0.9	0.7 to 1.2
Capacity - Max. length:	no limit	no limit	no limit	no limit	no limit	no limit
Size of formed rolling strip (round type):	3" / 76 mm	3" / 76 mm	3.35" / 85 mm	3.35" / 85 mm	3.75" / 95 mm	3.75" / 95 mm
Number of Rolls:	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs	6, 7 or 8 pairs
Machine Speed (Feet / Minute):	20	20	20	20	20	20
Machine Speed (Meters / Minute):	6	6	6	6	6	6
Motor (HP):	5	5	5	5	5	7.5
Net / Gross Weight (kgs.):	950 / 1300	950 / 1300	1100 / 1450	1100 / 1450	1200 / 1600	1200 / 1600
Dimensions (m):	2.0 x 1.4 x 1.1	2.0 x 1.4 x 1.1	2.2 x 1.5 x 1.2	2.2 x 1.5 x 1.2	2.5 x 1.6 x 1.4	2.5 x 1.6 x 1.4
Shipping Volume (m3):	4.0	4.0	5.0	5.0	6.0	6.0

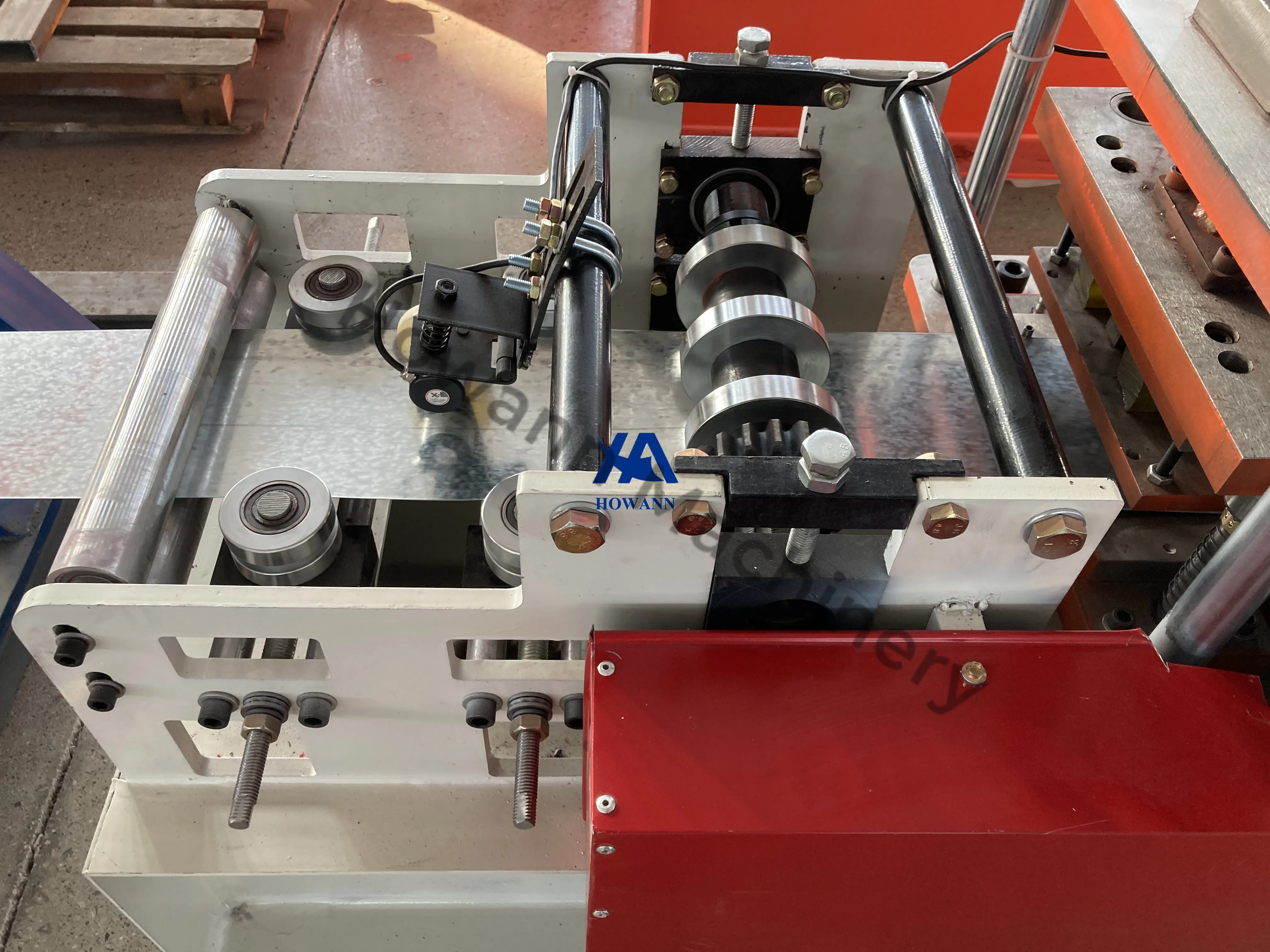

Feeding table

Adopt adjustable round wheel design.
Small error good operation.

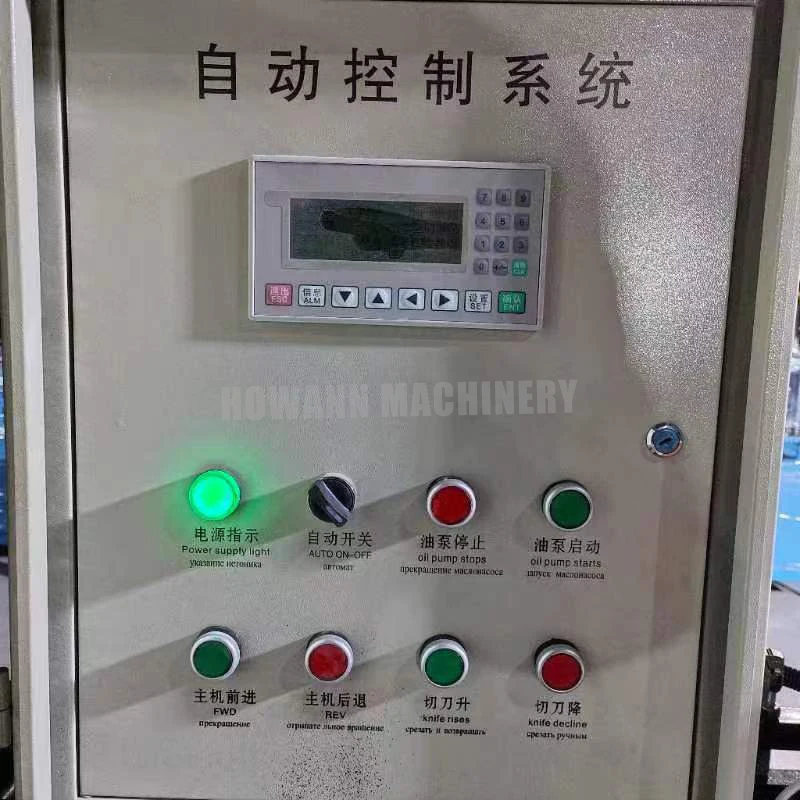

Control system

Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.

Forming system

Material of the roller: High grade No.45 forged steel Roller station: 12-14 rows

Thickness of feeding material: 0.3-0.6mm

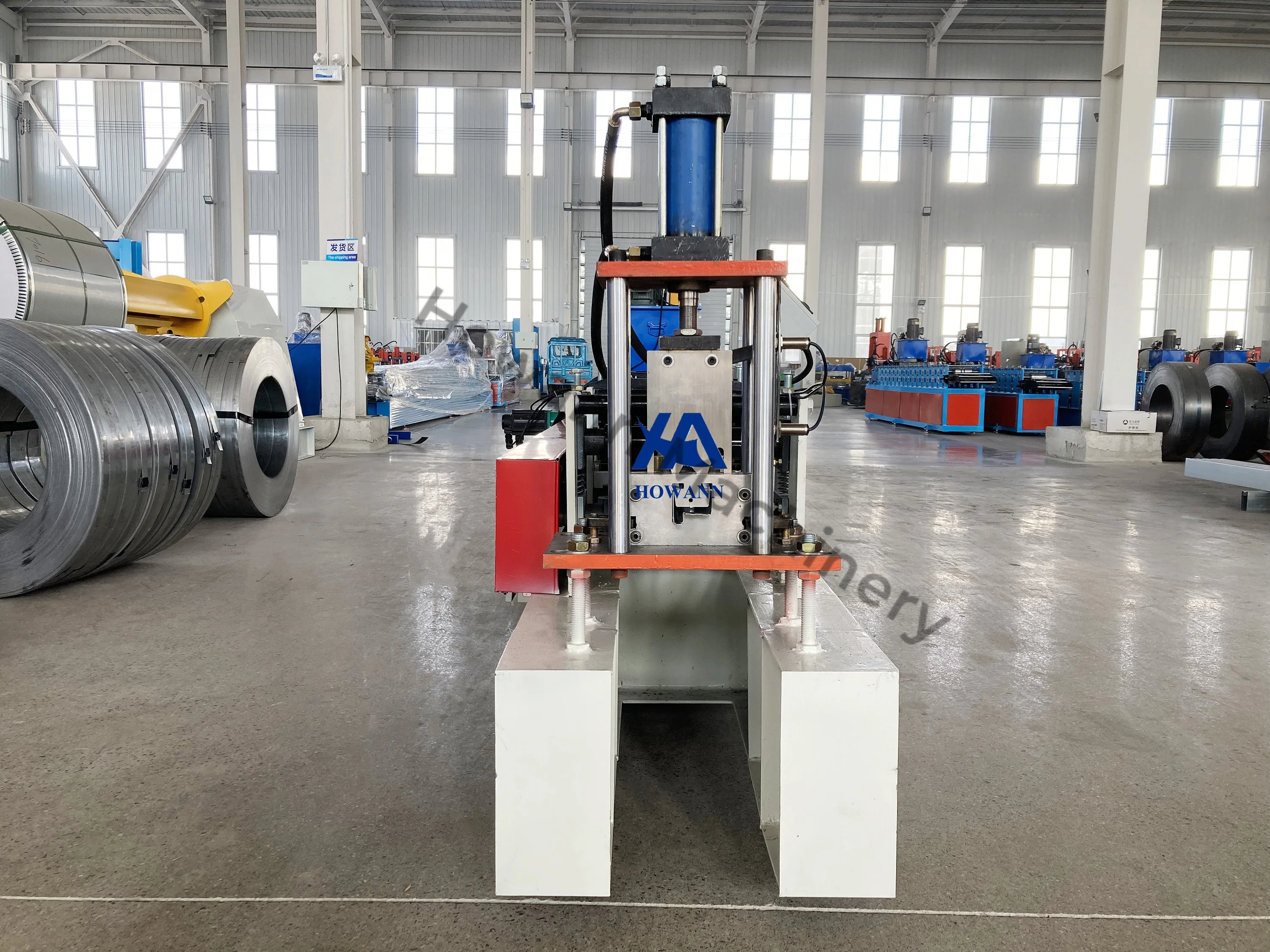

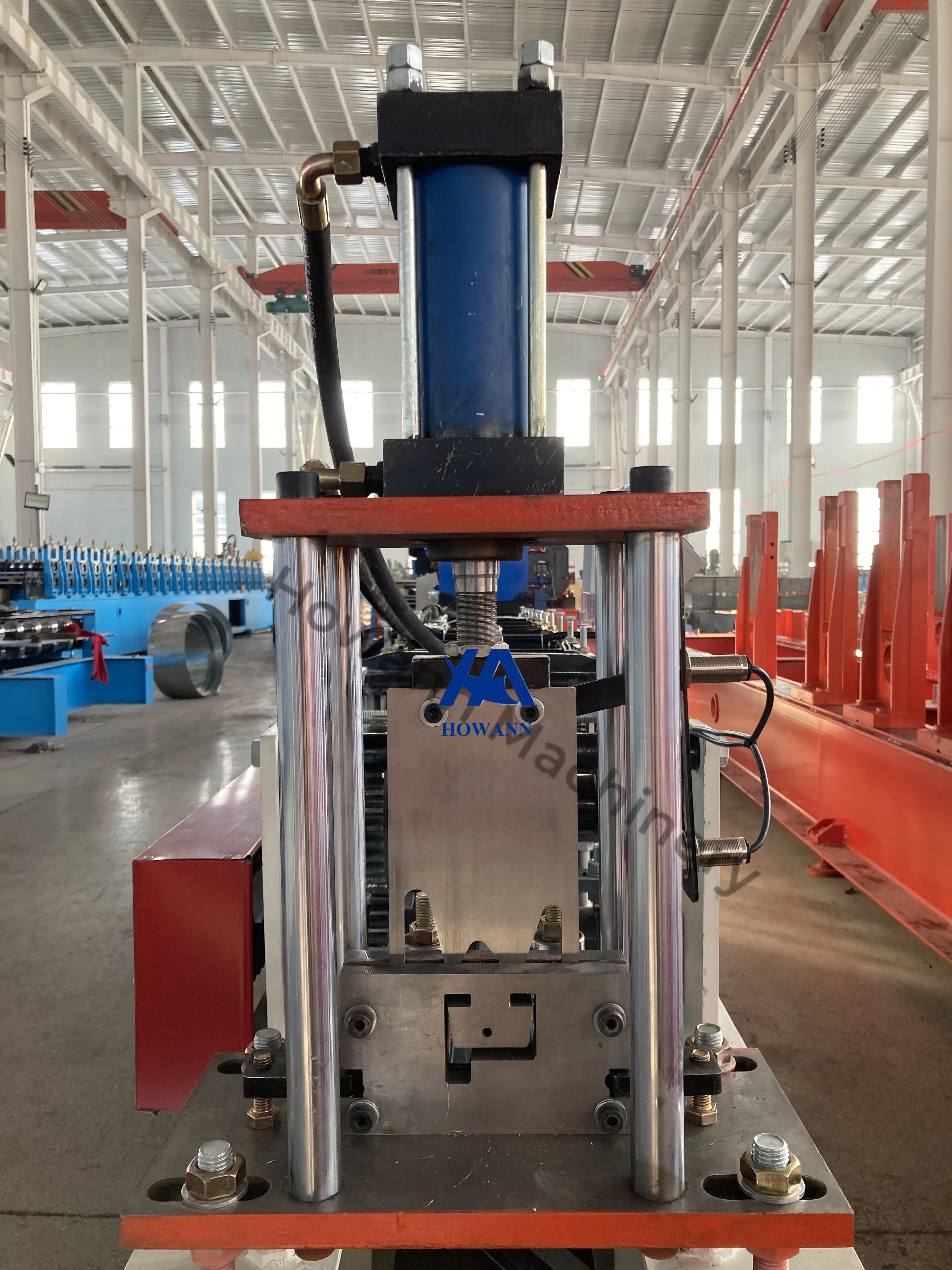

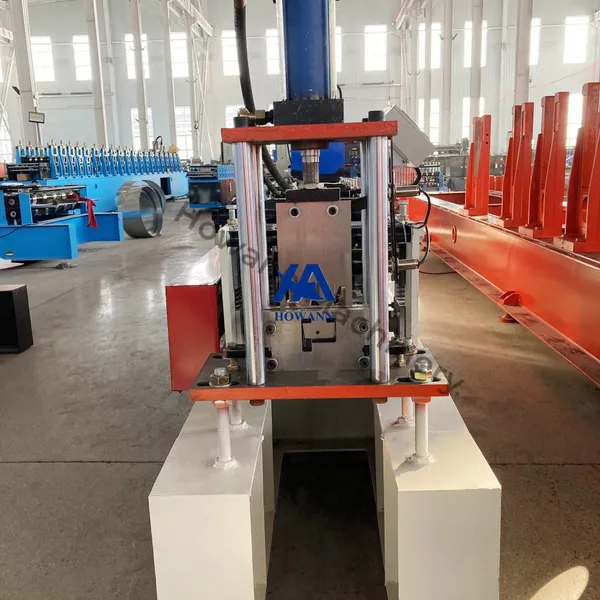

Cutting system

Electric type guillotine.
Knife made of steel.
Automatic activation.

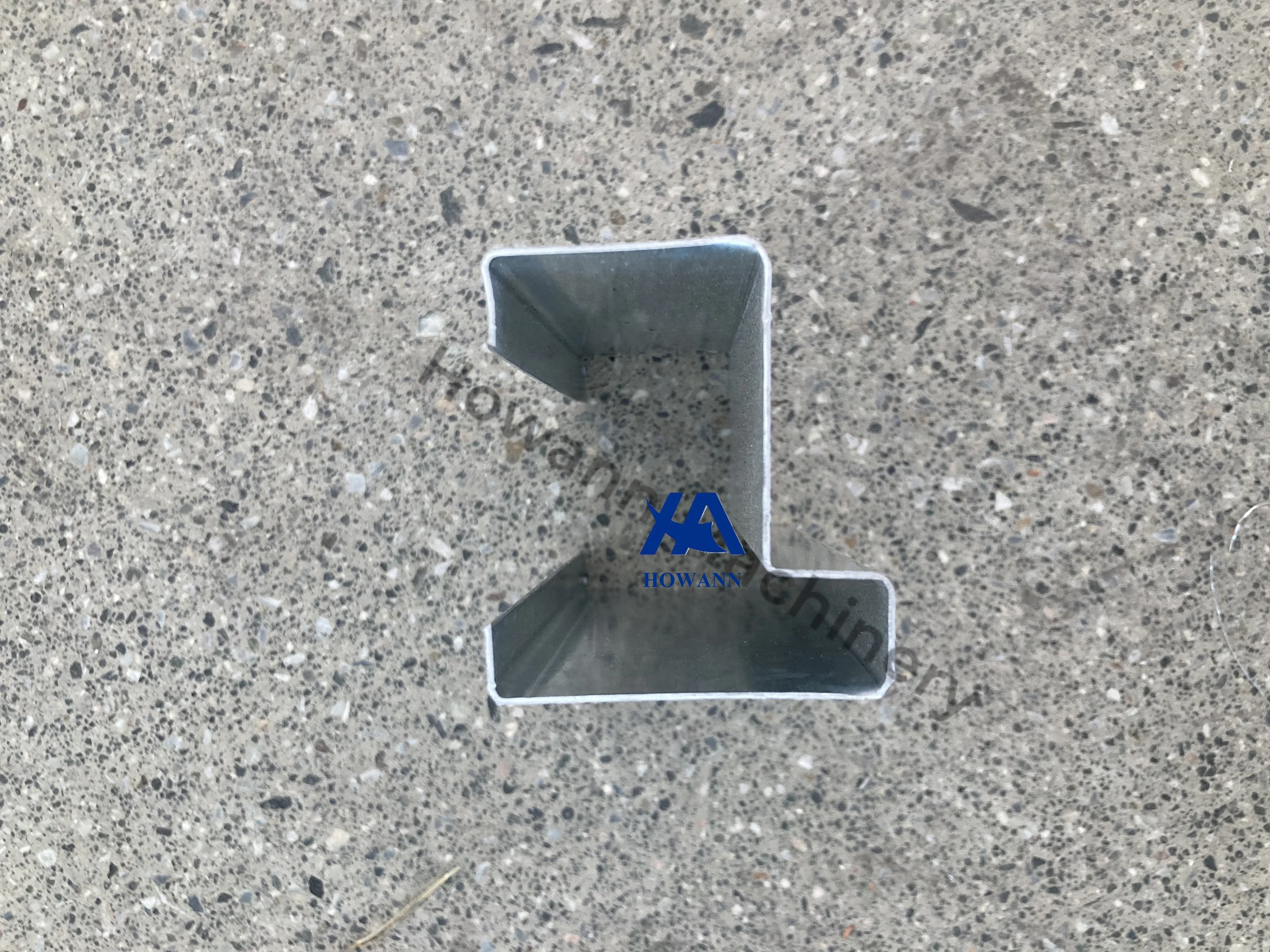

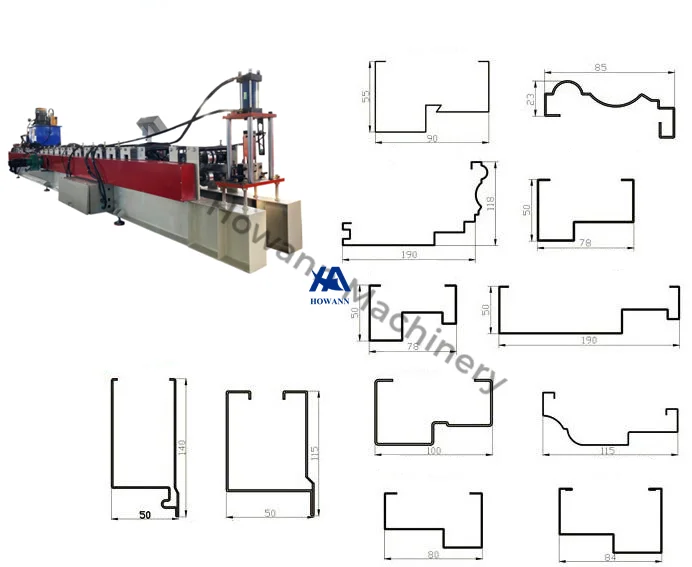

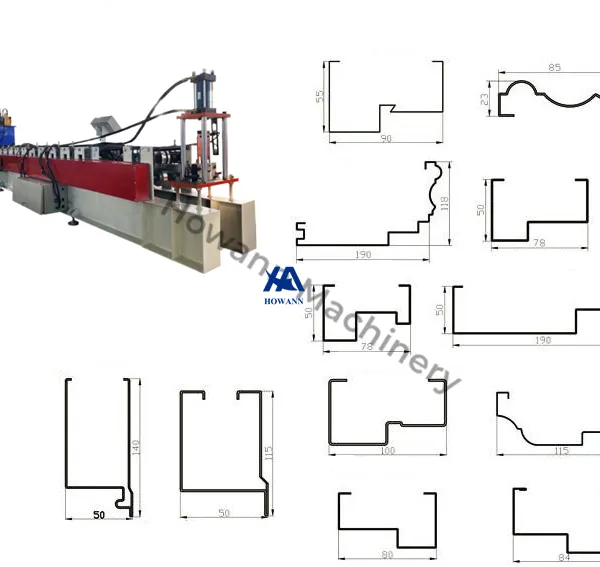

Product Layout

We provide customization for the following versions, or you can customize your own products.

Click here to learn more.

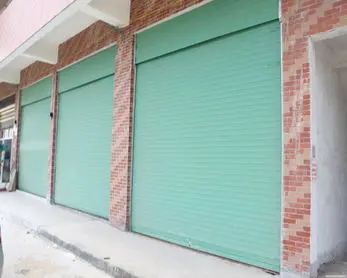

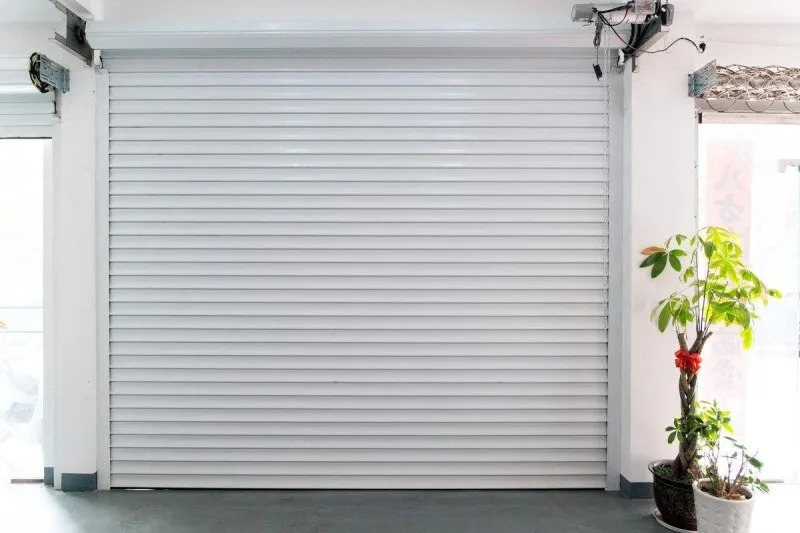

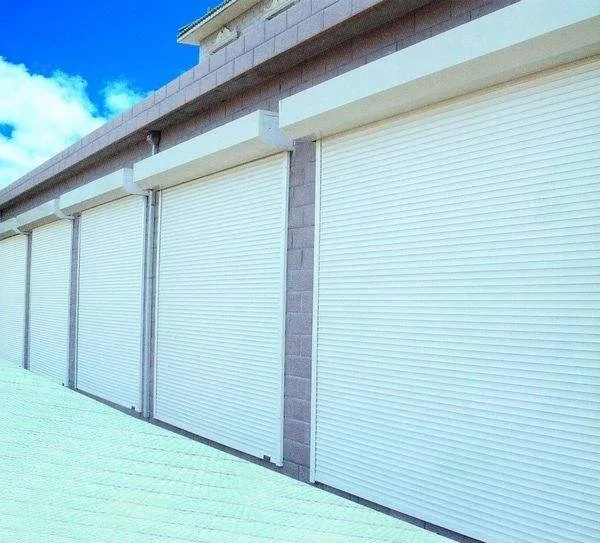

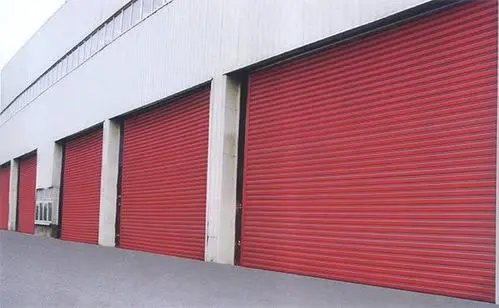

Application Scenario

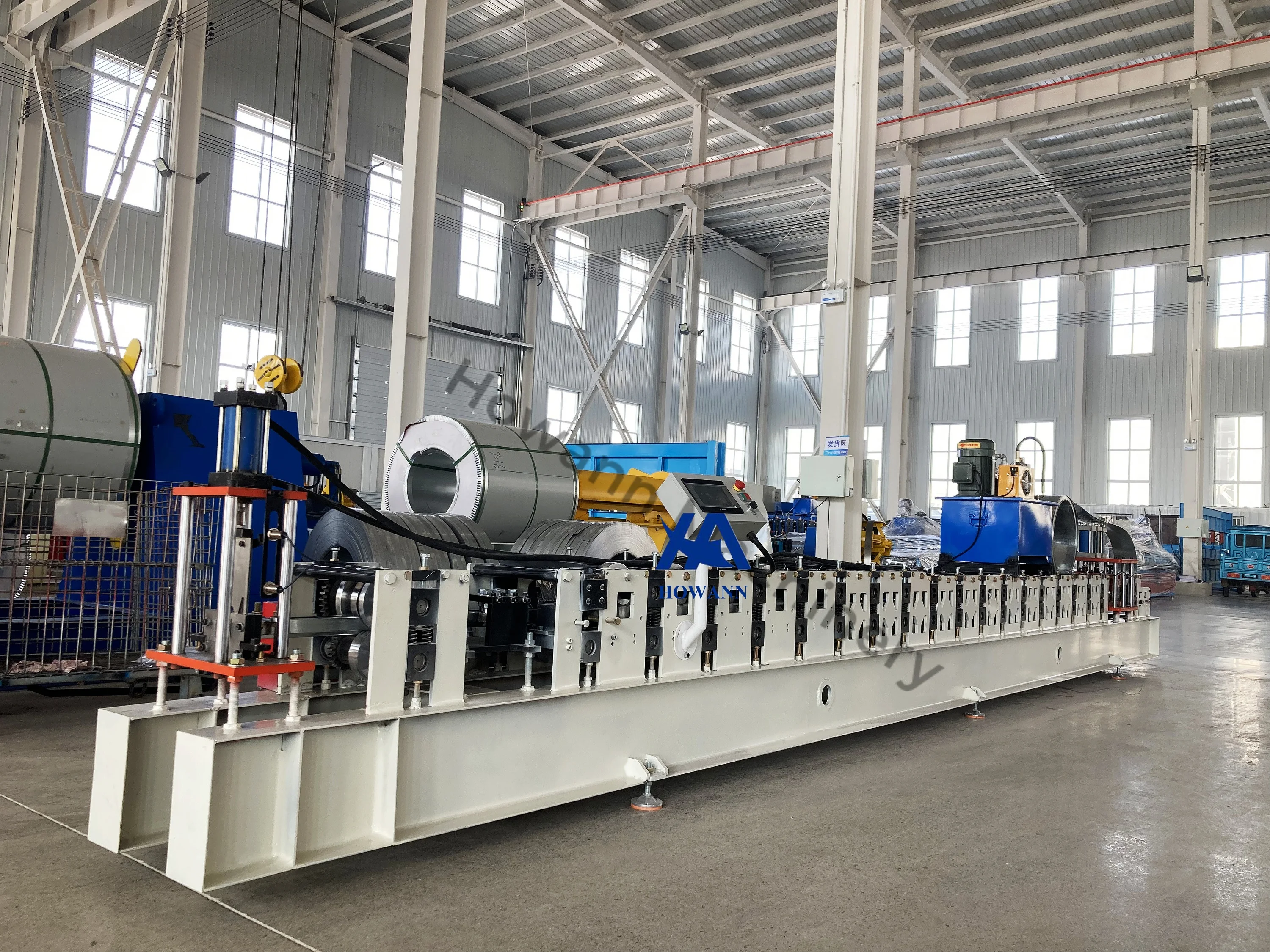

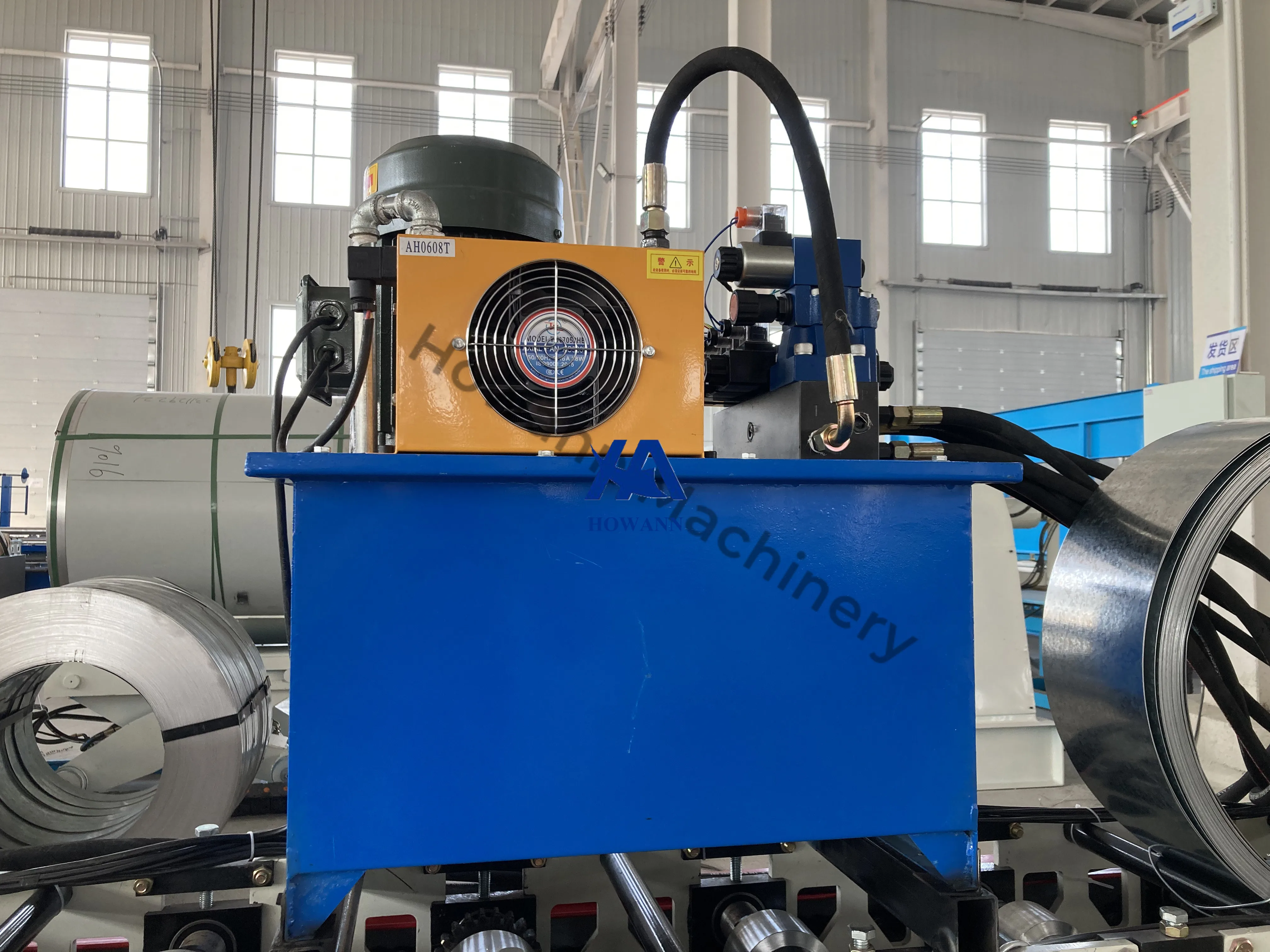

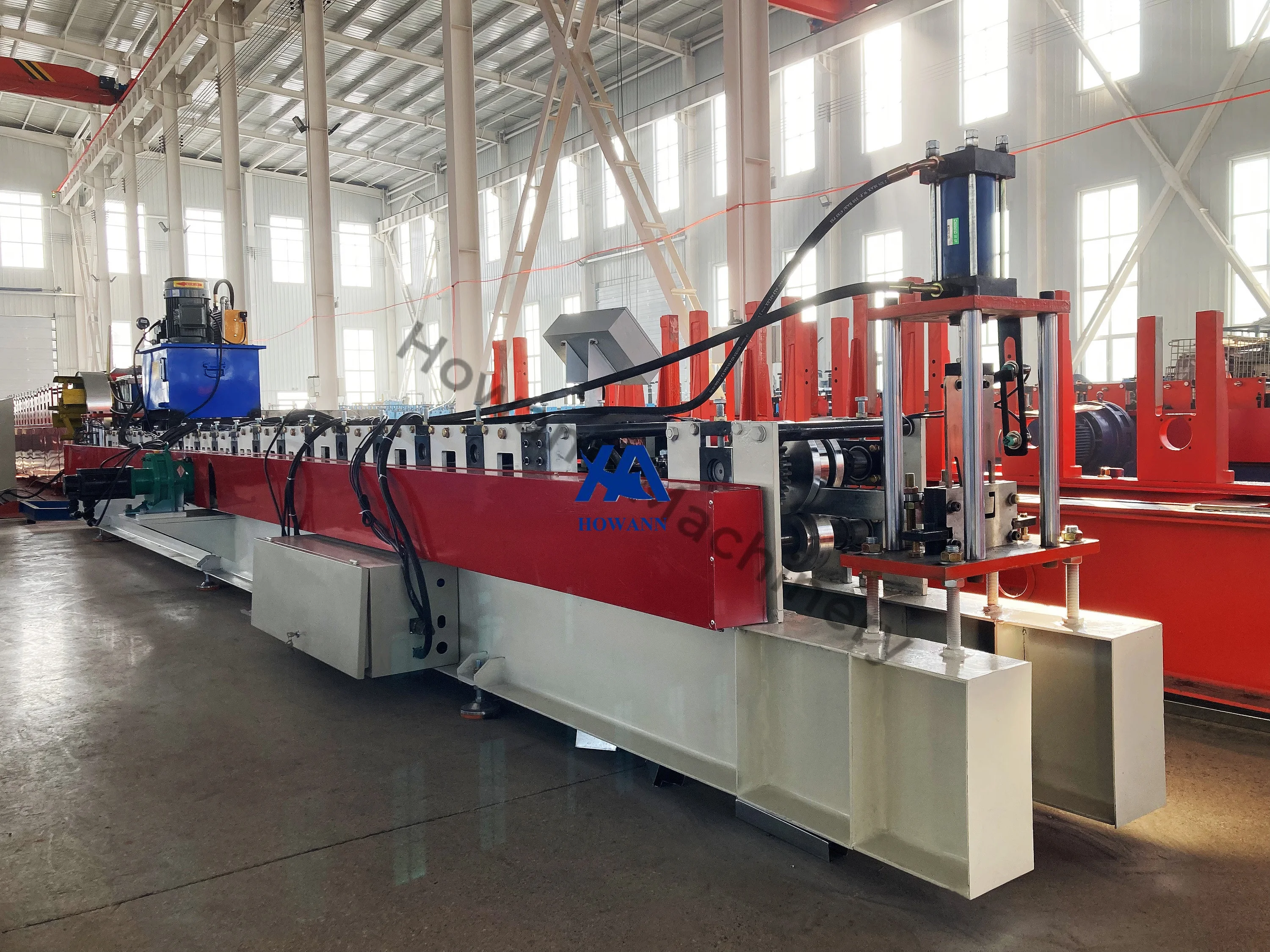

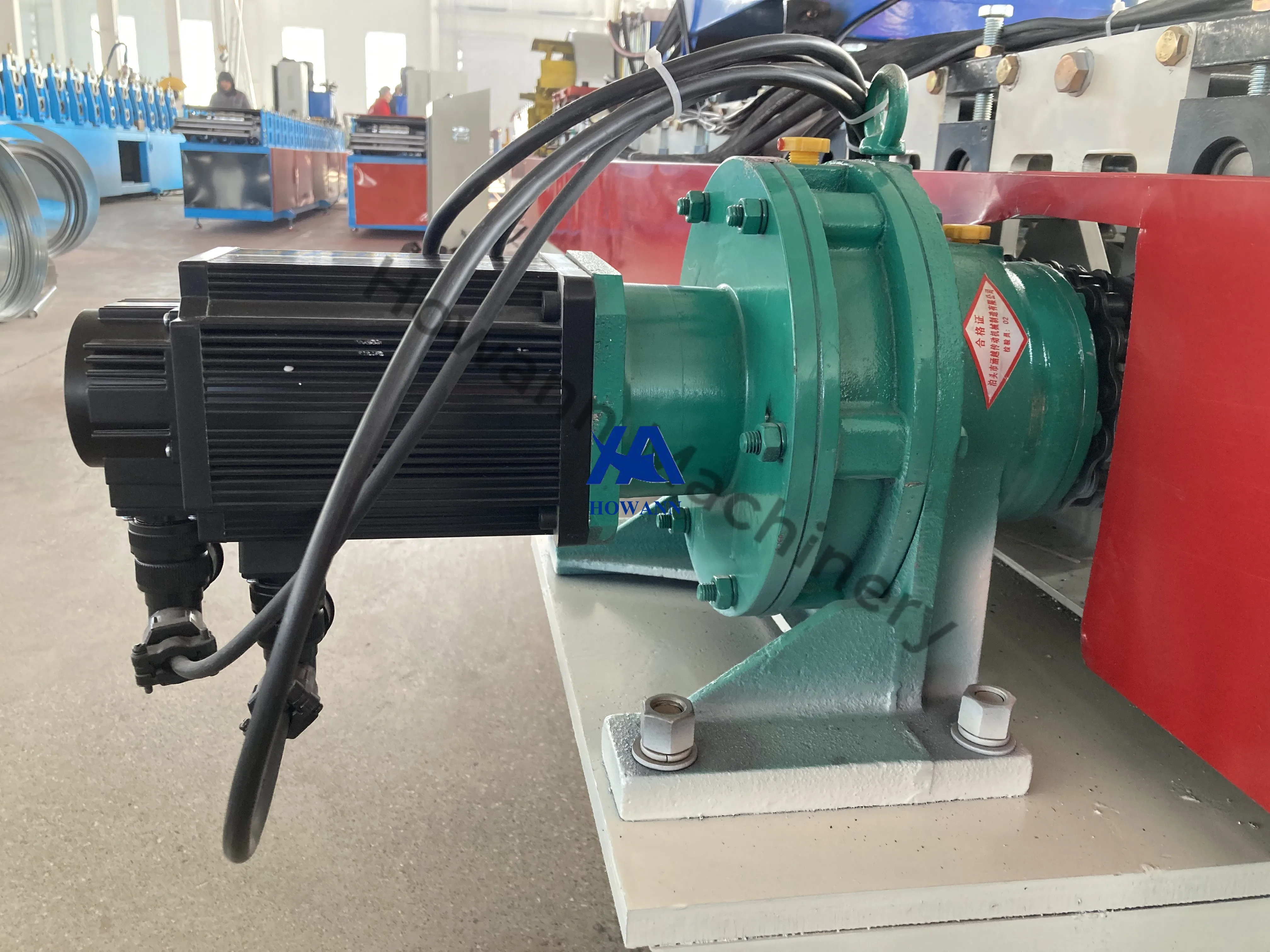

Details Images

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Zhengzhou Howann Machinery Co., Ltd. focuses on one-stop service solutions for Metal cold forming machinery. The factory covers an area of 9700 square meters and has 273 employees, including 29 senior engineers and 56 technical personnel. There are total 2 big workshops of Metal processing machinery .Main products: Purlin Forming Machines\gusset plate machine series\Roof/Wall Sheet Forming Machine\Highway Guardrail Roll Forming Machine\Shelf Rack Series Roll Forming Machine\Door and Window Series Roll Forming Machine\Container House Series Cold Roll Forming Machines\Uncoiler/Leveler/Slitter\Shearing/Bending/Rolling Machine\Metal Embossing Machine\Customized Roll Forming Roofing roll formers etc.

The company has its own professional R&D center and design team, responsible for equipment drawing and continuous innovation to break through technical difficulties, research and development of new equipment; independent finishing department and electronic department are responsible for equipment aluminum and steel structure hardware processing and ultrasonic electronic device development and power distribution; assembly department assembly line assembly equipment. Howann Machinery has always adhered to technological innovation as its leading force, and its R&D team has continuously overcome technical bottlenecks. The technical content of some of its main equipment is far away in the industry.

Customer Photos

Certifications

FAQ

Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. High quality is for long-term business cooperation.

Q2.What can you do if the machine is broken?Our machine's warranty period is 12months.if the broken parts can't repair,we can send the new parts to replace the broken parts,but you need to pay the express cost by yourself. if after the warranty period,we can through negotiation for solving the problems,and we supply the technical support for the whole life of the equipment.

Q3.Can you be responsible for transport?Yes,please tell us the destination port or address.we have rich experience in transport.

Q4.You are a trade company or factory?We are a Manufacturer.

Q5.Do you have overseas engineers?Yes,we not only provide overseas engineers but also provide technical training.

Q6.Do you provide customized?Sure,we can design the equipment according to the data of the structural section you provide.We are a professional sheet metal forming machine designer and manufacturer.
