Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Tile Making Machine > Full Automatic c Stud Steel Light Keel Roll Forming Machine
US$ 9350
1 - 2 Piece
US$ 8350
≥3 Piece
Key Specifications
Get Latest Price
Certification:
CE
Warranty:
2 years
Usage:
Other, construction use
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
60 days
Related Products
-
Advanced Technology Automatic Roof Batten Roll Forming Machine Omega Profile Core Motor Pump for Furring Channel MakingUS$ 9800 - 11250MOQ: 1 Piece -
Low Cost Channel C/Z Machine Fully Automatic Cold Steel Profile C/Z Purlin Roll Forming MachineryUS$ 10000 - 12000MOQ: 1 Piece
-
Advanced Technology Corner Bead Keel V Shape Angle Iron Light Keel Roll Forming Machine With PunchingUS$ 7350 - 8350MOQ: 1 Piece
-
Automatic Slotted Angle Making Machine L Shape Roll Forming MachineUS$ 7500 - 7900MOQ: 1 Piece
-
Upgraded Technology Steel Frame Purlin Machines CZ Changeable Purlin Roll Forming Machine for SaleUS$ 6500 - 8500MOQ: 1 Piece
Certification
CE
Warranty
2 years
Usage
Other, construction use
After-sales Service
2 years
Customized
Customized
Condition
New
Tile Type
Glazed Steel
Transmission Method
Electric
Transport Package
standard
Specification
as following
Trademark
HOWANN
Origin
Cangzhou,Hebei,China
Product Description

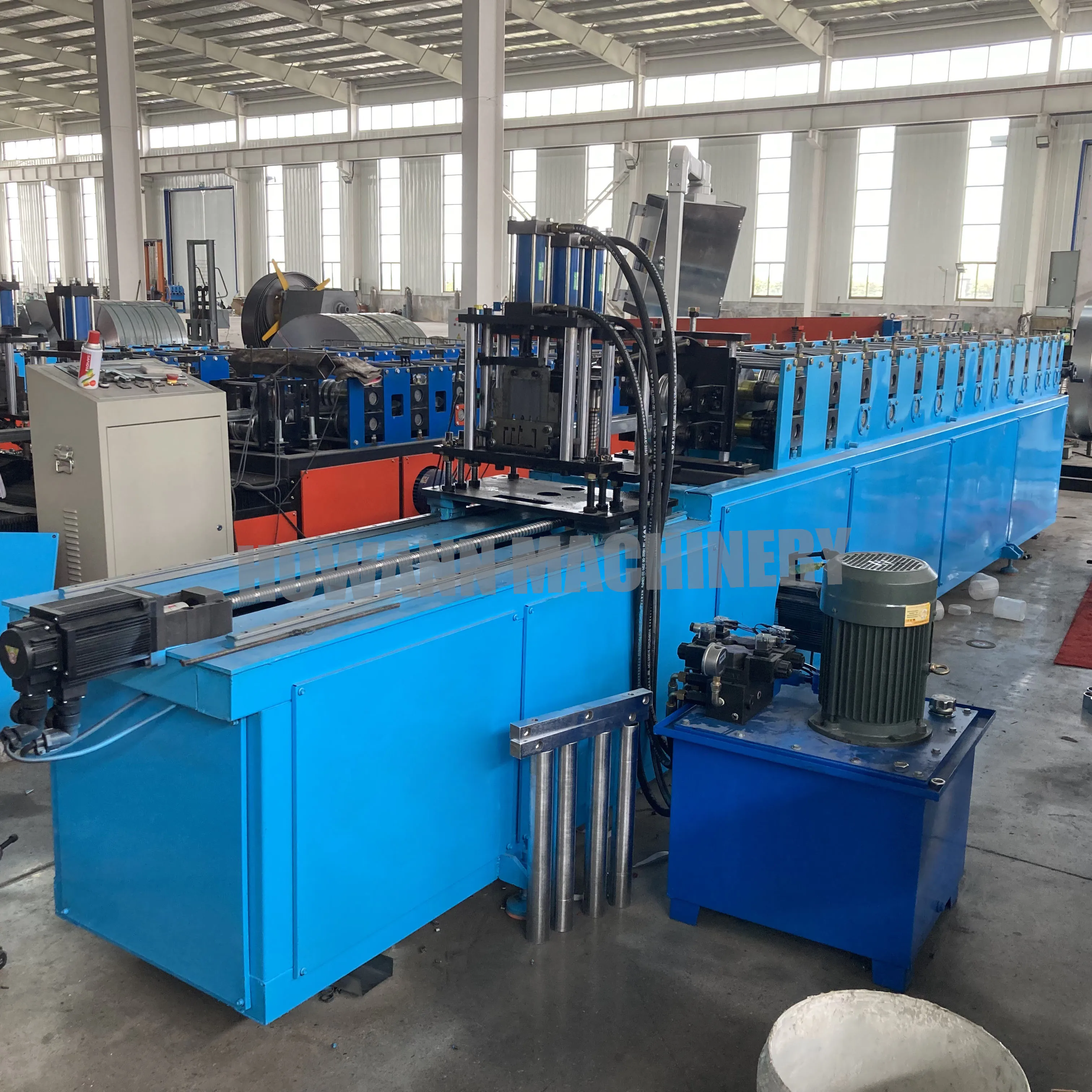

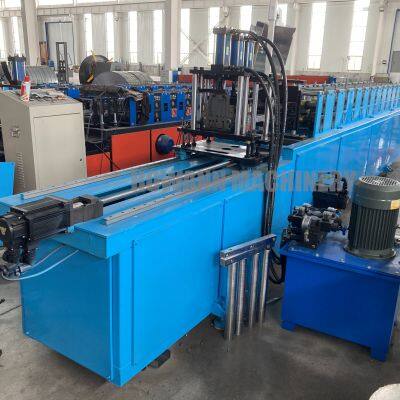

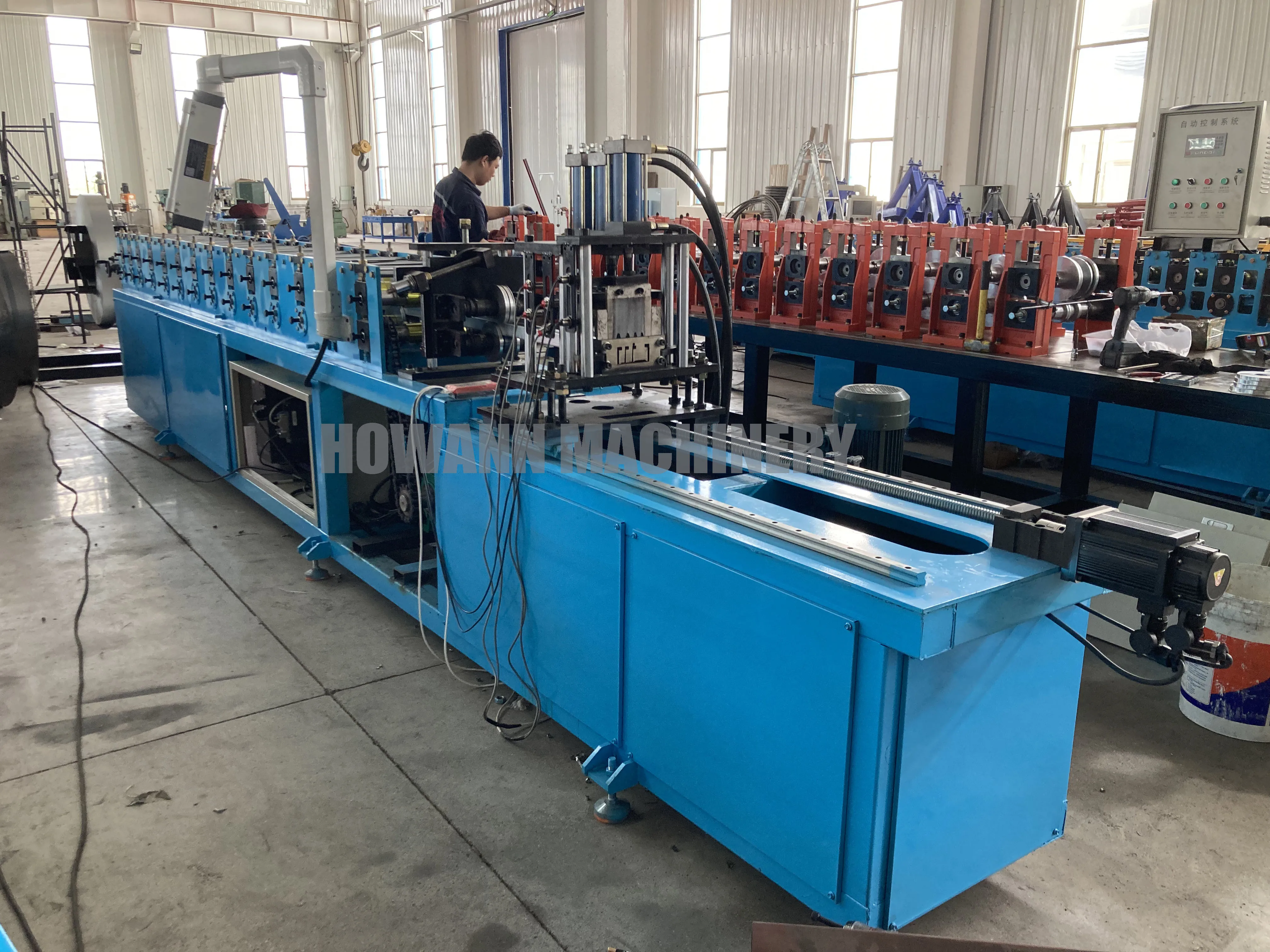

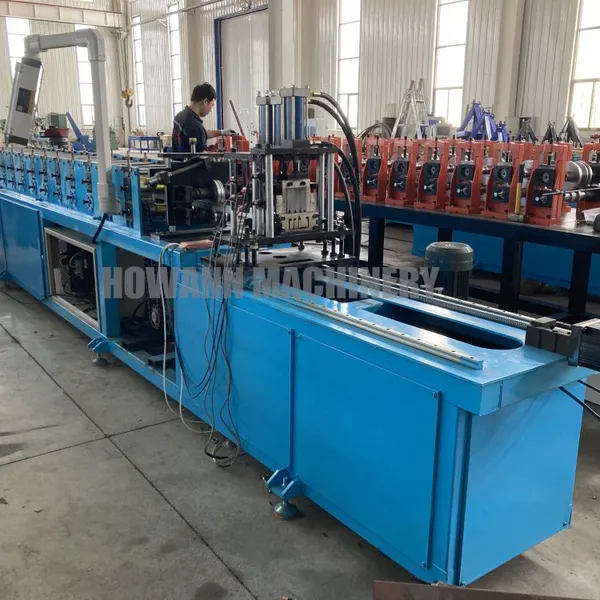

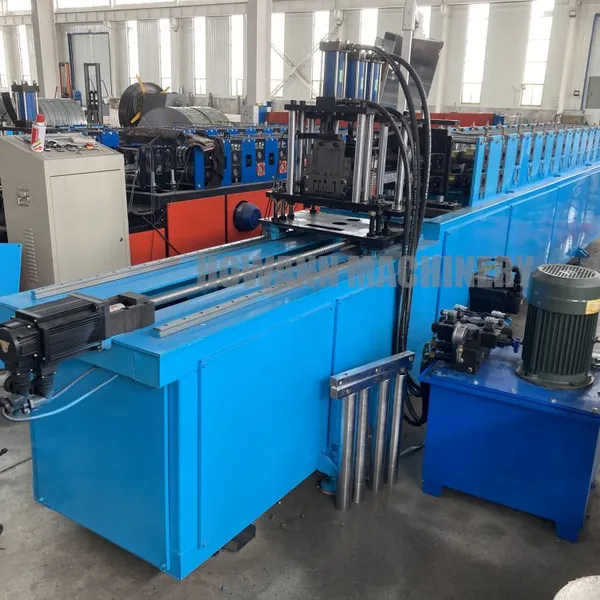

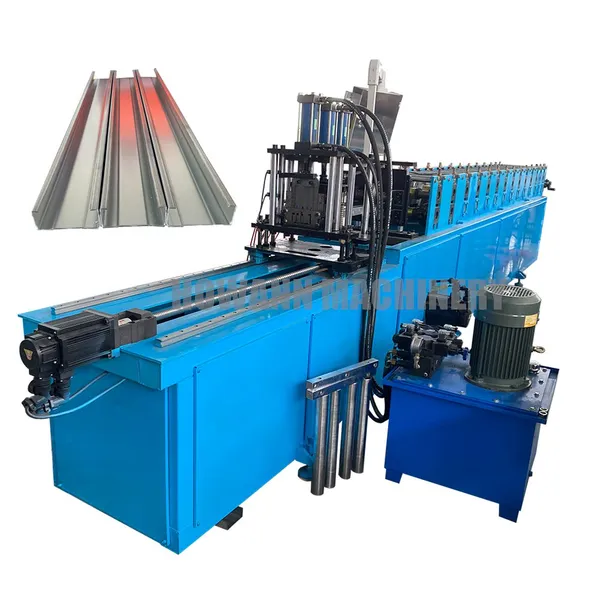

C Stud Roll Forming Machine
C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into light weight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery.It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel.
The following are the specifications of the two most common shapes we provide, and the specific shapes can be customized according to customer requirements (punching is optional).
Our Advantanges:
1.Produce different purlin size without changing rollers or spacers.2.No need changing cutter for different size.
3.Easy operation, low maintenance cost.
4.Infinite sizing(any size within machine range),help to save material.
5.Optional Punch hole at any position of purlin web side and flange side.
The Working Flow
Manual uncoiler---feeding device---rolling form---speed, length, pieces set by PLC---hydraulic mold post cutting---collection table

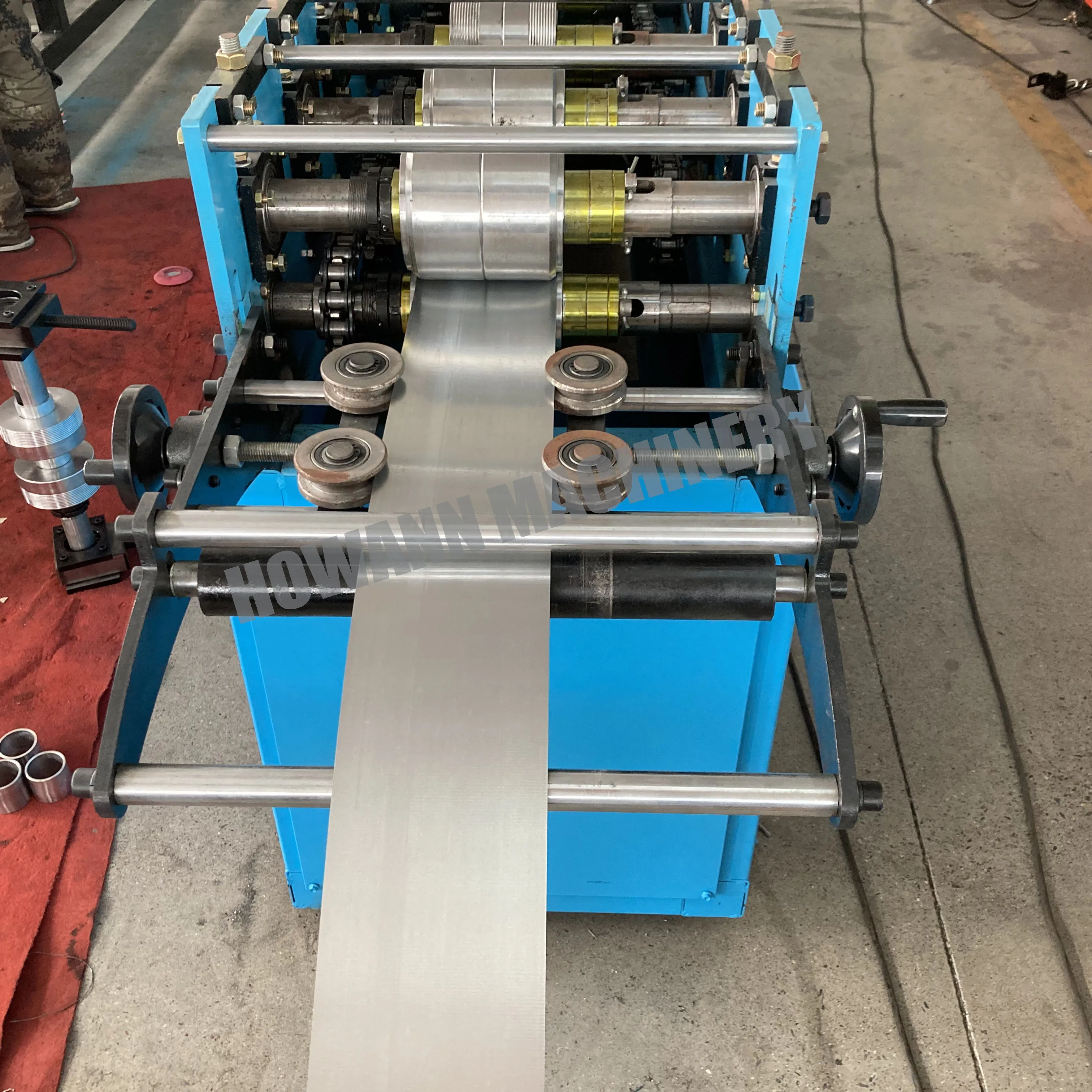

Feeding table
It is used to control the width and position of the steel sheet.
The sheet is guided into the machine with correct position, to make sure the panel is neat and parallel.
Suitable power: 380V, 50Hz, 3phase or according to your need.

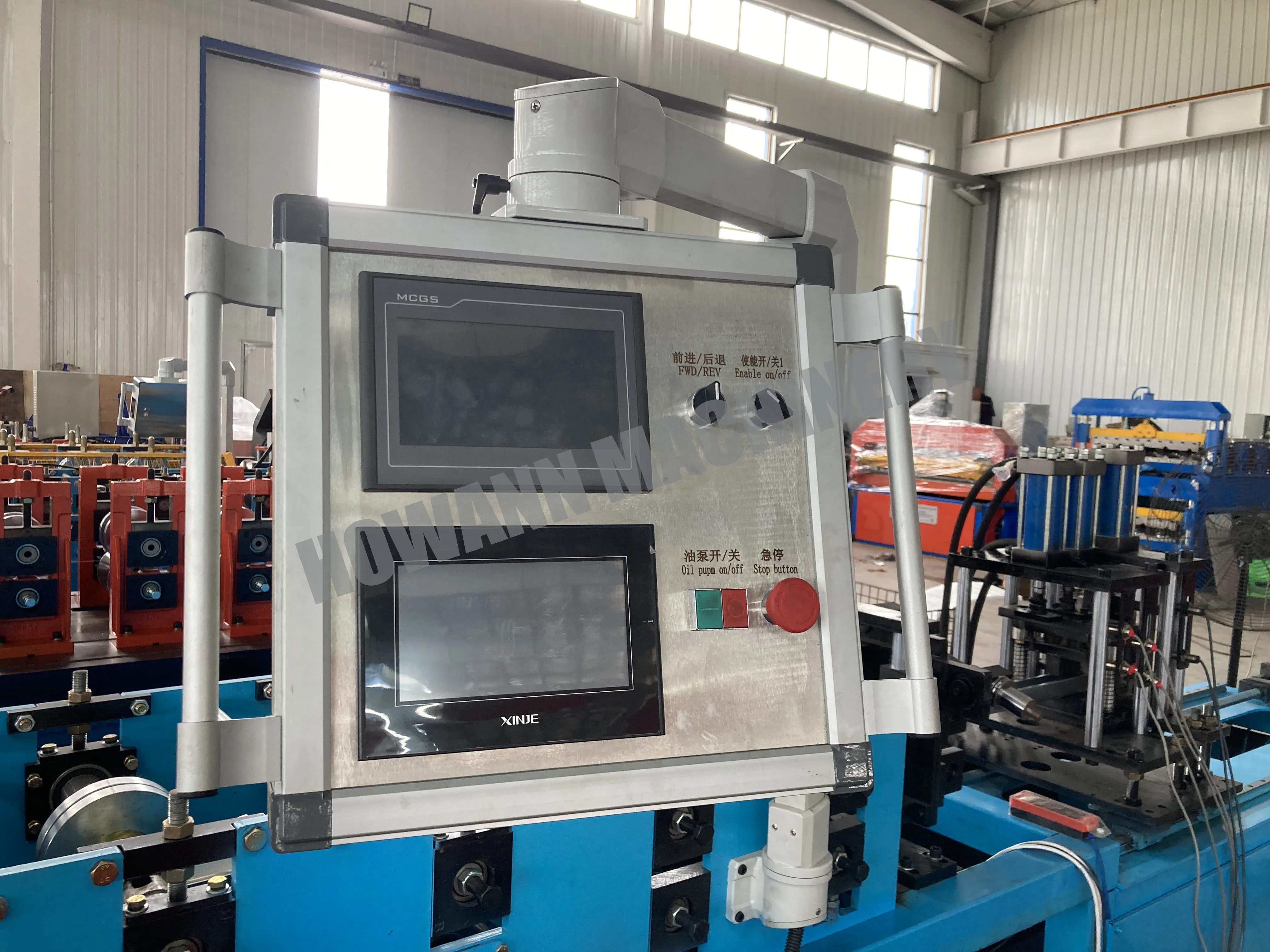

The whole process is automatically controlled by the computer.
In this way, you can ensure the accuracy and easy work.
In this way, you can ensure the accuracy and easy work.

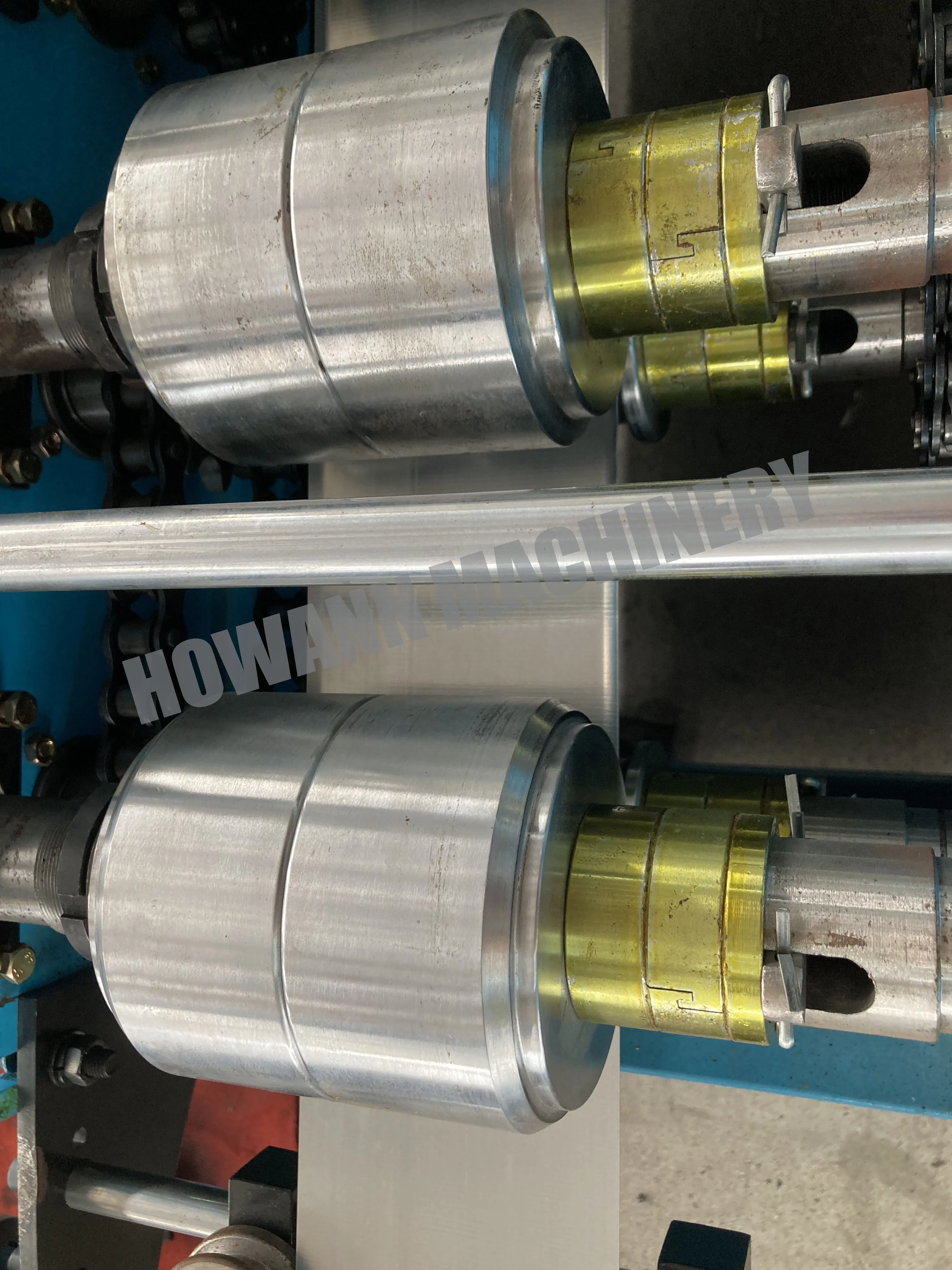

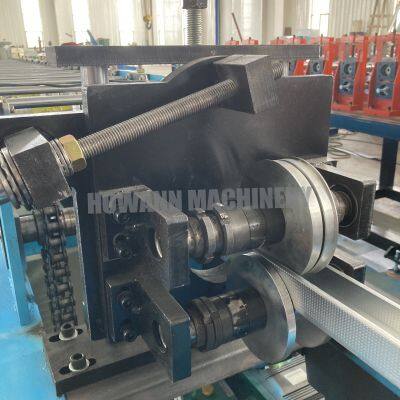

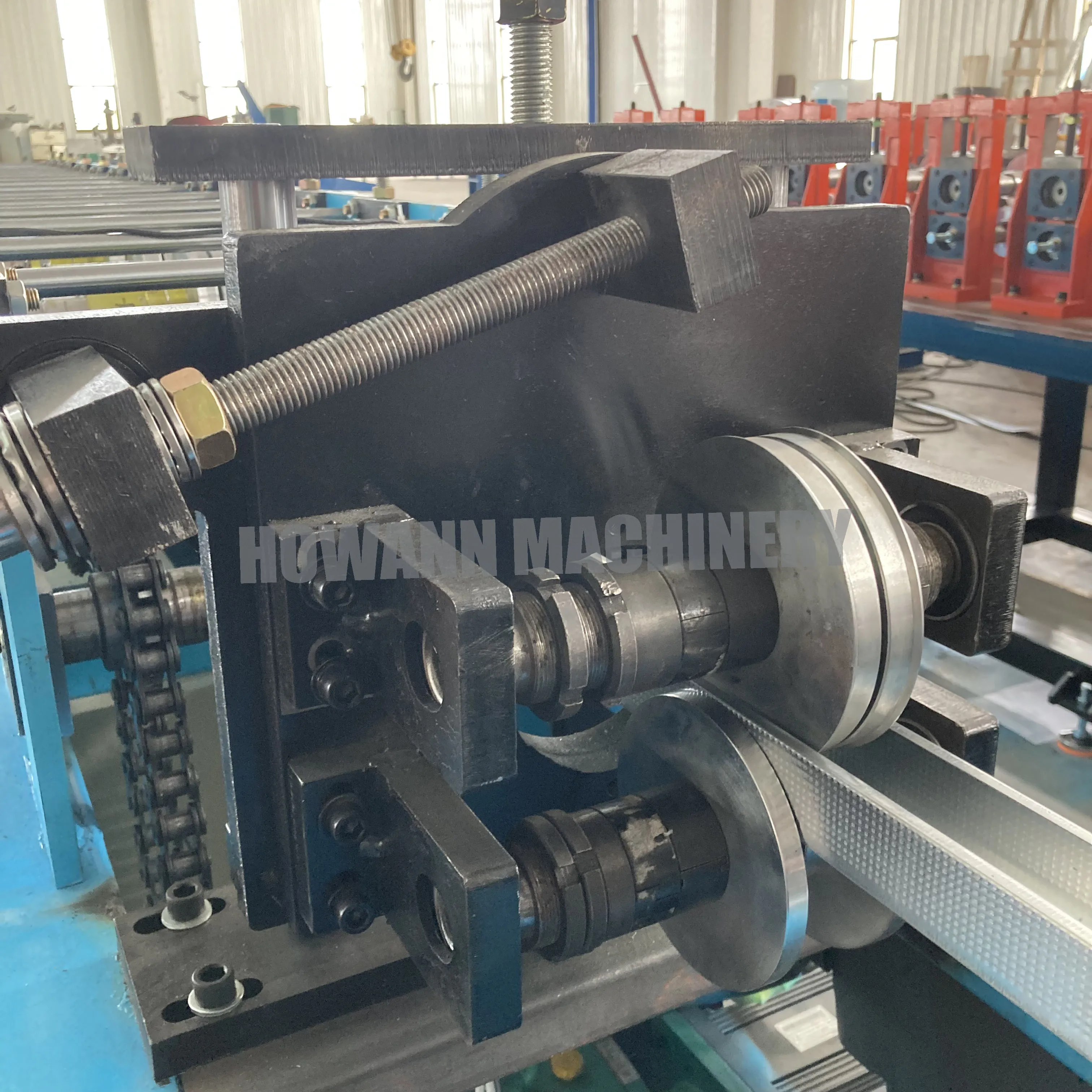

Material of the roller: High grade No.45 forged steel

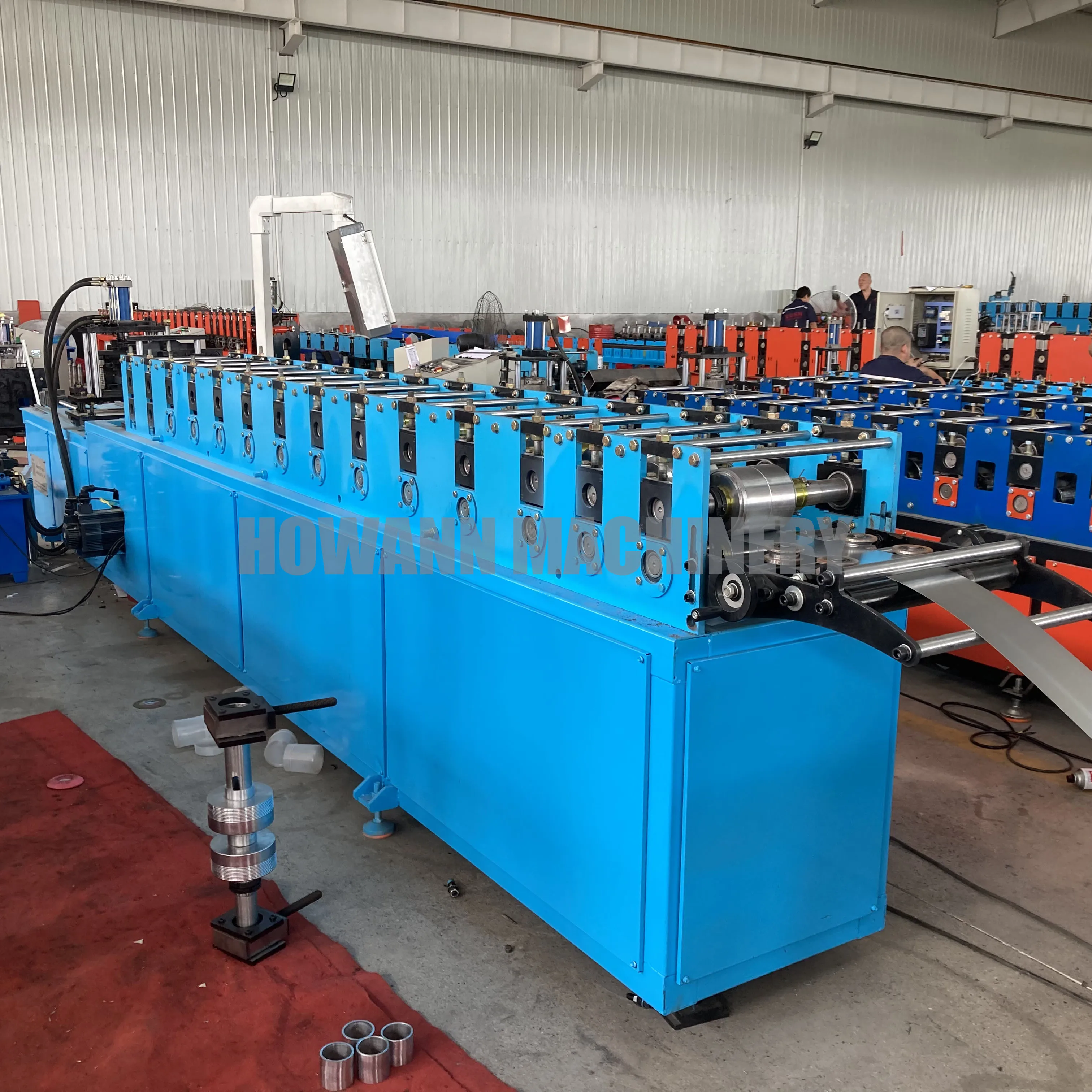

Roller station: 11-16 rows
Thickness of feeding material: 0.3-0.6mm

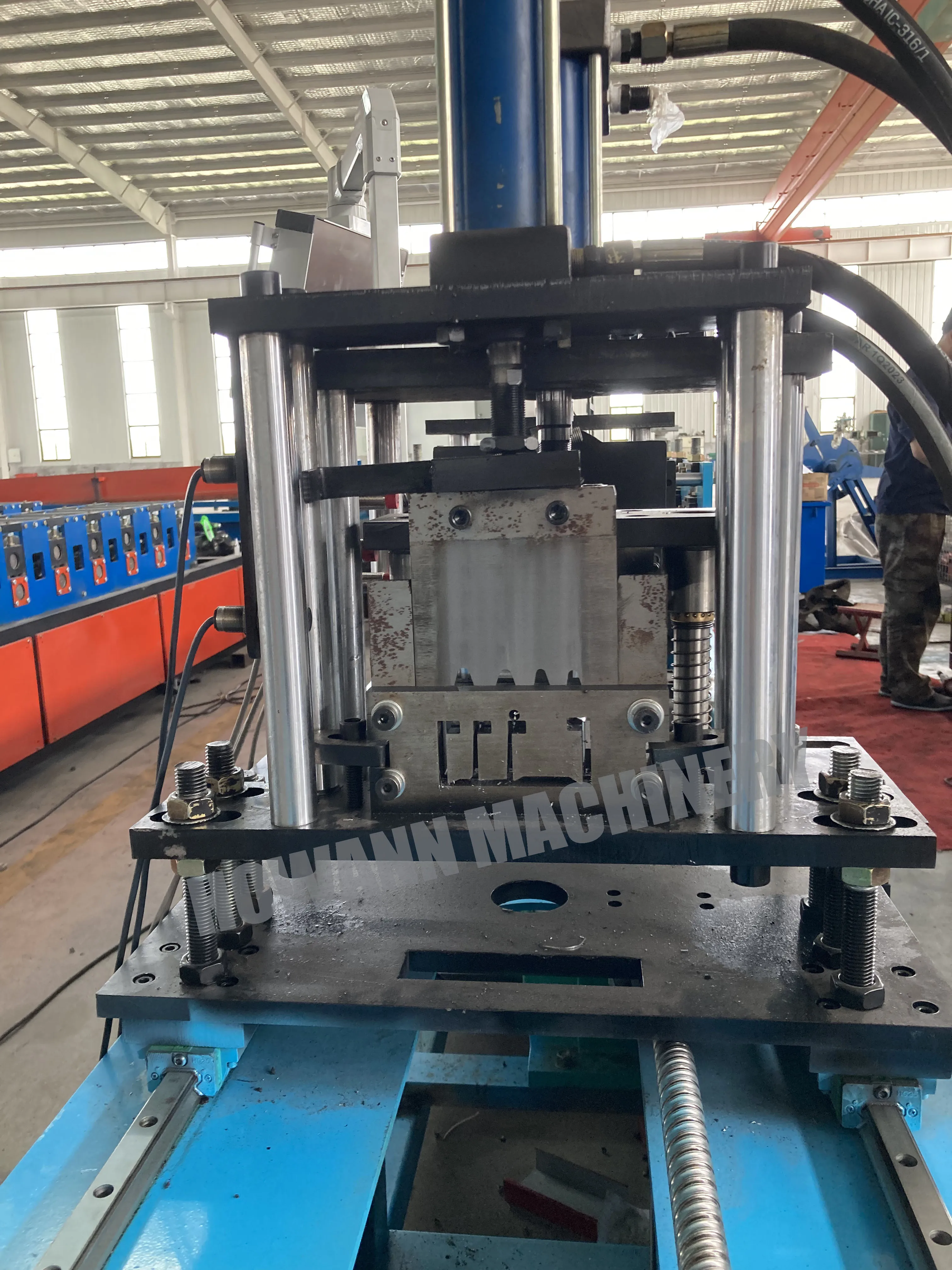

Material of blade: Cr12MOV, much better than normal Cr12 material.

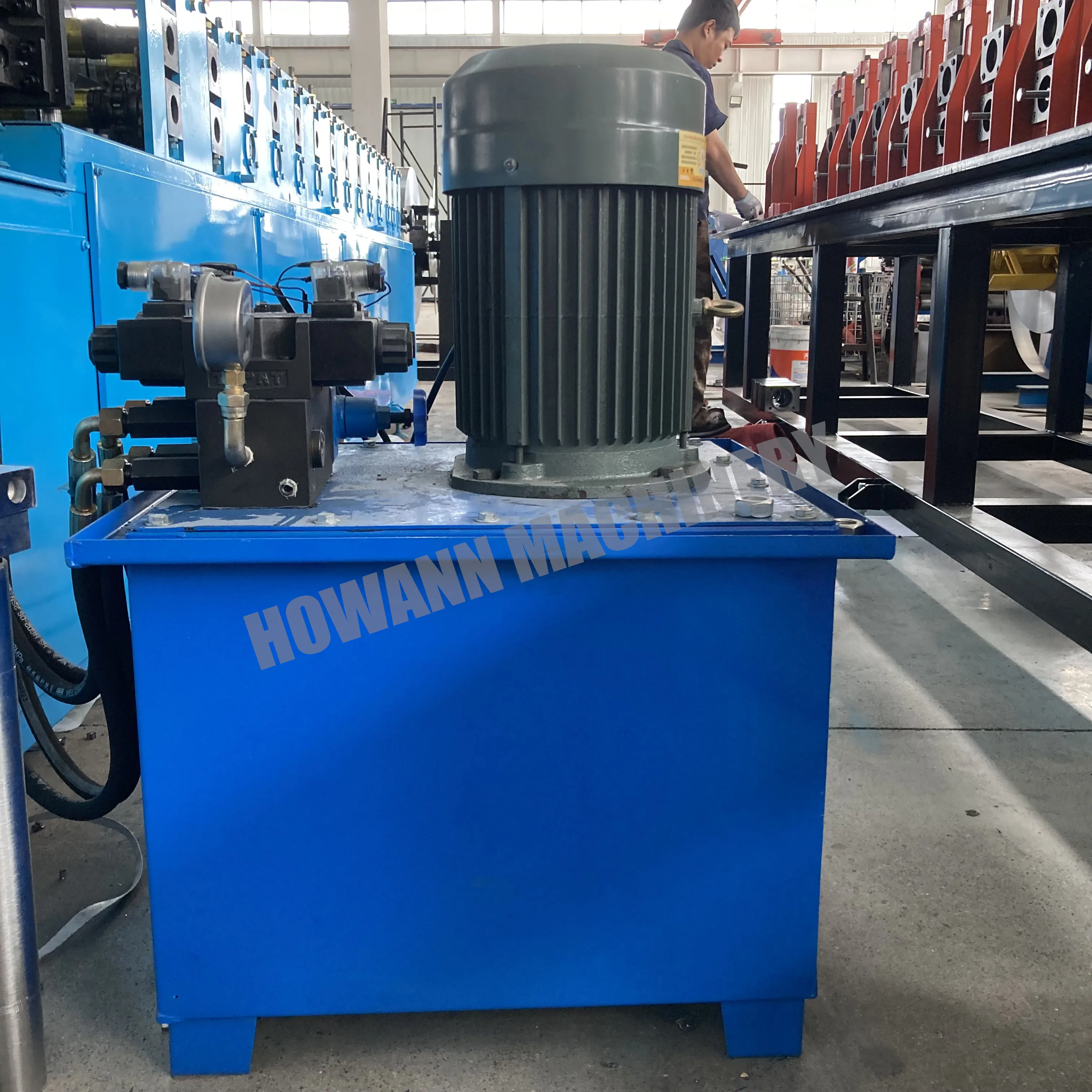

Hydraulic power: 3KW
Hydraulic power: 3KW

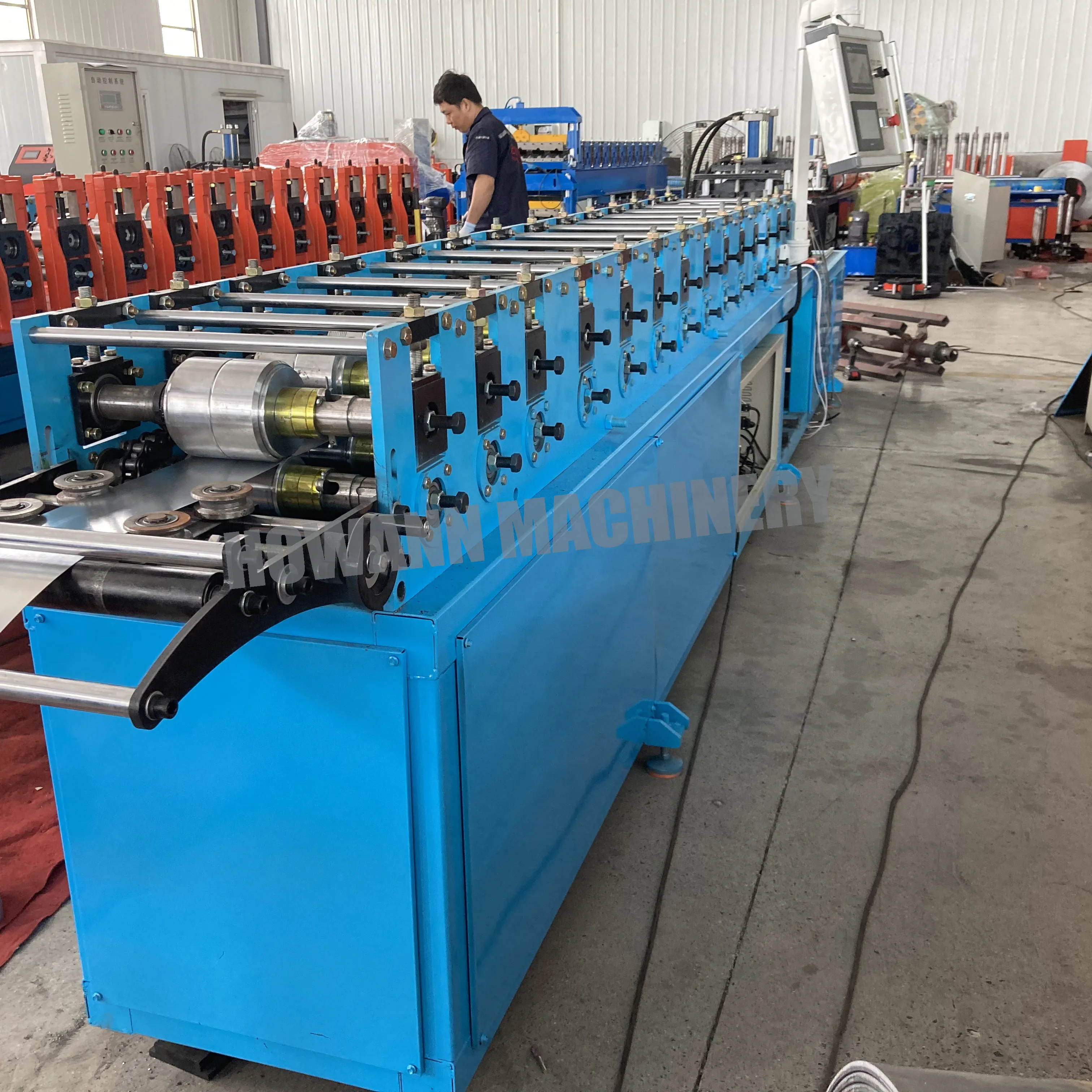

Main frame
Material: 350 H steelFeature: more stable, no shaking

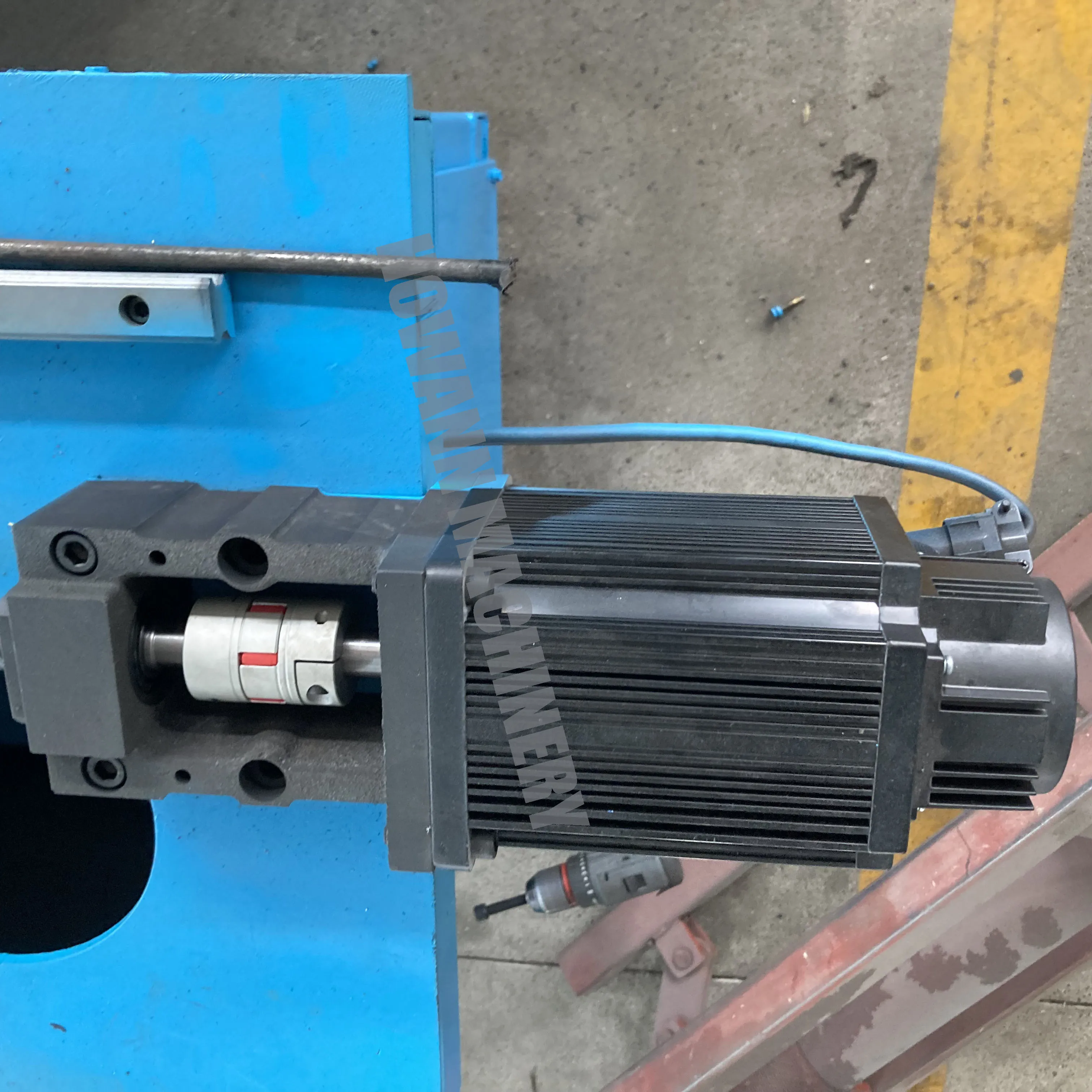

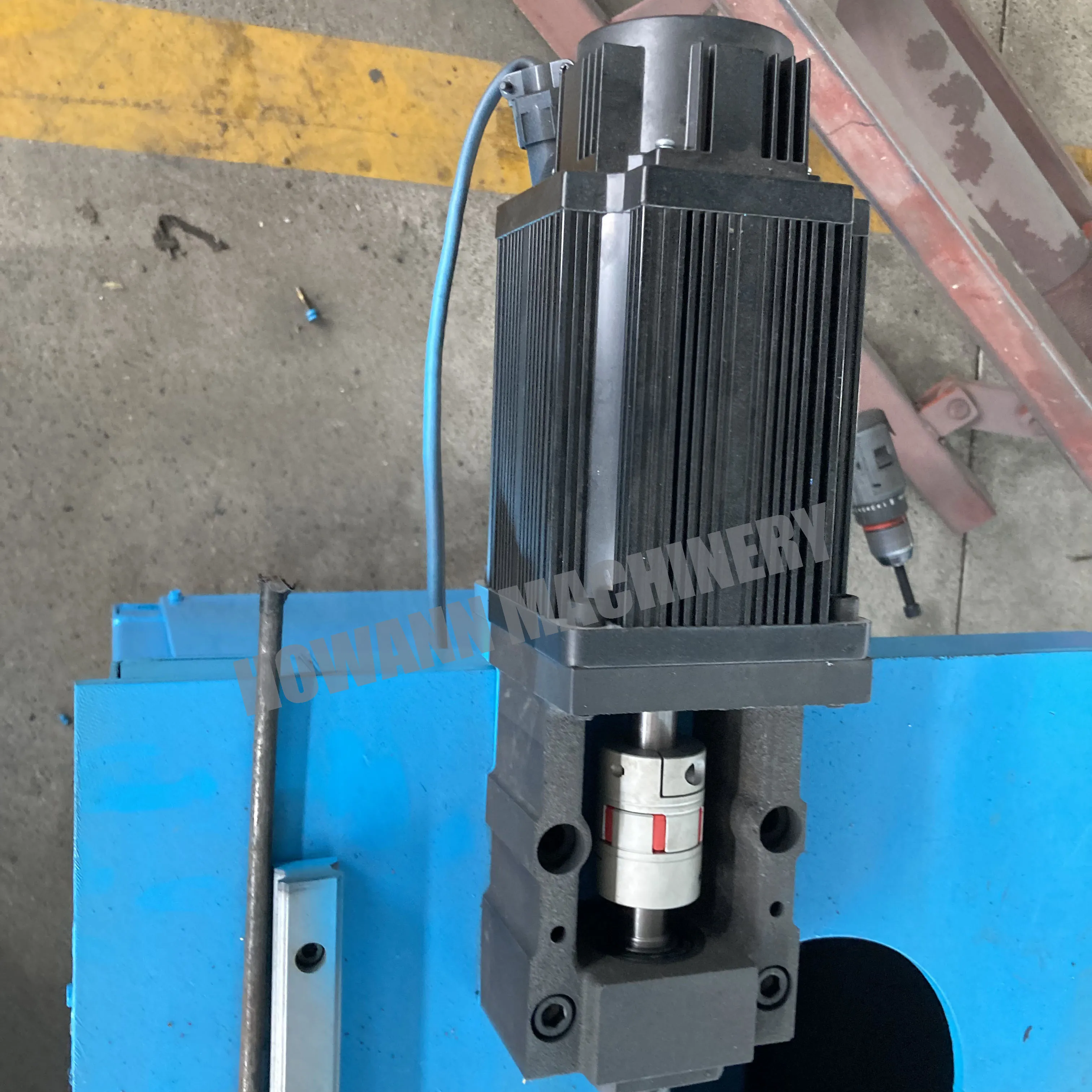

Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min.
More efficient and time-saving.
Details Images
Our Advantages
Company Profile
Zhengzhou Howann Machinery Co., Ltd. focuses on one-stop service solutions for Metal cold forming machinery. The factory covers an area of 9700 square meters and has 273 employees, including 29 senior engineers and 56 technical personnel. There are total 2 big workshops of Metal processing machinery .Main products: Purlin Forming Machines\gusset plate machine series\Roof/Wall Sheet Forming Machine\Highway Guardrail Roll Forming Machine\Shelf Rack Series Roll Forming Machine\Door and Window Series Roll Forming Machine\Container House Series Cold Roll Forming Machines\Uncoiler/Leveler/Slitter\Shearing/Bending/Rolling Machine\Metal Embossing Machine\Customized Roll Forming Roofing roll formers etc. The company has its own professional R&D center and design team, responsible for equipment drawing and continuous innovation to break through technical difficulties, research and development of new equipment; independent finishing department and electronic department are responsible for equipment aluminum and steel structure hardware processing and ultrasonic electronic device development and power distribution; assembly department assembly line assembly equipment. Howann Machinery has always adhered to technological innovation as its leading force, and its R&D team has continuously overcome technical bottlenecks. The technical content of some of its main equipment is far away in the industry.
Customer Photos
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 15 to 30 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and otherparts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
