TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10 Power Supply Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10 Power Supply Module thumbnail-1

TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10 Power Supply Module thumbnail-2

TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10 Power Supply Module photo-1

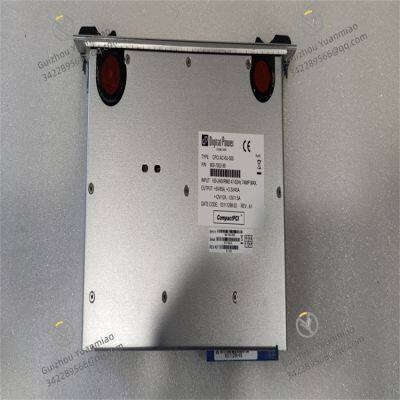

TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10 Power Supply Module photo-2

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Supply voltage 100 - 240V AC

Operating temperature -20°C to +70°C

I. Overview

TeIKOOR PSMU - 350 - 3 CPCIAC - 6U - 500 900 - 7002 - 10 is a high-performance power module. It plays a key role in industrial automation, communication base stations, data centers, and various fields with strict requirements for power supply stability and reliability. With advanced design concepts and manufacturing processes, this module can accurately provide stable and efficient power support for various devices in the system, ensuring that the entire system can operate continuously and stably under different working conditions. It is the core power unit that guarantees the normal operation of complex electronic systems.

II. Technical Parameters

Input Specifications: It supports wide voltage input, adaptable to AC voltage of 100 - 240V AC, with a frequency range of 47 - 63Hz. It is compatible with the mains standards of most regions around the world, without the need for additional voltage conversion equipment, which greatly improves the versatility of the device. At the same time, it is equipped with an active Power Factor Correction (PFC) function, with a power factor of up to 0.95 or higher, effectively reducing harmonic pollution to the power grid and improving the efficiency of electrical energy utilization.

Output Characteristics: The rated power is 350W, and it can provide multiple stable output voltages, including 3.3V, 5V, and 12V, to meet the power supply needs of different devices. The specific output current capabilities are 50A for 3.3V, 50A for 5V, and 25A for 12V. The output voltage accuracy is extremely high, and under load changes, the voltage fluctuation can be controlled within a very small range, ensuring a stable and pure power supply for the backend equipment.

Physical Characteristics: It adopts a standard 6U CPCI architecture design, with a compact size that complies with industry specifications. It is easy to install in various standard CPCI chassis, saving space while ensuring good compatibility. The module shell has good heat dissipation performance, which can effectively dissipate the heat generated inside, ensuring the stability of the module during long-term high-load operation.

Environmental Adaptability: The operating temperature range is -20℃ to 70℃, and it can work stably in both cold outdoor environments and high-temperature industrial production workshops. The relative humidity adaptation range is 5% - 95% (non-condensing), with excellent moisture resistance, and can operate normally in humid environments. It has strong shock resistance, can withstand a certain degree of mechanical vibration and impact, and ensures reliable power supply in complex physical environments.
Electrical Isolation: There is an electrical isolation of up to 2500Vrms between the input and output, which effectively prevents current backflow caused by electrical faults, protects the safety of the module itself and backend equipment, and improves the anti-interference ability of the system in complex electromagnetic environments.

III. Functional Features

Efficient and Stable Power Supply: It uses advanced switching power supply technology, with a conversion efficiency of up to 90%. While providing stable power output, it effectively reduces energy loss and saves operating costs. The voltage stabilization circuit inside the module can monitor the output voltage in real-time. When the voltage fluctuates, it adjusts quickly to ensure that the output voltage is always stable at the set value, providing a reliable power supply for equipment with extremely high requirements for voltage stability.

Multiple Protection Mechanisms: It has built-in complete overvoltage protection, overcurrent protection, and short-circuit protection circuits. When the output voltage exceeds the set safety threshold, the overvoltage protection starts immediately to cut off the output, preventing damage to the equipment due to overvoltage; once excessive output current is detected, the overcurrent protection will act automatically to limit the current and protect the module and load; in case of a short-circuit fault, the short-circuit protection function will respond quickly to avoid irreversible damage to the equipment caused by short-circuit current, comprehensively ensuring the safe operation of the system.

Intelligent Monitoring Function: It is equipped with an easy-to-use monitoring interface, which can monitor the working status of the module in real-time, such as output voltage, current, temperature, and other parameters. Through these real-time data, users can timely understand the operation of the module, detect potential problems in advance, and carry out corresponding maintenance and adjustments, improving the maintainability and reliability of the system.
Good Compatibility: This power module is strictly designed in accordance with the CPCI standard, and can seamlessly connect with most CPCI-compliant devices on the market. Whether it is the construction of a new system or the upgrading of an old system, it can be easily adapted, greatly reducing the difficulty and cost of system integration.

IV. Operation Guide

Installation Steps
Before installation, ensure that all relevant equipment is powered off to avoid the risk of electric shock during operation.
Carefully check whether the appearance of the module is damaged or deformed. If there is any abnormality, do not install it and contact the supplier for replacement in time.
Align the module smoothly with the corresponding slot on the CPCI chassis, push it in slowly and evenly along the guide rail until the module is completely inserted into the slot and locked in place, ensuring a good electrical connection between the module and the slot. During insertion, avoid excessive force to prevent damage to the module interface or chassis slot.
Use the matching screws to fix the module on the chassis to ensure that the module will not loosen due to vibration during the operation of the equipment, which may affect the power supply stability.
After installation, check the installation of the module again. Only after confirmation that there is no error can the equipment power be turned on.

Parameter Setting and Monitoring
Connect the module to the monitoring device (such as a host computer with monitoring function) and start the corresponding monitoring software.
In the monitoring software interface, set parameters such as the output voltage and current limit of the module according to actual application needs. During the setting process, please strictly operate in accordance with the technical specifications of the module and actual load requirements to avoid equipment failure caused by improper settings.
After setting, save the parameters and verify the settings to ensure that the parameters have been correctly written into the module. You can send some simple test commands through the software to observe whether the module responds normally.
During the operation of the module, pay real-time attention to the working status parameters of the module through the monitoring software. If abnormalities are found, such as excessive voltage fluctuation, current overload, excessive temperature, etc., corresponding measures should be taken immediately, such as checking whether the load is normal, whether ventilation and heat dissipation are good, etc. If necessary, the equipment operation can be suspended for fault detection and repair.

Product Tags: PSMU-350-3 , CPCIAC-6U-500 , 900-7002-10
