High Quality Automatic Galvanized Steel Metal Floor Deck Roll Forming Machine PLC Control Used Motor Engine Tile Purlin

High Quality Automatic Galvanized Steel Metal Floor Deck Roll Forming Machine PLC Control Used Motor Engine Tile Purlin photo-1
High Quality Automatic Galvanized Steel Metal Floor Deck Roll Forming Machine PLC Control Used Motor Engine Tile Purlin photo-2
High Quality Automatic Galvanized Steel Metal Floor Deck Roll Forming Machine PLC Control Used Motor Engine Tile Purlin photo-3
High Quality Automatic Galvanized Steel Metal Floor Deck Roll Forming Machine PLC Control Used Motor Engine Tile Purlin photo-4
High Quality Automatic Galvanized Steel Metal Floor Deck Roll Forming Machine PLC Control Used Motor Engine Tile Purlin photo-5
US$ 12000 1 Piece
US$ 11300 2 Piece
US$ 11000 ≥3 Piece
Key Specifications
Get Latest Price
Certification:
CE
Warranty:
2 years
Usage:
Other, Floor deck
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
60 days
Certification CE
Warranty 2 years
Usage Other, Floor deck
After-sales Service 2 years
Customized Customized
Condition New
Tile Type Glazed Steel
Transmission Method Electric
Transport Package standard
Specification as following
Trademark HOWANN
Origin Cangzhou,Hebei,China
Specification
1
Suitable to process
Color steel plate
2
Width of the plate
914mm/1000mm/1200mm/1220mm/1250mm
3
Thickness of the plate
0.7-1.2mm
4
De-coiler
Manual one, can load 5 tons raw material
5
Rollers for forming
18 rows
6
Diameter of the roller
90mm
7
Rolling material
Carbon Steel 45#
8
Main motor power
11 kw
9
Material of the cutting blade
Cr12 mov
10
Hydraulic cutting power
5.5 kw
11
Processing precision
Within 1.00mm
12
Control system
Delta PLC control
13
Side panel of machine
18mm
14
Main structure of the machine
350 H steel
15
Weight
About 6.8 T
16
Dimensions
10 *1.6*1.6m
17
Voltage
380V 50Hz 3phases(changeable as needs)
18
Certificate
CE/ISO
19
Custom
According to customer's requirements
Product Description

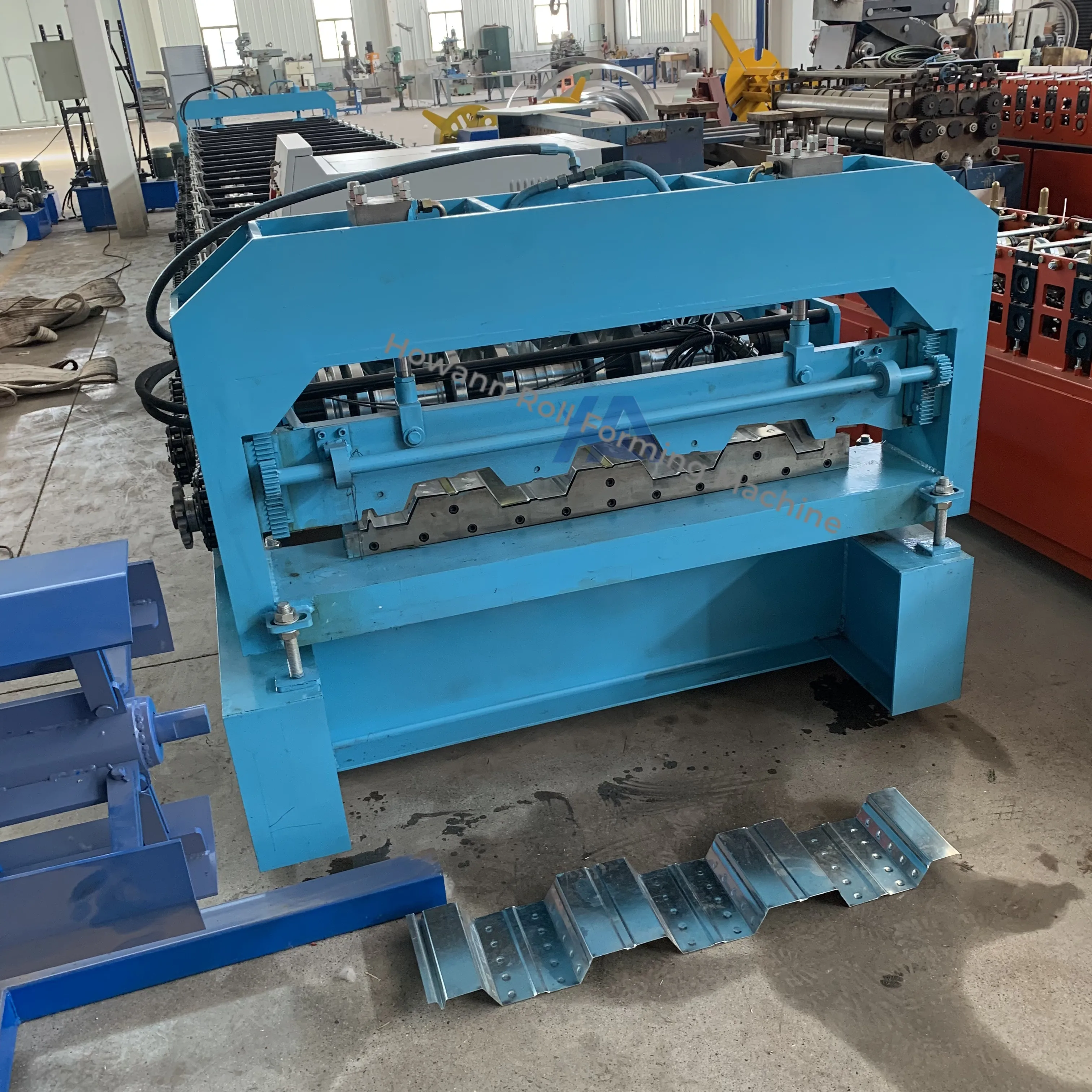

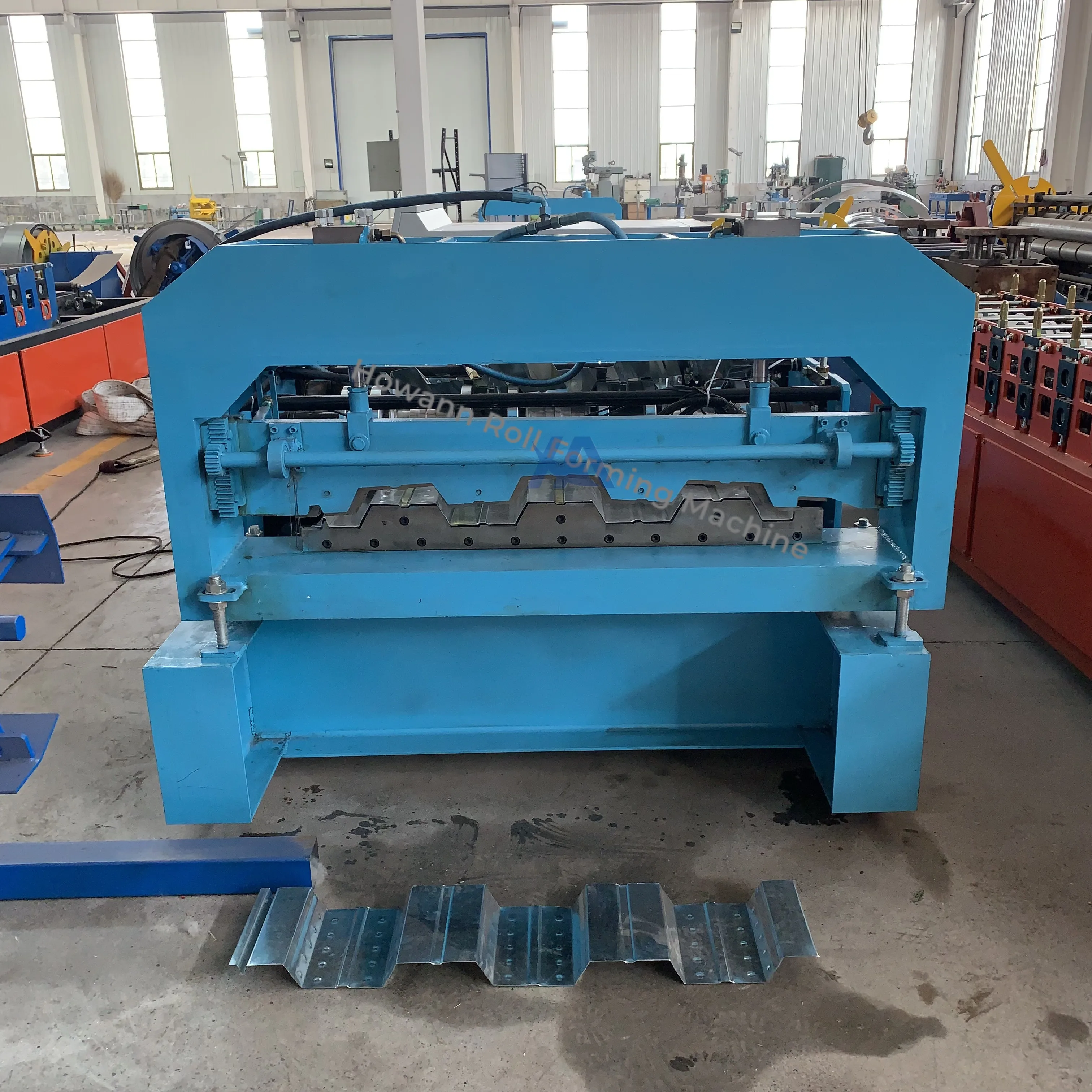

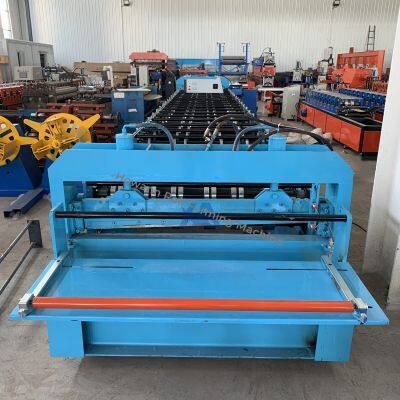

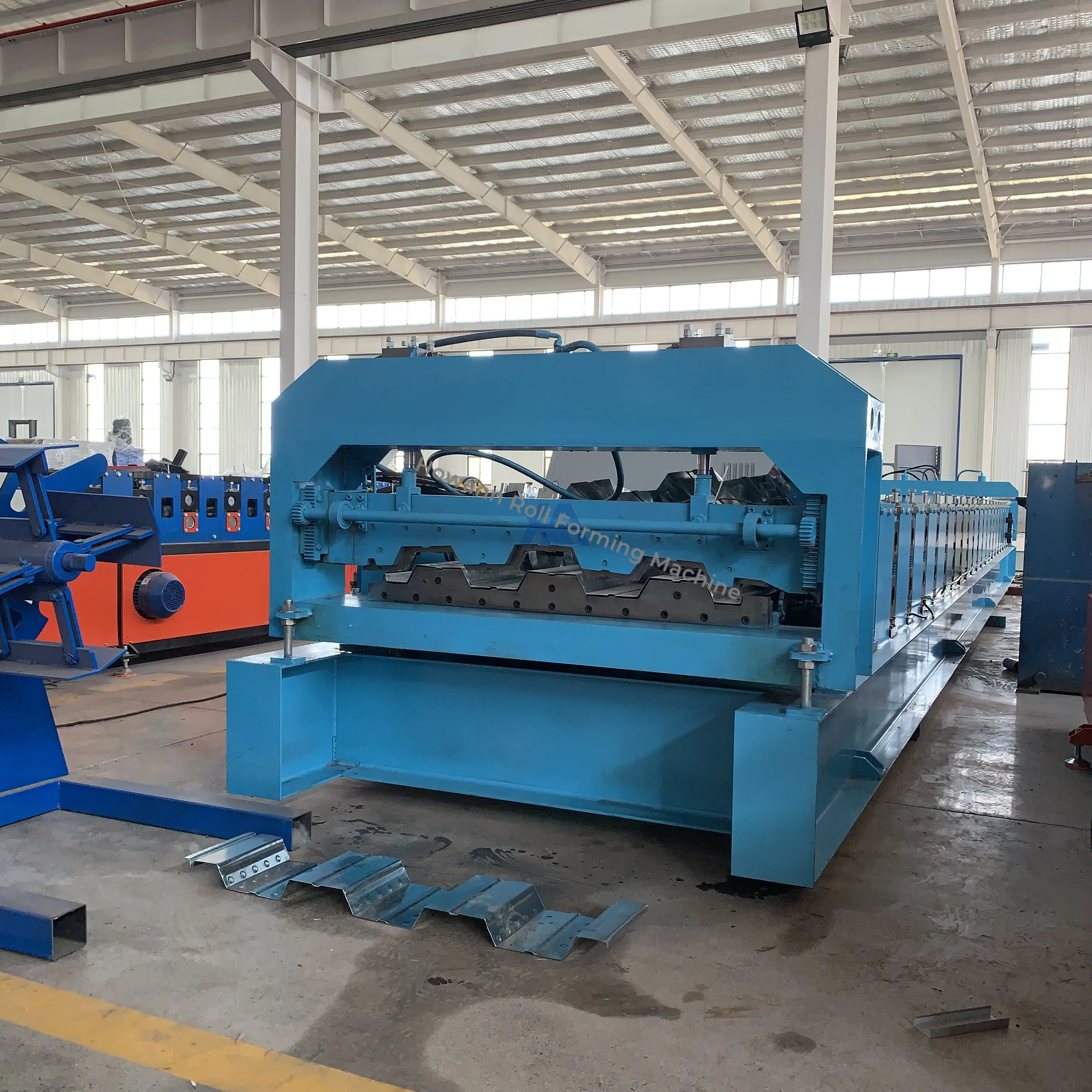

Machine Pictures:
Common Machine Parts:


Consist of/Whole production line

Manual uncoiler---feeding device---rolling form---speed, length, pieces set by PLC---hydraulic mold post cutting---collection
table
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
                                               Customer's pictures
Talking with our customers
Certifications
FAQ

Q: Are you a trading company or a factory?

A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style panel profile?

A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.Q: How long does it take to manufacture the machine?A: In general, the machine can be completed in 15 to 30 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?

A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and otherparts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?

A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.

Q: What is your strength compared to other suppliers?

A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.

Q: Can we become your agent abroad?

A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.



Product Tags: floor Deck Roll Forming Machine , tile Forming Machine , automatic Floor Deck Machine
