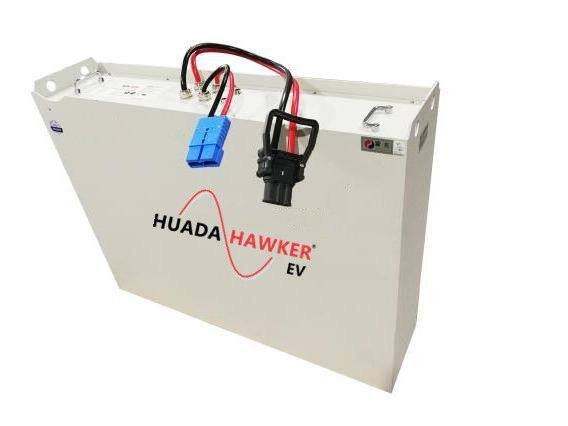

　　Introduction

　　Hawker HuaDa EV series of power battery,is the international advanced level of lithium iron phosphate(LiFePO4)power battery system.With high energy density,long cycle life,excellent charge and discharge performance,good temperature performance,is a new generation of high security and high reliability of the green power supply.

　　This series of batteries is the use of the latest development of the battery management system(BMS),specifically for mobile mechanical equipment,online charging and wireless charging and design and production of power batteries,with advanced battery self-management,communication,alarm and short-term fast charge Complete function.

　　Product Features

　　●Excellent charge and discharge overvoltage and undervoltage protection

　　●provide analog output AO,SOC analog output 0~5V,user-friendly power monitoring

　　Note:SOC can only be used as a reference,can not be used as a decision.

　　●Provides a highly efficient passive equalization system

　　●Charge/discharge are all with short circuit insurance

　　●Panel LED power,system status display

　　●Rich interface,through the digital IO and 485 interface to achieve information exchange

　　●professional industrial design and material selection,sustainable work in the harsh industrial environment

　　●support high-power charge and discharge,to meet the needs of a variety of different industrial conditions

　　●wide temperature working environment conditions,-20 degrees-60 degrees

　　●small size

　　Dimensions specifications

　　Types

　　Battery size

　　Long*wide*high（mm）

　　Charge continuous current

　　Discharge continuous current

　　EV24-40

　　315*237*165mm

　　80A

　　20A

　　EV24-60

　　315*240*215mm

　　320*237*188mm

　　460*220*150mm

　　120A

　　30A

　　EV24-80

　　355*330*215mm

　　160A

　　40A

　　EV24-100

　　355*330*215mm

　　200A

　　50A

　　EV24-120

　　400*275*245mm

　　180A

　　60A

　　EV24-200

　　550*210*425mm

　　200A

　　100A

　　EV48-30

　　345*238*200mm

　　60A

　　30A

　　EV48-60

　　590*240*240mm

　　120A

　　30A

　　EV48-80

　　585*345*230mm

　　160A

　　40A

　　EV48-100

　　585*345*230mm

　　200A

　　50A

　　EV48-160

　　605*435*255mm

　　160A

　　80A

　　EV48-200

　　615*650*250mm

　　160A

　　100A

　　EV48-250

　　605*290*480mm

　　200A

　　125A

　　Performance specifications

　　project

　　Features

　　Overvoltage protection

　　3.7V(single string)

　　Undervoltage protection

　　2.8V(single string)

　　Charging parameters

　　Maximum 2C lasts for 10 minutes,1C continues

　　Discharge parameters

　　Up to 1C continuous

　　Charge and discharge port form

　　Charge and discharge

　　fuse

　　Have

　　RS-485 communication

　　Have

　　Analog output AO

　　Have

　　Configurable DO output

　　Have

　　Power LED display

　　Have

　　Master switch

　　Have

　　Operating temperature

　　-20℃~60℃

　　Storage temperature

　　-20℃~70℃

　　Working humidity

　　Relative humidity of 10%to 80%,no condensation

　　cooling system

　　Passive natural cooling

　　Charger requirements

　　Lithium iron phosphate battery charger

　　Battery shell color

　　Toyota White(customizable)
