HAWKER EV24-40 LiFePO4 BATTERY 24V40Ah 1.0 2.0 AGV Safe HUADA HAWKER
Introduction
Hawker HuaDa EV series of power battery,is the international advanced level of lithium iron phosphate(LiFePO4)power battery system.With high energy density,long cycle life,excellent charge and discharge performance,good temperature performance,is a new generation of high security and high reliability of the green power supply.
This series of batteries is the use of the latest development of the battery management system(BMS),specifically for mobile mechanical equipment,online charging and wireless charging and design and production of power batteries,with advanced battery self-management,communication,alarm and short-term fast charge Complete function.
Product Features
●Excellent charge and discharge overvoltage and undervoltage protection
●provide analog output AO,SOC analog output 0~5V,user-friendly power monitoring
Note:SOC can only be used as a reference,can not be used as a decision.
●Provides a highly efficient passive equalization system
●Charge/discharge are all with short circuit insurance
●Panel LED power,system status display
●Rich interface,through the digital IO and 485 interface to achieve information exchange
●professional industrial design and material selection,sustainable work in the harsh industrial environment
●support high-power charge and discharge,to meet the needs of a variety of different industrial conditions
●wide temperature working environment conditions,-20 degrees-60 degrees
●small size
Dimensions specifications
Types
Battery size
Long*wide*high（mm）
Charge continuous current
Discharge continuous current
EV24-40
315*237*165mm
80A
20A
EV24-60
315*240*215mm
320*237*188mm
460*220*150mm
120A
30A
EV24-80
355*330*215mm
160A
40A
EV24-100
355*330*215mm
200A
50A
EV24-120
400*275*245mm
180A
60A
EV24-200
550*210*425mm
200A
100A
EV48-30
345*238*200mm
60A
30A
EV48-60
590*240*240mm
120A
30A
EV48-80
585*345*230mm
160A
40A
EV48-100
585*345*230mm
200A
50A
EV48-160
605*435*255mm
160A
80A
EV48-200
615*650*250mm
160A
100A
EV48-250
605*290*480mm
200A
125A
Performance specifications
project
Features
Overvoltage protection
3.7V(single string)
Undervoltage protection
2.8V(single string)
Charging parameters
Maximum 2C lasts for 10 minutes,1C continues
Discharge parameters
Up to 1C continuous
Charge and discharge port form
Charge and discharge
fuse
Have
RS-485 communication
Have
Analog output AO
Have
Configurable DO output
Have
Power LED display
Have
Master switch
Have
Operating temperature
-20℃~60℃
Storage temperature
-20℃~70℃
Working humidity
Relative humidity of 10%to 80%,no condensation
cooling system
Passive natural cooling
Charger requirements
Lithium iron phosphate battery charger
Battery shell color
Toyota White(customizable)
Product Features
This product is designed for automatic guided/pure electric passenger/electric forklift applications.Products from the basic power module N+1 parallel combination,the maximum to meet the 24V120A power applications.The machine adopts the controller specially developed for AGV car application demand,realize the function of logic control,system protection,parameter setting,charger management,upper communication and so on,and adopts 7-inch full color touch screen to realize human-computer interaction.
The system has the following features:
●DC output 24V60A and 48V50A modular power supply,support current expansion upgrade.
●hot-swap mode,N+1 redundant structure protection
●ultra-high power density,compact size
●Standard efficiency up to 92%
●variety use mode(independent charge,interactive charge,maintenance charge)
●With industrial communication bus(CAN/MODBUS/PROFIBUS DP)
●High protection safety rating(IP54),designed for industrial applications
This product is designed for automatic guided vehicles/electric forklifts and other applications.Products from the basic power module N+1 parallel combination,the maximum to meet the 24V240A/48V200A power applications.The machine adopts the controller specially designed for the AGV trolley application for the automatic production line.It realizes the functions of logic control,system protection,parameter setting,charger management,upper communication and so on,and adopts 7-inch full color touch screen to realize human-computer interaction.
The system has the following features:
●Ultra-high power,240A 24V/200A 48V
●hot-swap mode,N+1 redundant structure protection
●ultra-high power density,compact size
●support current expansion upgrade
●Standard efficiency up to 92%
●Variety use mode(fast charge,interactive charge,balanced charge,maintenance charge)
●provide IO port for system interlock protection
●With industrial communication bus(CAN/MODBUS/PROFIBUS DP)
●High protection safety rating(IP54),designed for industrial applications
Product specifications
Voltage level
24Vsystem
48Vsystem
model
LPC120-24
LPC180-24
LPC240-24
LPC100-48
LPC150-48
LPC200-48
power
3600W
5400W
7200W
6000W
9000W
12000W
recharging current
5~120A
5~180A
5~240A
5~100A
5~150A
5~200A
Input voltage
220VAC±10%，50/60Hz（Optional 380VAC±10%）
Power factor
≥0.99 220Vac/50A,≥0.98 220Vac/25A（Single module）
Dynamic adjustment rate
±5.0%for 10-90%or 90-10%Load change,Adjust the time<200us
Load Regulation
±0.5%from 10%to 100%load
Charging voltage
16～30VDC
43～58VDC
Steady flow accuracy
≦±0.5%
Noise voltage
<200 mV Peak peak,30 MHz bandwidth,<2 mV rms Telephone weight
Regulation accuracy
≦±0.5%
Time accuracy
≦±10S/24h
Charging parameter settings
Voltage
0.01V
Current
0.1A
time
1S
Dimensions
According to power
weight
According to power
Operating temperature
0℃~45℃
Storage temperatur
-10℃~40℃
Working humidity
Relative humidity 10%~80%，No condensation
protection
Overcurrent,overvoltage,overtemperature,reverse,missing,short circuit,cut off
communication
CAN/MODBUS/PROFIBUS DP Optional
Interaction DIO
Dry contact DIO,Battery contact informs,standby,charging,charging is complete,faulty
safety standard
IEC 60950-1
Electromagnetic compatibility standards
EN 61000-6
environment
ETSI EN 300 019-2 RoHS compliant
Insulation and pressure
3.0 KVAC–Input pair output 1.5 KVAC–Input to ground 0.5 KVDC–Output to ground
Average trouble-free working hours
5 Million hours
noise
50DB
LPC120-24 charging station dimensions:
Specifications Model
Product model
Charging mode
Charging voltage/current
Battery capacity
Outline size
Net weight
Input power
Cell voltage
Ah
W*H*L(mm)
Kg
TP4-24
Three stage constant current
24V/4A
20-40
195*150*340
7
1Ф220VAC
TP8-24
Three stage constant current
24V/8A
45-70
195*150*340
7
1Ф220VAC
TP15-24
Three stage constant current
24V/13A
60-100
195*150*340
7
1Ф220VAC
TP20-24
Three stage constant current
24V/20A
100-150
195*150*340
7
1Ф220VAC
TP25-24
Three stage constant current
24V/25A
150-210
195*150*340
7
1Ф220VAC
TP30-24
Three stage constant current
24V/30A
180-250
195*150*340
8
1Ф220VAC
TP35-24
Three stage constant current
24V/35A
240-320
200*160*360
9
1Ф220VAC
TP15-48
Three stage constant current
48V/13A
60-100
195*150*340
7
1Ф220VAC
TP20-48
Three stage constant current
48V/20A
100-150
195*150*340
8
1Ф220VAC
TP25-48
Three stage constant current
48V/25A
150-210
195*150*340
9
1Ф220VAC
TP30-48
Three stage constant current
48V/30A
180-250
200*160*360
9
1Ф220VAC
TP40-48
Three stage constant current
48V/40A
240-320
200*160*360
10
1Ф220VAC
TP50-48
Three stage constant current
48V/50A
360-420
265*180*420
15
1Ф220VAC
TP15-72
Three stage constant current
72V/13A
60-100
195*150*340
8
1Ф220VAC
TP20-72
Three stage constant current
72V/20A
100-150
195*150*340
9
1Ф220VAC
TP25-72
Three stage constant current
72V/25A
150-210
200*160*360
10
1Ф220VAC
TP30-72
Three stage constant current
72V/30A
180-250
200*160*360
12
1Ф220VAC
TP15-96
Three stage constant current
96V/13A
60-100
195*150*340
8
1Ф220VAC
TP20-96
Three stage constant current
96V/20A
100-150
200*160*360
10
1Ф220VAC
TP25-96
Three stage constant current
96V/25A
150-210
265*180*420
15
1Ф220VAC
Protection characteristics
Overheating protection:when the internal temperature of the charger is over 75 degrees,the charger can be shutdown and the temperature will drop automatically to recharge the battery.
•short-circuit protection:when the charger output unexpected short circuit,the charger automatically shut down the output,after troubleshooting,delayed 10 seconds,restart charging.
Overheating protection:when the internal temperature of the charger is over 75 degrees,the charger can be shutdown and the temperature will drop automatically to recharge the battery.
•short-circuit protection:when the charger output unexpected short circuit,the charger automatically shut down the output,after troubleshooting,delayed 10 seconds,restart charging.
Technical index
Rated input voltage:AC220V+15%
•rated frequency:45~65 Hz
Battery voltage:24V/48V/72V/96V and so on
The full load efficiency:93%
•maximum charging current:4,8,13,20,25A,etc.
The average charge and floating charge:automatically
Battery type:AGM,colloid,semi colloid and water rich water injection battery(charging program has been set at the factory.If you have to make a choice again,you need to do it under the guidance of a professional
Shutdown mode:automatic,or timer,or disconnect the charging plug,automatic shutdown
Cooling mode:forced air cooling
Display mode:LED digital meter,with LED light indication charging state
Mechanical shock and seismic rating:comply with SAEJ1378 requirements
Protection level:IP46
Operating temperature:-5 DEG C to+45 DEG C
Storage temperature:-30 DEG C to+70 DEG C
Charging control:temperature compensation control,never overcharge,lack of charge
Battery charging curve

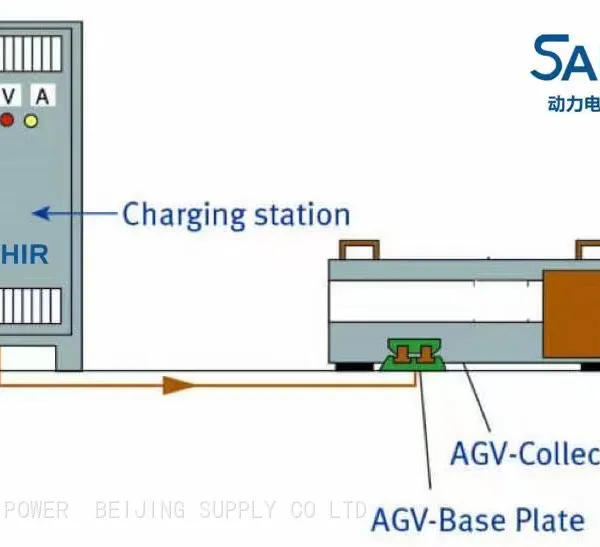

Smart Charging Station
Indicator light display
Red light-charging in progress.
The yellow light-the lights,the battery into floating state.When the yellow light is on,the capacity of the battery has reached 90%.After 2 hours,it reaches more than 96%.After 5 hours,it reaches more than 99%.
Light green-charging program complete.Battery capacity is more than 100%.
Display
Check the button in the panel:A-U-charge current,battery voltage,H charging time,charging C ah,E power.Button to see the parameters,the display automatically restores the charging current after 5 seconds.
