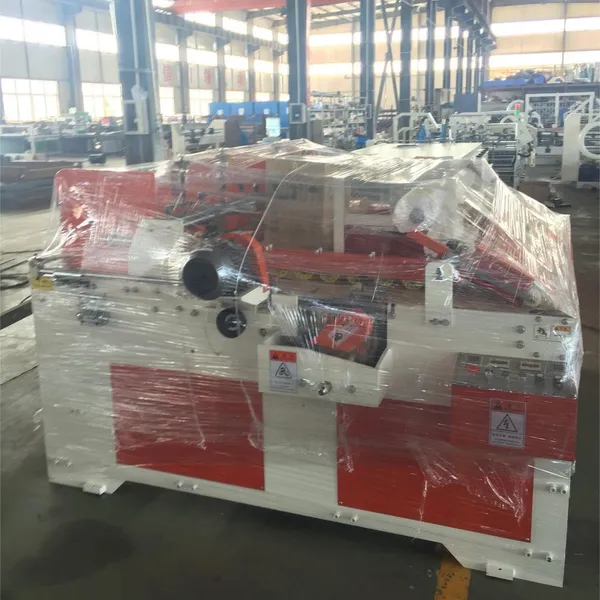

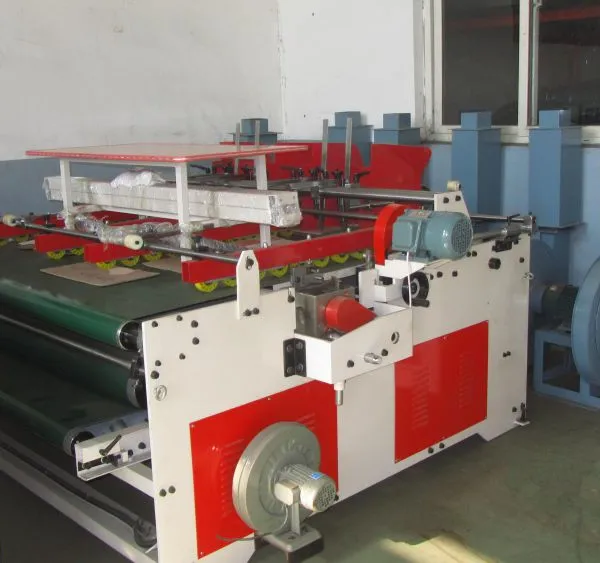

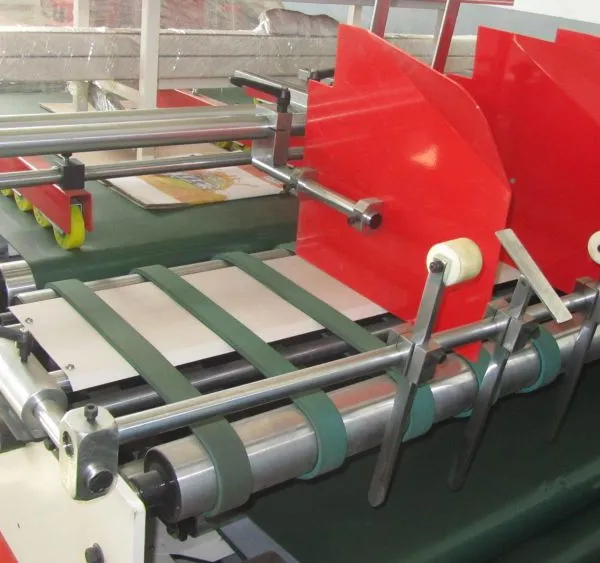

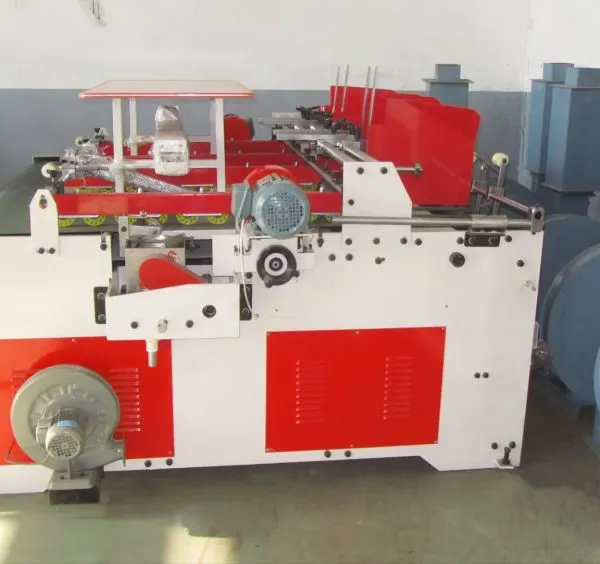

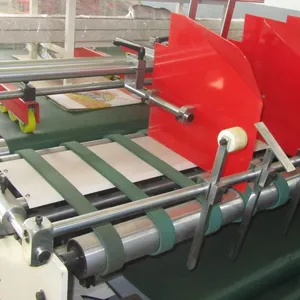

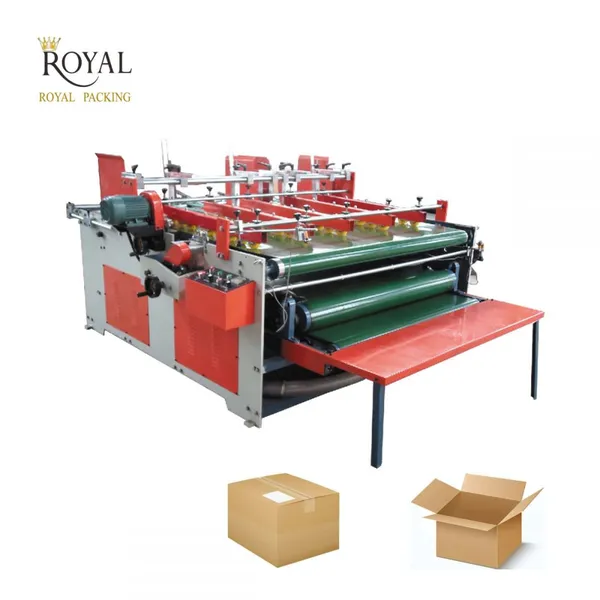

MJZX-3 Semi-auto Carton Gluer Machine
Introduction:
Semi-auto Carton Gluer Machine is new machine for carton production in recent years. It is mainly used for the glue of the carton, box, and special shape boxes. It can glue for 3-layer, 5-layer, 7-layer paperboard and so on. The machine structure is easy, working is stable, operation is simple, production efficiency is high, gluing quality is good, production cost is very low. The cost is 15times lower than steel wire stitcher machine.
Machine structure and working:
The machine is automatically paperboard feeding, can glue strongly, tidy up and gluing well. The Double-head grinding equipment can delete the UV coating and plastic coating well, improve the gluing. This machine size is small, no need big space.
Characteristics:
1. Easy and reliable operation system.
2. Novel design of the whole machine.
3. Fast changing sizes.
4. Can working good when the carton or box in special shape.
5. Use imported belt and famous brand electrical parts.
Technological Parameters:
Model |
MJZXJ-3 |
Max. Size of product |
1800*1100mm |
Normal working speed |
6000-10000boxes/hour (based on double working) |
Mechanical Speed |
56m/min |
Machine power |
2.7kw |
Machine Size |
Note: We can produce different size machine as customer’s requirements.
The main motor power parameters:
No. |
Name |
Type |
No. |
Add |
1 |
Main motor |
GH-28-S 1.5kw |
1 |
Shanghai Fulong |
2 |
Grinding motor |
80M1-2 0.55kw |
2 |
Taiwan Reyong |
3 |
Dust fan |
CET-75 |
1 |
Taiwan, Oute |
4 |
Pressing machine |
61K180RGU-CF |
1 |
Taiwan, Oute |
Main Electrical parts:
No. |
Name |
Brand |
QTY |
Origin |
1 |
Photoelectric switch |
Omron |
1 |
Japan |
2 |
Key switch |
Tend |
1 |
Taiwan |
3 |
Counter |
Baile |
1 |
Shanghai |
4 |
Abrupt stop |
Schneider |
1 |
France |
5 |
Indicator |
Schneider |
2 |
France |
6 |
According to the knob |
Schneider |
1 |
France |
7 |
Circuit breaker |
Schneider |
2 |
France |
8 |
Relay |
Omron |
3 |
Japan |
9 |
Ac contactor |
Schneider |
2 |
France |
10 |
Speed control unit |
Schneider |
1 |
France |
11 |
Frequency converter |
Delta |
1 |
Taiwan |
