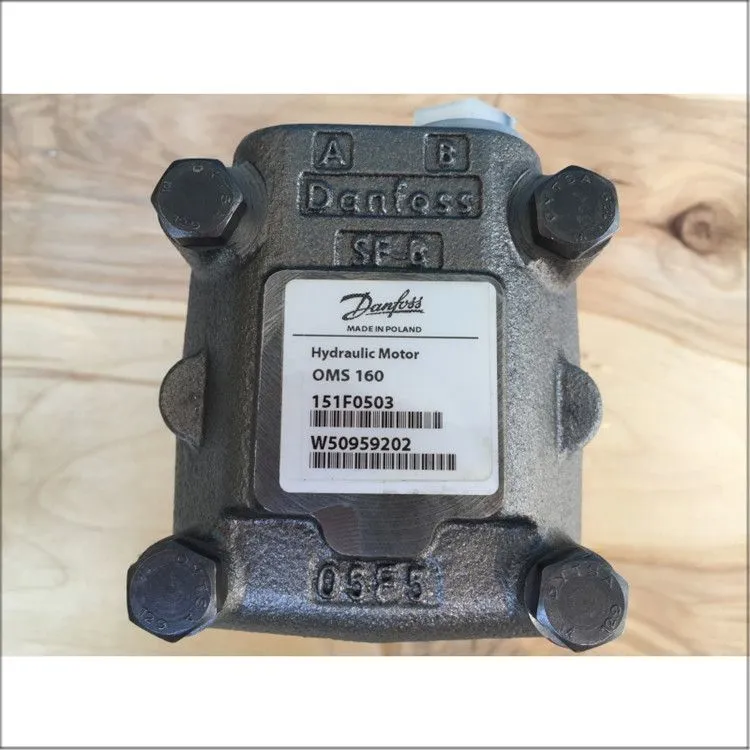

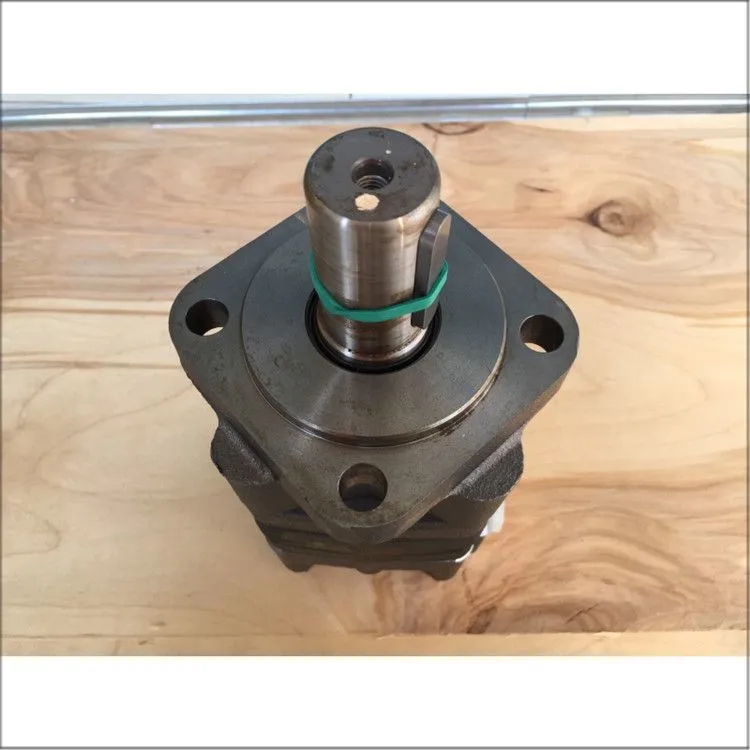

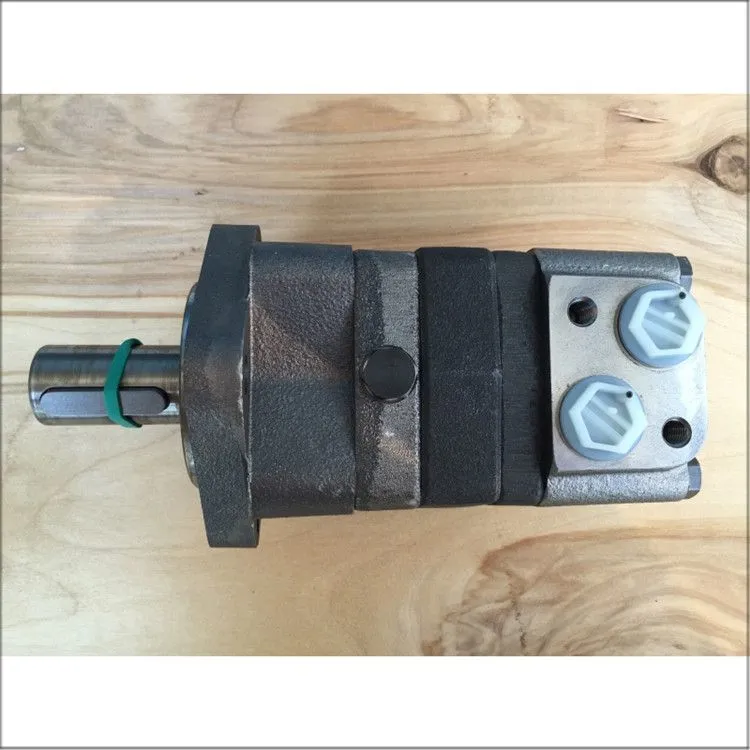

Danfoss Low-Speed High Torque Expandability
Motor OMS160 151F0503
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, Sunhydraforce, Hawe, Vickers, Siemens, Skf and other European and American brands.
Products
Plunger pump, Solenoid valve, Gear pump, Vane pump, Direction valve, Servo valve, Proportional valve, Servo motor
Details
Brand |
Danfoss |
Model |
OMS160 151F0503 |
Color |
Silver |
Place Of Origin |
Denmark |
Material |
Cast Iron |
Power Source |
Electric |
Advantages
High Torque/Pressure Capability
Rated operating pressure 25 MPa (250 bar), instantaneous maximum 30 MPa, capable of withstanding short-term overload
High Efficiency
Volumetric efficiency ≥ 94%, mechanical efficiency ≥ 92%, high output torque and slow oil temperature rise at the same flow rate, saving energy and extending oil life
Good Low-Speed StabilityCan operate smoothly in the 10–470 rpm range, with a minimum stable speed
Heavy-Duty Bearing StructureThe output shaft uses tapered roller bearings, capable of simultaneously withstanding large radial and axial loads, and can directly drive sprockets, drums, or wheels, eliminating the need for additional supports
Compact And LightweightDisplacement approximately 151 mL/rev, total weight only 10.7 kg; disc distribution and integrated valve plate structure reduce external piping, minimizing installation space. **Pollution Resistance and Long Lifespan:** Utilizes a column-mounted stator and rotor assembly with a wear-resistant ceramic distributor plate, achieving a cumulative lifespan of over 8000 hours under normal operating conditions.
Expandability
Offers various variants including flange/hub, short, bearingless, and integrated brake models, facilitating OEM design matching.
Application Areas
Construction Machinery
Tracked drives, wheel-side drives, excavator swing wheels, milling machines, road roller vibratory wheels.
Agricultural Machinery
Combine harvester travel/roller drives, sprinkler irrigation drums, tractor rear-mounted outputs.
Material Handling
Forklift travel, aerial work platform wheel drives, winches, and tracked drilling rigs.
Construction And Mining
Concrete spraying machines, mini tunneling machines, winches, and continuous wall grabs.
Forestry And Municipal Engineering
Logging machine tracks, sweeper brush rollers, demolition robot joints.
Industrial Automation
Mixer drives, conveyor lines, cable reels, and any hydraulic circuit requiring low-speed, high-torque, continuous operation.
