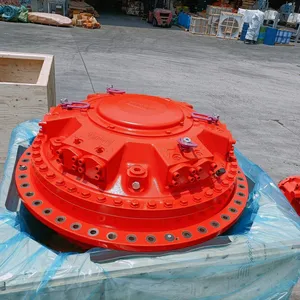

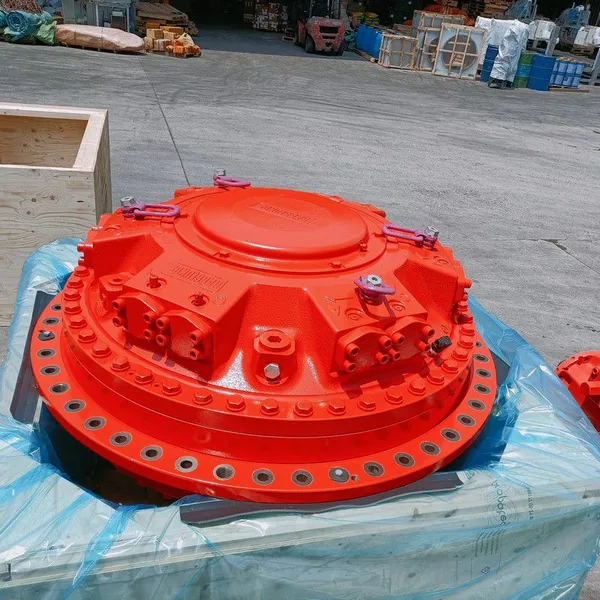

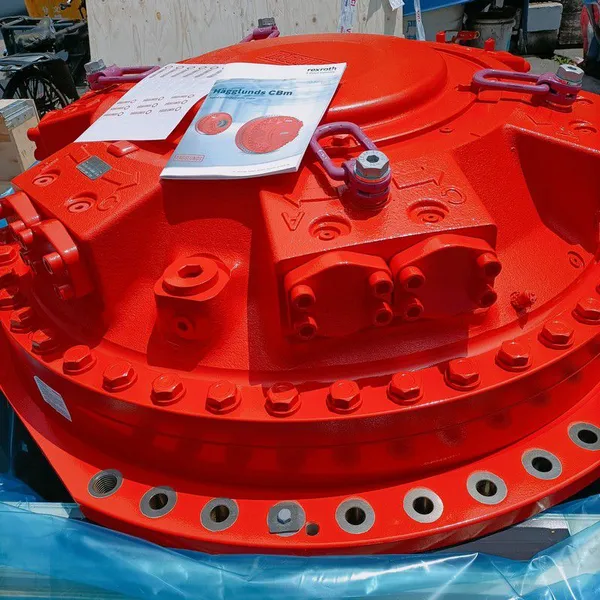

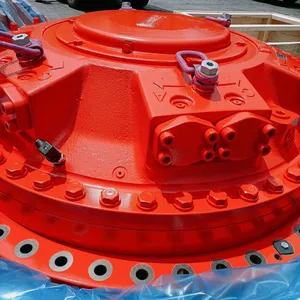

Hagglunds Wide Speed Range Low Noise Variable Motor
CBM 2000 1200 SA0N0C 01 05
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, Sunhydraforce, Hawe, Vickers, Siemens, Skf and other European and American brands.
Products
Plunger pump, Solenoid valve, Gear pump, Vane pump, Direction valve, Servo valve, Proportional valve, Servo motor
Details
| Brand | Hagglunds |

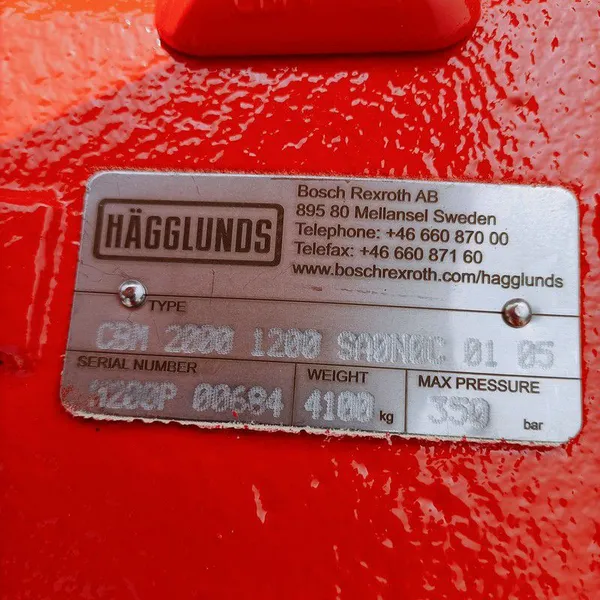

| Model | CBM 2000 1200 SA0N0C 01 05 |
| Color | Red |
| Power Source | Electric |
| Material | Cast Iron |
| Place Of Origin | Sweden |
Advantages
50% Increased Torque Density
Compared to its predecessor, the CBM 2000 model delivers 50% more torque within the same volume, achieving a maximum torque of 1970 kNm. This translates to greater driving force within a limited space, improving performance without increasing equipment size.
50% Weight Reduction
The overall weight is halved, significantly reducing the load on the drive shaft. This allows for a lighter equipment structure, reducing support structure costs and facilitating installation and maintenance.
Direct Drive Design
The motor is directly mounted on the drive shaft, eliminating the need for gearboxes, belts, or couplings. This reduces mechanical losses, potential failure points, and maintenance requirements, resulting in higher transmission efficiency.
Four-Quadrant Operation Capability
It supports rapid start, stop, and reverse, making it particularly suitable for heavy-duty equipment requiring frequent changes in operating conditions.
High Starting Torque
Outputs near-theoretical maximum torque from a standstill, eliminating the need for additional acceleration. This is crucial for applications requiring overcoming static friction, such as crushing and extrusion.
Excellent Shock Load Resistance
The robust structural design can withstand sudden overloads and impact loads without damaging the motor. It offers extremely high reliability in environments with severe load fluctuations, such as mines and scrap metal processing.
Low Rotational Inertia
Lightweight rotating components with low inertia enable millisecond-level rapid response. Combined with precise hydraulic control, it meets high-precision positioning and high dynamic performance requirements.
Wide Speed Range
Maintains constant torque output from 0 to the maximum speed (up to 53 rpm for the CBM 2000). Adapts to different process speed requirements without the need for frequency converters or mechanical speed changers.
Modular And Compact Design
Available in multiple frame sizes (2000/3000/4000/5000/6000), with standardized mechanical interfaces. The CBM 2000 features a 270mm through-hole for through-shaft mounting, saving space and simplifying piping layout.
High Energy Efficiency
The hydraulic system allows for load sensing and power limiting, outputting energy only when needed. Compared to electric drives, it consumes less energy under partial load conditions, resulting in significant long-term operating cost advantages.
Application Areas
Marine And Marine Engineering
Used in large ship deck machinery, anchor winches, cargo hoists, etc. Its corrosion-resistant design and four-way motion control allow it to withstand high humidity, salt spray, and wave impact at sea.
Metallurgy And Steel Rolling Equipment
Drives heavy equipment such as rolling mills, shears, and coilers. High torque density allows direct mounting on the roll shaft end, eliminating the need for a bulky gearbox and saving workshop space.
Mining Crushing And Conveying
Used in crushers, belt conveyors, bucket wheel excavators, etc. Heavy-duty starting capacity handles ore blockage conditions, and low inertia supports frequent starts and stops, improving production efficiency.
Port Lifting And Transportation
Used in quay container cranes, gantry cranes, ship unloaders, etc. Directly drives lifting and traveling mechanisms, eliminating the potential for traditional reducer failures; braking energy can be recovered, reducing terminal energy consumption.
Petroleum And Chemical Machinery
Suitable for drilling rig top drives, mixers, extruders, etc. Explosion-proof design meets chemical environment safety requirements; 270mm through-hole facilitates drill pipe passage and simplifies drilling rig structure.
Paper And Pulp Industry
Drives pulpers, press rolls, paper winding machines, etc. Wide speed range adapts to different paper production processes; fully enclosed housing prevents paper dust from entering, meeting clean production requirements.
Waste Recycling And Processing
Used in waste crushers, sorting rollers, compactors, etc. Superior impact resistance can handle impacts from hard foreign objects such as metal; overload protection prevents equipment damage.
Rubber And Plastics Machinery
rives internal mixers, extruders, calenders, etc. Outputs high torque directly from a standstill, meeting the stringent starting torque requirements of mixing processes; precise speed control ensures stable product quality.
Hydraulic And Hydropower Engineering
Used in gate hoists, sluice gates, ship lifts, etc. Power-off self-locking function ensures safe gate positioning; low-speed, high-torque characteristics are suitable for hoists operating at several revolutions per minute.
Customized Equipment
The CBM 2000 can be configured with a shrink disc coupling to directly replace older Hagglunds MB 1600/2400 motors, achieving equipment upgrades. Suitable for renovation projects that require retaining the original mechanical structure but improving performance.
