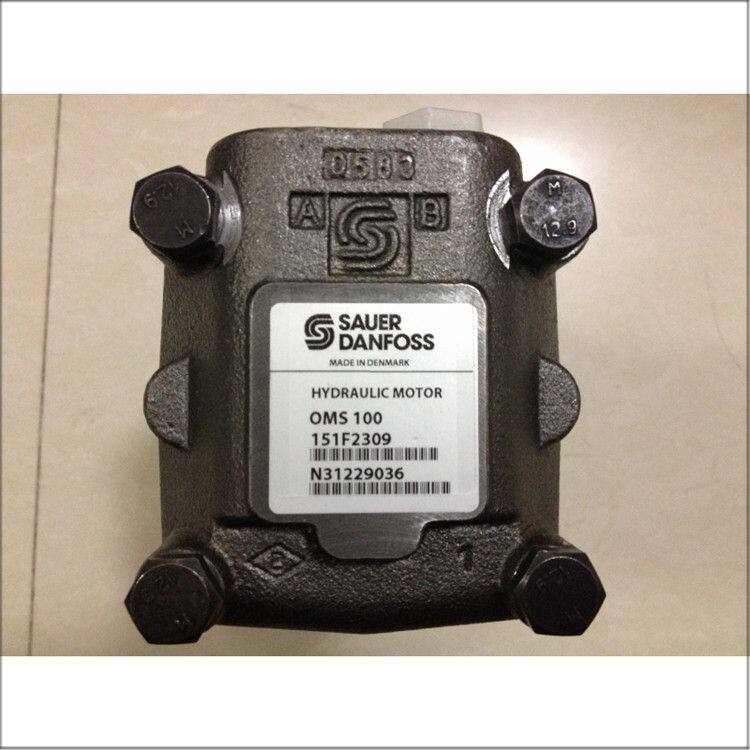

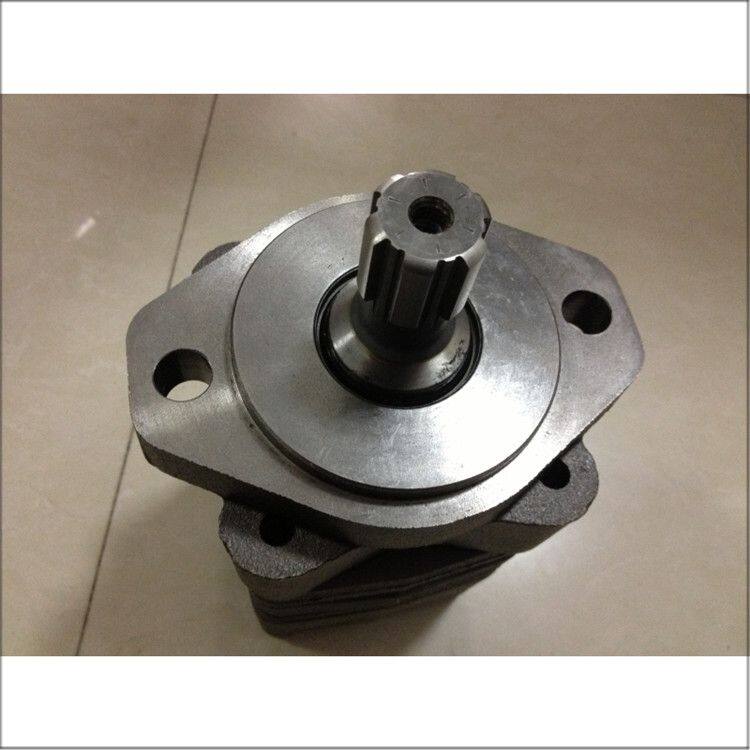

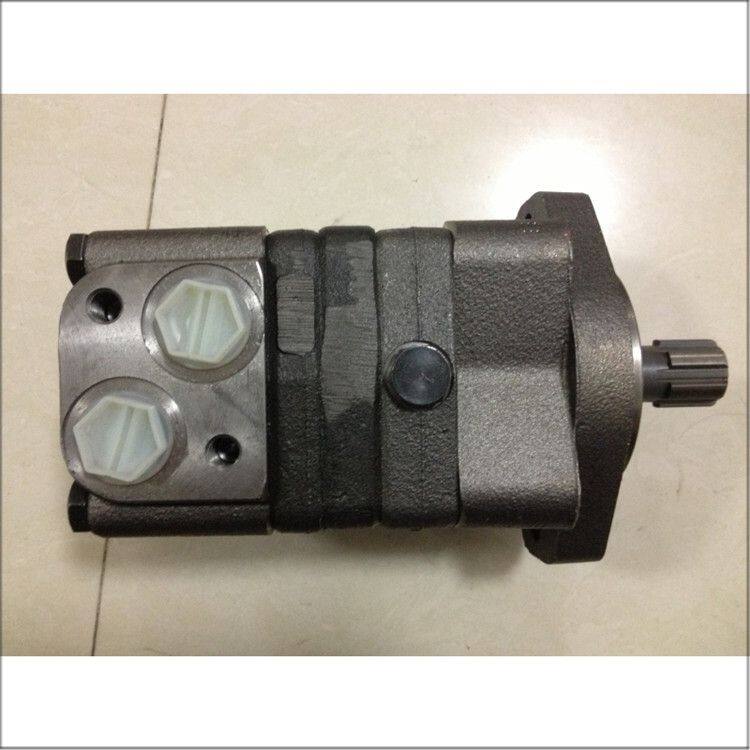

Danfoss Energy Saving Long Lifespan Heavy-Duty
Bearings Motor OMS100 151F2309
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, Sunhydraforce, Hawe, Vickers, Siemens, Skf and other European and American brands.
Products
Plunger pump, Solenoid valve, Gear pump, Vane pump, Direction valve, Servo valve, Proportional valve, Servo motor
Details
Brand |
Danfoss |
Model |
OMS100 151F2309 |
Color |
Grey |
Place Of Origin |
Denmark |
Material |
Cast Iron |
Power Source |
Electric |
Advantages
Low Speed, High TorqueThe OMS100 has a displacement of approximately 100 cm³/rev, with a maximum output torque of 420 N·m (continuous) / 520 N·m (intermittent). The minimum stable speed is ≤ 10 rpm, allowing direct drive of the working mechanism without a reducer.
High Starting TorqueOptimized cycloidal pair and distributor plate design require only 10.5 bar for starting pressure, providing strong load-bearing starting capability.
High Efficiency And Energy SavingVolumetric efficiency ≥ 90%, mechanical efficiency ≥ 85%, maintaining constant output torque across the entire speed range and reducing system overflow losses.
High Back Pressure CapacityStandard high-pressure shaft seal allows for return oil side pressure up to 140 bar, eliminating the need for external drain lines and simplifying system piping.
Heavy-Duty BearingsUtilizes tapered roller bearings, capable of withstanding high radial and axial loads simultaneously, allowing direct mounting of sprockets, hubs, or drums.
Long LifespanThe distribution mechanism features automatic wear compensation, with bearing and oil seal lifespans exceeding 5000 hours, ensuring long maintenance intervals.
Flexible Installation4-hole oval flange, multiple shaft extension and port options (G1/2, NPT, O-Ring), highly interchangeable with Eaton, White, and other brands.
Rich optional functionsCan be equipped with speed measuring ports, speed sensors, drum brakes, flushing valves, Viton/high-temperature oil seals, etc., meeting OEM customization needs.
Application Areas
Agricultural Machinery
Combine harvesters, silage harvesters, seeders, tractor front-wheel drive.
Construction Machinery
Small tracked drive, sweeper roller brushes, milling machine conveyors, truck-mounted crane slewing.
Material Handling
Forklift travel, electric pallet truck drive, aerial work platform wheel drive.
Forestry And Turf
Logging machine tracks, lawnmower cutter heads, branch shredders.
Fisheries And Vessels
Net winches, steering gear, deck cranes.
Fixed Equipment
Injection molding machine screw drive, wire take-up and delivery machine, wind-powered yaw drive.
Special Vehicles
Snowplow, airport de-icing vehicle, garbage compactor.
